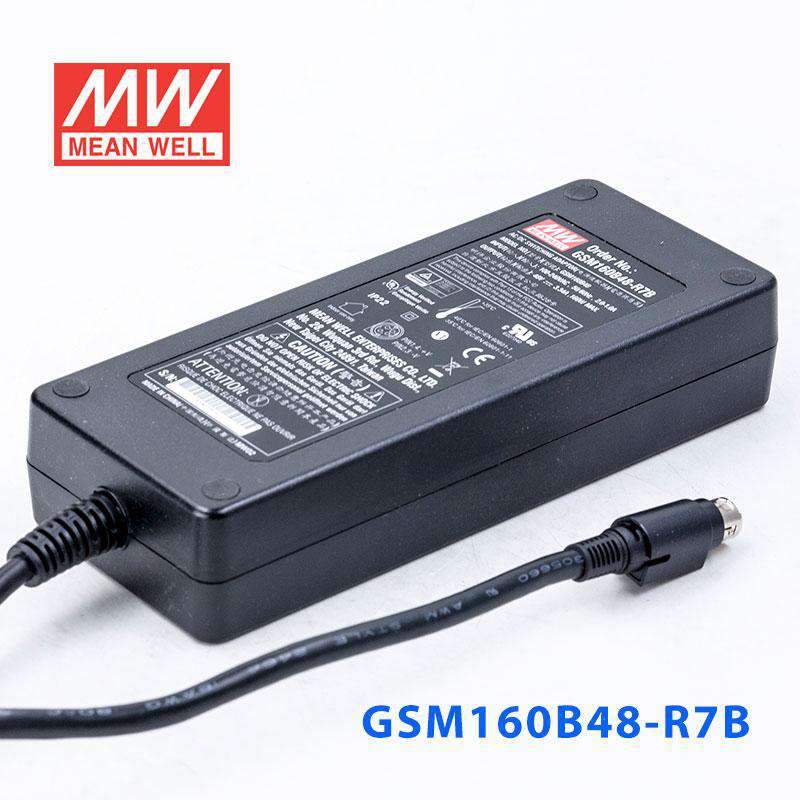

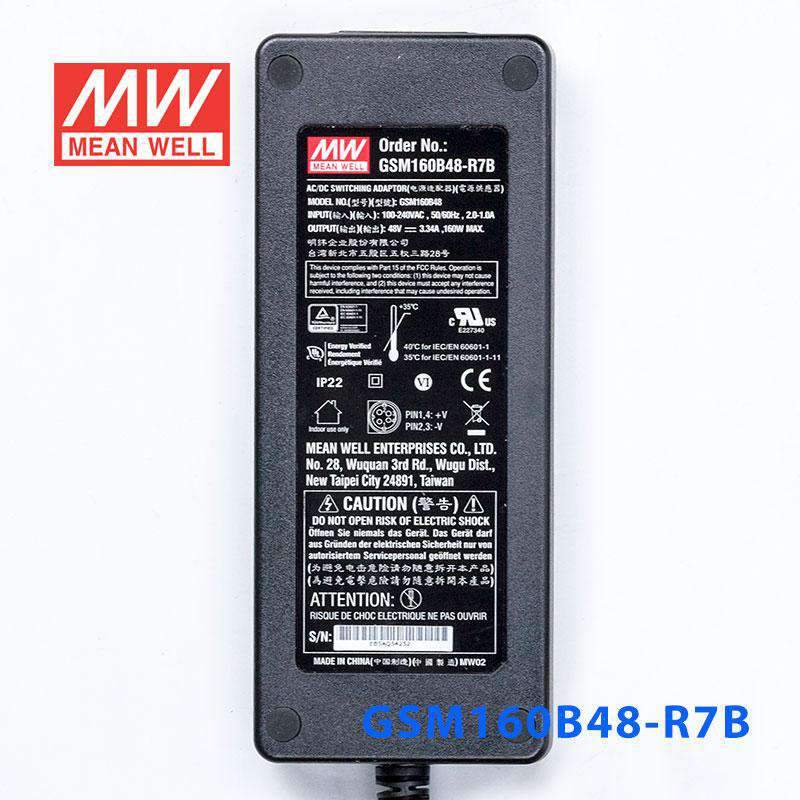

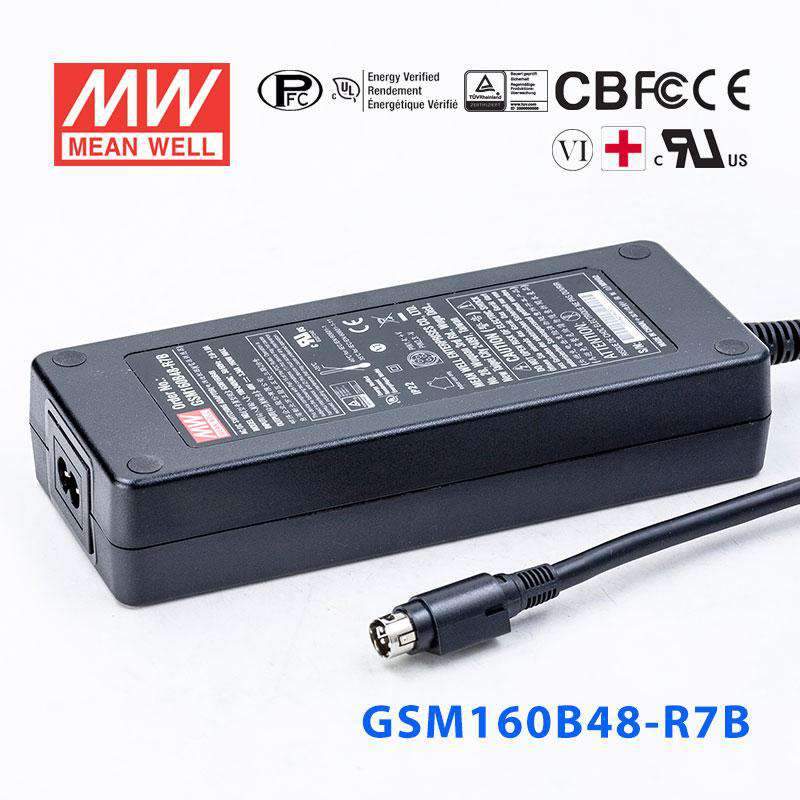

Mean Well GSM160B48-R7B Power Supply 160W 48V
Description
Description
Features
| Universal AC input / Full range |

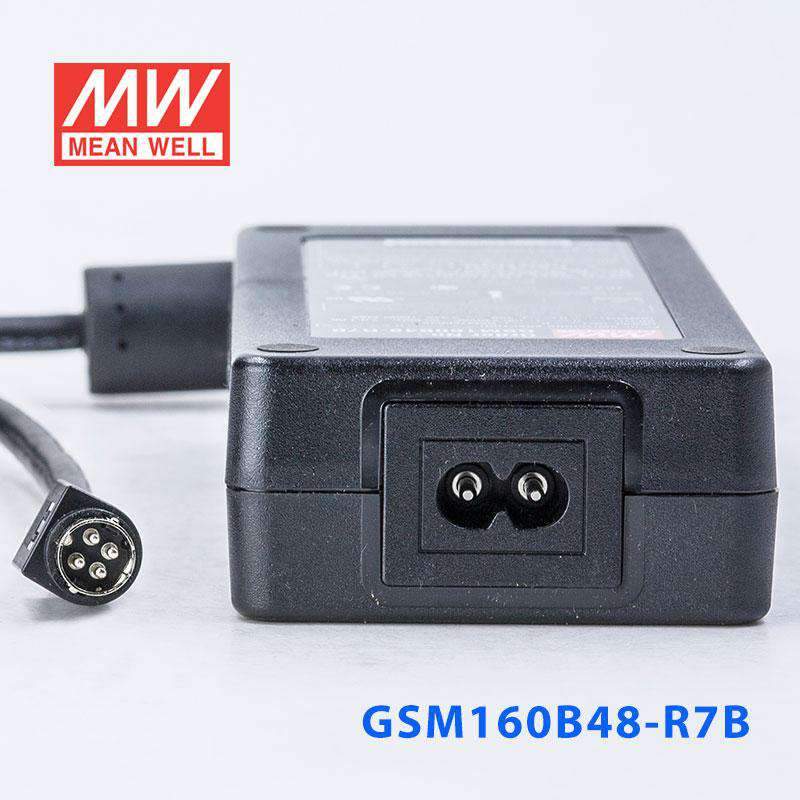

| 2 pole AC inlet IEC320-C8 |
| Medical safety approved (2 x MOPP between primary to secondary) |
| Low leakage current <100uA |
| No load power consumption < 0.15W |
| High efficiency up to 94% |
| Class II power (with earth pin) |
| Protections: Short circuit / Overload / Over voltage / Over temperature |
| Fully enclosed plastic case |

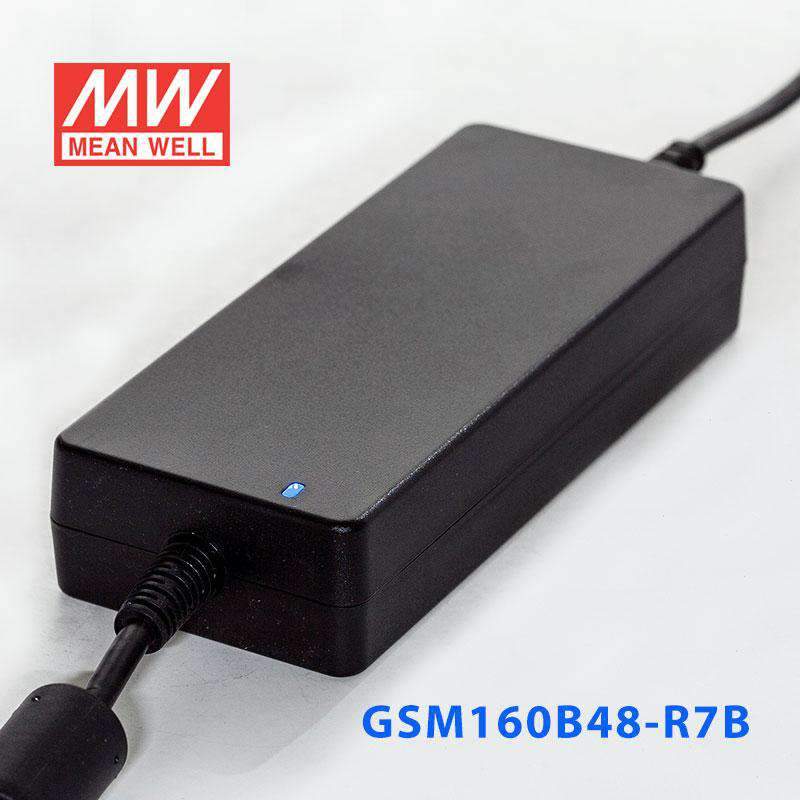

| LED indicator for power on |
| Energy efficiency level VI |
| 100% full load burn-in test |
| 3 years warranty |
General Specification
| AC input voltage range | 80~264VAC ; 113~370VDC |
| AC inrush current (max.) | Cold start, 120A at 230VAC |
| Overload protection | 105%~150% rated output voltage, hiccup mode, auto-recovery |
| Withstand voltage | I/P-O/P: 4kVAC |
| Working temperature | -30~+70°C (refer to output derating curve ) |
| Safety standards | ANSI/AAMI ES60601-1/ ES60601-1-11 , TUV EN60601/60601-1-11 approved |
| EMC standards | EN55011(CISPR11) class B, EN61000-3-2,3, FCC part 15 class B, EN61000-4-2,3,4,5,6,8,11,EN55024, EN61204-3,EN60601-1-2 |
| Length of output cable | 100cm of UL2464, 16AWG for 12V ; 120cm of UL2464, 18AWG for 15~48V |
| Dimension (LxWxH) | 175x 72x 35 mm |
| Standard DC plug | R7B: Power DIN 4P with lock type |
Specifications
Specifications
-
BrandMean Well
-
SeriesGSM Series
-
Power Rating160 Watt
-
Output Voltage48 Volt
-
Rated Current3.34 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,FCC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length6.89 in
-
Width2.83 in
-
Height1.38 in
-
Weight1.46 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the GSM160B48-R7B for 48V telecom or communications equipment?
Yes, if the equipment is designed for a 48V constant-voltage source and its demand stays within 3.34A and 160W. Those limits are the key sizing check for telecom and communications loads.
Is this model suitable for 48V industrial networking hardware or field equipment?
It can be used with 48V industrial electronics that require regulated constant-voltage DC power. The output is limited to 3.34A, so the connected load must stay below that current and the 160W power rating.
Can the GSM160B48-R7B power a 48V embedded or control subsystem?
For embedded or control subsystems built for 48V DC input, this supply can be a fit. It provides constant 48V output with up to 160W available, which is useful when the design needs higher voltage at moderate current.
Is the GSM160B48-R7B appropriate for 48V bench testing or lab equipment?
It is suitable for bench or lab use when the equipment specifically requires 48V constant-voltage input and draws no more than 3.34A. The wide 80-264VAC input is also useful where available AC service may vary.
Is this 48V power supply rated for outdoor conditions?
The stated operating temperature is -30°C to +70°C, so the thermal range is wide. However, the provided specifications do not include an IP rating, so outdoor or water-exposed use is not confirmed here.
