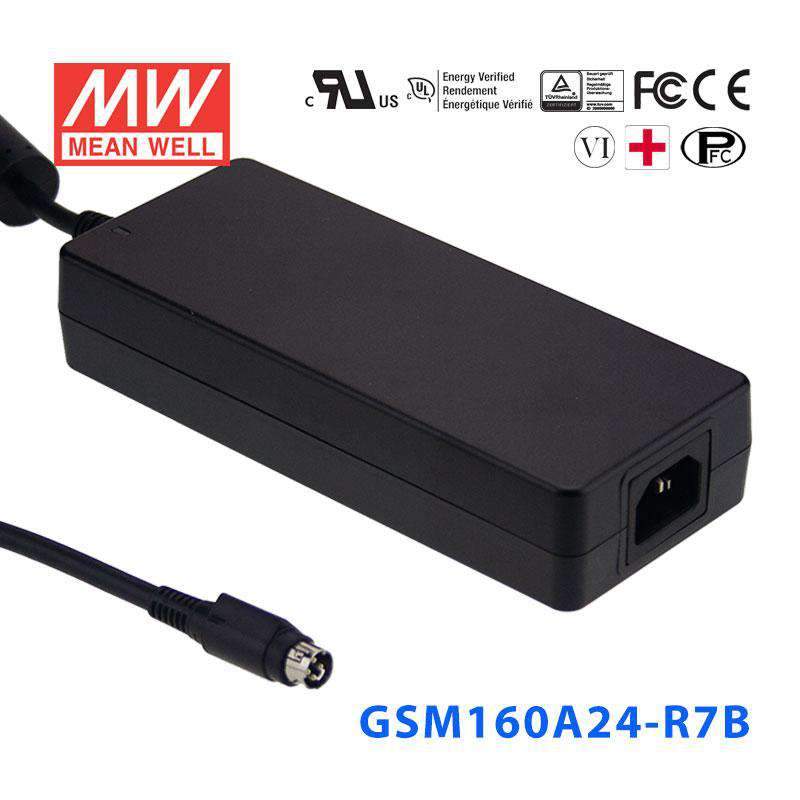

Mean Well GSM160A24-R7B Power Supply 160W 24V
$57.42 USD
Unit price /
Unavailable
Description
Description
Features
| Universal AC input / Full range |
| 3 pole AC inlet IEC320-C14 |
| Medical safety approved (2 x MOPP between primary to secondary) |
| Low leakage current <100uA |
| No load power consumption < 0.15W |
| High efficiency up to 94% |
| Class II power (with earth pin) |
| Protections: Short circuit / Overload / Over voltage / Over temperature |
| Fully enclosed plastic case |
| LED indicator for power on |
| Energy efficiency level VI |
| 100% full load burn-in test |
| 3 years warranty |
General Specification
| AC input voltage range | 80~264VAC |
| AC inrush current (max.) | Cold start, 120A at 230VAC |
| Overload protection | 105%~150% rated output voltage, hiccup mode, auto-recovery |
| Withstand voltage | I/P-O/P: 4kVAC, I/P-FG: 2kVAC, O/P-FG:0.5KVAC |
| Working temperature | -30~+70°C (refer to output derating curve ) |
| Safety standards | ANSI/AAMI ES60601-1, TUV EN60601-1 approved |
| EMC standards | EN55011(CISPR11) class B, EN61000-3-2,3, FCC part 15 class B, EN61000-4-2,3,4,5,6,8,11,EN55024, EN61204-3,EN60601-1-2 |
| Length of output cable | 120cm of UL2464, 18AWG |
| Dimension (LxWxH) | 175x 72x 35 mm |
| Standard DC plug | R7B: Power DIN 4P with lock type |
Specifications
Specifications
-
BrandMean Well
-
SeriesGSM Series
-
Power Rating160 Watt
-
Output Voltage24 Volt
-
Rated Current6.67 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,FCC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length6.89 in
-
Width2.83 in
-
Height1.38 in
-
Weight1.46 lb
