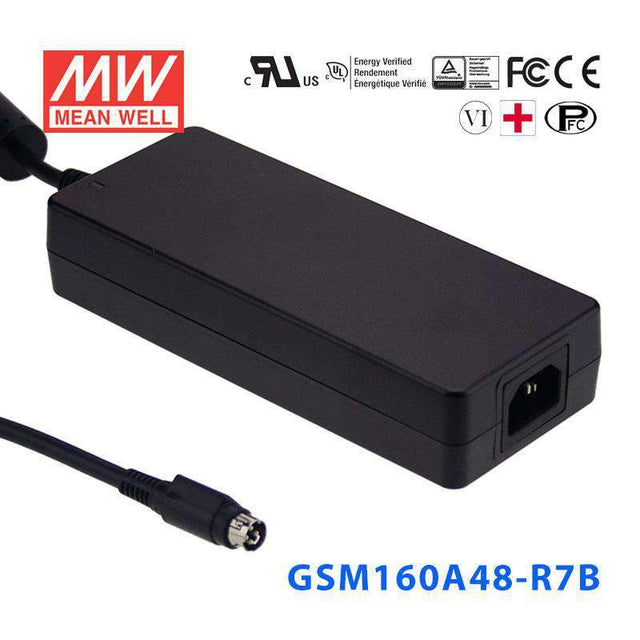

Mean Well GSM160A48-R7B Power Supply 160W 48V
The GSM160A48 is a 160W Mean Well power converter (input range: 80~264VAC).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ 4KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Safety approvals: ISOLATION LEVEL
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesGSM Series
-
Power Rating160 Watt
-
Output Voltage48 Volt
-
Rated Current3.34 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,FCC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length6.89 in
-
Width2.83 in
-
Height1.38 in
-
Weight1.46 lb
::specification::
Frequently Asked Questions
What are the main output specifications of the Mean Well GSM160A48-R7B?
The GSM160A48-R7B is a 160W desktop AC/DC power supply with a 48V DC output. It is rated for 3.34A output current and is designed for applications that need a higher-power regulated 48V supply.
Is the GSM160A48-R7B suitable for medical equipment applications?
Yes, this model is positioned for medical-use applications and includes medical safety approvals. It is specified with 2 x MOPP isolation between primary and secondary, low leakage current below 100uA, and compliance with ANSI/AAMI ES60601-1 and TUV EN60601-1.
What input voltage range does this power supply support?
The GSM160A48-R7B accepts a universal AC input range of 80 to 264VAC. That makes it suitable for use across regions with different mains voltages when a wide-input desktop power supply is required.
What kind of protection features are included in this model?
This power supply includes protection for short circuit, overload, over voltage, and over temperature. Its overload protection is specified at 105% to 150% of rated output and operates in hiccup mode with auto-recovery.
Can the GSM160A48-R7B be used in demanding temperature conditions?
It is rated for operation from -30°C to +70°C, subject to the output derating curve. This wide working temperature range makes it a practical choice for industrial or professional environments where ambient conditions may vary.
What connector and cable format does the GSM160A48-R7B use on the DC output side?
This version uses the R7B output option, which is specified as a Power DIN 4P lock-type plug. The output cable is listed as 120cm long and uses UL2464 18AWG cable.
How efficient is this power supply for continuous-use applications?
The GSM160A48-R7B offers efficiency of up to 94% and no-load power consumption below 0.15W. It also meets Energy Efficiency Level VI, which is relevant for buyers comparing power supplies for lower standby and operating losses.
