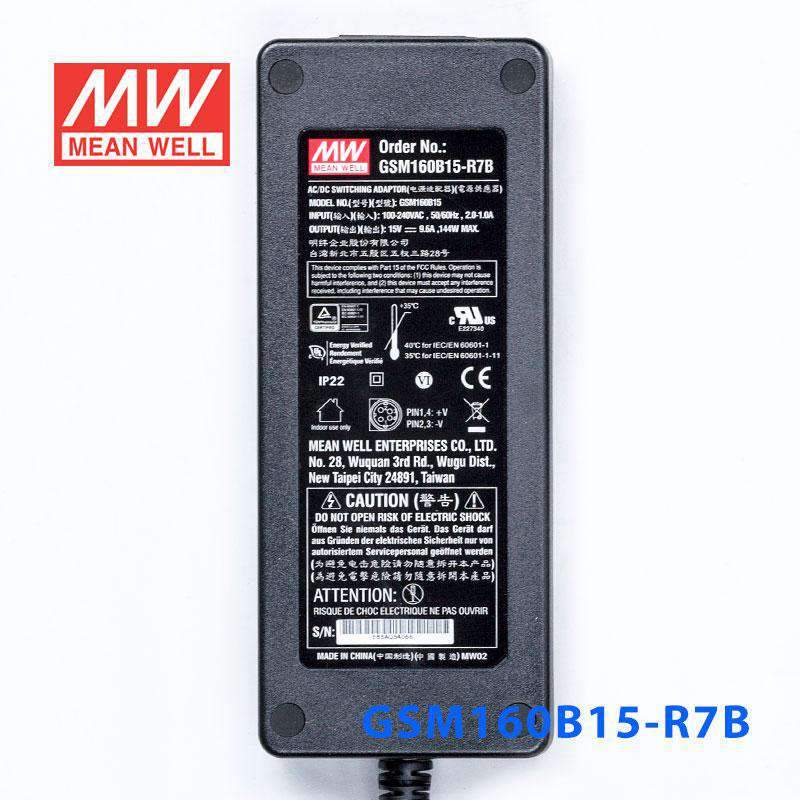

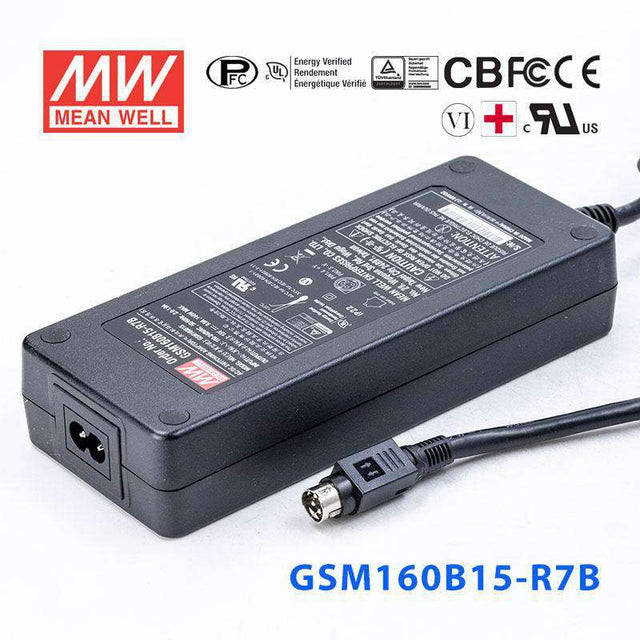

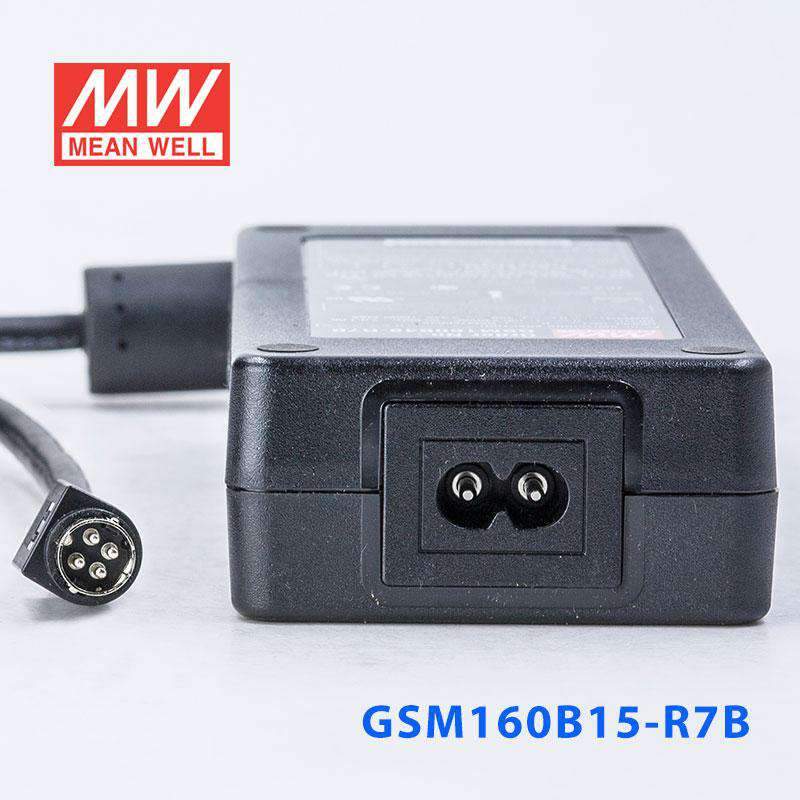

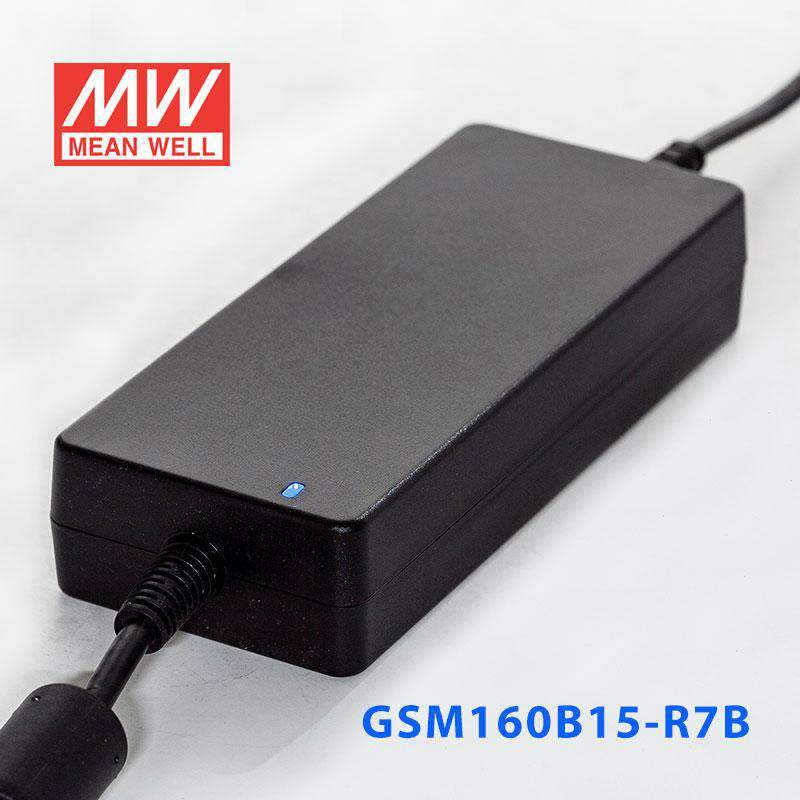

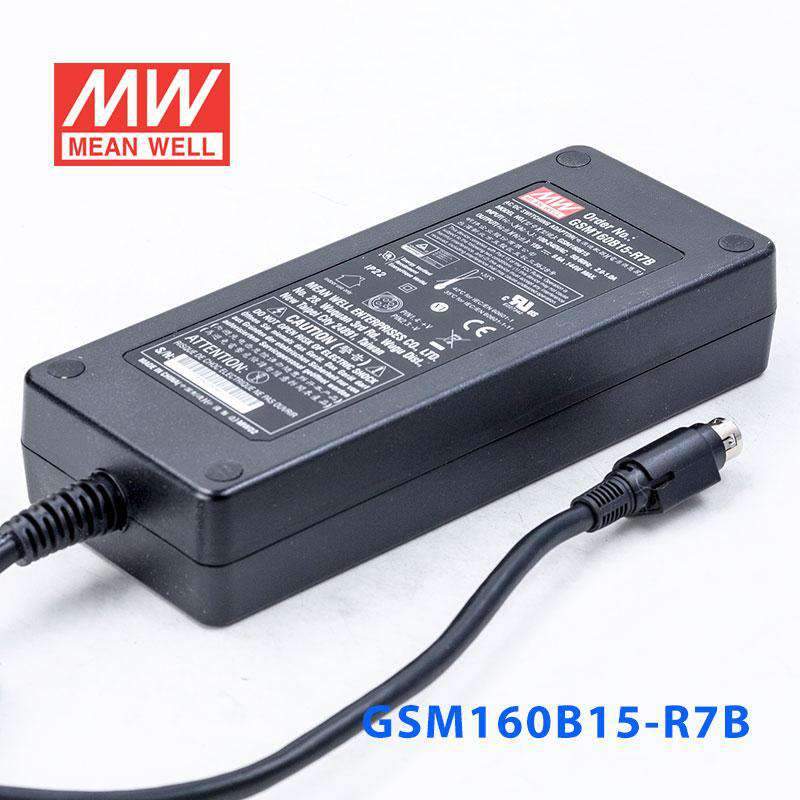

Mean Well GSM160B15-R7B Power Supply 144W 15V
The GSM160B15 is a 160W Mean Well power converter.
Key Features
- ✓ 4KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Safety approvals: ISOLATION LEVEL
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesGSM Series
-
Power Rating144 Watt
-
Output Voltage15 Volt
-
Rated Current9.6 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,FCC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length6.89 in
-
Width2.83 in
-
Height1.38 in
-
Weight1.46 lb
::specification::
Frequently Asked Questions
Can the GSM160B15-R7B be used for 15V automation and control equipment?
Yes, it is intended for 15V constant-voltage applications and is rated for up to 9.6A and 144W. That makes it suitable for 15V control equipment, automation electronics, and similar systems within that load range.
Is this model appropriate for 15V embedded hardware or industrial electronics?
It can be used where a stable 15V constant-voltage supply is required. The output capacity is 144W total, with a maximum current of 9.6A.
Can I use this 15V supply for measurement devices, industrial displays, or interface modules?
It can fit 15V measurement, display, or interface equipment if the device specification matches a constant-voltage 15V source. The available output is 15V at up to 9.6A.
Does the GSM160B15-R7B make sense for a 15V bench, fixture, or validation setup?
Yes, it can be used in 15V validation rigs and bench fixtures that need a higher-power AC-DC source. It supports 80-264VAC input and provides up to 144W on the output side.
Can this power supply handle cold or hot operating areas, and is it outdoor-rated?
The product is specified for operation from -30°C to +70°C, so it covers a broad temperature range. The listed specifications do not include an IP rating, so outdoor or water-exposed suitability is not established by the provided data.
