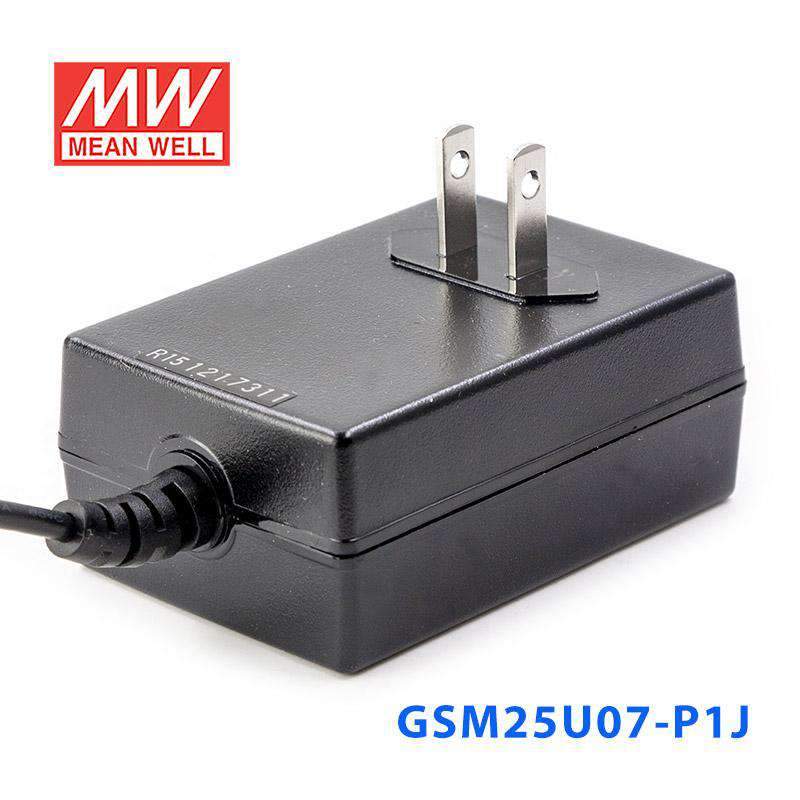

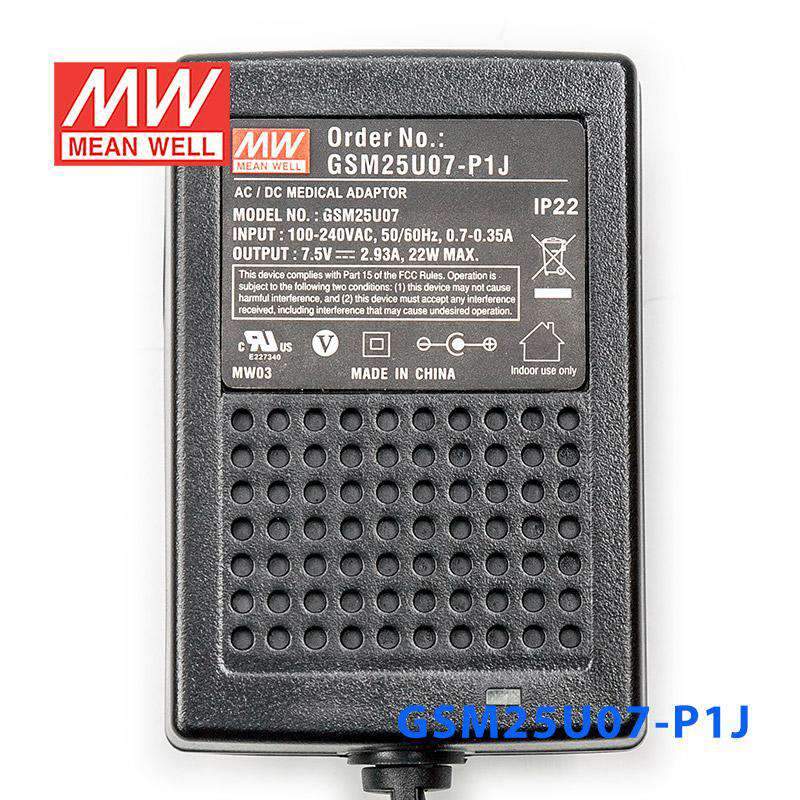

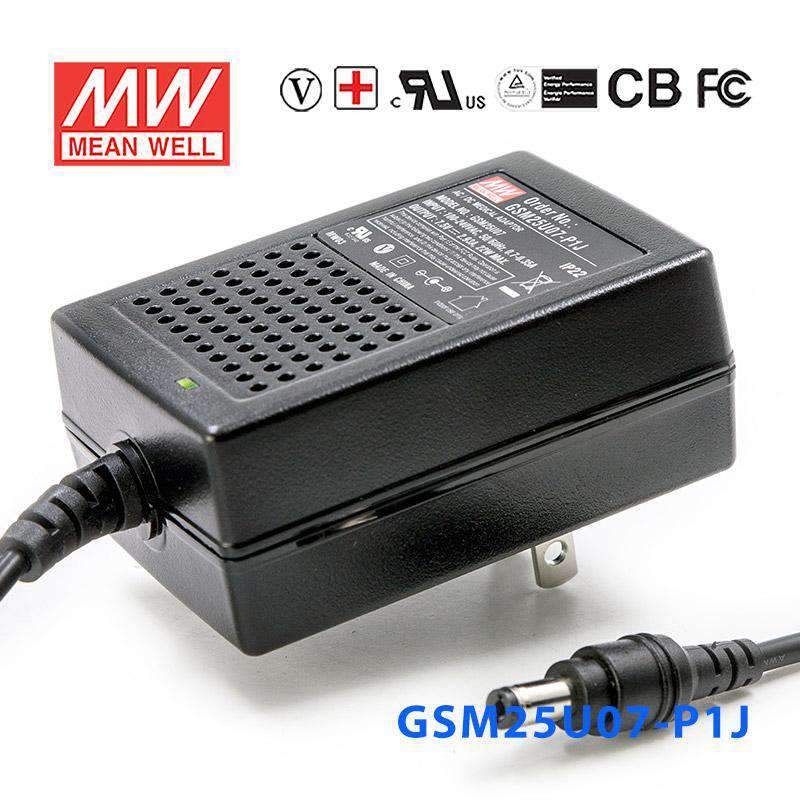

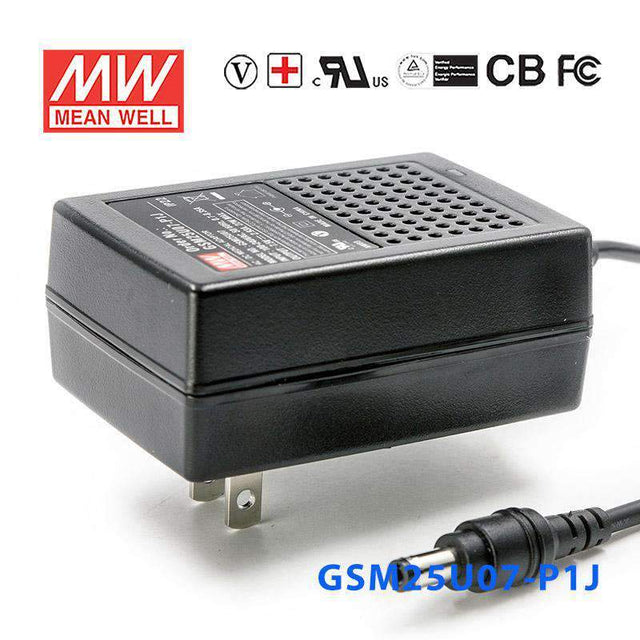

Mean Well GSM25U07-P1J Power Supply 22W 7.5V
The GSM25U07 is a 25W Mean Well power converter (input range: 80~264VAC, operating temperature: -25~+60℃).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ 4KVAC reinforced I/O isolation
- ✓ No minimum load required
- ✓ Wide operating temperature: -25~+60℃
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: ISOLATION LEVEL ANSI/AAMI ES60601-1, ES60601-1-11, EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesGSM Series
-
Power Rating22 Watt
-
Output Voltage7.5 Volt
-
Rated Current2.93 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~60°C
-
Warranty3 Year
-
Length3.11 in
-
Width2.13 in
-
Height1.3 in
-
Weight0.47 lb
::specification::
Frequently Asked Questions
Can I use the GSM25U07-P1J for 7.5V embedded or industrial control electronics?
Yes, if the equipment is designed for constant-voltage 7.5V input and stays within 22W total output. This model can provide up to 2.93A, which fits many compact embedded and control applications at 7.5V.
Is this 7.5V supply suitable for portable test equipment or monitoring devices?
It can be suitable for test or monitoring equipment that requires a stable 7.5V DC source and no more than 2.93A. The wide 80-264VAC input is also useful when the equipment may be used across different AC mains environments.
Can this model power a small automation interface that runs on 7.5V?
Yes, for automation interfaces or embedded devices built around a fixed 7.5V input and a load up to 22W. Because it is a constant-voltage supply, it is meant for electronics that specify a steady 7.5V source.
What is the practical load limit for this 7.5V power supply?
The practical limit is 22W total output, which corresponds to a maximum output current of 2.93A at 7.5V. Loads above 2.93A would exceed the rated capacity of this model.
Is the GSM25U07-P1J appropriate for outdoor or exposed environments?
Its operating temperature range is -25°C to +60°C, so the temperature spec covers many indoor equipment and control-panel conditions. However, no IP rating is listed in the provided specs, so use in exposed outdoor, wet, or dusty environments is not established here.
