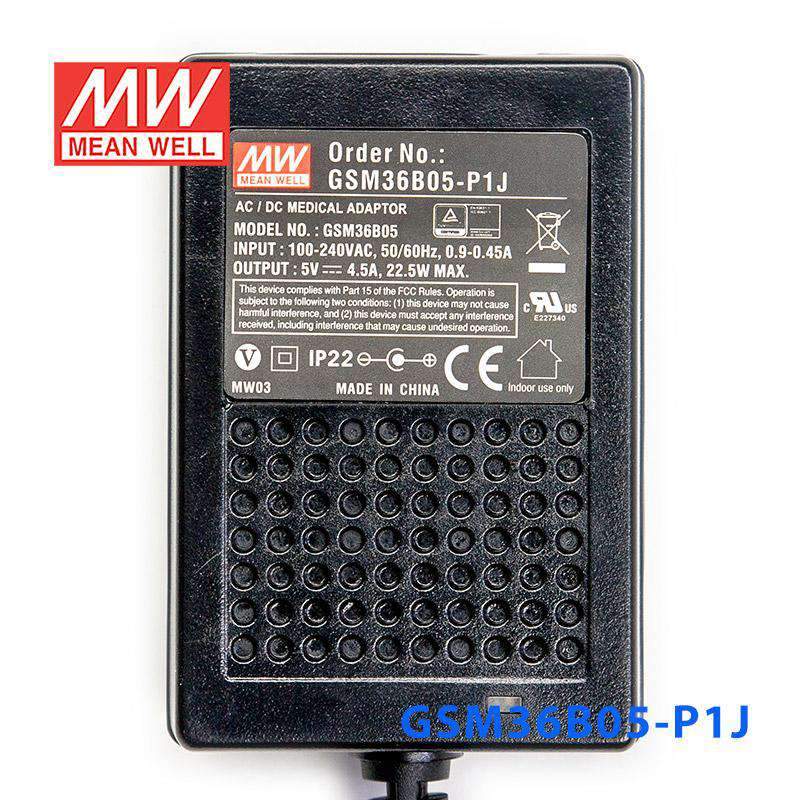

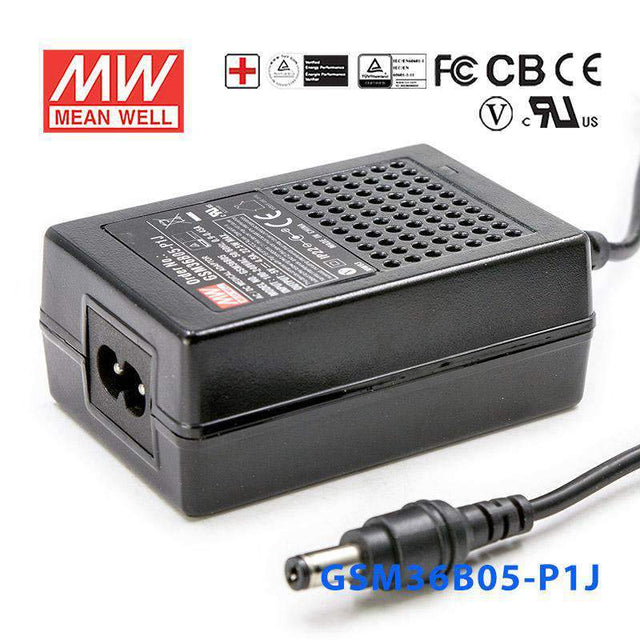

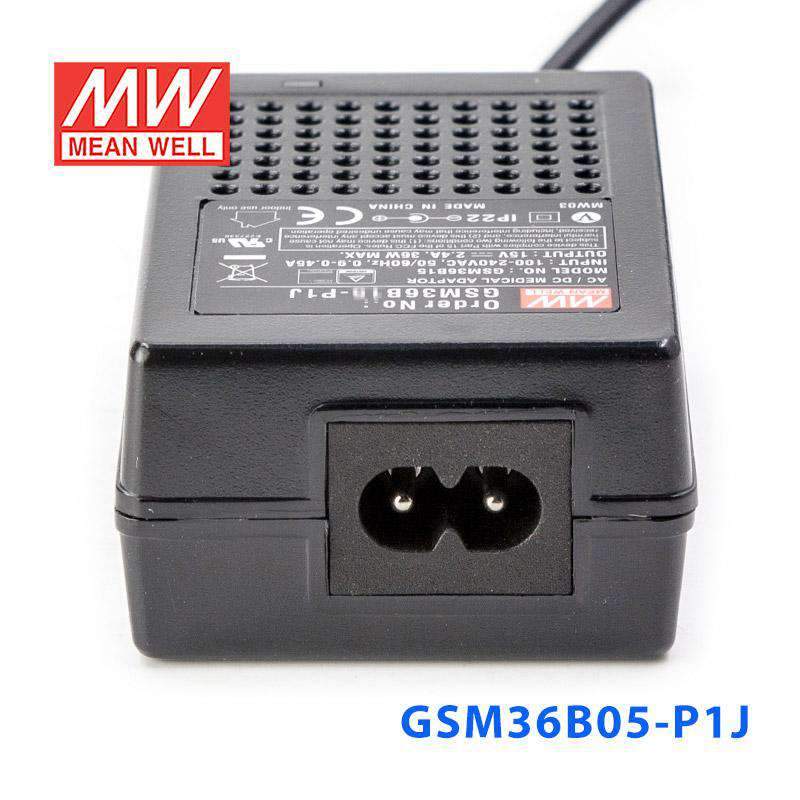

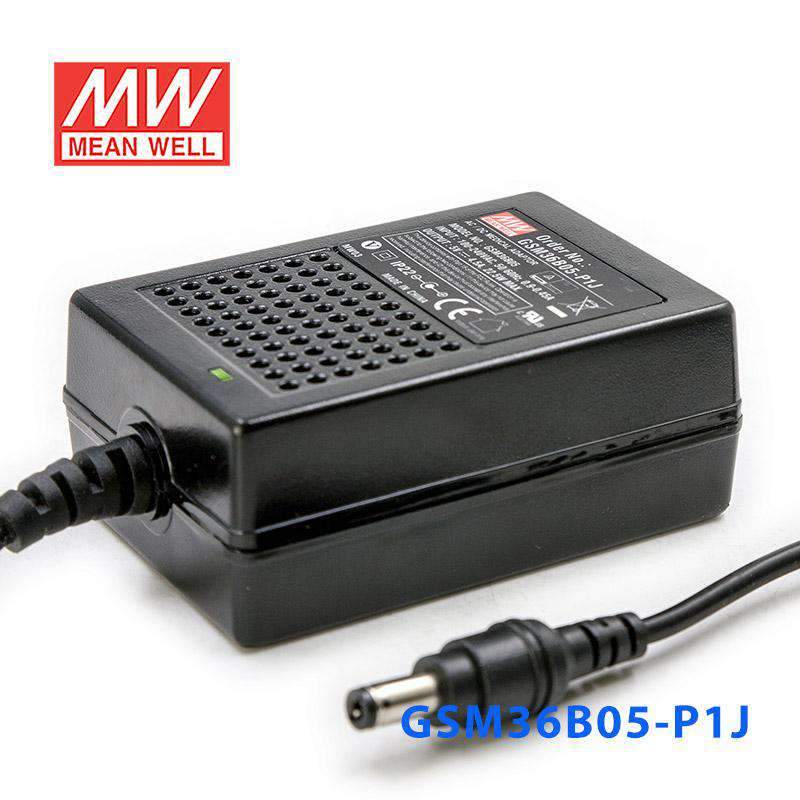

Mean Well GSM36B05-P1J Power Supply 22.5W 5V
The GSM36B05 is a 36W Mean Well power converter (input range: 80~264VAC).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ 4KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: ISOLATION LEVEL
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesGSM Series
-
Power Rating22.5 Watt
-
Output Voltage5 Volt
-
Rated Current4.5 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~60°C
-
Warranty3 Year
-
Length3.11 in
-
Width2.13 in
-
Height1.3 in
-
Weight0.52 lb
::specification::
Frequently Asked Questions
What are the main output specifications of the Mean Well GSM36B05-P1J?
The GSM36B05-P1J is a 22.5W desktop AC-DC power supply with a regulated 5V DC output rated at 4.5A. It is designed for applications that need a stable low-voltage supply from a compact external adapter. This model uses the P1J standard DC plug.
Is the GSM36B05-P1J suitable for medical equipment applications?
Yes, this model is part of Mean Well's medical-approved GSM series and includes 2 x MOPP isolation between primary and secondary. It is approved to medical safety standards including ANSI/AAMI ES60601-1 and EN60601-1-11. Its low leakage current of less than 50uA also supports use in medical-related environments.
What input voltage range does the GSM36B05-P1J support?
This power supply accepts a universal AC input range of 80 to 264VAC, as well as 113 to 370VDC. That wide input range makes it suitable for use across different regions and power systems. It is built as a full-range external desktop adapter.
Can this power supply be used in demanding operating environments?
The GSM36B05-P1J is rated for operation from -25°C to +60°C, which makes it suitable for a broad range of indoor equipment environments. It also includes a fully enclosed plastic case and built-in protections for short circuit, overload, and over voltage. These features support reliable operation in commercial and industrial use cases.
How efficient is the Mean Well GSM36B05-P1J, and does it waste power at no load?
This model offers efficiency up to 88%, which helps reduce excess heat and energy loss during operation. It also has no-load power consumption below 0.1W, making it a good option where low standby power matters. An LED indicator shows when power is on.
What plug type and cable details come with the GSM36B05-P1J?
The standard output plug is the P1J type, specified as 2.1mm x 5.5mm x 11mm with center positive polarity. For 5V models, the output cable length is 120cm and uses UL1185 16AWG cable. Buyers should confirm the plug format matches their device's required input jack.
