Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

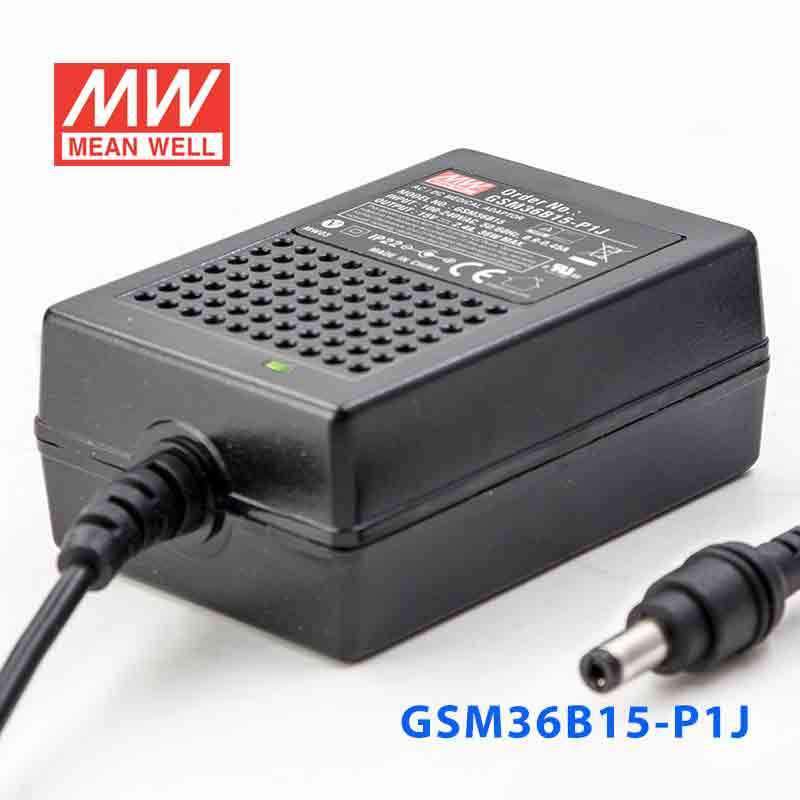

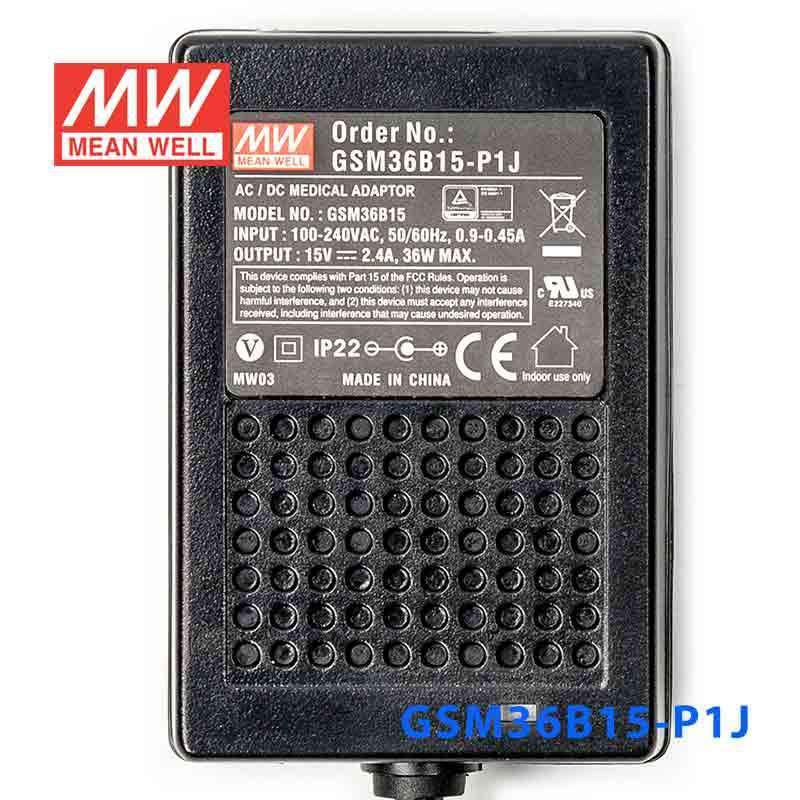

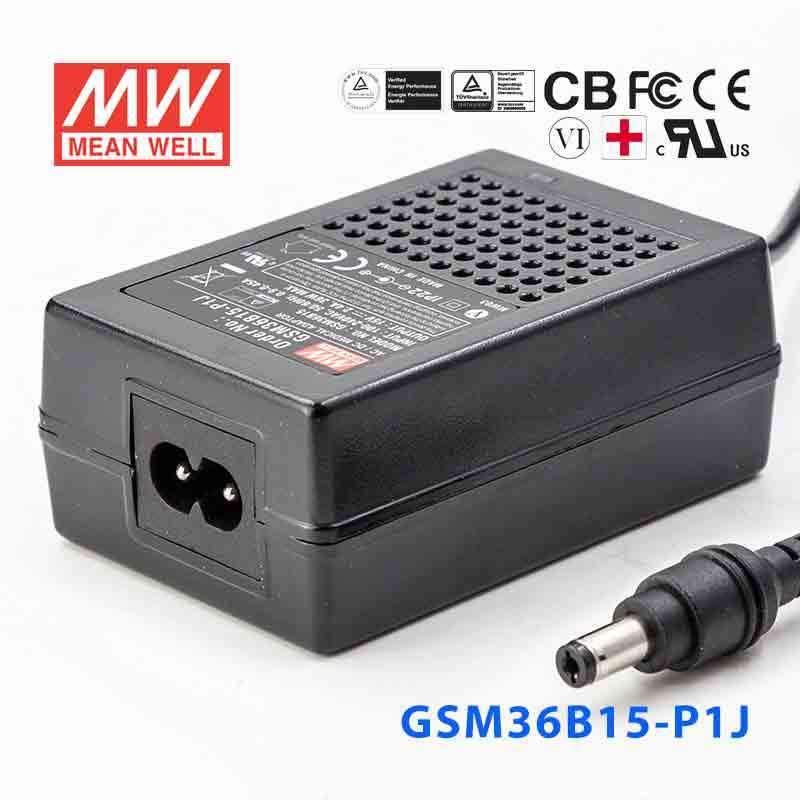

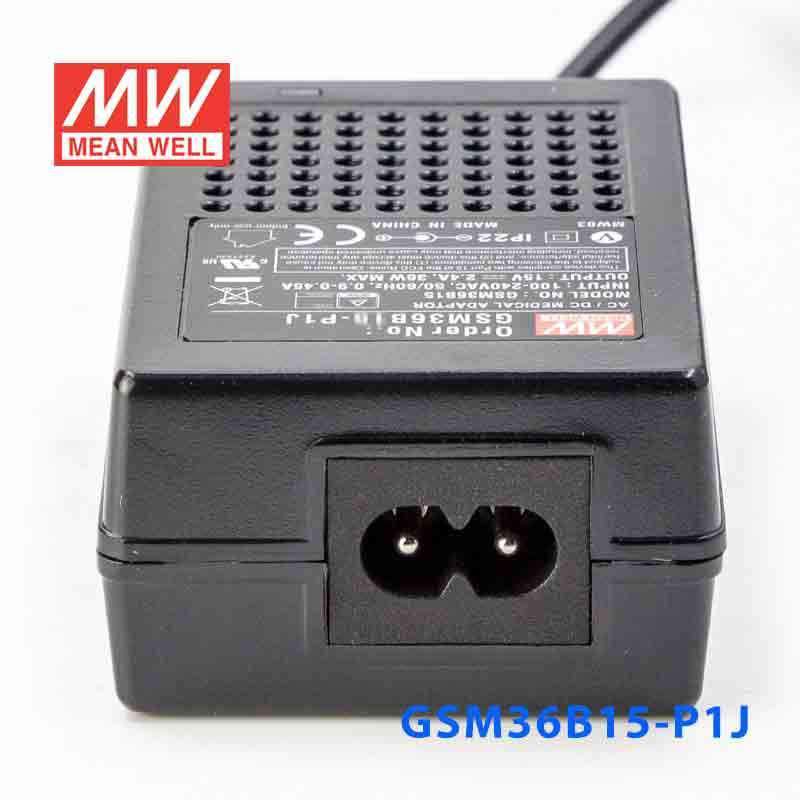

Mean Well GSM36B15-P1J Power Supply 36W 15V
The GSM36B15 is a 36W Mean Well power converter (input range: 80~264VAC).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ 4KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: ISOLATION LEVEL
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesGSM Series
-
Power Rating36 Watt
-
Output Voltage15 Volt
-
Rated Current2.4 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~60°C
-
Warranty3 Year
-
Length3.11 in
-
Width2.13 in
-
Height1.3 in
-
Weight0.52 lb
::specification::
Frequently Asked Questions
Can I use the GSM36B15-P1J for a 15V PLC accessory or industrial control device?
Yes, if the device requires constant voltage 15V DC. This model supplies up to 2.4A and is rated for 36W total output.
Is this power supply suitable for 15V embedded hardware or OEM electronics?
It is designed for constant voltage output, so it fits 15V embedded or OEM equipment that needs a regulated 15V source. The connected load must remain within 2.4A and 36W.
Can this 15V unit be used for industrial instrumentation or monitoring equipment?
It can support instrumentation and monitoring devices rated for 15V DC when their power draw stays within the supply limits. The wide 80-264VAC input also makes it practical where AC mains conditions vary by site.
How can I tell whether this 15V adapter is the right match for my load?
Your equipment should call for constant voltage 15V DC and require no more than 2.4A, with total power at or below 36W. Matching voltage is the first requirement, then the load must fit inside the current and power limits.
Is the GSM36B15-P1J appropriate for outdoor installations?
Its published operating temperature range is -25°C to +60°C. However, no IP rating is included in the provided specifications, so outdoor suitability or protection against water and dust is not confirmed from this product data.
