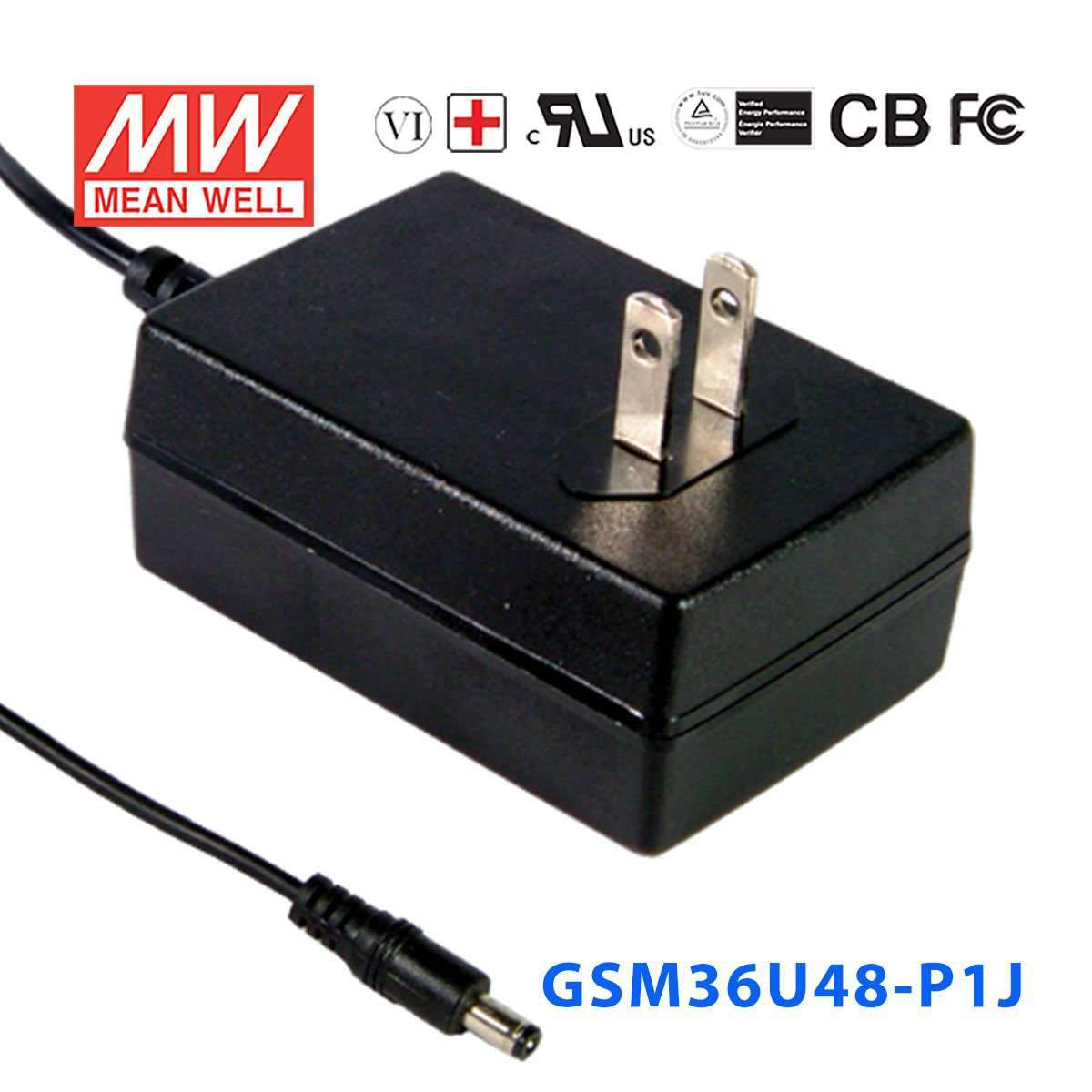

Mean Well GSM36U48-P1J Power Supply 36W 48V
The GSM36U48 is a 36W Mean Well power converter (input range: 80~264VAC, operating temperature: -25~+60℃).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ 4KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -25~+60℃
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: ISOLATION LEVEL ANSI/AAMI ES60601-1, ES60601-1-11, EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesGSM Series
-
Power Rating36 Watt
-
Output Voltage48 Volt
-
Rated Current0.75 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,EAC,FCC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~60°C
-
Warranty3 Year
-
Length3.11 in
-
Width2.13 in
-
Height1.3 in
-
Weight0.47 lb
::specification::
Frequently Asked Questions
Can I use the GSM36U48-P1J for 48V industrial control hardware?
It can fit 48V DC control or embedded hardware that requires constant voltage and draws no more than 0.75A. This model is rated for 36W total output, so the connected 48V load needs to stay within that power and current limit.
Is the GSM36U48-P1J suitable for small 48V telecom or network equipment?
It can be suitable for 48V equipment that uses a constant voltage input and stays within 36W and 0.75A. The wide 80-264VAC input also helps when the AC source varies across regions or facilities.
Can this 48V power supply run embedded systems or test fixtures that need stable DC output?
Yes, if the embedded system or fixture is designed for 48V constant voltage power and its draw does not exceed 0.75A. The compact 79.0 x 54.0 x 33.0 mm size can also help where space is limited.
Is the GSM36U48-P1J a good fit for low-power 48V automation accessories?
It is appropriate for low-power 48V automation accessories when the total load stays within 36W. For selection, the key checks are that the device requires 48V constant voltage and that its current demand is at or below 0.75A.
Can the GSM36U48-P1J be used outdoors or in harsh plant conditions?
The provided specs list an operating temperature range of -25°C to +60°C, but they do not list an IP rating. That means the temperature capability is defined, but outdoor, washdown, or dust-tight suitability is not established by the stated specs.
