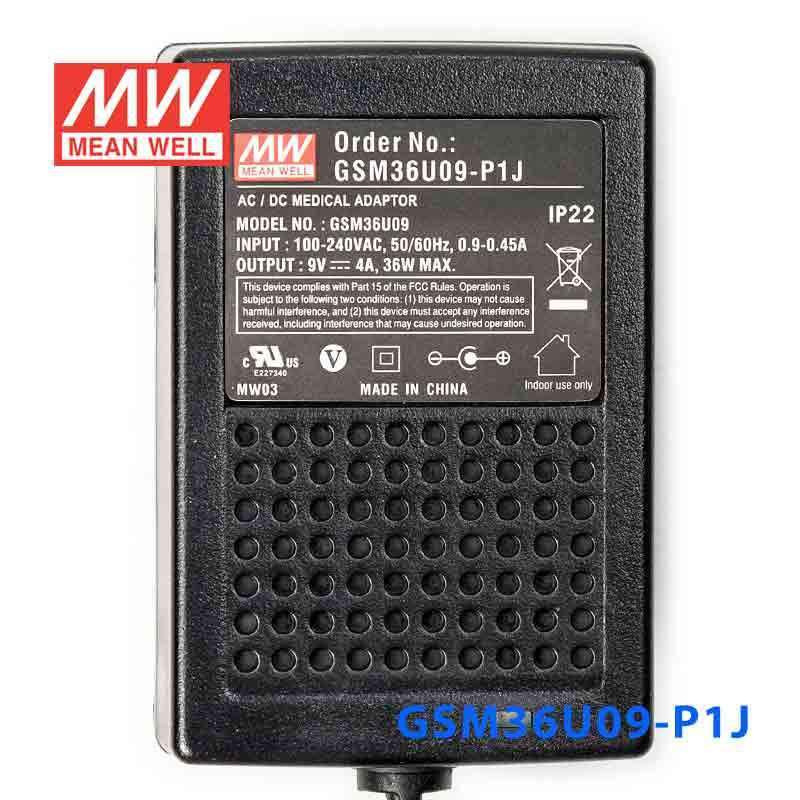

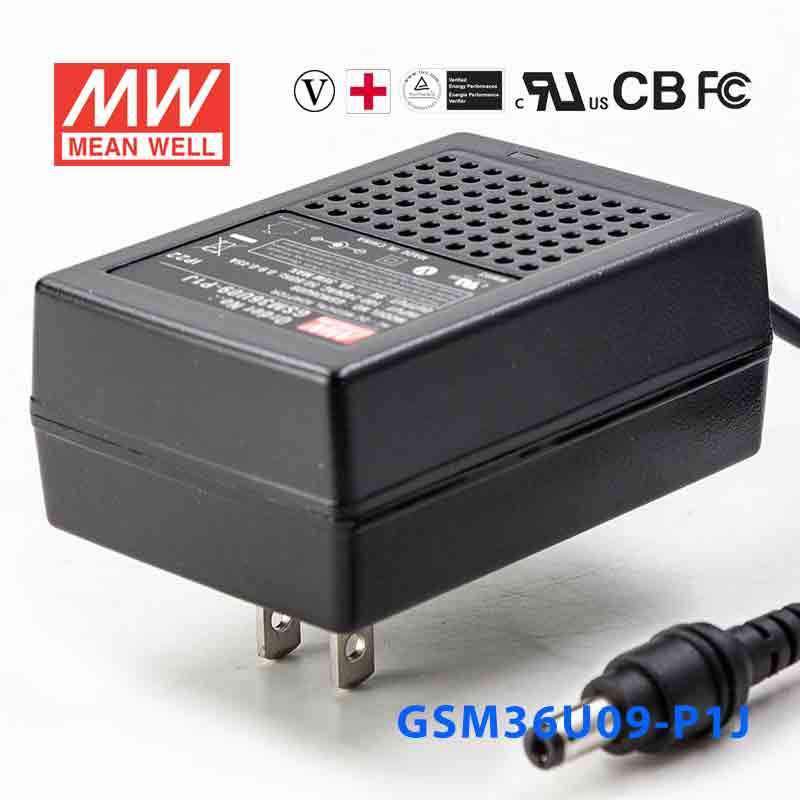

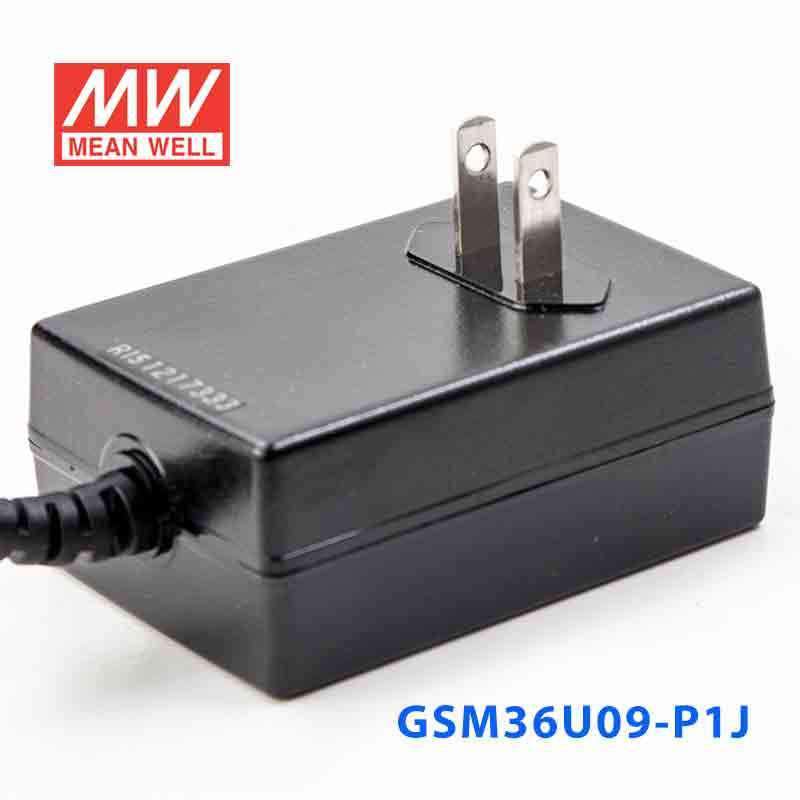

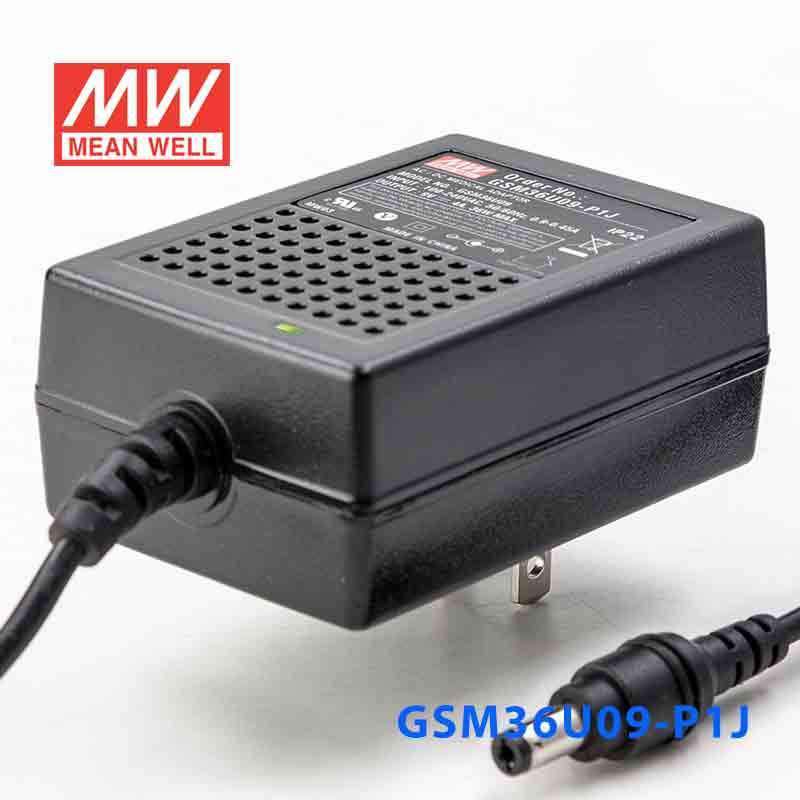

Mean Well GSM36U09-P1J Power Supply 36W 9V 4A
Overview
GSM36U09-P1J is the 9V output model of this series: rated current 4A, typical efficiency 84%. Type P1J: Plug for standard model, 2.1φ x 5.5φ x11mm, c+, tuning fork type.
GSM36U is a highly reliable, 36W wall-mounted style single-output green medical adaptor series. This product is equipped with a 2-pin (no FG) standard USA AC power plug, adopting the input range from 80VAC to 264VAC. The entire series supplies different output voltages between 5VDC and 48VDC that can satisfy the demands for various kinds of miniature medical devices. The circuitry design meets the international medical standards (2 × MOPP), having an ultra low leakage current (<50 μA), fitting the medical devices in direct electrical contact with the patients. With the efficiency up to 88% and the extreme low no-load power consumption below 0.1W, GSM36U is compliant with USA EISA 2007/DoE and Canada NRCan; the superme feature allows the adaptor to save the energy when it is either under the operating mode or the standby mode. The entire series utilizes the 94V-0 flame retardant plastic case, providing the double insulation that effectively prevents electrical shock. GSM36U is approved with the international medical safety certificates.
Features
- 2 pole USA plug, Class Ⅱ power unit
- Medical safety approved (2 × MOPP) according to ANSI/AAMI ES60601-1/-1-11
- Extremely low leakage current
- No load power consumption<0.1W
- Energy efficiency Level Ⅵ ( except 5~9V for Level Ⅴ)
- -25~+60℃ wide range working temperature
- Protections: Short circuit / Overload / Over voltage
- LED indicator for power on
- Various DC plug quick adapter accessory available (Plug kit sold sperately, please refer to : https://www.meanwell.com/upload/pdf/DC_plug.pdf)
- 3 years warranty
Specifications
OUTPUT
- SAFETY MODEL NO.
- GSM36U09
- DC VOLTAGENote.2
- 9V
- RATED CURRENT
- 4A
- CURRENT RANGE
- 0 ~ 4A
- RATED POWER (max.)
- 36W
- RIPPLE & NOISE (max.)Note.3
- 80mVp-p
- VOLTAGE TOLERANCENote.4
- ±5.0%
- LINE REGULATIONNote.5
- ±1.0%
- LOAD REGULATION
- ±5.0%
- SETUP, RISE TIMENote.6
- 500ms, 30ms / 230VAC 1000ms, 30ms / 115VAC at full load
- HOLD UP TIME (Typ.)
- 16ms / 230VAC 10ms / 115VAC at full load
INPUT
- VOLTAGE RANGENote.7
- 80 ~ 264VAC 113 ~ 370VDC
- FREQUENCY RANGE
- 47 ~ 63Hz
- EFFICIENCY (Typ.)
- 84%
- AC CURRENT (Typ.)
- 0.9A / 115VAC 0.45A / 230VAC
- INRUSH CURRENT (Typ.)
- 55A / 230VAC 30A / 115VAC
- LEAKAGE CURRENT(max.)
- Touch current < 50μA/264VAC
PROTECTION
- OVERLOAD
- 105 ~ 170% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 9.45 ~ 13V Protection type : Shut down o/p voltage, re-power on to recover
ENVIRONMENT
- WORKING TEMP.
- -25 ~ +60℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20% ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +85℃, 10 ~ 95% RH non-condensing
- TEMP. COEFFICIENT
- ±0.03% / ℃ (0~40℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC (Note. 8)
- SAFETY STANDARDS
- IEC 60601-1:2005+A1+A2; IEC 60601-1-11:2015+A1, ANSI/AAMI ES60601-1:2005+A2; ANSI/AAMI HA60601-1-11+A1 CAN/CSA C22.2 No. 60601-1:2014+A2; CSA C22.2 NO. 60601-1-11:2015+A1, EAC TP TC 004 approved
- ISOLATION LEVEL
- Primary-Secondary: 2xMOPP
- WITHSTAND VOLTAGE
- I/P-O/P:4KVAC
- ISOLATION RESISTANCE
- I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
-
Parameter Standard Test Level Conducted emission FCC PART 15 / CISPR22 Class B Radiated emission FCC PART 15 / CISPR22 Class B
OTHERS
- MTBF
- 3777.8K hrs min. Telcordia SR-332 (Bellcore) ; 651.4K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 79*54*33mm (L*W*H)
- PACKING
- 215g ; 60pcs / 13.9Kg / CARTON
CONNECTOR
- PLUG
- See page 4~5 ; Other type available by customer requested
- CABLE
- See page 4~5 ; Other type available by customer requested
MODEL ENCODING
- P1J (this model)
- Plug for standard model, 2.1φ x 5.5φ x11mm, c+, tuning fork type
- Blank
- Other options available by customer requested (see Page 4~5)
Test conditions and notes8
- 1. All parameters are specified at 115VAC input, rated load, 25℃ 70% RH ambient.
- 2. DC voltage: The output voltage set at point measure by plug terminal & 50% load.
- 3. Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μF & 47μF capacitor.
- 4. Tolerance: includes set up tolerance, line regulation, load regulation.
- 5. Line regulation is measured from low line to high line at rated load.
- 6. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
- 7. Derating may be needed under low input voltage. Please check the derating curve for more details.
- 8. The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
Technical drawings
Typical applications
- Blood glucose meter
- Blood pressure meter
- Nebulizer
- Inhaler
- Portable medical device
Downloads
Datasheet1
Certificates5
Test reports1
FAQ
Can I use the GSM36U09-P1J for a 9V industrial controller or embedded device?
Yes, if the equipment requires a constant 9V DC supply and draws no more than 4A. This model is rated for 36W with constant voltage output, so it fits 9V industrial, embedded, or automation devices that stay within those limits.
Is this 9V power supply suitable for small automation sensors or interface modules?
It can be suitable for 9V automation accessories that need stable constant voltage and up to 4A of output current. The wide 80-264VAC input also helps when the AC source may vary across different facilities.
Can the GSM36U09-P1J power portable test or diagnostic equipment with a 9V DC input?
Yes, it is a reasonable fit for bench or portable equipment that specifies 9V DC constant voltage and stays within 36W total load. Its compact 79.0 x 54.0 x 33.0 mm size also makes it practical where adapter size matters.
How do I know if this 36W 9V adapter is the right size for my load?
Match the load to the output rating: this unit provides constant 9V DC up to 4A, for a maximum of 36W. If your device requires 9V and does not exceed those limits, it is within the stated capacity of this model.
Is the GSM36U09-P1J suitable for outdoor or harsh environments?
The provided specs show an operating temperature range of -25C to +60C, but no IP rating is listed. That means temperature capability is specified, but dust and water protection are not, so outdoor or washdown use cannot be confirmed from the given data.
