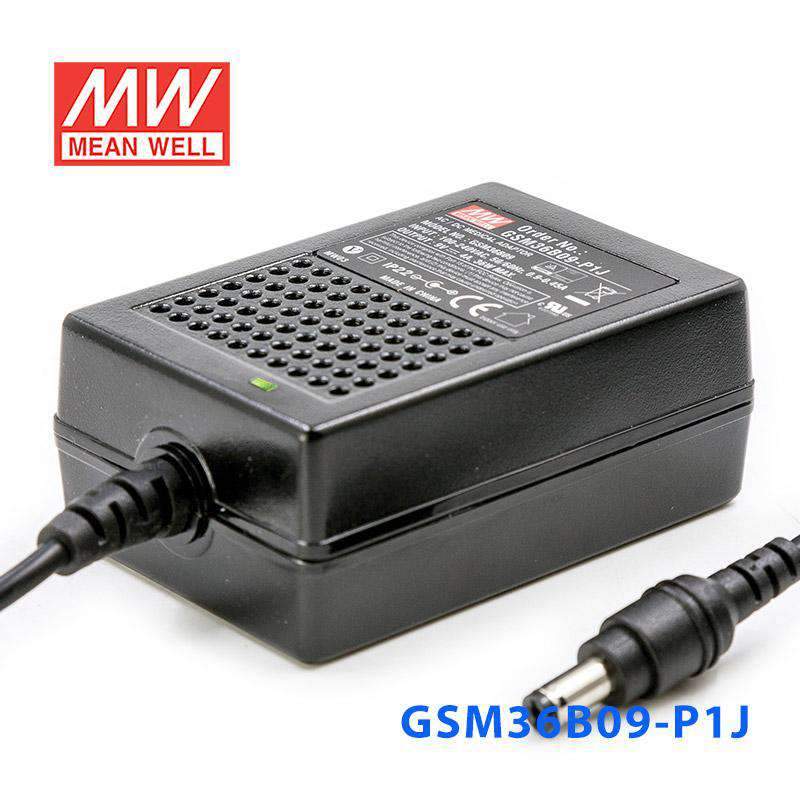

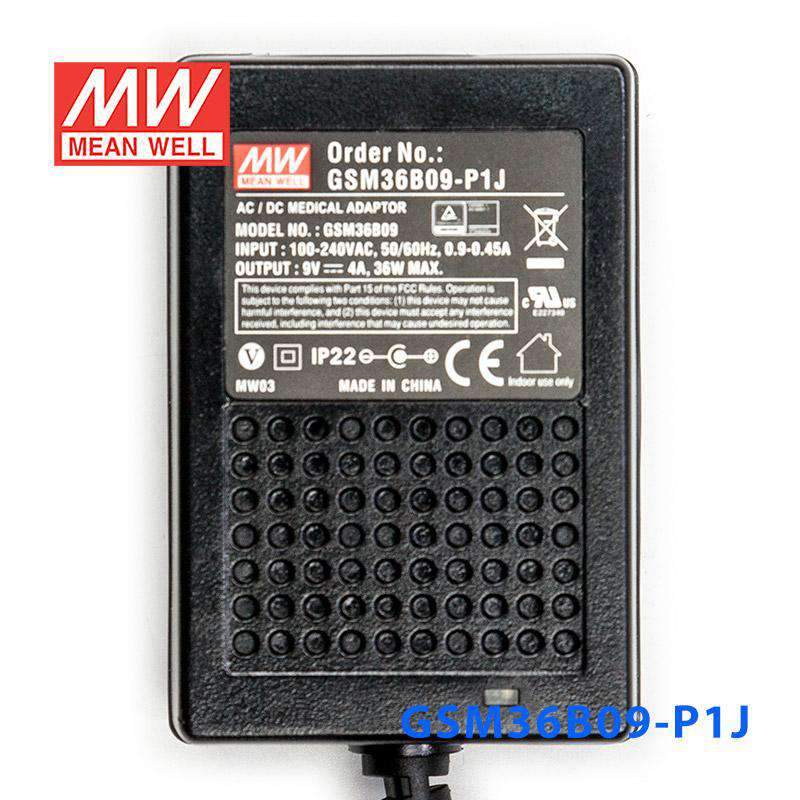

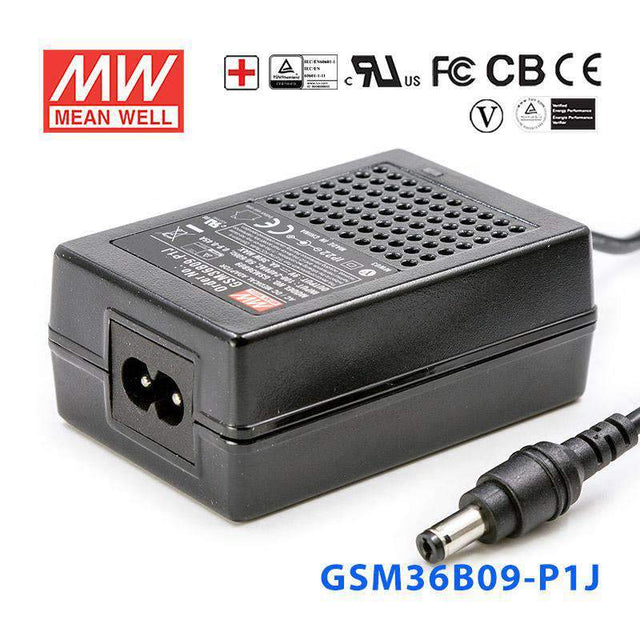

Mean Well GSM36B09-P1J Power Supply 36W 9V
The GSM36B09 is a 36W Mean Well power converter (input range: 80~264VAC).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ 4KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: ISOLATION LEVEL
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesGSM Series
-
Power Rating36 Watt
-
Output Voltage9 Volt
-
Rated Current4 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~60°C
-
Warranty3 Year
-
Length3.11 in
-
Width2.13 in
-
Height1.3 in
-
Weight0.52 lb
::specification::
Frequently Asked Questions
Can I use the GSM36B09-P1J with a 9V embedded system or industrial electronics board?
Yes, if the equipment is designed for constant voltage 9V DC input. This supply provides up to 4A, with a total output rating of 36W.
Is this 9V power supply a fit for automation accessories that run on 9V DC?
It can be used for 9V automation accessories, monitoring devices, or small control hardware that require constant voltage output. The load must stay within 4A and within the 36W rating.
Can this model power a 9V portable or fixed industrial instrument?
It is suitable for 9V instruments that need regulated constant voltage power. The unit accepts 80-264VAC input and delivers 9V DC at up to 4A, which helps when the instrument is deployed across varied AC supply environments.
What should I check before pairing this supply with a 9V device?
The device should require constant voltage 9V DC and draw no more than 4A, with total demand at or below 36W. If the equipment calls for another voltage, this model should not be used as a substitute.
Can the GSM36B09-P1J be used indoors only, or is it suitable outdoors too?
The temperature specification is -25°C to +60°C, so that is the stated operating range. Because no IP rating is listed in the provided specs, the enclosure's resistance to rain, dust ingress, or outdoor exposure is not established here.
