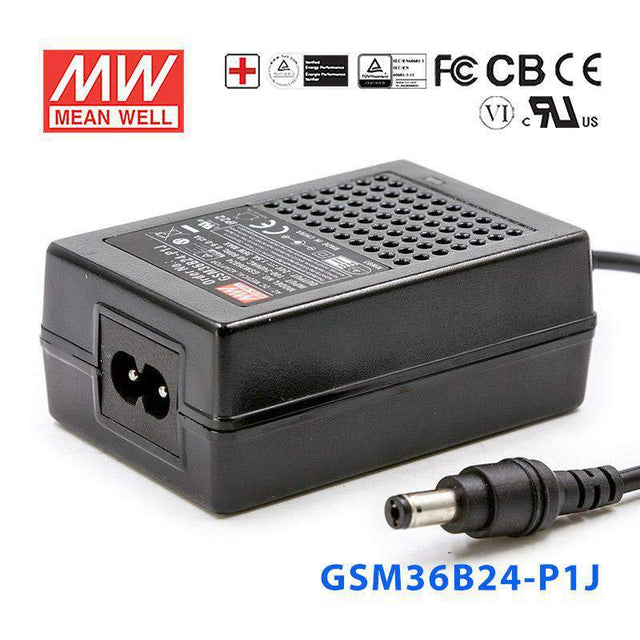

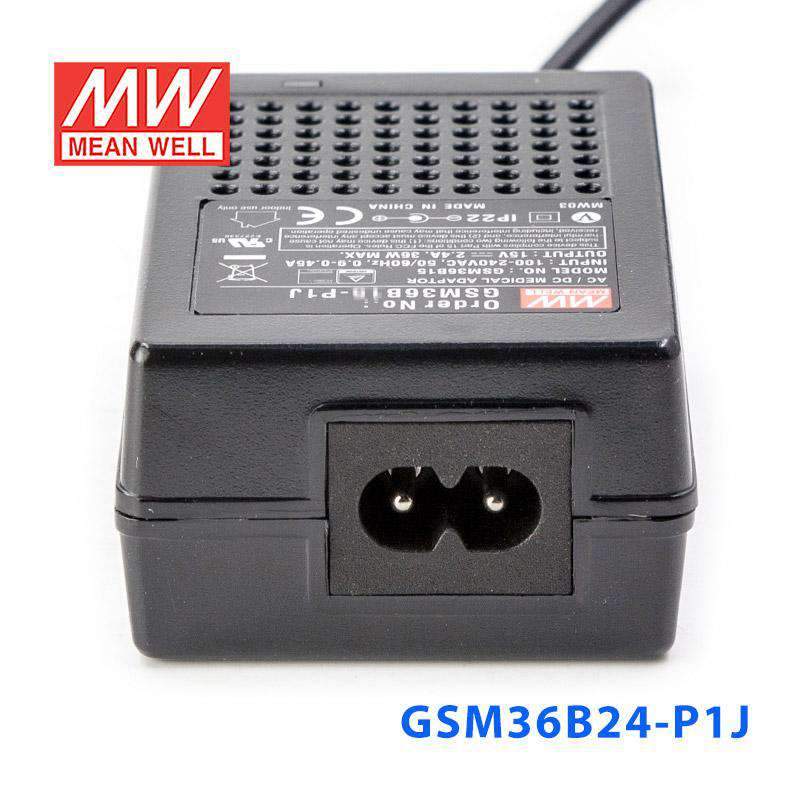

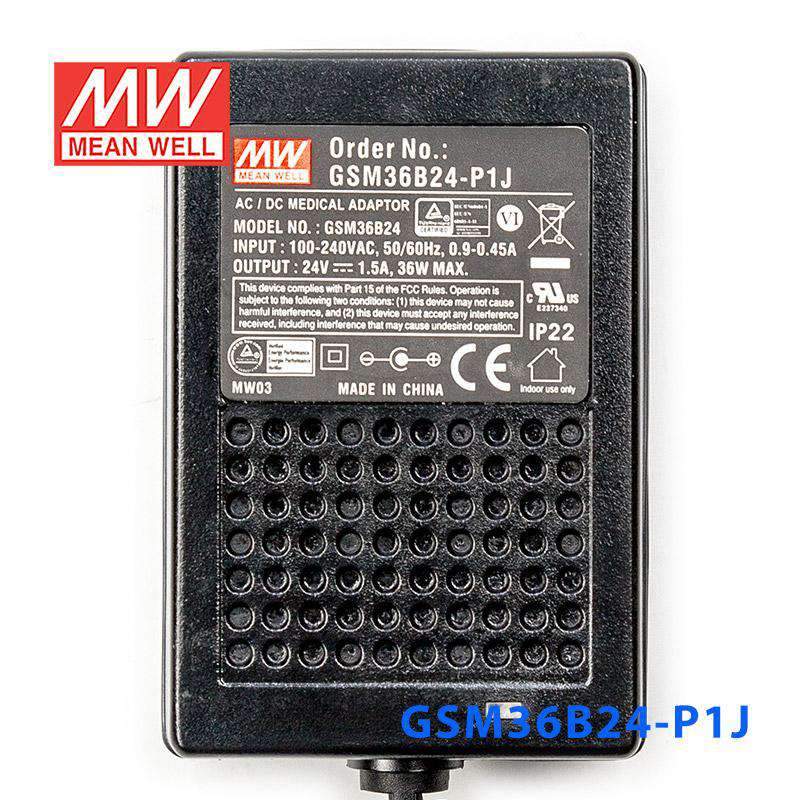

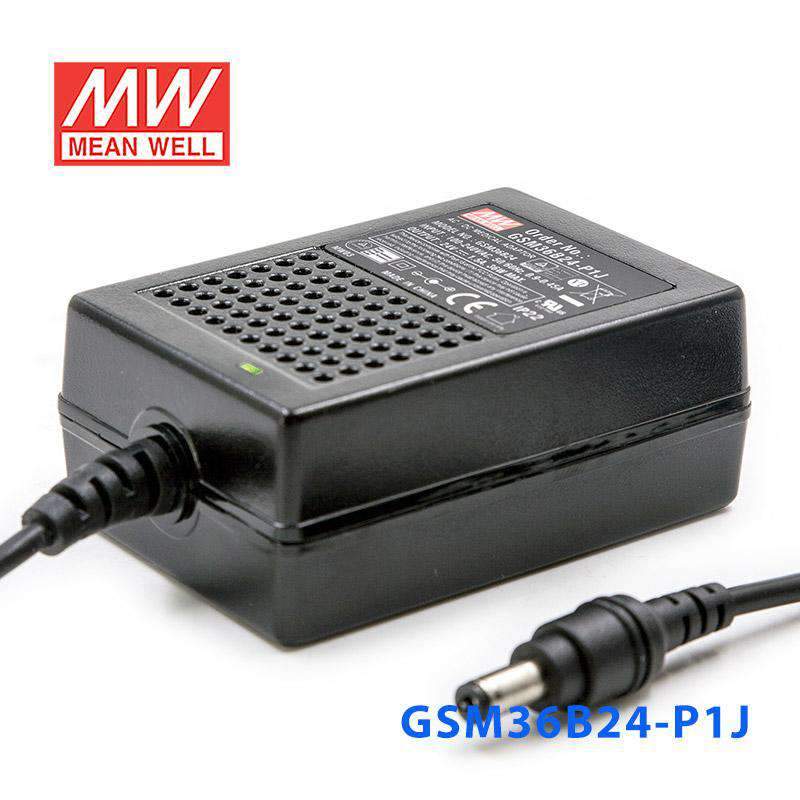

Mean Well GSM36B24-P1J Power Supply 36W 24V
The GSM36B24 is a 36W Mean Well power converter (input range: 80~264VAC).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ 4KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: ISOLATION LEVEL
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesGSM Series
-
Power Rating36 Watt
-
Output Voltage24 Volt
-
Rated Current1.5 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~60°C
-
Warranty3 Year
-
Length3.11 in
-
Width2.13 in
-
Height1.3 in
-
Weight0.52 lb
::specification::
Frequently Asked Questions
Can I use the GSM36B24-P1J for 24V automation equipment or industrial controls?
Yes, this model is intended for constant voltage 24V DC applications. It can supply up to 1.5A, with a total output limit of 36W.
Is this 24V power supply suitable for embedded systems or OEM devices that run on 24V DC?
It is a fit for embedded or OEM electronics that specifically require constant voltage 24V input. The load must remain at or below 1.5A and within the 36W rating.
Can this model power a 24V sensor, gateway, or industrial communication device?
It can be used with 24V industrial electronics such as gateways, sensing hardware, or communication devices when the power requirement stays within its output range. The unit provides 24V DC constant voltage and accepts 80-264VAC input.
What makes this 24V supply compatible or incompatible with my equipment?
The connected device needs to be rated for constant voltage 24V DC and must draw no more than 1.5A or 36W. If your equipment needs a different voltage or higher current, this model is not the correct choice.
Can the GSM36B24-P1J be used in outdoor or temperature-variable environments?
The specified operating temperature range is -25°C to +60°C. Since no IP rating is listed in the supplied specs, the data does not confirm resistance to outdoor moisture, dust, or direct weather exposure.
