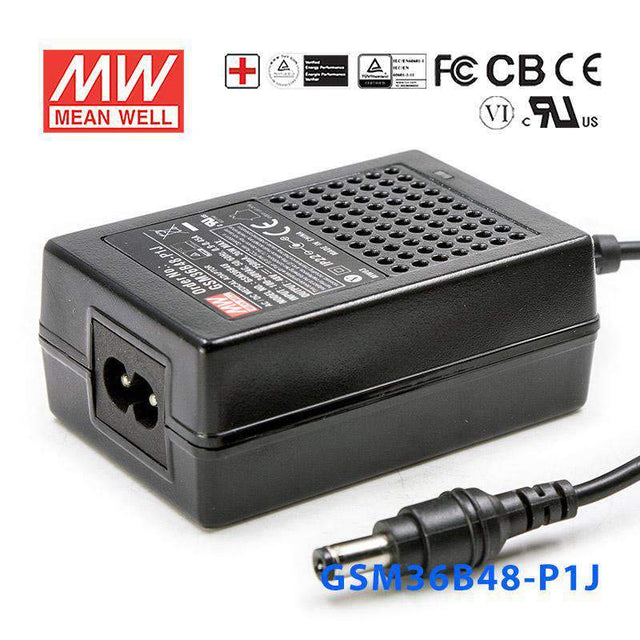

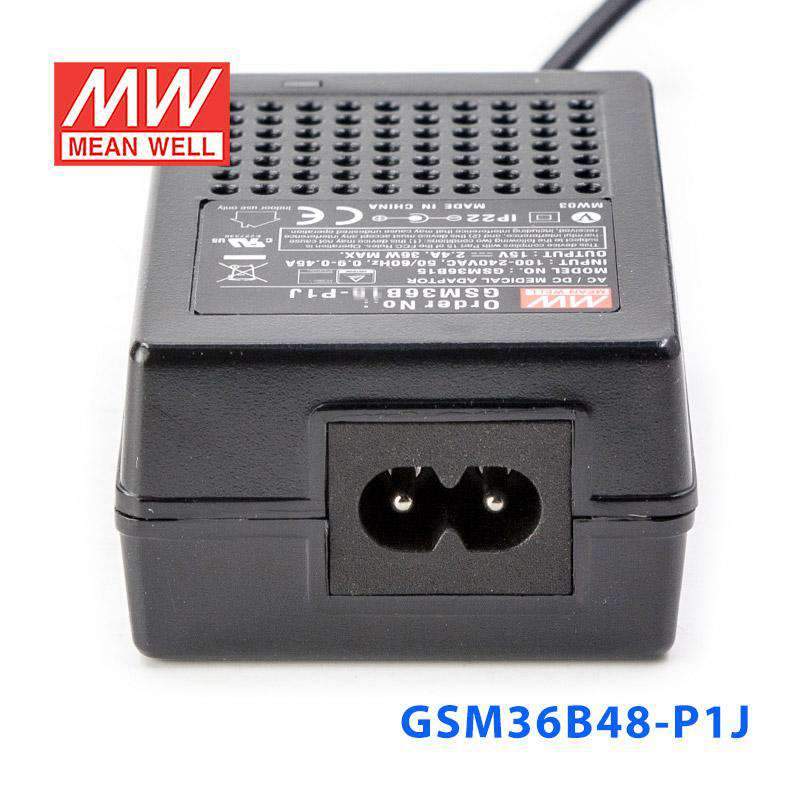

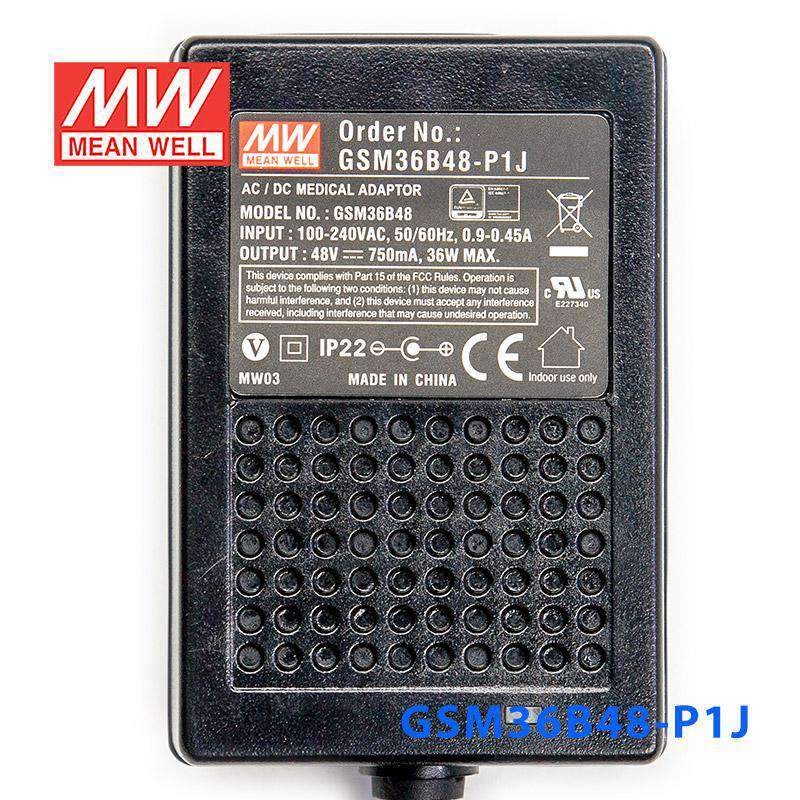

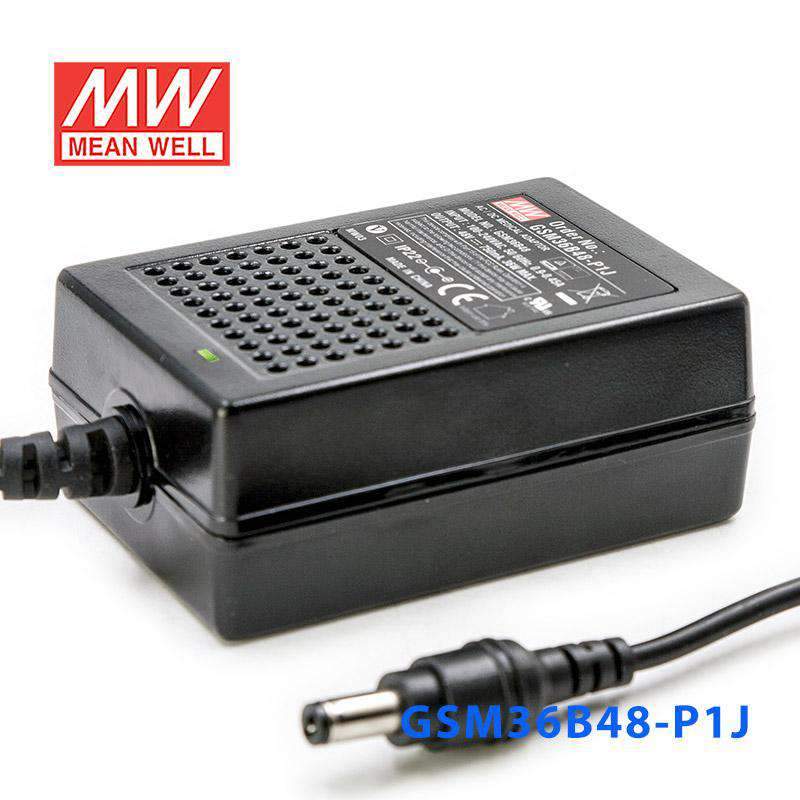

Mean Well GSM36B48P1J Power Supply 36W 48V
The GSM36B48 is a 36W Mean Well power converter (input range: 80~264VAC).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ 4KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: ISOLATION LEVEL
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesGSM Series
-
Power Rating36 Watt
-
Output Voltage48 Volt
-
Rated Current0.75 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~60°C
-
Warranty3 Year
-
Length3.11 in
-
Width2.13 in
-
Height1.3 in
-
Weight0.52 lb
::specification::
Frequently Asked Questions
Can I use the GSM36B48-P1J for 48V industrial communication or control equipment?
Yes, if the equipment is designed for constant voltage 48V DC input. This power supply delivers up to 0.75A, with a total output rating of 36W.
Is this 48V model suitable for embedded or network-related devices that operate on 48V DC?
It can be used for 48V DC devices that need a regulated constant voltage source. The load must stay within 0.75A and the overall 36W limit.
Can this power supply run a 48V industrial instrument or interface module?
It is suitable for 48V instrumentation or interface hardware when the device demand does not exceed 0.75A. The 80-264VAC input range also supports use across a wide range of AC supply conditions.
How do I confirm this 48V supply will work with my device?
The device should require constant voltage 48V DC and draw no more than 0.75A, with total power at or below 36W. If the device needs another voltage, this supply is not a compatible replacement.
Is the GSM36B48-P1J rated for outdoor use?
The provided specifications state an operating temperature range of -25°C to +60°C. No IP rating is included, so the supplied data does not confirm protection for outdoor, wet, or dust-prone environments.
