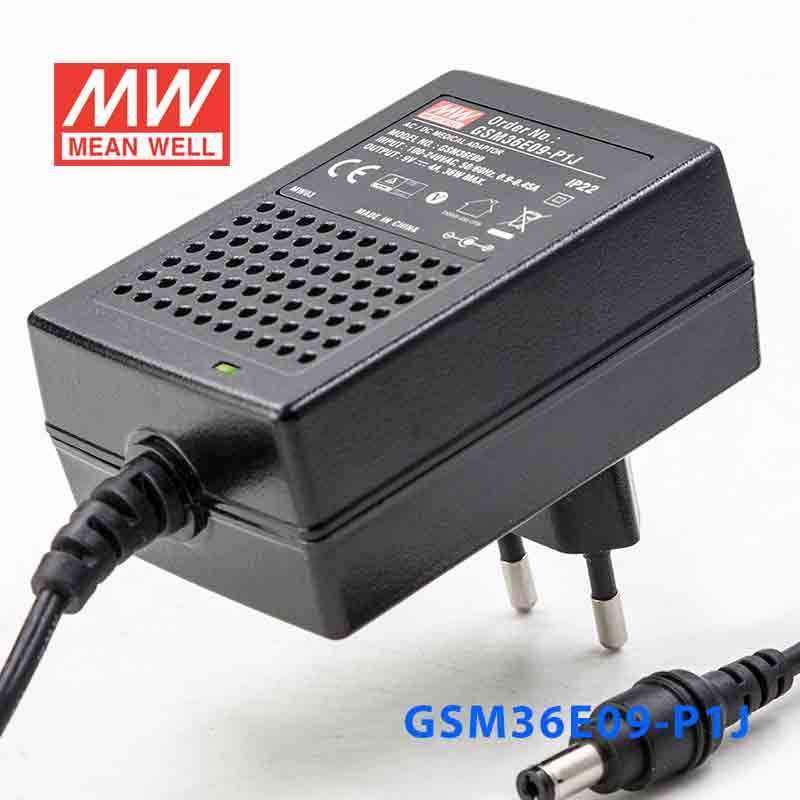

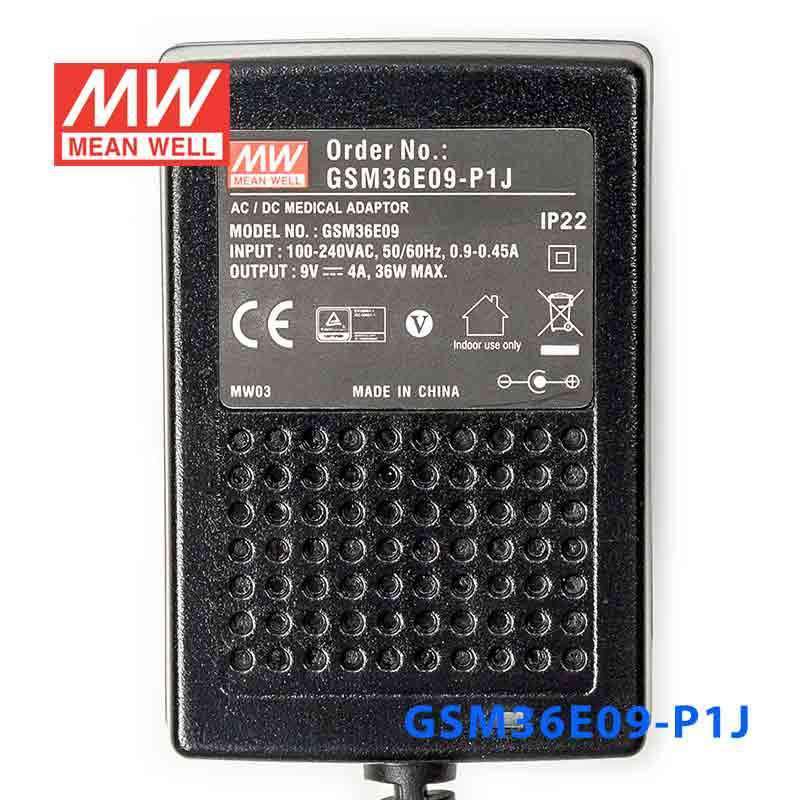

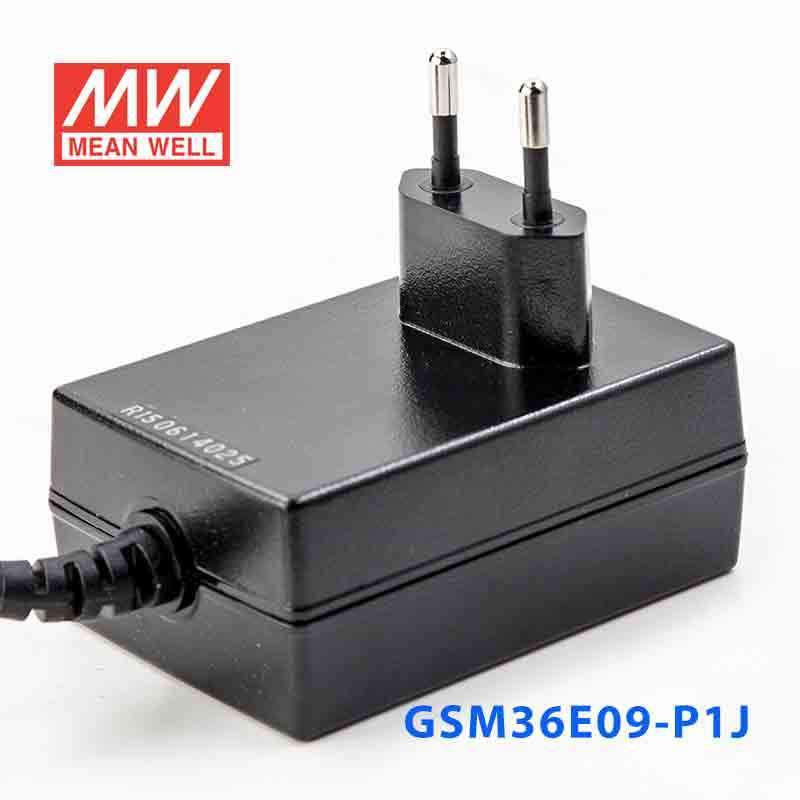

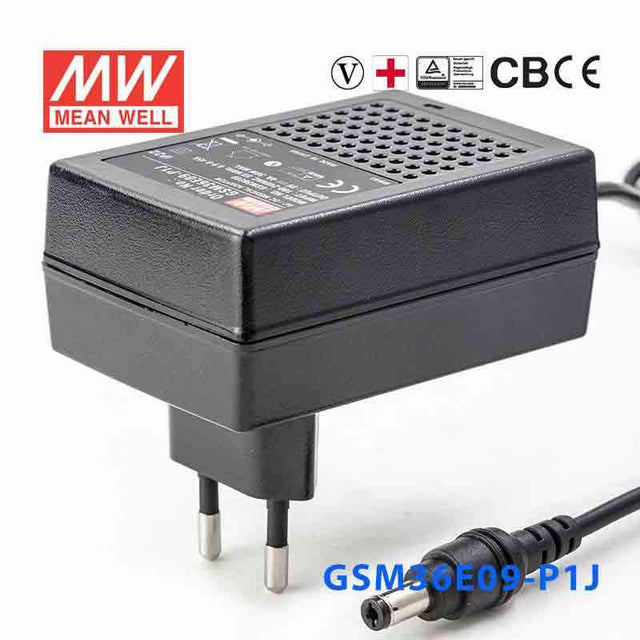

Mean Well GSM36E09-P1J Power Supply 36W 9V
The GSM36E09 is a 36W Mean Well power converter (input range: 80~264VAC).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ 4KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: ISOLATION LEVEL
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesGSM Series
-
Power Rating36 Watt
-
Output Voltage9 Volt
-
Rated Current4 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~60°C
-
Warranty3 Year
-
Length3.11 in
-
Width2.13 in
-
Height1.3 in
-
Weight0.51 lb
::specification::
Frequently Asked Questions
Can I use the GSM36E09-P1J for a 9V router, hub, or IT edge device?
It can be used for a 9V IT or edge device if that equipment requires constant 9V DC and draws no more than 4A. The unit is rated for 36W total output power, so both current and total wattage need to stay within that limit.
Is this power supply suitable for a 9V embedded controller or gateway?
Yes, provided the controller or gateway is designed for a constant 9V input and does not exceed 4A or 36W. That makes it relevant for embedded electronics built around a 9V DC supply rail.
Can the GSM36E09-P1J be used with small 9V automation equipment?
It is appropriate for small automation equipment that needs regulated 9V constant voltage and remains within the 4A output current rating. Buyers should confirm the load is a 9V device rather than a different DC voltage class.
Will this model handle cold or warm operating areas?
The specified operating temperature range is -25°C to +60°C. The provided specs do not include an IP rating, so temperature capability is stated but water or dust ingress protection is not.
Is this a constant voltage power supply or a constant current model?
This model is specified as constant voltage. Its output is 9V DC, with up to 4A and 36W available to loads designed for constant voltage input.
