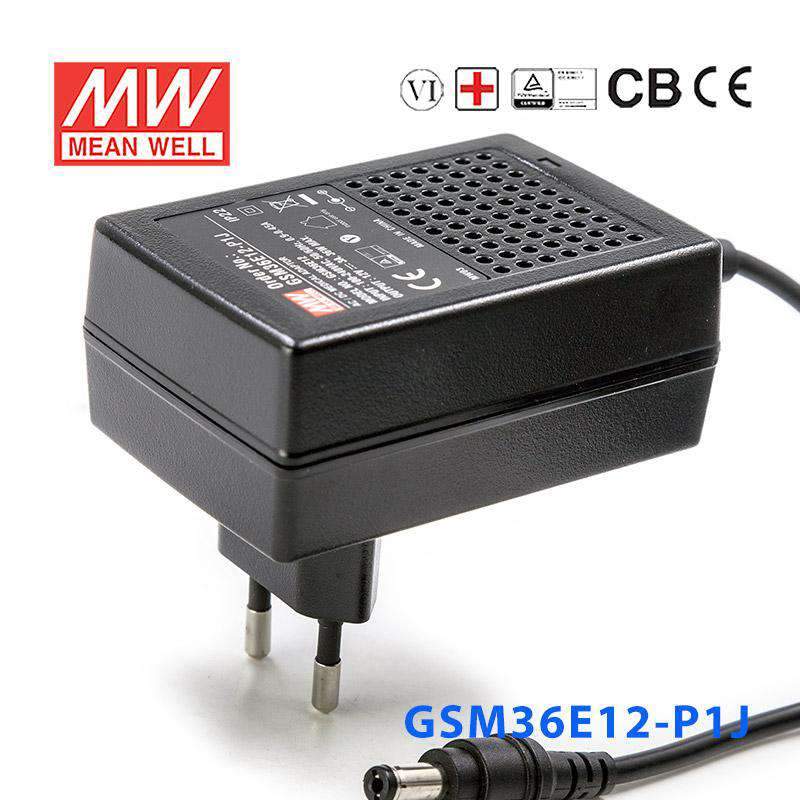

Mean Well GSM36E12-P1J Power Supply 36W12V
The GSM36E12 is a 36W Mean Well power converter (input range: 80~264VAC).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ 4KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: ISOLATION LEVEL
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesGSM Series
-
Power Rating36 Watt
-
Output Voltage12 Volt
-
Rated Current3 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~60°C
-
Warranty3 Year
-
Length3.11 in
-
Width2.13 in
-
Height1.3 in
-
Weight0.51 lb
::specification::
Frequently Asked Questions
Can I use the GSM36E12-P1J for a 12V PLC accessory or automation controller?
Yes, if the equipment requires constant 12V DC and the load stays within 3A and 36W. That makes it relevant for 12V automation accessories, compact controllers, or similar industrial electronics.
Is this suitable for 12V networking hardware or small security equipment?
It can be used with 12V networking or security devices that need a fixed 12V output and draw no more than 3A. The constant voltage design and 36W rating are the main limits to check against the device requirement.
Can the GSM36E12-P1J power a 12V embedded display or HMI?
Yes, for a 12V embedded display or HMI that is designed for constant 12V input and remains within 3A maximum current. Buyers should verify the total power stays at or below 36W.
Is this power supply appropriate for outdoor use or unprotected areas?
The specs state an operating range of -25°C to +60°C, but no IP rating is provided. Based on the provided data, temperature limits are known, while suitability for exposed outdoor or washdown environments is not specified.
Does the GSM36E12-P1J support a wide AC input range?
Yes, it accepts 80-264VAC input. That wide range can simplify use in equipment deployed across regions with different AC mains standards, as long as the DC load needs 12V constant voltage output.
