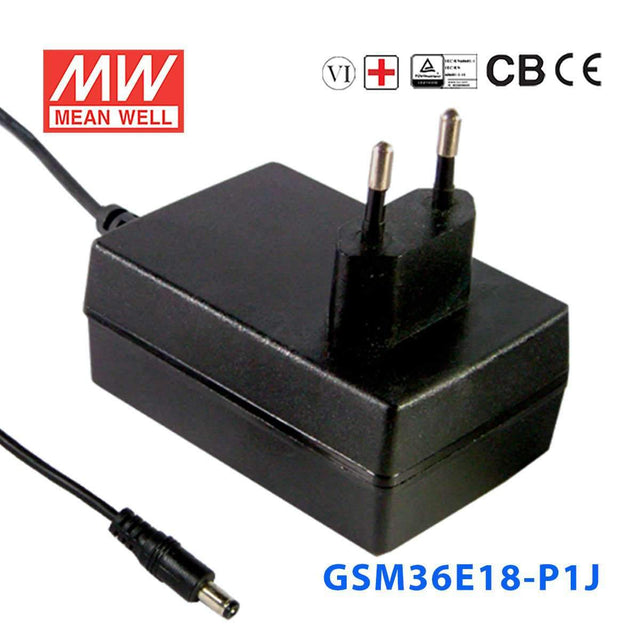

Mean Well GSM36E18-P1J Power Supply 36W 18V
The GSM36E18 is a 36W Mean Well power converter (input range: 80~264VAC).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ 4KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: ISOLATION LEVEL
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesGSM Series
-
Power Rating36 Watt
-
Output Voltage18 Volt
-
Rated Current2 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~60°C
-
Warranty3 Year
-
Length3.11 in
-
Width2.13 in
-
Height1.3 in
-
Weight0.51 lb
::specification::
Frequently Asked Questions
Can I use the GSM36E18-P1J to power 18V industrial controllers or small automation devices?
Yes, it is a constant-voltage 18V power supply rated for 36W and 2A output. That makes it suitable for 18V equipment whose load stays within 2A and 36W.
Is this 18V adapter suitable for embedded systems or bench equipment that runs on 18V DC?
It can be a fit for embedded or electronic equipment designed for a constant 18V DC source. The available output is 2A with a total power limit of 36W, so the device's 18V demand needs to stay within those ratings.
Can the GSM36E18-P1J be used for low-power industrial sensors or control accessories that need 18V?
It is intended for constant-voltage 18V applications and can support loads up to 2A. For control accessories, sensor groups, or similar 18V DC devices, the key check is whether the combined demand remains within 36W.
Is the GSM36E18-P1J appropriate for indoor or outdoor environments?
The listed operating temperature range is -25°C to +60°C, which defines the temperature window from the provided specs. The provided data does not include an IP rating, so outdoor or water-exposed suitability is not established by the listed specifications alone.
How do I know if this 18V power supply is correctly sized for my load?
Match the load to a constant 18V source and keep the requirement at or below 2A and 36W. If the equipment needs more than 2A or more than 36W, this model is undersized.
