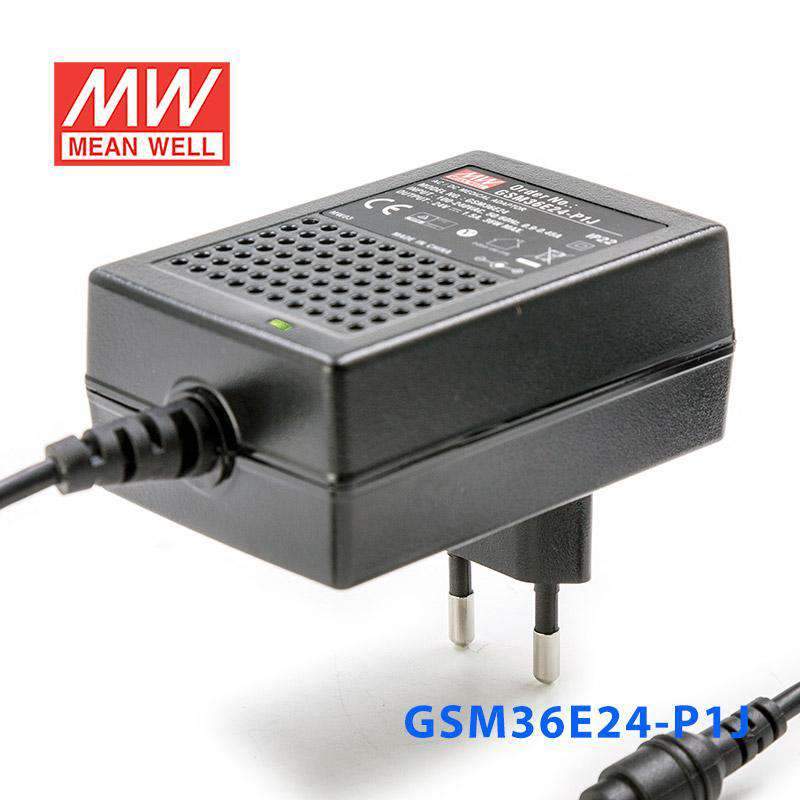

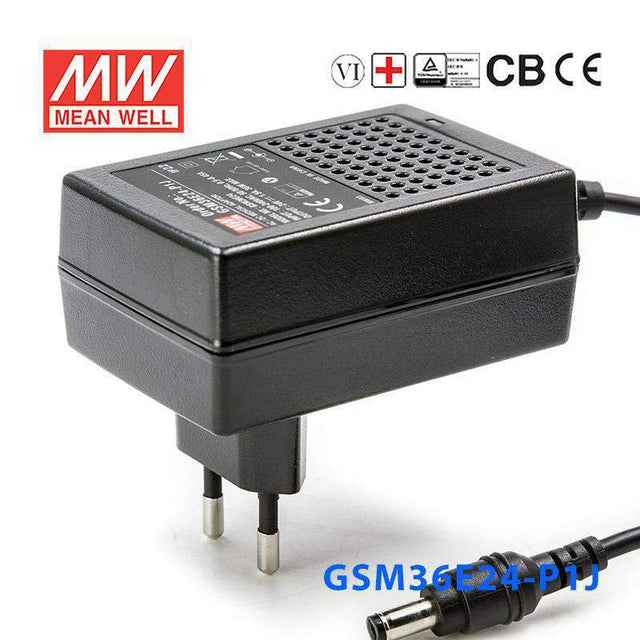

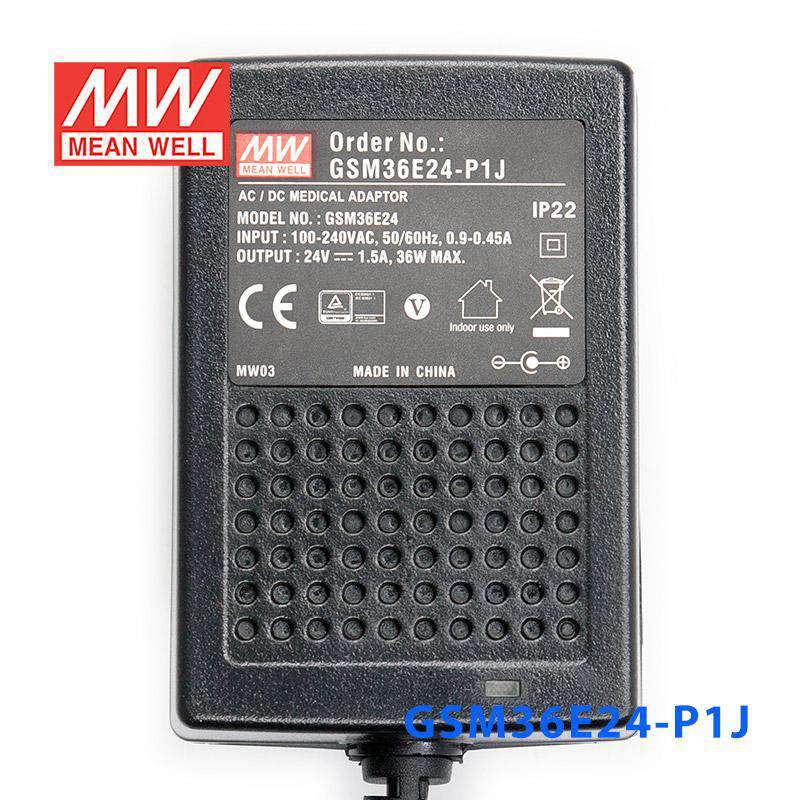

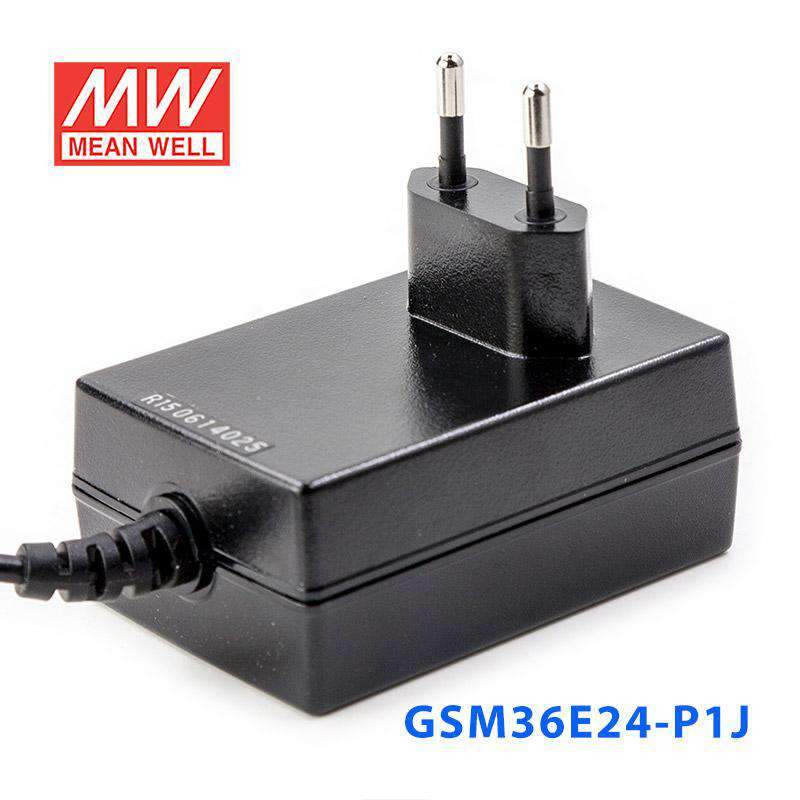

Mean Well GSM36E24-P1J Power Supply 36W 24V
The GSM36E24 is a 36W Mean Well power converter (input range: 80~264VAC).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ 4KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: ISOLATION LEVEL
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesGSM Series
-
Power Rating36 Watt
-
Output Voltage24 Volt
-
Rated Current1.5 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~60°C
-
Warranty3 Year
-
Length3.11 in
-
Width2.13 in
-
Height1.3 in
-
Weight0.51 lb
::specification::
Frequently Asked Questions
Can I use the GSM36E24-P1J for 24V PLC accessories or industrial control devices?
Yes, if the equipment is designed for constant 24V DC input and stays within the power supply's 1.5A and 36W output limits. It is a constant-voltage model, so it fits loads that expect a fixed 24V output.
Is this 24V power supply suitable for embedded control hardware that needs regulated 24V DC?
It can be used with embedded or control hardware specified for constant 24V operation. The important limit is output capacity: 24V at up to 1.5A, with a total output of 36W.
Can the GSM36E24-P1J power compact 24V automation interfaces or monitoring equipment?
It is appropriate for compact 24V DC loads that need a constant-voltage source and do not exceed 1.5A. The total available output is 36W, so the connected equipment needs to stay within that range.
Is the GSM36E24-P1J suitable for harsh or outdoor conditions?
The published operating temperature range is -25°C to +60°C. The listed specs do not provide an IP rating, so the product data does not confirm outdoor, washdown, or exposed-weather use.
What kind of 24V load is this model sized for?
This model is sized for constant-voltage 24V equipment drawing up to 1.5A, with a 36W maximum output. It is best matched to devices that need 24V DC and remain within both the current and wattage limits.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other GSM36 Models
2 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well GSM36U09-P1J Power Supply 36W 9V | 36W | 9V | 4A | Indoor | $18.17 | View |
| Mean Well GSM36B15-P1J Power Supply 36W 15V | 36W | 15V | 2.4A | Indoor | $18.17 | View |
