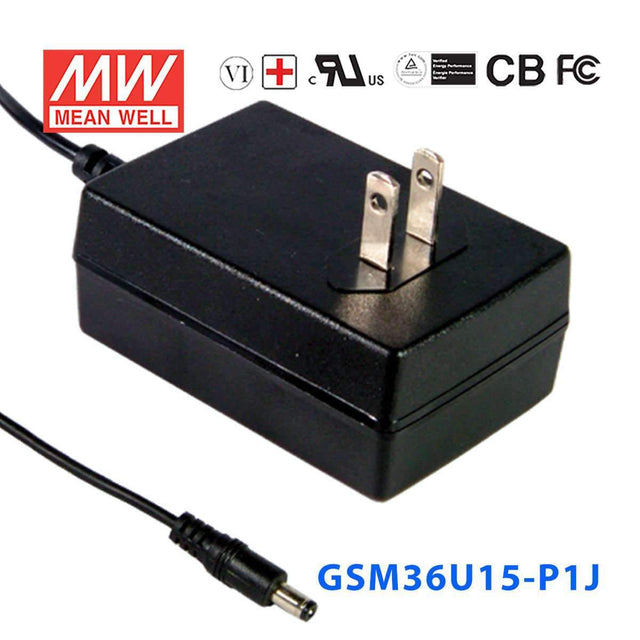

Mean Well GSM36U15-P1J Power Supply 36W 15V
The GSM36U15 is a 36W Mean Well power converter (input range: 80~264VAC, operating temperature: -25~+60℃).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ 4KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -25~+60℃
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: ISOLATION LEVEL ANSI/AAMI ES60601-1, ES60601-1-11, EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesGSM Series
-
Power Rating36 Watt
-
Output Voltage15 Volt
-
Rated Current2.4 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,EAC,FCC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~60°C
-
Warranty3 Year
-
Length3.11 in
-
Width2.13 in
-
Height1.3 in
-
Weight0.47 lb
::specification::
Frequently Asked Questions
Can I use the GSM36U15-P1J for 15V industrial instrumentation or monitoring equipment?
Yes, if the equipment requires constant 15V DC and draws no more than 2.4A. This model provides 36W total output, which fits smaller 15V industrial instruments and monitoring devices within those limits.
Is this 15V adapter suitable for embedded hardware or controller boards that need regulated DC power?
It is suitable for embedded hardware designed for constant 15V input up to 2.4A. The constant voltage output is the key requirement, and the load must remain within the 36W rating.
Can the GSM36U15-P1J be used for small automation modules with a 15V DC bus?
Yes, for smaller automation modules that specify 15V DC constant voltage and stay at or below 2.4A. Its universal 80-264VAC input also supports use in facilities with different AC mains standards.
How should I size a 15V load for this power supply?
Use it with equipment that requires constant 15V DC and does not exceed 2.4A or 36W. If the load needs more current or more than 36W, this model is undersized for that application.
Is the GSM36U15-P1J rated for outdoor or sealed-enclosure use?
The provided data includes an operating temperature range of -25C to +60C, but it does not include an IP rating. That means temperature suitability is specified, while outdoor, wet, or dusty use is not verified from the listed specs.
