Over 15 years experience of providing support of MEAN WELL Power Supplies
Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

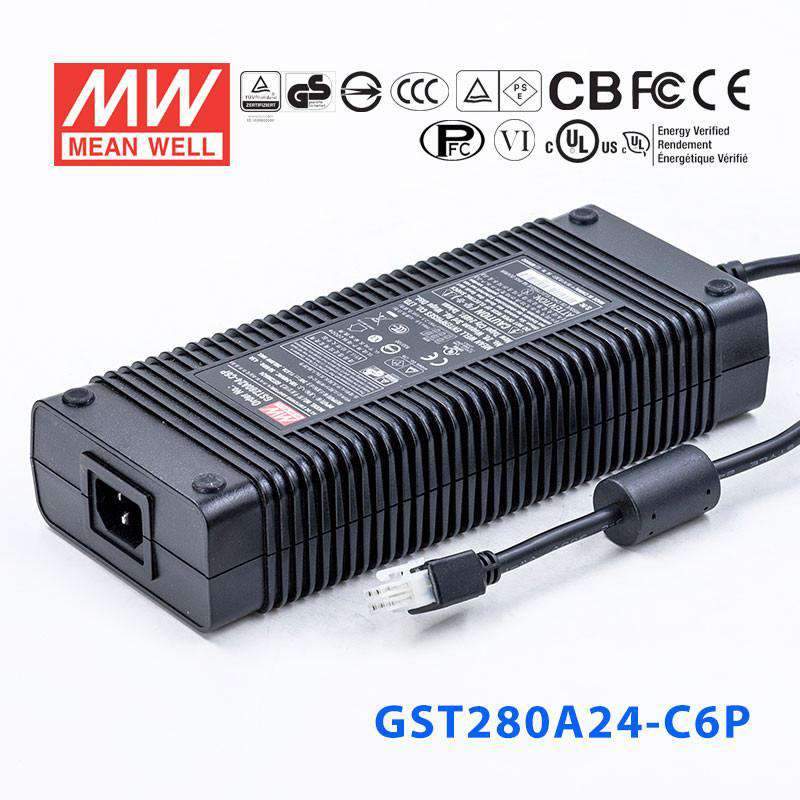

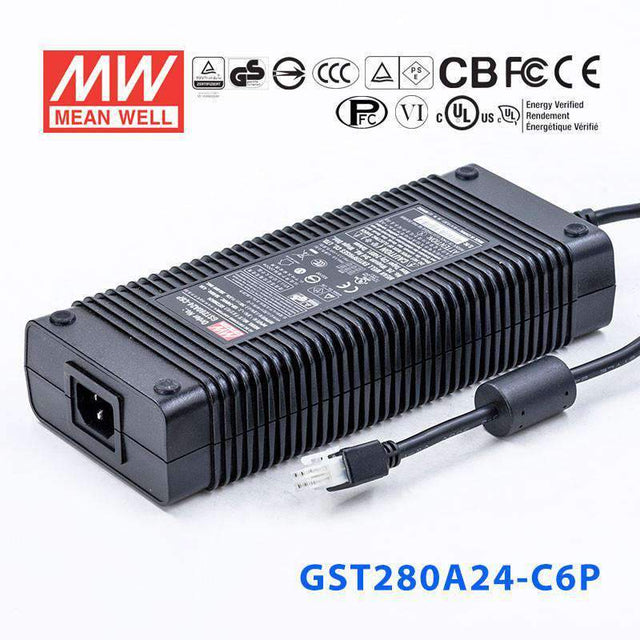

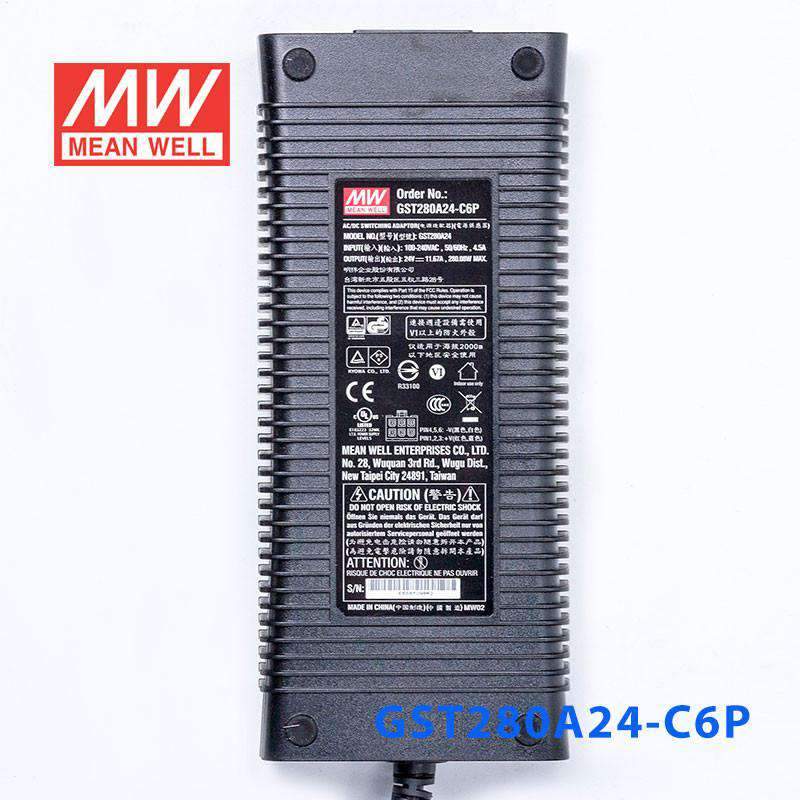

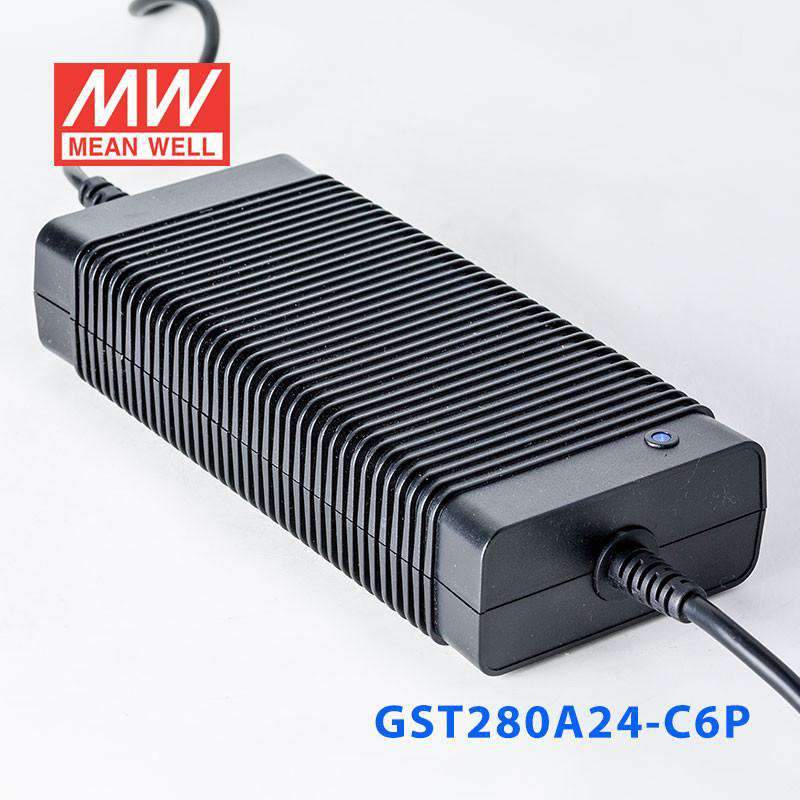

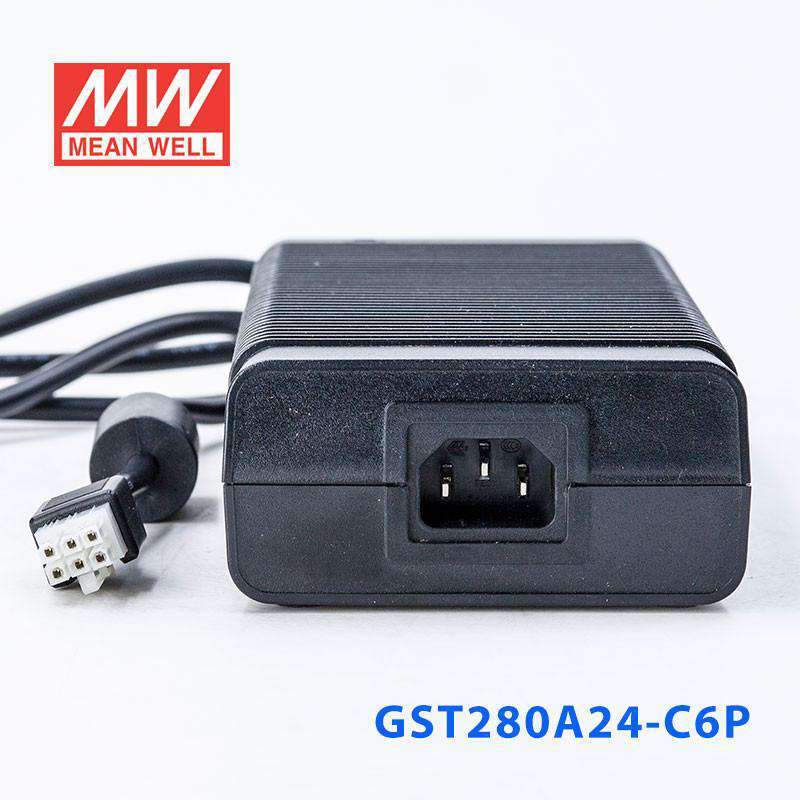

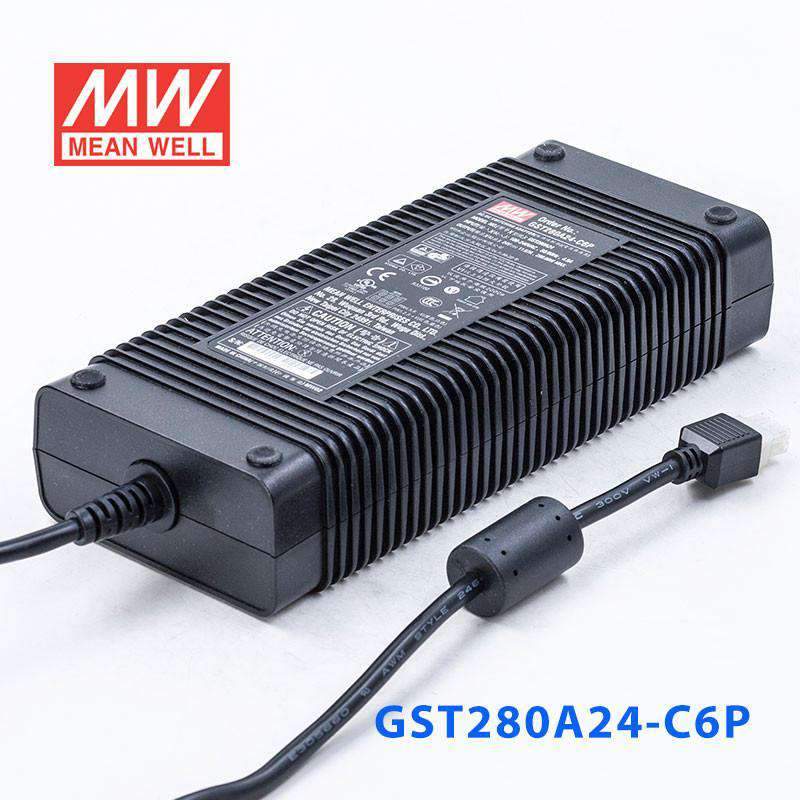

Mean Well GST280A24-C6P Power Supply 280W 24V
C6P: MOLEX 6 pin connector
Key Features
- ✓Universal AC input / Full range
- ✓No load power consumption < 0.5W
- ✓Energy Efficiency Level VI
- ✓Meet EISA 2007 (Energy Independence and Security Act)
- ✓NRCan compliant
- ✓MEPS compliant
- ✓3 pole AC inlet IEC320-C14
- ✓Class I power (with earth pin) only
- ✓Protections: Short circuit /Overload / Over voltage/Over temperature
- ✓Fully enclosed plastic case
- ✓LED indicator for power on
- ✓Built-in active PFC function
- ✓Fanless design
- ✓3 years warranty
-
BrandMean Well
-
SeriesGST Series
-
Power Rating280.08 Watt
-
Output Voltage24 Volt
-
Rated Current11.67 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetBSI,CB,CCC,CE,EAC,FCC,KC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length8.66 in
-
Width3.74 in
-
Height1.81 in
-
Weight2.76 lb
::specification::
Frequently Asked Questions
Can I use the GST280A24-C6P for a 24V industrial control panel?
Yes, this model is a constant-voltage 24V power supply rated for 280.08W and 11.67A. That makes it suitable for 24V control equipment, HMIs, and other industrial electronics that require a regulated 24V DC source within that power budget.
Is the GST280A24-C6P a good fit for 24V automation and embedded systems?
It can be a fit for 24V automation and embedded equipment that needs constant-voltage output rather than constant-current drive. With 24V output and up to 11.67A, it is better suited to higher-load 24V systems than lower-power desktop adapters.
Can this power supply run 24V LED lighting or signage systems?
Yes, it is designed as a constant-voltage 24V unit, which matches many 24V LED lighting and signage loads. The available output is 280.08W at 11.67A, so the total connected 24V load needs to stay within that rating.
Would the GST280A24-C6P work for 24V industrial communication or monitoring hardware?
It is suitable for 24V communication, monitoring, or control hardware that expects a steady 24V DC supply. The wide 85-264VAC input also helps when the AC source varies across different facilities or regions.
Is the GST280A24-C6P suitable for outdoor or harsh-environment use?
The provided specs show an operating temperature range of -30C to +70C, which supports use across a wide temperature span. However, no IP rating is listed here, so outdoor exposure or wet and dusty environments should not be assumed from these specs alone.
