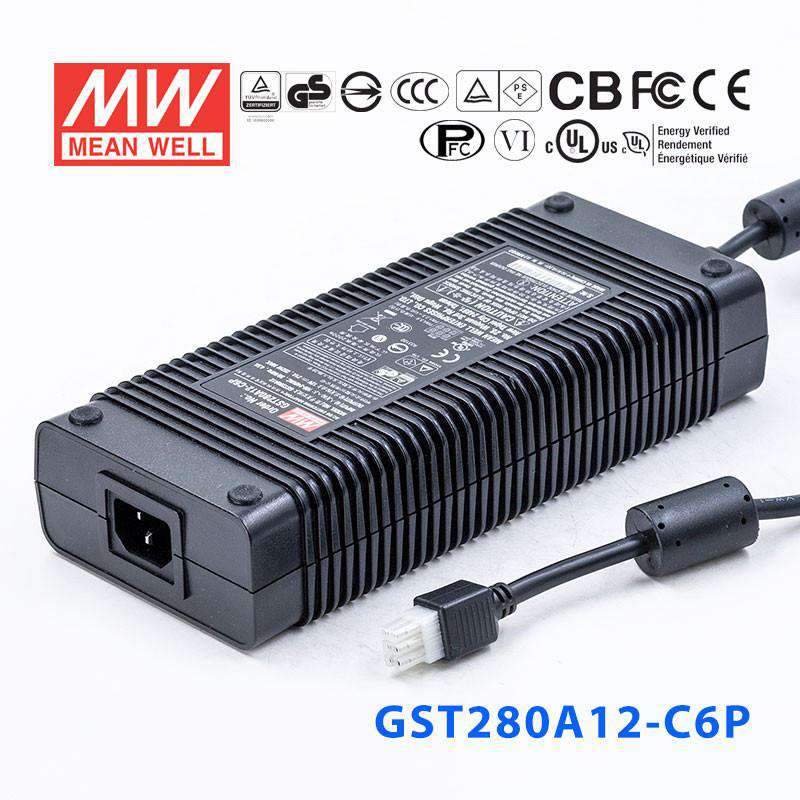

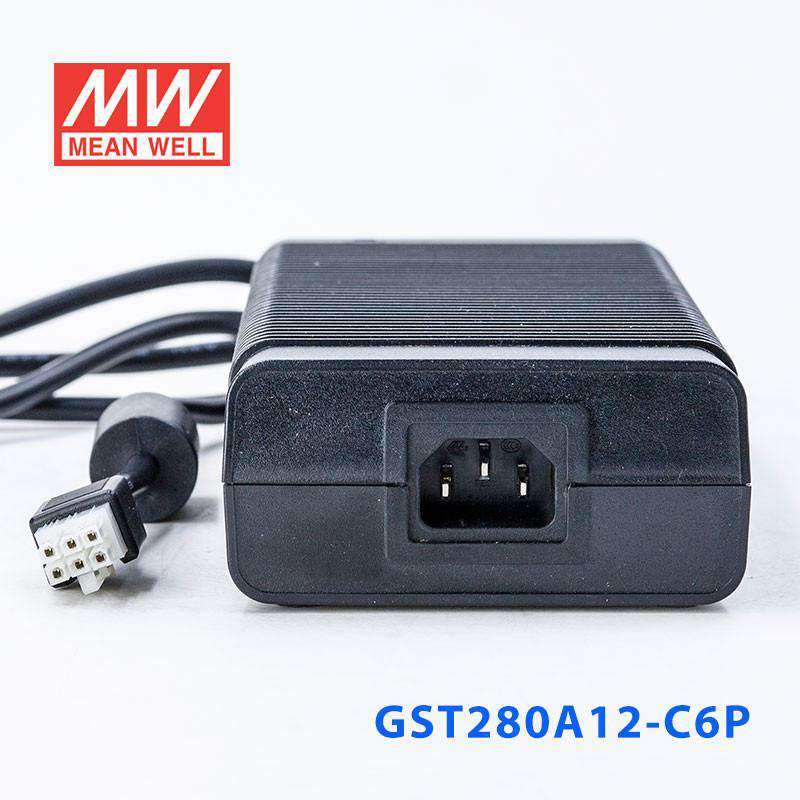

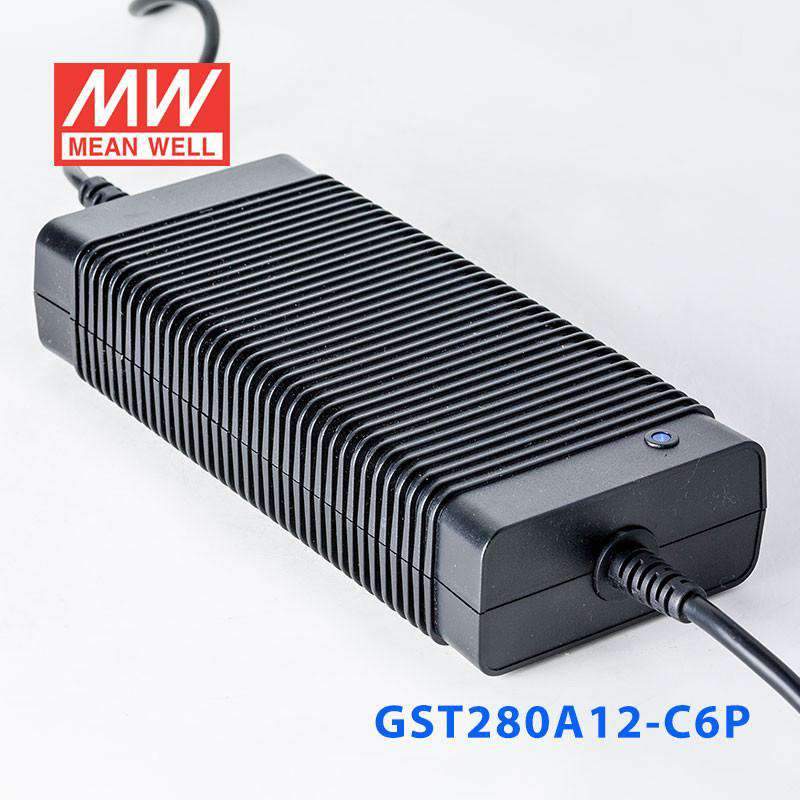

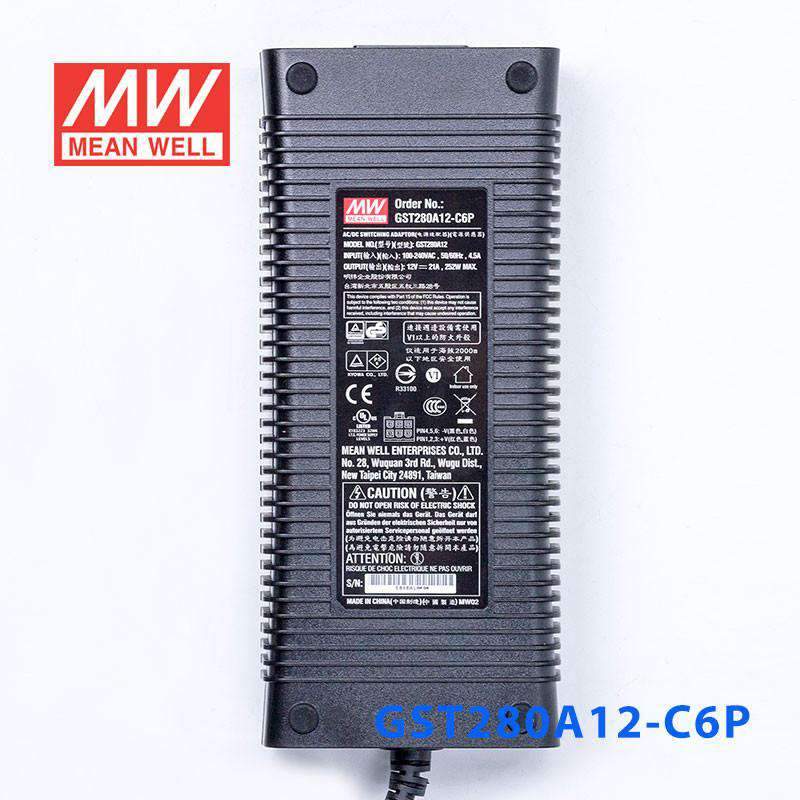

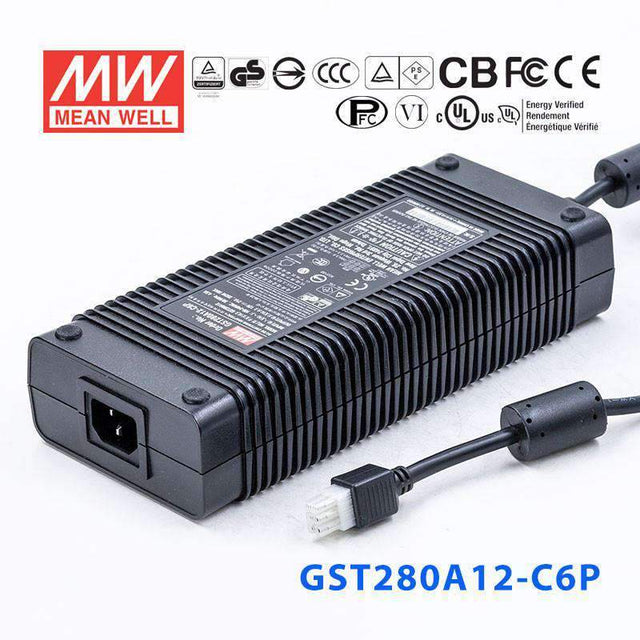

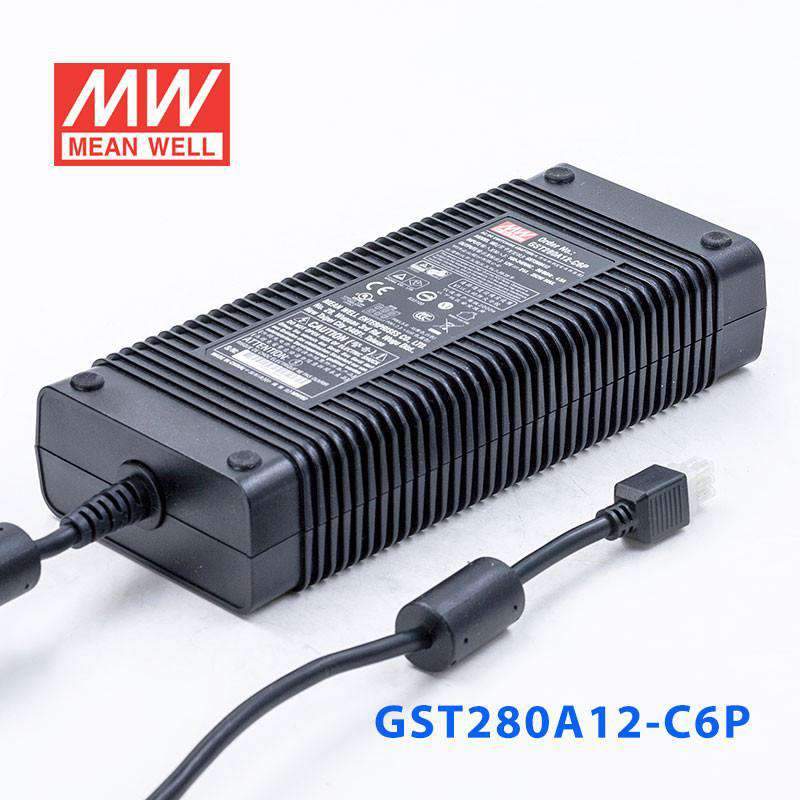

Mean Well GST280A12-C6P Power Supply 252W 12V
C6P: MOLEX 6 pin connector
Key Features
- ✓Universal AC input / Full range
- ✓No load power consumption < 0.5W
- ✓Energy Efficiency Level VI
- ✓Meet EISA 2007 (Energy Independence and Security Act)
- ✓NRCan compliant
- ✓MEPS compliant
- ✓3 pole AC inlet IEC320-C14
- ✓Class I power (with earth pin) only
- ✓Protections: Short circuit /Overload / Over voltage/Over temperature
- ✓Fully enclosed plastic case
- ✓LED indicator for power on
- ✓Built-in active PFC function
- ✓Fanless design
- ✓3 years warranty
-
BrandMean Well
-
SeriesGST Series
-
Power Rating252 Watt
-
Output Voltage12 Volt
-
Rated Current21 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetBSI,CB,CCC,CE,EAC,FCC,KC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length8.66 in
-
Width3.74 in
-
Height1.81 in
-
Weight2.76 lb
::specification::
Frequently Asked Questions
Can I use the GST280A12-C6P for a 12V industrial control cabinet?
Yes, this model is a constant-voltage 12V supply rated for 252W. It is suitable for larger 12V control loads as long as the total draw stays within 21A.
Is the GST280A12-C6P suitable for powering multiple 12V automation components?
It can support grouped 12V automation devices when the combined load remains under 252W. With 21A available at 12V, it is better suited to higher-current 12V systems than smaller plug-in adapters.
Can this power supply run a 12V embedded PC, display, or industrial peripheral setup?
Yes, if the equipment is designed for constant 12V DC input. The unit provides up to 21A, which makes it practical for 12V embedded or control assemblies with higher aggregate power demand.
Is GST280A12-C6P a good fit for 12V test benches or production fixtures?
It can be used for 12V fixtures and bench systems that need a stable constant-voltage source. The 252W rating gives more headroom for heavier 12V loads than lower-power desktop supplies.
Can I use the GST280A12-C6P in outdoor or temperature-variable locations?
Its operating temperature range is -30°C to +70°C, so the temperature specification is broad. However, no IP rating is listed in the provided specs, so outdoor or weather-exposed use is not confirmed here.
