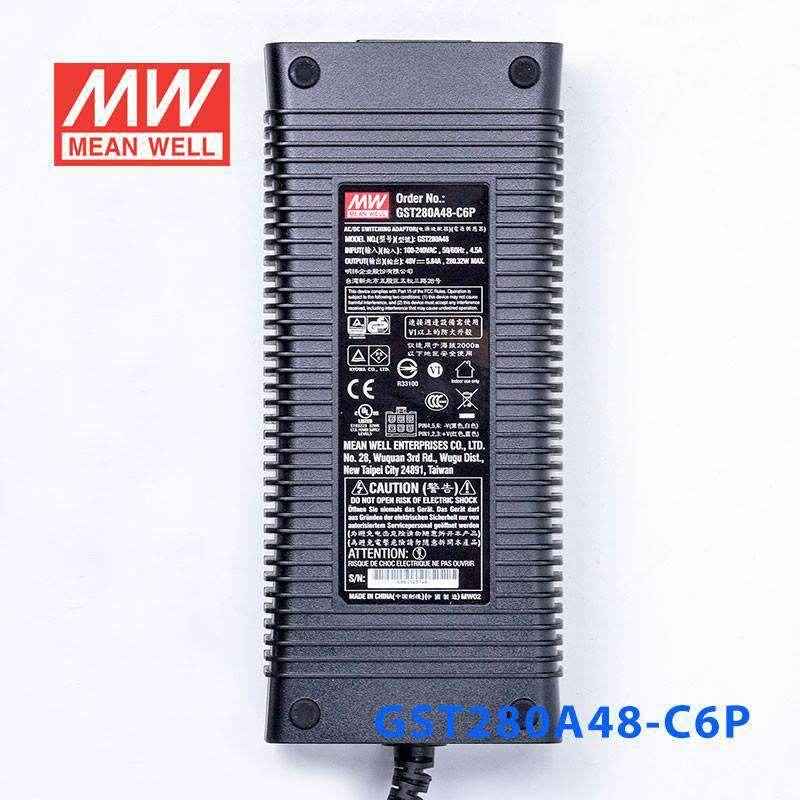

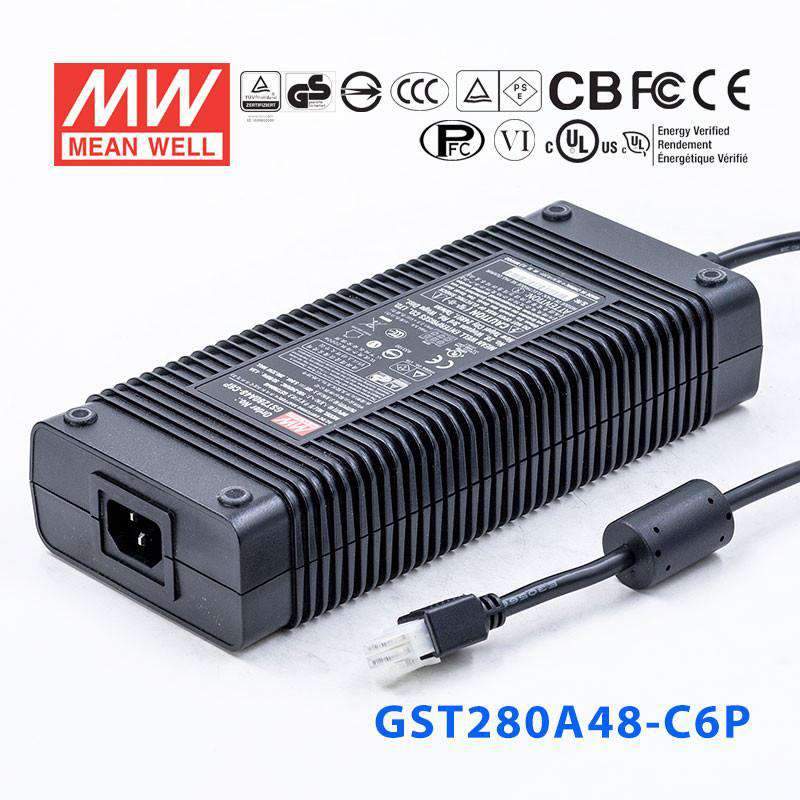

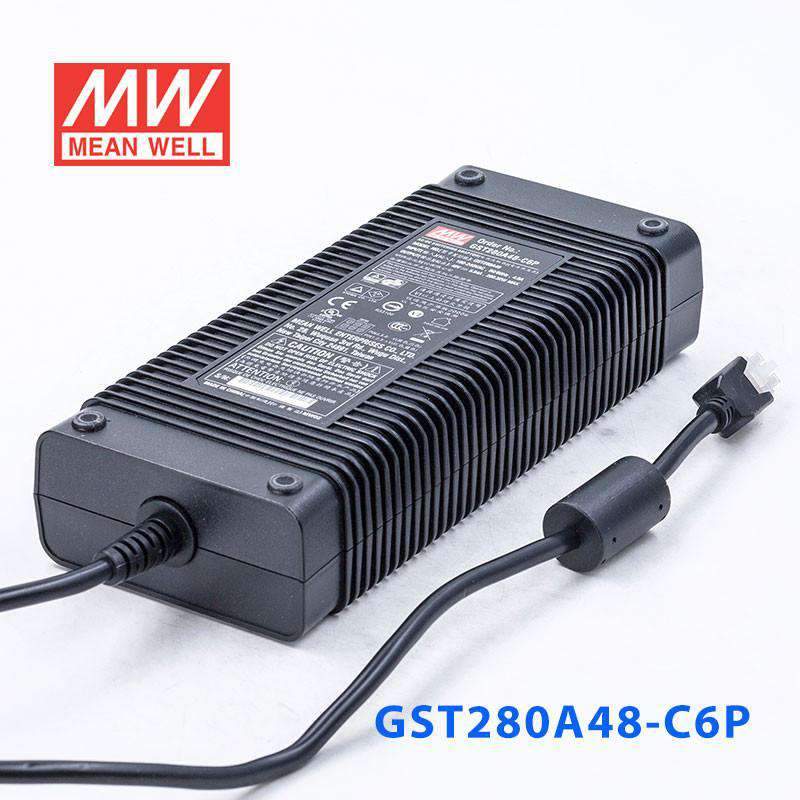

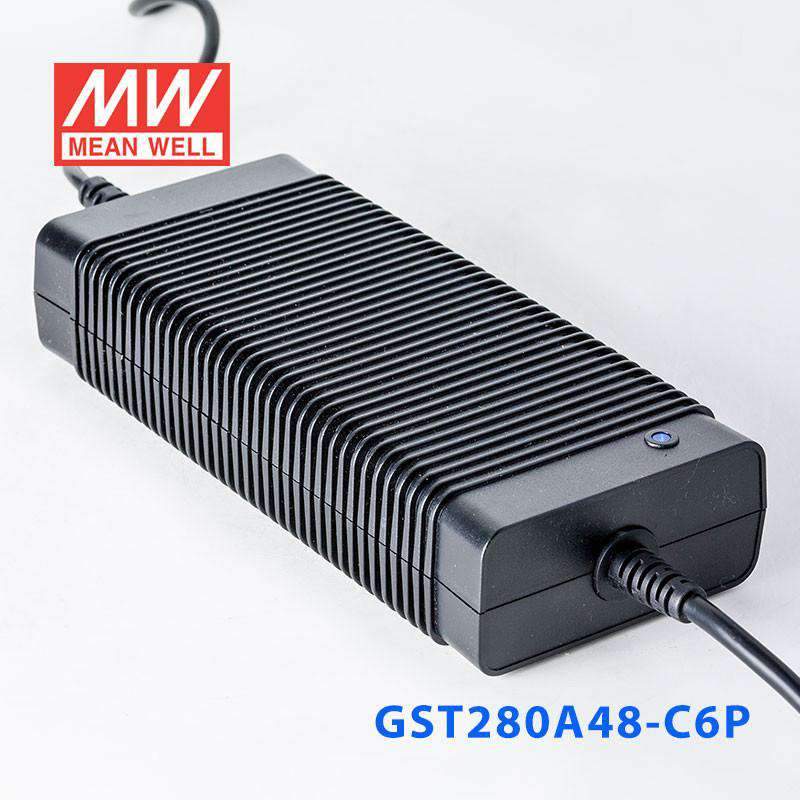

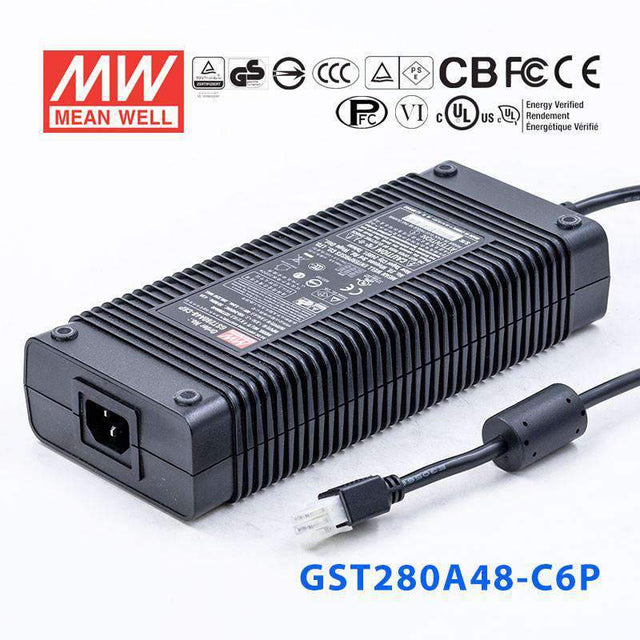

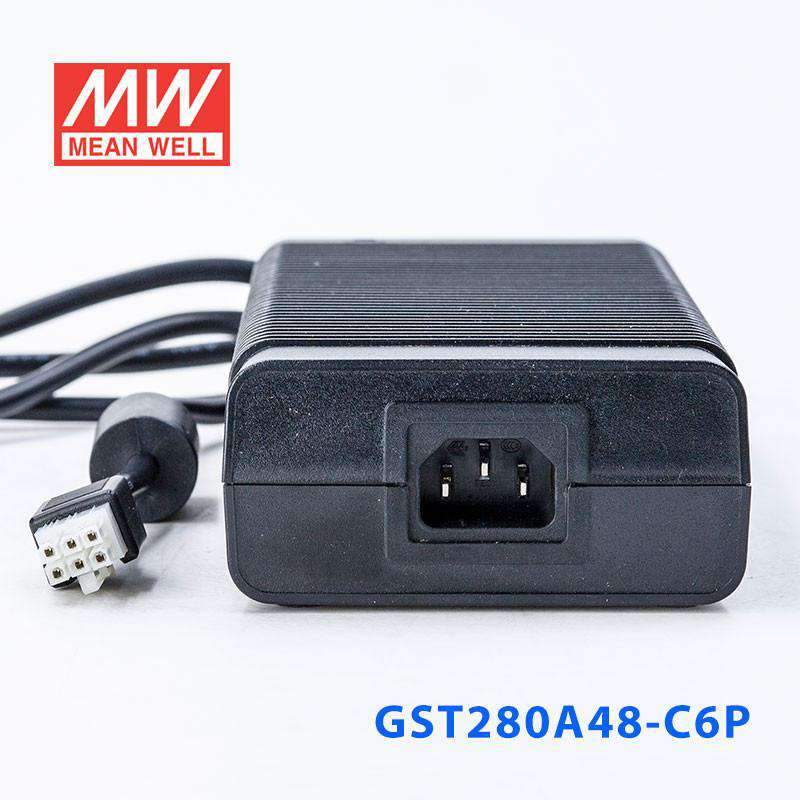

Mean Well GST280A48-C6P Power Supply 280W 48V
C6P: MOLEX 6 pin connector
Key Features
- ✓Universal AC input / Full range
- ✓No load power consumption < 0.5W
- ✓Energy Efficiency Level VI
- ✓Meet EISA 2007 (Energy Independence and Security Act)
- ✓NRCan compliant
- ✓MEPS compliant
- ✓3 pole AC inlet IEC320-C14
- ✓Class I power (with earth pin) only
- ✓Protections: Short circuit /Overload / Over voltage/Over temperature
- ✓Fully enclosed plastic case
- ✓LED indicator for power on
- ✓Built-in active PFC function
- ✓Fanless design
- ✓3 years warranty
-
BrandMean Well
-
SeriesGST Series
-
Power Rating280.32 Watt
-
Output Voltage48 Volt
-
Rated Current5.84 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetBSI,CB,CCC,CE,EAC,FCC,KC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length8.66 in
-
Width3.74 in
-
Height1.81 in
-
Weight2.76 lb
::specification::
Frequently Asked Questions
Can I use the GST280A48-C6P for 48V telecom or network equipment?
Yes, it can suit 48V telecom or network hardware that requires a constant-voltage 48V DC source. This model is rated for 280.32W and 5.84A, so the connected 48V load must remain within those limits.
Is this power supply appropriate for 48V industrial automation devices?
It is appropriate for 48V industrial electronics that are designed for constant-voltage input. The unit provides 48V output at up to 5.84A, which fits moderate-power 48V control and automation loads.
Can the GST280A48-C6P power 48V LED or display systems?
Yes, it can be used with 48V LED or display systems that require constant-voltage operation. The available output is 280.32W total, so the full 48V load needs to stay within 5.84A.
Would this model work for 48V embedded or industrial computing hardware?
It can be used for embedded or industrial computing hardware that is specified for 48V DC input. Its 85-264VAC input range also makes it practical where the incoming AC supply may vary.
Can I use the GST280A48-C6P in cold or hot environments?
The specified operating temperature range is -30C to +70C, so it is built for a broad temperature window. The specs provided do not include an IP rating, so suitability for outdoor or washdown-style exposure is not established here.
