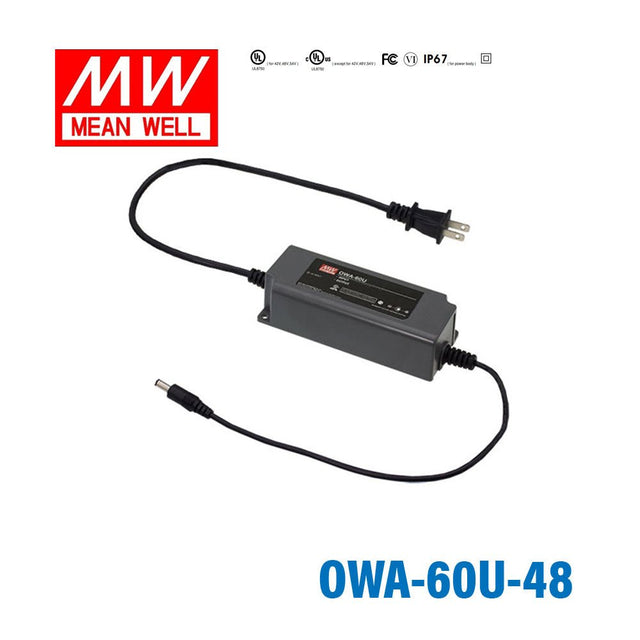

Mean Well OWA-60U-48 Power Supply Moistureproof 60W 48V
no load consumption < 0.15Wenergy efficieny level VIhigh efficiency up to 91%UL listed with North American type input
SKU:
OWA-60U-48
$28.36 USD
Unit price /
Unavailable
Shipping calculated at checkout.
|
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well OWA-60U-48 Power Supply Moistureproof 60W 48V
$28.36 USD
Unit price /
Unavailable
The OWA-60U is a 60W Mean Well DIN rail power converter with a 130mm profile (input range: 90~264VAC, operating temperature: -35~+70℃).
Key Features
- ✓ 130mm width — DIN rail TS-35 compatible
- ✓ Input voltage range: 90~264VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -35~+70℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Safety approvals: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes UL8750 listed; CSA C22.2 No.250.13-12(except for 42V,48V,54V); IP67
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesOWA Series
-
Power Rating60 Watt
-
Output Voltage48 Volt
-
Rated Current1.25 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNon Dimmable
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length5.12 in
-
Width2.09 in
-
Height1.38 in
-
Weight0.9 lb
