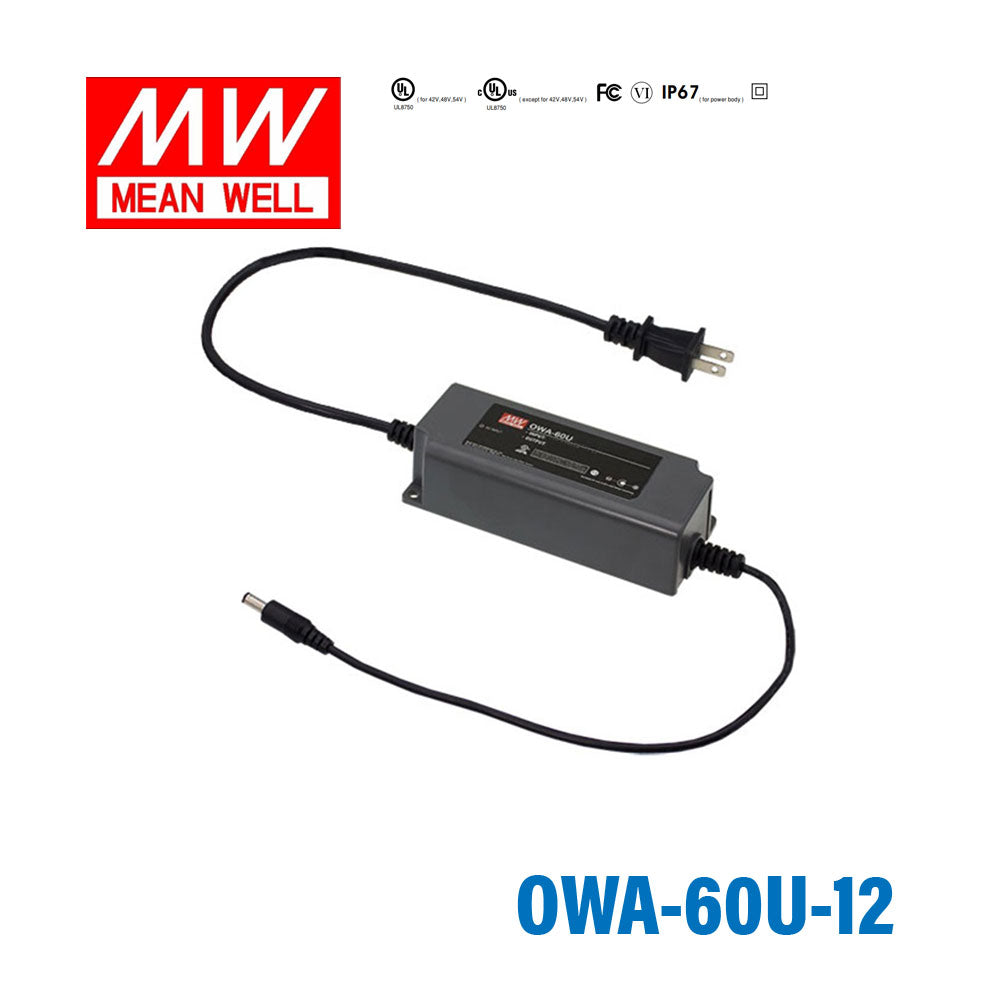

Mean Well OWA-60U-12 Power Supply Moistureproof 60W 12V 5A

Name: Mean Well OWA-60U-12 Power Supply Moistureproof 60W 12V 5A
Brand: Mean Well
SKU: OWA-60U-12
Price: 28.36 USD
Availability: InStock

no load consumption < 0.15Wenergy efficieny level VIhigh efficiency up to 91%UL listed with North American type input

SKU OWA-60U-12

$28.36 USD

Shipping calculated at checkout.

Select model — 5 in this family

OWA-60U-12

OWA-60U-12 12V 60W Low stock $28.36 USD

OWA-90U-12 12V 90W Backorder $31.82 USD

OWA-120U-12 12V 120W Backorder $53.15 USD

OWA-200E-12 12V 180W E Backorder $64.73 USD

OWA-200U-12 12V 180W U Backorder $56.73 USD

Product variants

Notify me when it's back in stock

Your order will be processed within 24 hours

Overview

OWA-60U-12 is the 12V output model of this series: rated current 5A, rated power 60W, typical efficiency 87%.

OWA-60U is one 60W single-output external LED power supply series. Pairing the North American type of AC plug and the prevailing DC connectors, OWA-60U, working like an adaptor, simplifies the connection with LED lighting fixtures without extra wiring efforts. The entire series is certified with the “UL LISTED” for dry and damp locations. As a class Ⅱ (no FG) design, the enclosure of OWA-60U is a 94V-0 flame retardant plastic case. The interior is fully potted with silicone that enhances the heat dissipation. With the working efficiency up to 91%, OWA-60U is cooled by free air convection; the working temperature ranges from -35℃ to +70℃.

Features

Universal AC input / Full range (up to 264VAC)
High efficiency up to 91%
Protections: Short circuit / Over current / Over voltage / Over temperature
Class Ⅱ power unit, no FG
Class 2 power unit
Fully isolated plastic case
Fanless design, cooling by free air convection
No load power consumption <0.15W
Comply with EISA 2007 DoE and NRCan
UL LISTED, suitable for dry and damp locations
Various DC plug quick adapter accessory available (Plug kit sold seperate, please refer to : https://www.meanwell.com/upload/pdf/DC_plug.pdf)
5 years warranty

Specifications

OWA-60U-12Specifications from the official datasheet (2024-10-16 edition)

OUTPUT

DC VOLTAGE: 12V
CONSTANT CURRENT REGION: 6 ~ 12V
RATED CURRENT: 5A
RATED POWER: 60W
RIPPLE & NOISE (max.)^Note.2: 150mVp-p
VOLTAGE TOLERANCE^Note.3: ±4.0%
LINE REGULATION: ±1.0%
LOAD REGULATION: ±1.5%
SETUP, RISE TIME^Note.4: 500ms, 80ms/230VAC 1000ms, 80ms/115VAC at 95% load
HOLD UP TIME (Typ.): 10ms at full load 115VAC / 230VAC

INPUT

VOLTAGE RANGE: 90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.) 115VAC: 87%
EFFICIENCY (Typ.) 230VAC: 88%
AC CURRENT (Typ.): 1.2A / 115VAC 0.7A / 230VAC
INRUSH CURRENT (Typ.): COLD START 35A(twidth=750μs measured at 50% Ipeak) at 115VAC COLD START 65A(twidth=750μs measured at 50% Ipeak) at 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 2 units (circuit breaker of type B) / 4 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.25mA / 240VAC

PROTECTION

OVER CURRENT: 95 ~ 108% Protection type : Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 14 ~ 16V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: -35 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750 listed; CSA C22.2 No.250.13-12(except for 42V,48V,54V); IP67 approved for power body
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to FCC Part15

OTHERS

MTBF: 4386.2K hrs min. Telcordia SR-332 (Bellcore) 522.9K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 130*53*35mm
PACKING: 0.41Kg; 16pcs/9.5Kg/0.85CUFT

Certifications & ratings

IP level: IP67

Test conditions and notes4

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Length of set up time is measured at cold first start. Turning ON/OFF the power supply may lead to increase of the set up time.

Technical drawings

OWA-60U-12 Block Diagram — Block Diagram

OWA-60U-12 Derating Curve — Derating Curve

OWA-60U-12 EFFICIENCY vs LOAD (48V Model) — EFFICIENCY vs LOAD (48V Model)

OWA-60U-12 Mechanical Specification — Mechanical Specification

OWA-60U-12 Input Plug Type — Input Plug Type

OWA-60U-12 Recommend Mounting Direction — Recommend Mounting Direction

Typical applications

Indoor LED lighting
LED decorative lighting
LED office lighting
General electronic products in dusty or humid environment

Downloads

Datasheet1

OWA-60U-12 datasheetOWA-60U-SPEC.PDF · 2024-10-16 edition PDF Download

Certificates3

Mean Well OWA-60U Series Certificates PDF Download

Test reports1

Mean Well OWA-60U-12 Test Report PDF Download

FAQ

Can I use the OWA-60U-12 for a 12V industrial control panel accessory?

Yes, if the device needs constant 12V DC and draws no more than 5A. This model is rated for 60W, which makes it suitable for lower-power 12V industrial and control applications.

Is this power supply suitable for 12V embedded systems or OEM electronics?

It is a fit for embedded or OEM products that require a constant 12V supply up to 60W. The unit measures 130.0 x 53.0 x 35.0 mm, so that enclosure size should be checked against the available space.

Can the OWA-60U-12 power a small automation or sensor system running on 12V DC?

Yes, as long as the total load stays within 5A at 12V. Its constant-voltage operation is intended for equipment designed for a fixed 12V DC input.

Would this work for 12V IT or communications support equipment in different regions?

It can be used where the equipment needs 12V DC up to 60W and the AC source falls within 90-264VAC. That wide input range supports use across many standard mains environments.

Can the OWA-60U-12 be used outdoors or in cold industrial environments?

The power body is IP67 rated (the rating covers the power body, not the plug or DC connector) and the operating temperature range is -35 degrees C to +70 degrees C, with load derating at higher temperatures. That makes it suitable for damp or cold service where a 12V, 60W supply is needed.

How does the OWA-60U-12 compare with other OWA-60U models?

The listed OWA-60U range includes 12V 60W 5A, 15V 60W 4A, 20V 60W 3A, 24V 60W 2.5A, 30V 60W 2A, 36V 60.12W 1.67A, 42V 63W 1.5A, 48V 60W 1.25A, and 54V 60.48W 1.12A. The OWA-60U-12 is the 12V option and has the highest listed current output in that subgroup.
