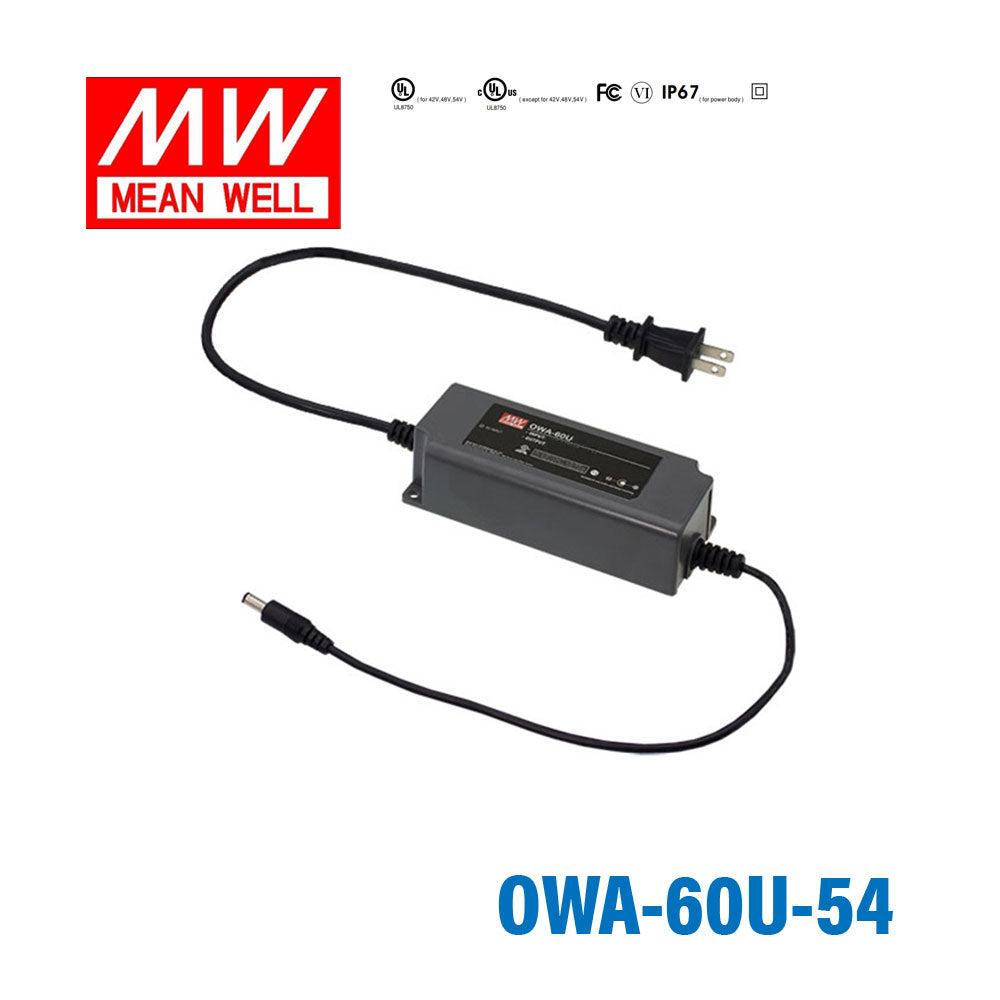

Mean Well OWA-60U-54 Power Supply Moistureproof 60.48W 54V
no load consumption < 0.15W, energy efficieny level VI, high efficiency up to 91%, UL listed with North American type input
SKU:
OWA-60U-54
$28.36 USD
Unit price /
Unavailable
Shipping calculated at checkout.
|
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well OWA-60U-54 Power Supply Moistureproof 60.48W 54V
$28.36 USD
Unit price /
Unavailable
Description
Description
Features
| Input range 180~264VAC |
| Class II power unit, no FG |
| Built-in active PFC function |
| High efficiency up to 94% |
| No load power consumption <0.15W |
| Energy efficiency Level VI |
| Comply with EU ErP and CoC Version 5 |
| Compliance to IEC/EN 61558-1,-2-16 and IEC/EN 60335-1 (except for OWA-200E-48,54) for household appliance |
| Fanless design, cooling by free air convection |
| Protections: Short circuit / Overload / Over voltage / Over temperature |
| Various DC plug quick adapter accessories are available |
| 5 years warranty |
General Specification
| AC input voltage range | 180~264VAC; 254~370VDC |
| AC inrush current | COLD START 65A(twidth=550μs measured at 50% Ipeak) at 230VAC |
| Leakage current | <0.25mA/240VAC |
| Over-voltage protection | 116%~133% rated output voltage |
| Setup, rise, hold up time | 500ms, 80ms, 10ms at full load |
| Withstand voltage | I/P-O/P:4.2KVAC |
| Working temperature | -35~+70°C |
| Safety standards | DEKRA EN61558-1,-2-16; DEKRA EN60335-1(except for OWA-200E-48,54); EAC TP TC 004, IP67 (for power body) approved |
| EMC standards | EN55032 Class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11 |
| Dimension (LxWxH) | 195x68x39.5mm |
| Packing | 9pcs/12.88Kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesOWA Series
-
Power Rating60.48 Watt
-
Output Voltage54 Volt
-
Rated Current1.12 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNon Dimmable
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length5.12 in
-
Width2.09 in
-
Height1.38 in
-
Weight0.9 lb
