Mean Well LPC-100-1750 Power Supply 100W 1750mA
5.0 (1 review)Notify me when it's back in stock
Your order will be processed within 24 hours

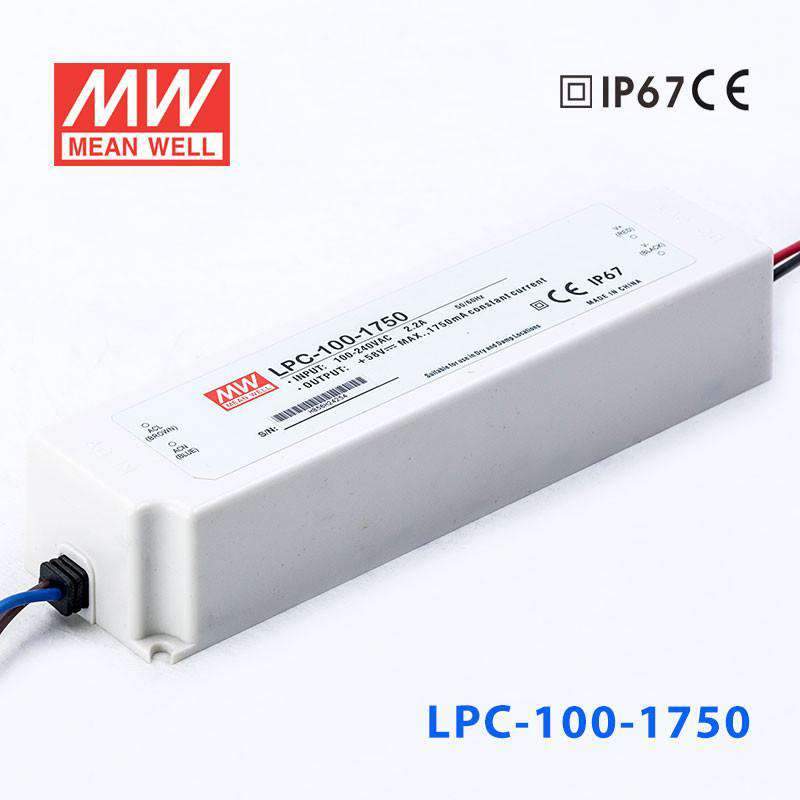

Mean Well LPC-100-1750 Power Supply 100W 1750mA
The LPC-100 is a 100W Mean Well power converter (input range: 90~264VAC).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage
- ✓ Safety approvals: IP67 approved,Design refer to TUV EN60950-1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesLPC Series
-
Power Rating101.5 Watt
-
Output Voltage58 Volt
-
Rated Current1.75 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EAC
-
Operation ModeConstant Current
-
Operating Temperature-25°C~50°C
-
Warranty2 Year
-
Length7.48 in
-
Width2.05 in
-
Height1.46 in
-
Weight1.34 lb
::specification::
Frequently Asked Questions
Can I use the LPC-100-1750 for COB LED downlights?
Yes, if the COB assembly requires a constant current driver at 1750mA and the total forward voltage is within the 29-58V CC range. Its 101.5W rating makes it suitable for higher-output constant current downlight builds.
Is the LPC-100-1750 a good fit for signage light engines?
It can work for signage light engines that are designed for 1750mA constant current operation and stay between 29V and 58V under load. It is not intended for constant voltage signage products that need a fixed DC voltage rail.
Can this model power a compact LED array with a lower forward voltage requirement?
Yes, this version is better suited to constant current LED arrays that operate in the 29-58V range than higher-voltage strings. That makes it a practical option when the array current requirement is 1750mA and the total load stays within 101.5W.
What should I check before pairing the LPC-100-1750 with an LED module?
Check that the module is specified for 1750mA constant current and that the total LED forward voltage falls within 29-58V. The number of LEDs depends on each LED's forward voltage, so this driver should be matched by current and total voltage range rather than LED quantity.
Is the LPC-100-1750 suitable for exposed outdoor installations?
The IP67 rating supports outdoor and washdown-type environments where dust and water resistance are required. The driver is also rated for operation from -25°C to +50°C, which defines the temperature window for the application.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other LPC-100 Models
6 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well LPC-100-700 Power Supply 100W 700mA | 100.1W | 143V | 0.7A | IP67 | $25.65 | View |
| Mean Well LPC-100-500 Power Supply 100W 500mA | 100W | 200V | 0.5A | IP67 | $24.53 | View |
| Mean Well LPC-100-350 Power Supply100W 350mA | 100.1W | 286V | 0.35A | IP67 | $24.39 | View |
| Mean Well LPC-100-2100 Power Supply 100W 2100mA | 100.8W | 48V | 2.1A | IP67 | $25.65 | View |
| Mean Well LPC-100-1400 Power Supply 100W1400mA | 100.8W | 72V | 1.4A | IP67 | $25.65 | View |
| Mean Well LPC-100-1050 Power Supply 100W 1050mA | 100.8W | 96V | 1.05A | IP67 | $25.65 | View |
