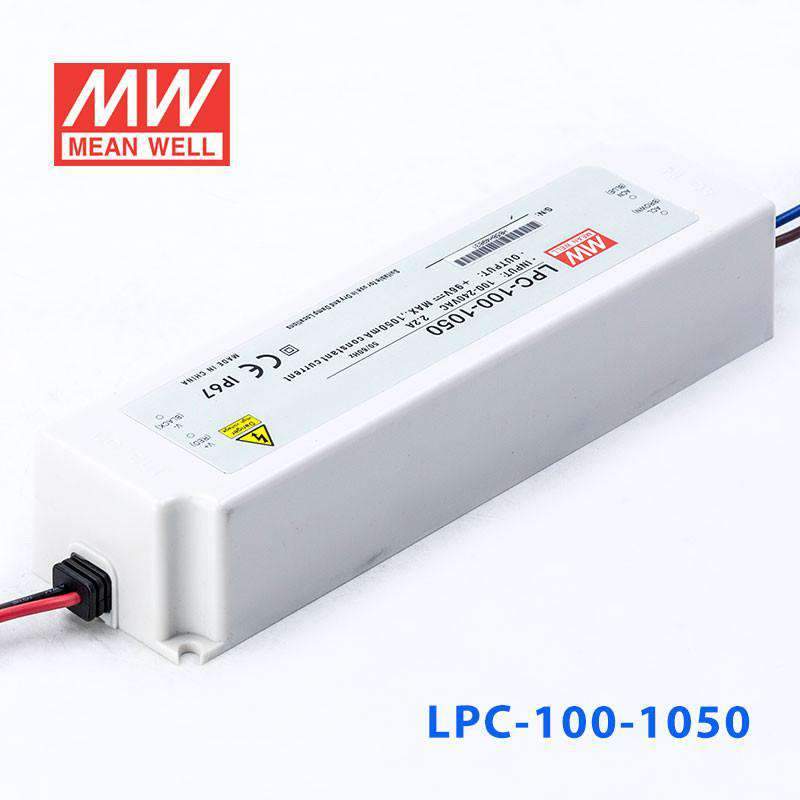

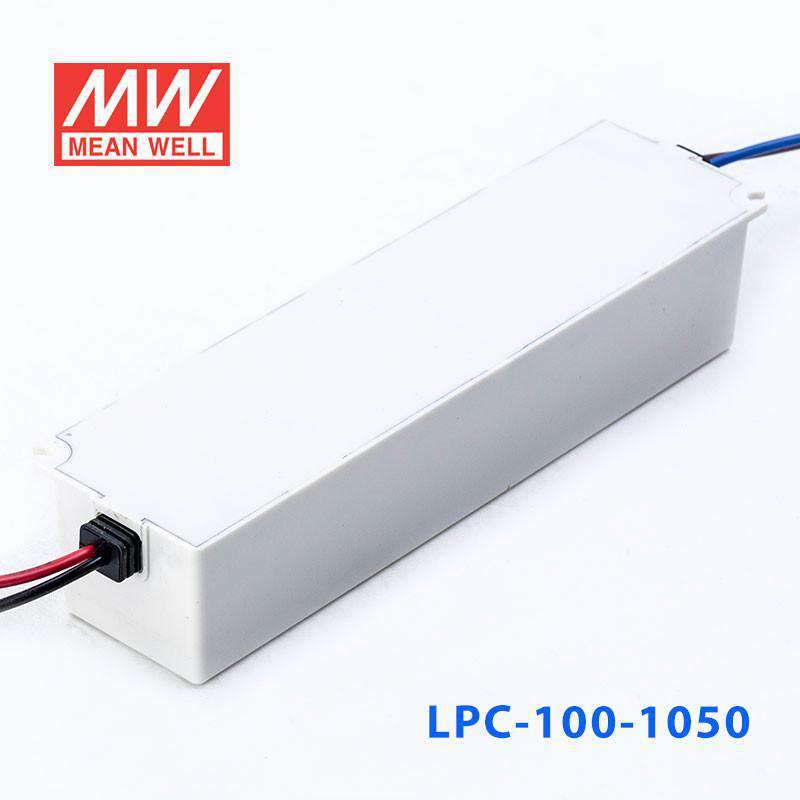

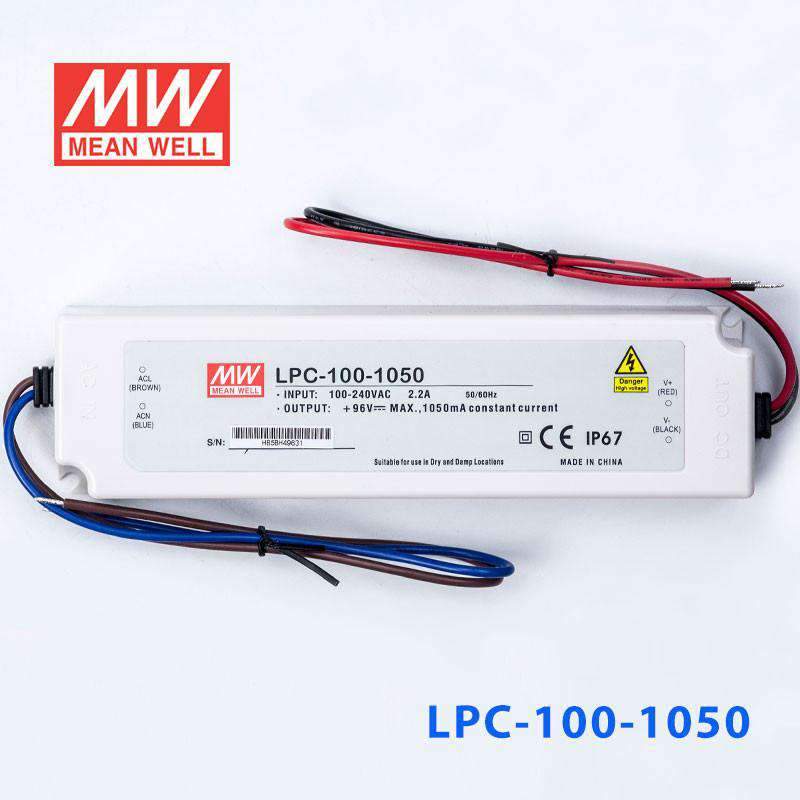

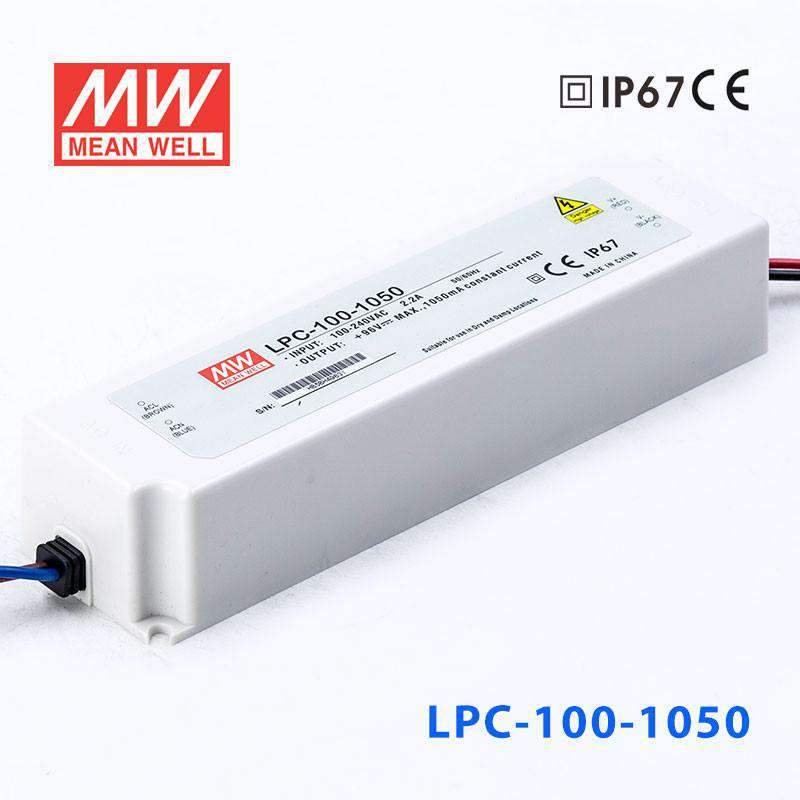

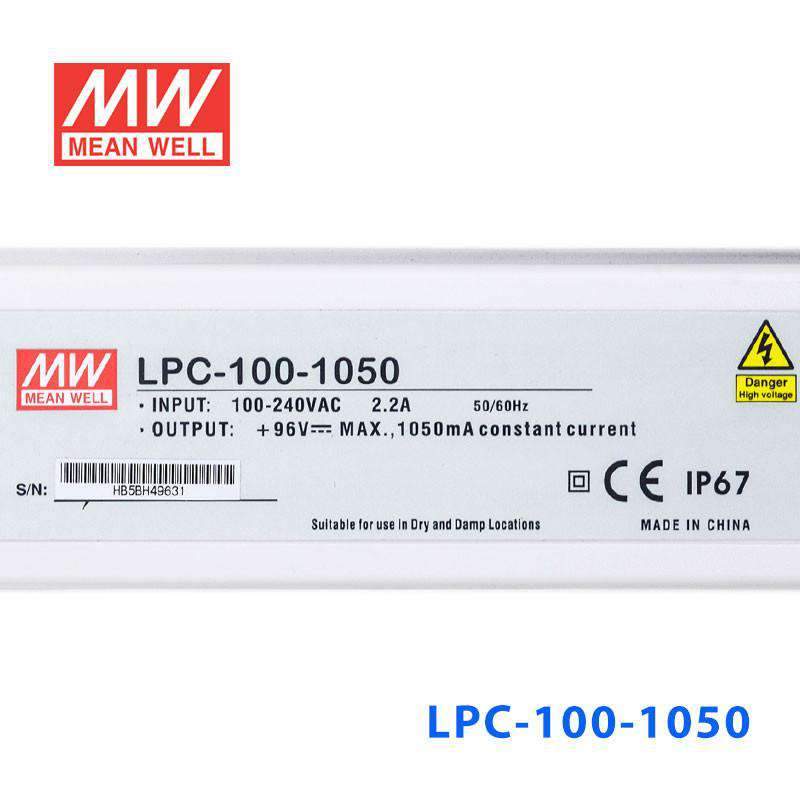

Mean Well LPC-100-1050 Power Supply 100W 1050mA

slim plastic case, economical, IP67
$25.65 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

Features

Universal AC input/full rauge
Fully encapsulated with IP67 level
Protections: Short circuit / Over voltage
Constant current design
Withstand 300VAC surge input for 5 seconds
High efficiency up to 90%
Class II power unit, no F.G.
Cooling by free air convection
100% full load burn-in test
Low cost, high reliability
Suitable for LED lighting and moving sign applications
2 years warranty


General Specification

AC input voltage range 90~264VAC
AC inrush current Cold start, 75A at 230VAC
Over voltage protection 105%~135% rated output voltage
Withstand voltage I/P-O/P: 3kVAC
Working temperature -25~+50°C
Vibration 10~500Hz, 2G 10 minutes /1 cycle, period for 60 minutes each along X, Y, Z axes
Safety standards IP67 approved;Design refer to TUV EN60950-1
EMC standards EN55022 class B, EN61000-3-2 class A, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11
Connection Input UL rated, 18AWGx2C (30cm)
Connection Output UL rated, 18AWGx2C (30cm)
Dimension (LxWxH)(mm) 190x 52x 37

Specifications

  • Brand
    Mean Well
  • Series
    LPC Series
  • Power Rating
    100.8 Watt
  • Output Voltage
    96 Volt
  • Rated Current
    1.05 Ampere
  • Input Voltage
    90V~264V
  • No of Output
    1
  • Dimming Control
    None
  • Standards Met
    CE,EAC
  • Operation Mode
    Constant Current
  • Operating Temperature
    -25°C~50°C
  • Warranty
    2 Year
  • Length
    7.48 in
  • Width
    2.05 in
  • Height
    1.46 in
  • Weight
    1.34 lb
