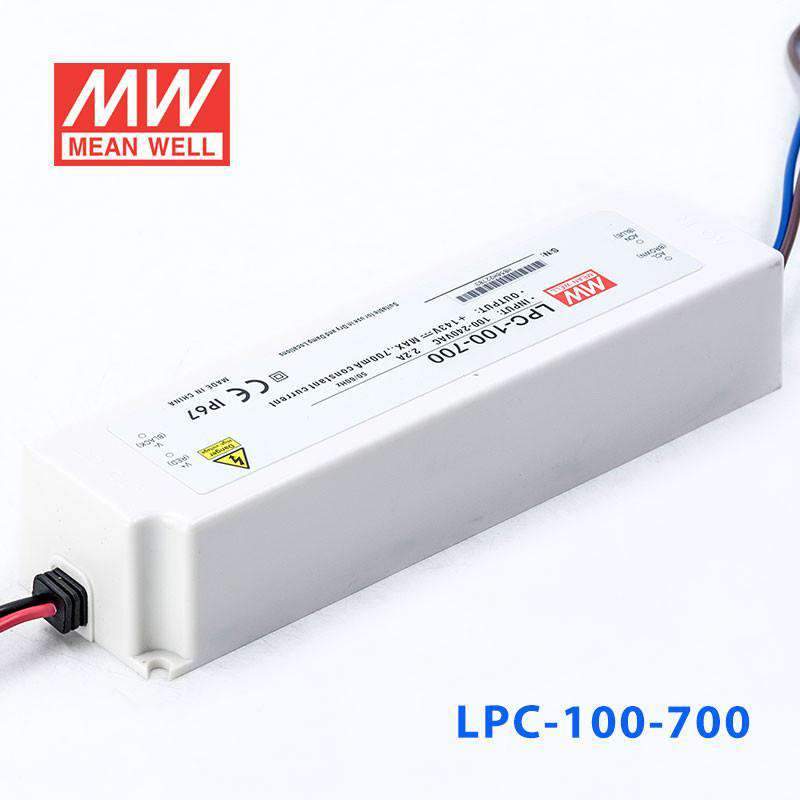

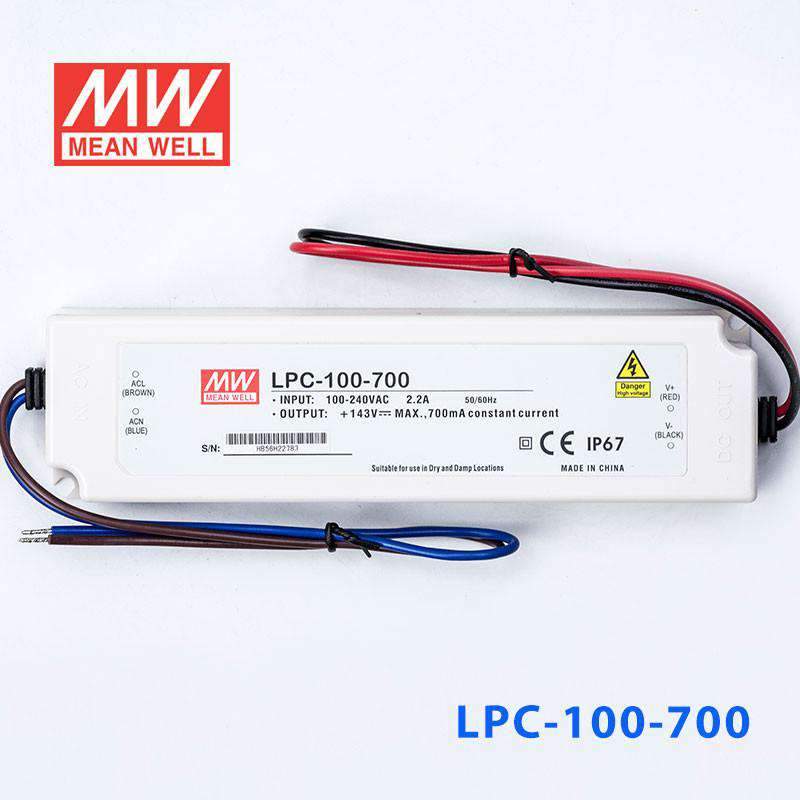

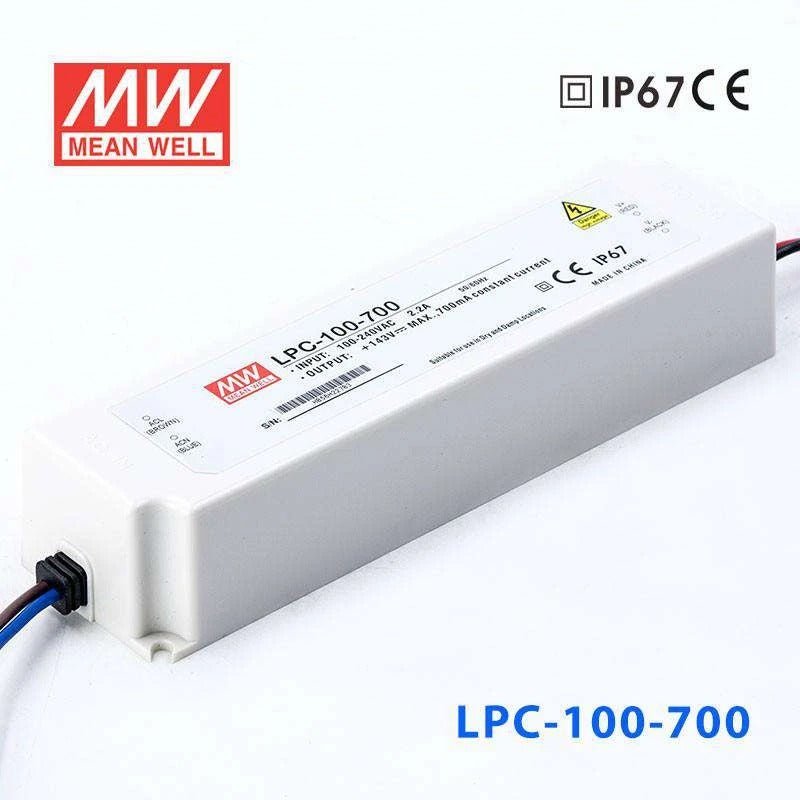

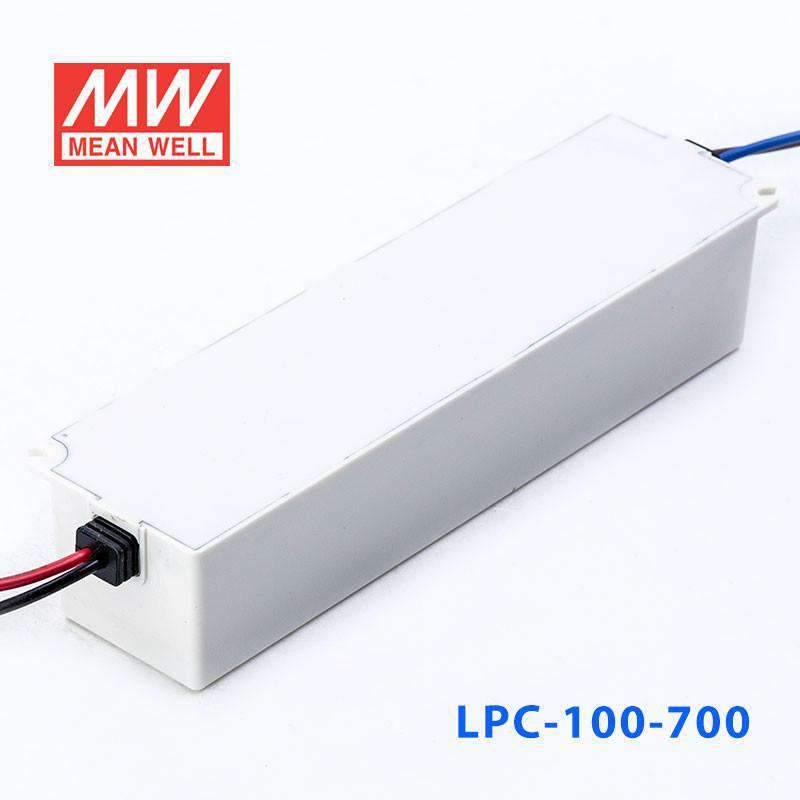

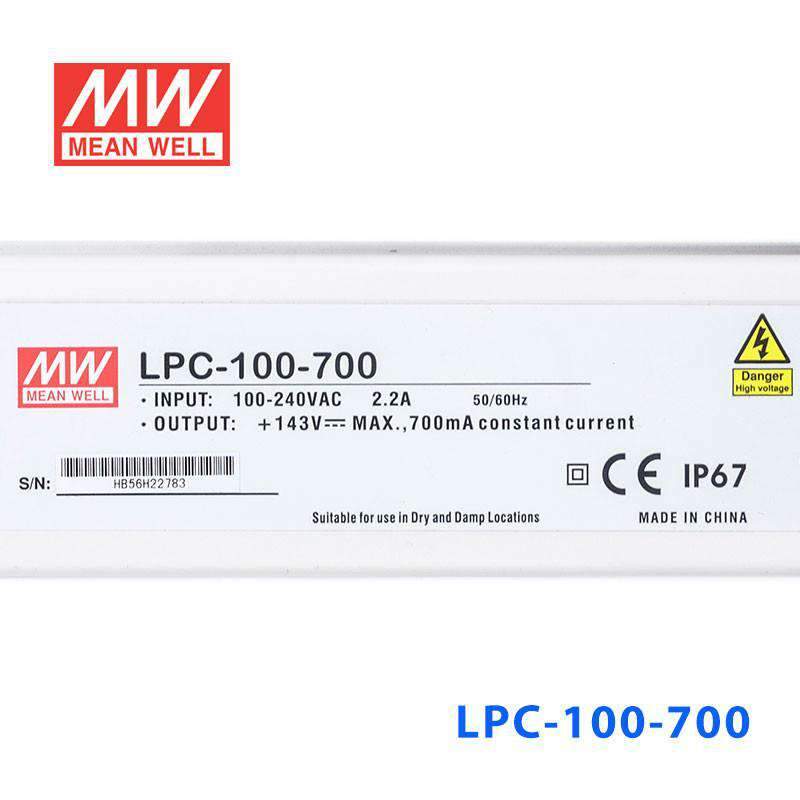

Mean Well LPC-100-700 Power Supply 100W 700mA
The LPC-100 is a 100W Mean Well power converter (input range: 90~264VAC).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage
- ✓ Safety approvals: IP67 approved,Design refer to TUV EN60950-1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesLPC Series
-
Power Rating100.1 Watt
-
Output Voltage143 Volt
-
Rated Current0.7 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EAC
-
Operation ModeConstant Current
-
Operating Temperature-25°C~50°C
-
Warranty2 Year
-
Length7.48 in
-
Width2.05 in
-
Height1.46 in
-
Weight1.34 lb
::specification::
Frequently Asked Questions
Can I use the LPC-100-700 for a high-voltage LED downlight?
Yes, this driver is intended for constant current LED loads at 700mA. It works best when the downlight's total LED forward voltage falls within the 72-143V constant current range and the load stays within the 100.1W rating.
Is the LPC-100-700 suitable for outdoor signage modules?
It can be used for outdoor LED signage modules if the module string is designed for a 700mA constant current driver. The IP67 housing supports wet or dusty environments, and the LED load still needs to stay within the 72-143V CC range and 100.1W output.
Can this driver run a small LED array for architectural or display lighting?
Yes, if the LED array is a constant current design that requires 700mA. The array's combined forward voltage must fall within 72-143V, which makes this model better suited to higher-voltage arrays than low-voltage constant voltage lighting.
What kind of LED load is the LPC-100-700 compatible with?
This is a constant current driver with a 72-143V output range at 700mA, not a constant voltage power supply. The number of LEDs it can run depends on each LED's forward voltage, so compatibility is based on the total forward voltage of the LED load rather than a fixed LED count.
How well does the LPC-100-700 handle outdoor or temperature-exposed locations?
The unit is rated IP67 for waterproof use and has an operating temperature range of -25°C to +50°C. That makes it suitable for indoor or outdoor LED systems where the driver may see moisture, dust, or seasonal temperature swings within that range.
