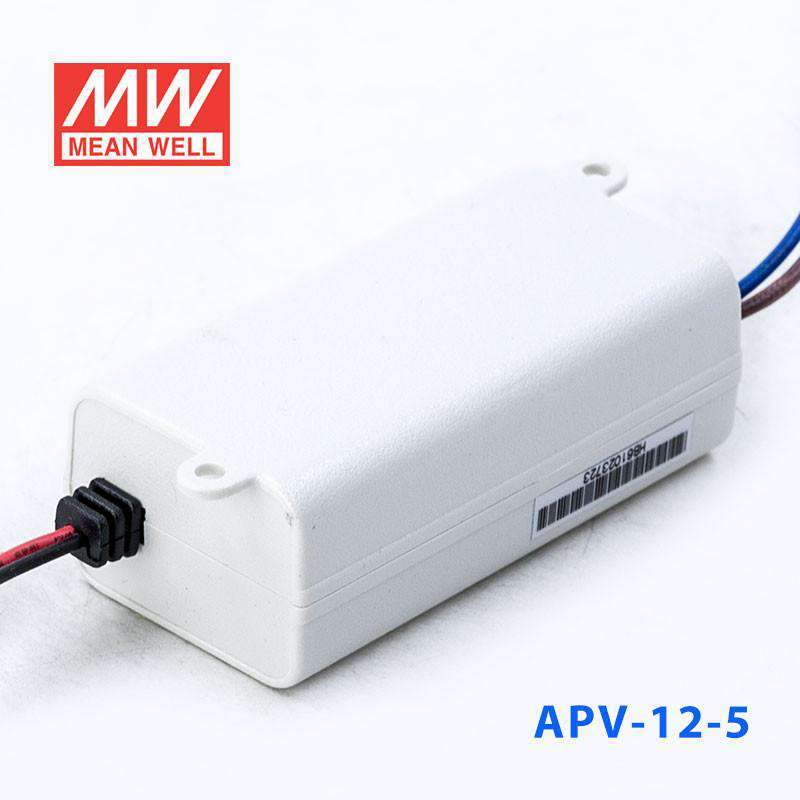

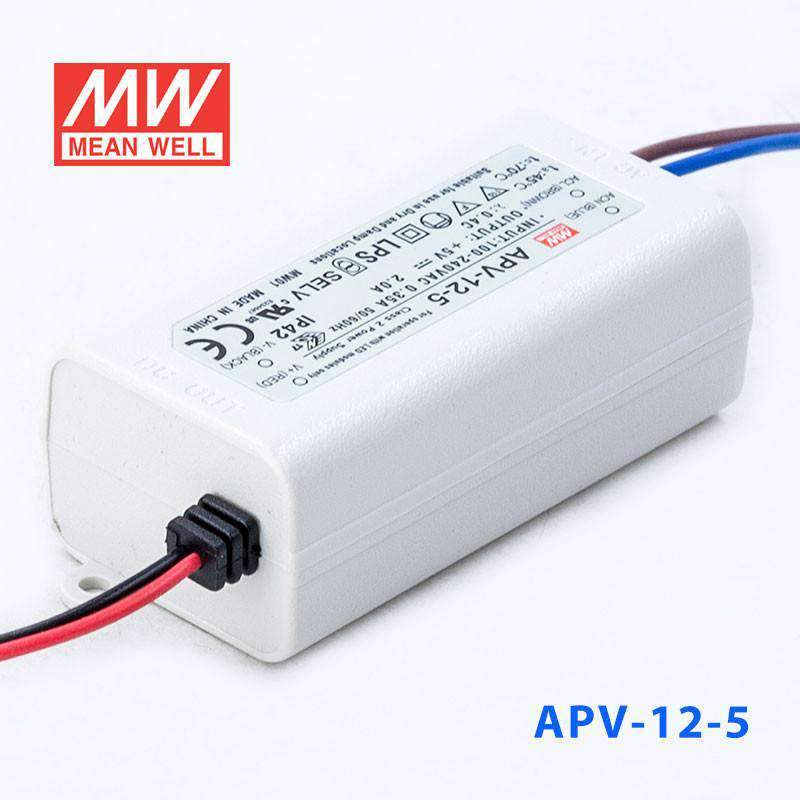

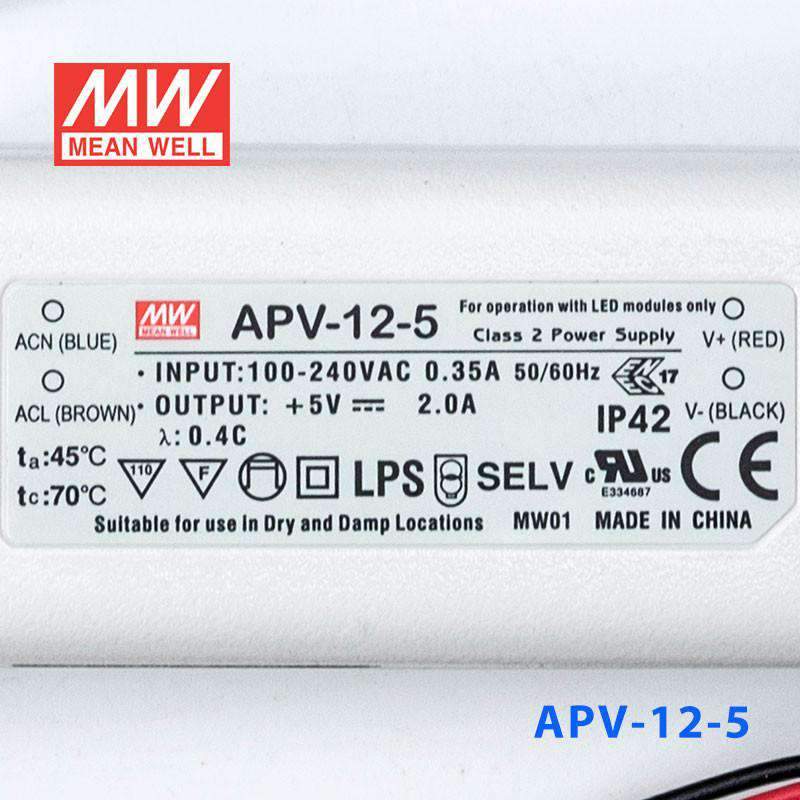

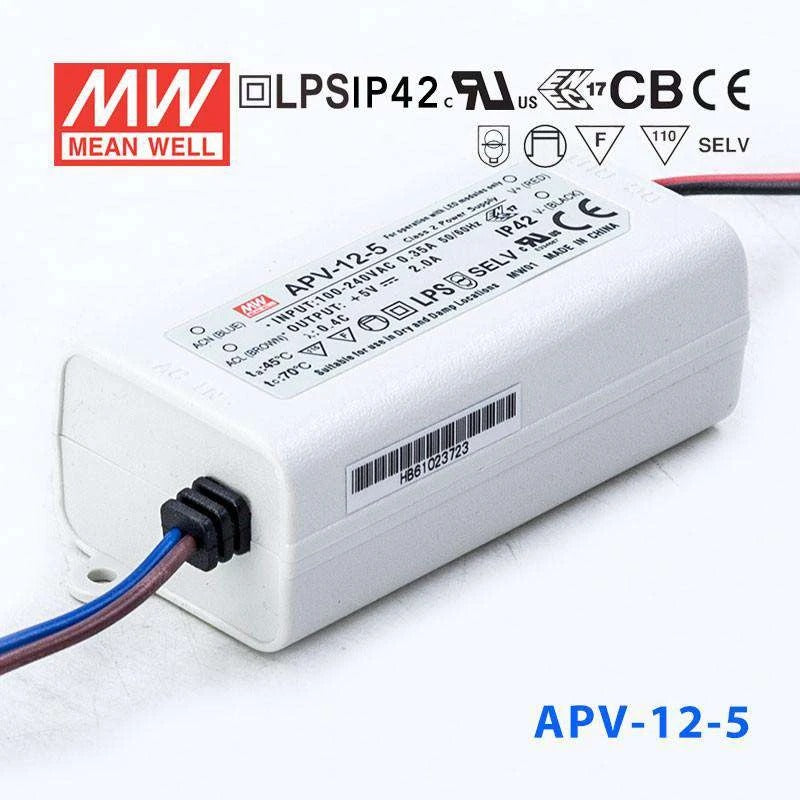

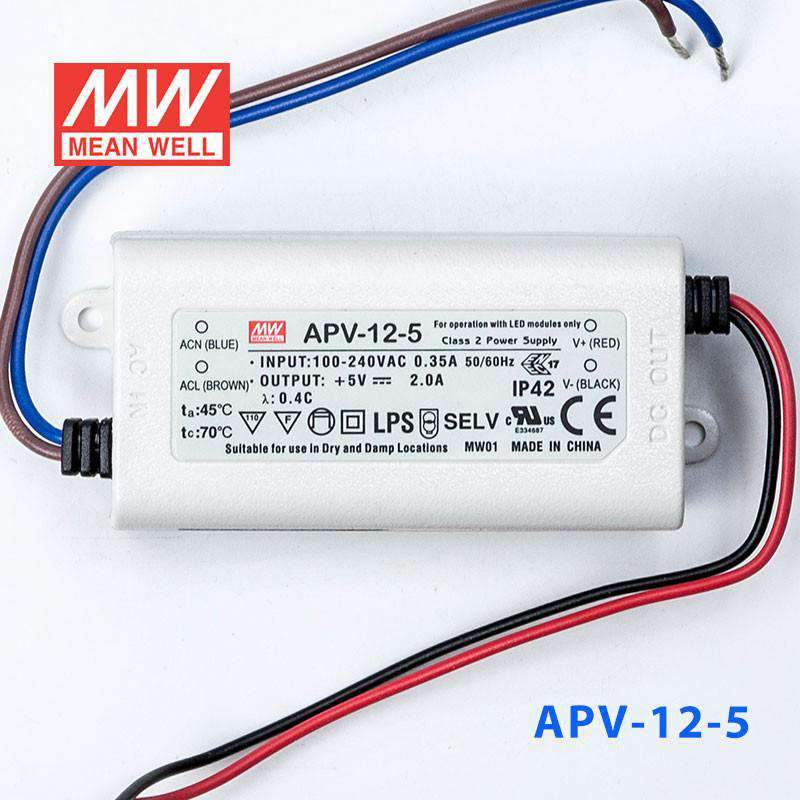

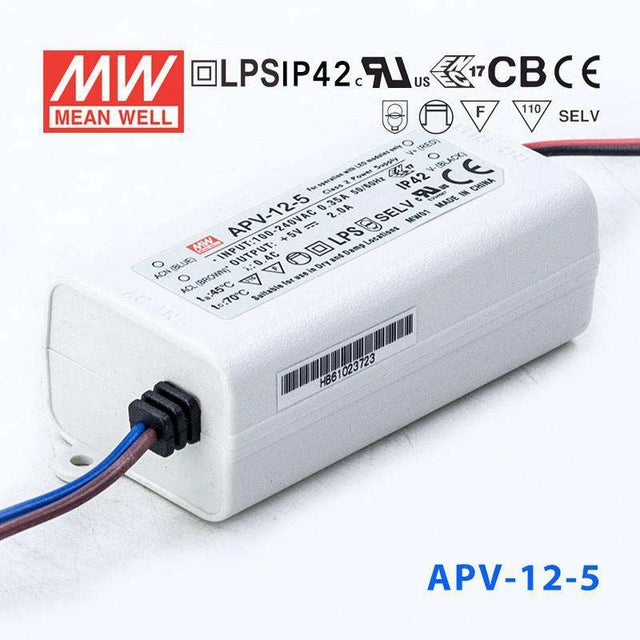

Mean Well APV-12-5 Power Supply 10W 5V 2A
The APV-12 is a 10W Mean Well AC-DC constant voltage LED driver (input: 90~264VAC, output: 5V, operating temperature: -30~+70°C).
Key Features
- ✓ Input voltage: 90~264VAC
- ✓ Output voltage: 5V
- ✓ Rated output current: 2A
- ✓ Class II design — no earth connection required
- ✓ Ingress protection: IP42
- ✓ Operating temperature: -30~+70°C
- ✓ Safety certifications: CB, CCC, CE, EAC, ENEC, UL
- ✓ 2 year warranty
-
BrandMean Well
-
SeriesAPV Series
-
Power Rating10 Watt
-
Output Voltage5 Volt
-
Rated Current2 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty2 Year
-
Length3.03 in
-
Width1.57 in
-
Height1.14 in
-
Weight0.18 lb
::specification::
Frequently Asked Questions
What LED lighting use cases fit a 5V, 10W constant-voltage driver?
The APV-12-5 outputs 5V at 2A for a maximum of 10W. It is suited to 5V LED pixel strips, addressable LED modules such as WS2812-style strips, and small 5V LED signage panels. Confirm your LED product operates at 5V and that the total load does not exceed 10W.
How does the APV-12-5 compare to the APV-16-5 and APV-25-5 for 5V LED applications?
The APV-12-5 provides 10W at 5V and 2A. The APV-16-5 increases output to 13W at 5V and 2.6A in the same 77.0 × 40.0 × 29.0 mm housing. The APV-25-5 steps up further to 17.5W at 5V and 3.5A in a larger 84.0 × 57.0 × 29.5 mm enclosure. Choose based on the wattage your LED load requires.
Is the APV-12-5 approved for use in moisture-prone environments?
The APV-12-5 is rated IP42, which provides protection against solid particles larger than 1 mm and vertically dripping water only. It is not suitable for outdoor, wet, or high-humidity environments without additional enclosure protection. For damp or wet locations, specify a driver with at least an IP65 rating.
How many meters of 5V addressable LED strip can the APV-12-5 support?
The APV-12-5 delivers 10W at 5V. At a typical 5V addressable strip consumption of 5 W/m at full white, that supports roughly 2 m. Divide 10W by your strip's rated power per meter to find your specific limit, and verify your strip's rated power per meter before purchasing.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other APV-12 Models
3 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well APV-12-12 Power Supply 12W 12V 1A | 12W | 12V | 1A | IP42 | $4.70 | View |
| Mean Well APV-12-24 Power Supply 12W 24V 500mA | 12W | 24V | 0.5A | IP42 | $7.17 | View |
| Mean Well APV-12-15 Power Supply 12W 15V 800mA | 12W | 15V | 0.8A | IP42 | $6.43 | View |
