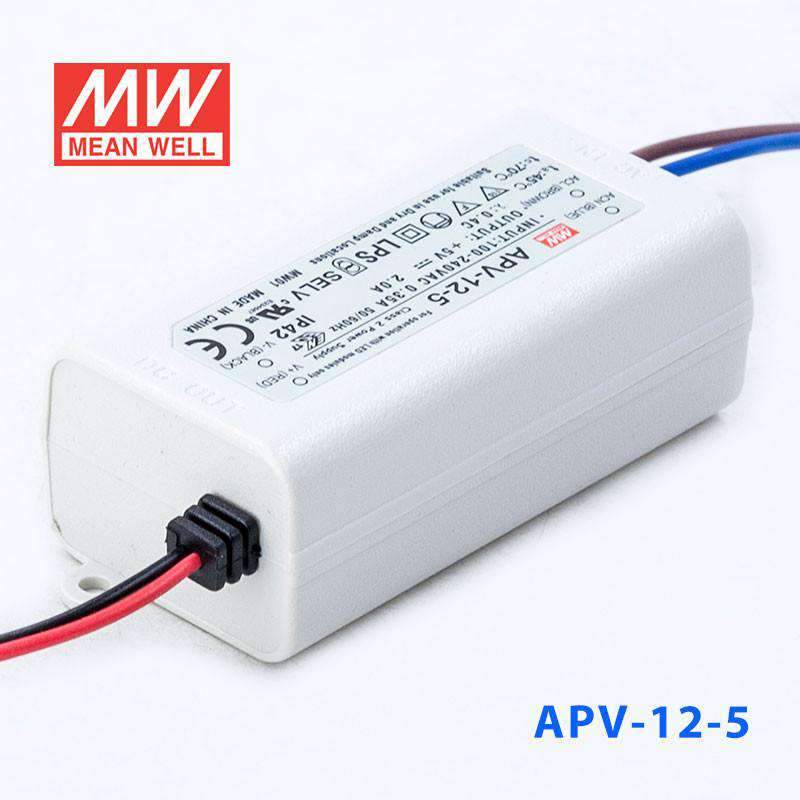

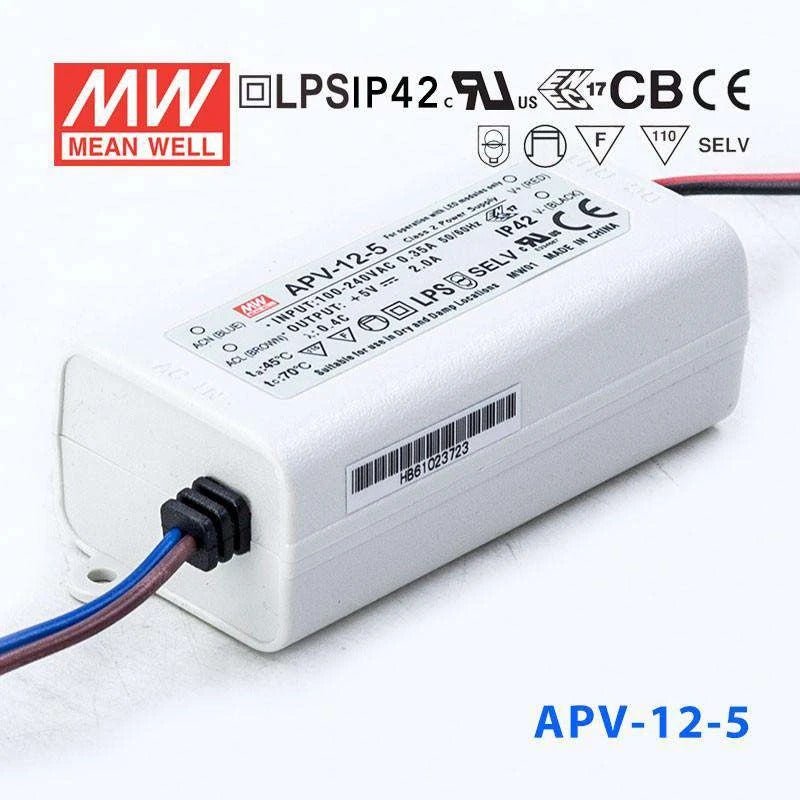

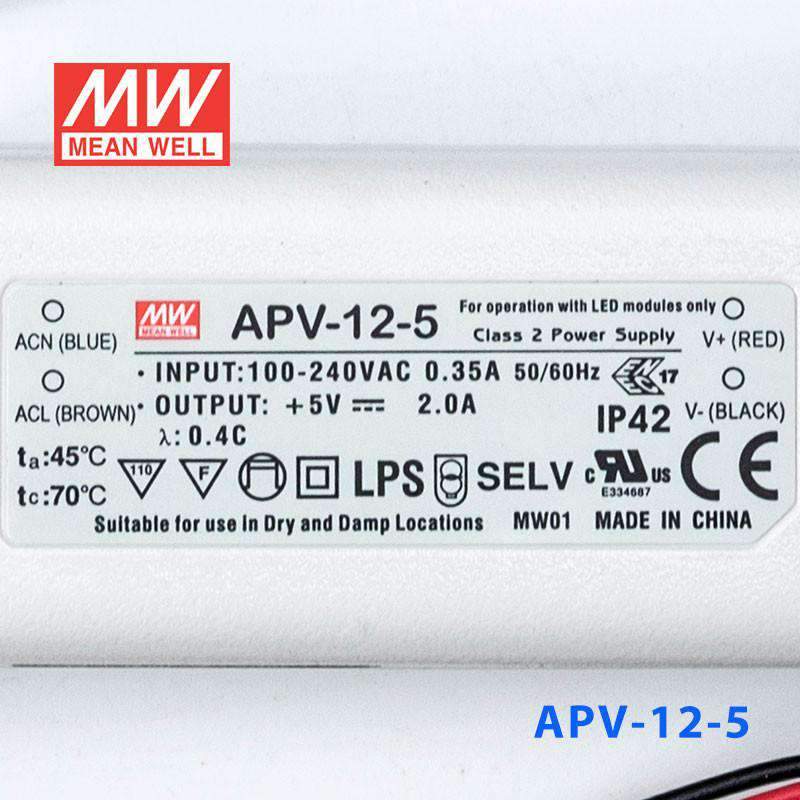

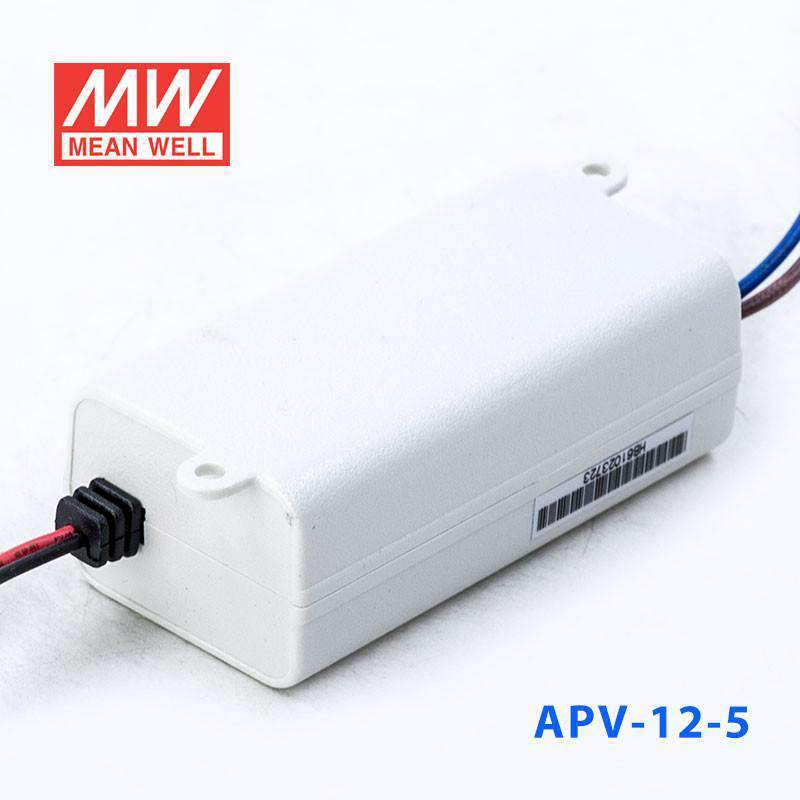

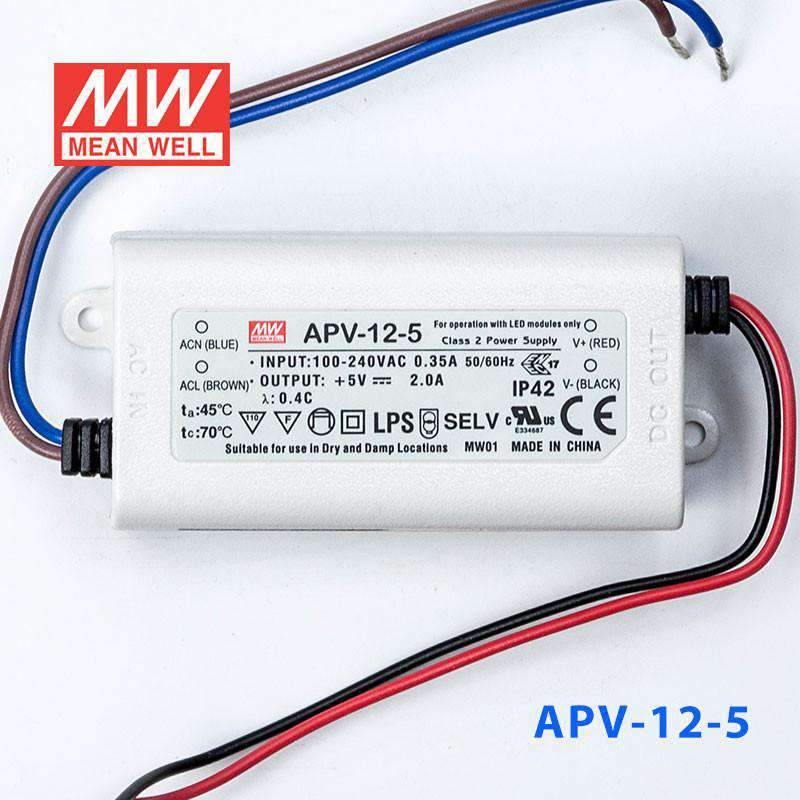

Mean Well APV-12-5 Power Supply 10W 5V 2A
Overview
APV-12-5 is the 5V output model of this series: rated current 2A, rated power 10W, typical efficiency 76%.
Features
- Constant voltage design
- Universal AC input / Full range
- Protections: Short circuit / Over load / Over voltage
- Fully isolated plastic case
- Cooling by free air convection
- Small and compact size
- Class Ⅱ power unit, no FG
- Class 2 power unit
- Pass LPS
- IP42 design
- Display devices for decorative & advertising accessories (Note.7)
- General-purpose electronics operated in dusty or damp environments
- 100% full load burn-in test
- Low cost, high reliability
- 2 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- 5V
- RATED CURRENT
- 2A
- CURRENT RANGE
- 0 ~ 2A
- RATED POWER
- 10W
- RIPPLE & NOISE (max.)Note.2
- 100mVp-p
- VOLTAGE TOLERANCENote.3
- ±5.0%
- LINE REGULATION
- ±1.0%
- LOAD REGULATION
- ±2.0%
- SETUP, RISE TIMENote.6
- 1500ms, 30ms / 230VAC 1500ms,30ms / 115VAC at full load
- HOLD UP TIME (Typ.)
- 20ms/230VAC 15ms/115VAC at full load
INPUT
- VOLTAGE RANGENote.4
- 90 ~ 264VAC 127 ~ 370VDC
- FREQUENCY RANGE
- 47 ~ 63Hz
- EFFICIENCY (Typ.)
- 76%
- AC CURRENT
- 0.2A/230VAC 0.35A/115VAC
- INRUSH CURRENT(Typ.)
- COLD START 70A(twidth=185μs measured at 50% Ipeak) at 230VAC
- MAX. No. of PSUs on 16A CIRCUIT BREAKER
- 17 units (circuit breaker of type B) / 29 units (circuit breaker of type C) at 230VAC
- LEAKAGE CURRENT
- 0.25mA / 240VAC
PROTECTION
- OVER LOAD
- Above 105% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 5.75 ~ 6.75V Protection type : Shut off o/p voltage, clamping by zener diode
ENVIRONMENT
- WORKING TEMP.
- -30 ~ +70℃(Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +80℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDSNote.8
- UL8750,CSA C22.2 No.250.0-08, BIS IS15885(except for 15V),EAC TP TC 004,IP42, BS EN/EN 62368-1 approved
- WITHSTAND VOLTAGE
- I/P-O/P:3.75KVAC
- ISOLATION RESISTANCE
- I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55032,BS EN/EN61000-3-2,BS EN/EN61000-3-3, EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN55035,BS EN/EN61000-4-2,3,4,5,6,8,11; light industry level(surge 2KV), EAC TP TC 020
OTHERS
- MTBF
- 7488.9K hrs min. Telcordia SR-332 (Bellcore) ; 1132.5K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 77*40*29(L*W*H)
- PACKING
- 0.08Kg; 120pcs/11.8Kg/1.06CUFT
Certifications & ratings
- Marked features
- LPS
Test conditions and notes10
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. Derating may be needed under low input voltage. Please check the static characteristics for more details. Please connect L line to the positive pole and N line to the negative pole under DC input.
- 5. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
- 6. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
- 7. This product is not intended for LED lighting luminaire applications in the EU and China.(In the EU and China the LPF/NPF/XLG/XLC/XLN series are recommended.)
- 8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
- 9. Products sourced from the Americas regions may not have the ENEC/BIS logo. Please contact your MEAN WELL sales for more information.
- 10. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
Technical drawings
Downloads
FAQ
What LED lighting use cases fit a 5V, 10W constant-voltage driver?
The APV-12-5 outputs 5V at 2A for a maximum of 10W. It is suited to 5V LED pixel strips, addressable LED modules such as WS2812-style strips, and small 5V LED signage panels. Confirm your LED product operates at 5V and that the total load does not exceed 10W.
How does the APV-12-5 compare to the APV-16-5 and APV-25-5 for 5V LED applications?
The APV-12-5 provides 10W at 5V and 2A in a 77 × 40 × 29 mm housing; it is the only 5V model of the APV-12 series, whose other models are rated 12W. The APV-16-5 and APV-25-5 are not covered by this datasheet, so compare their ratings on their own spec sheets. Choose based on the wattage your LED load requires.
Is the APV-12-5 approved for use in moisture-prone environments?
The APV-12-5 is rated IP42 and is specified for 20–90% RH non-condensing working humidity. It is not suitable for outdoor, wet, or condensing environments without additional enclosure protection. For damp or wet locations, specify a driver with at least an IP65 rating.
How many meters of 5V addressable LED strip can the APV-12-5 support?
The APV-12-5 delivers 10W at 5V. At a typical 5V addressable strip consumption of 5 W/m at full white, that supports roughly 2 m. Divide 10W by your strip's rated power per meter to find your specific limit, and verify your strip's rated power per meter before purchasing.
