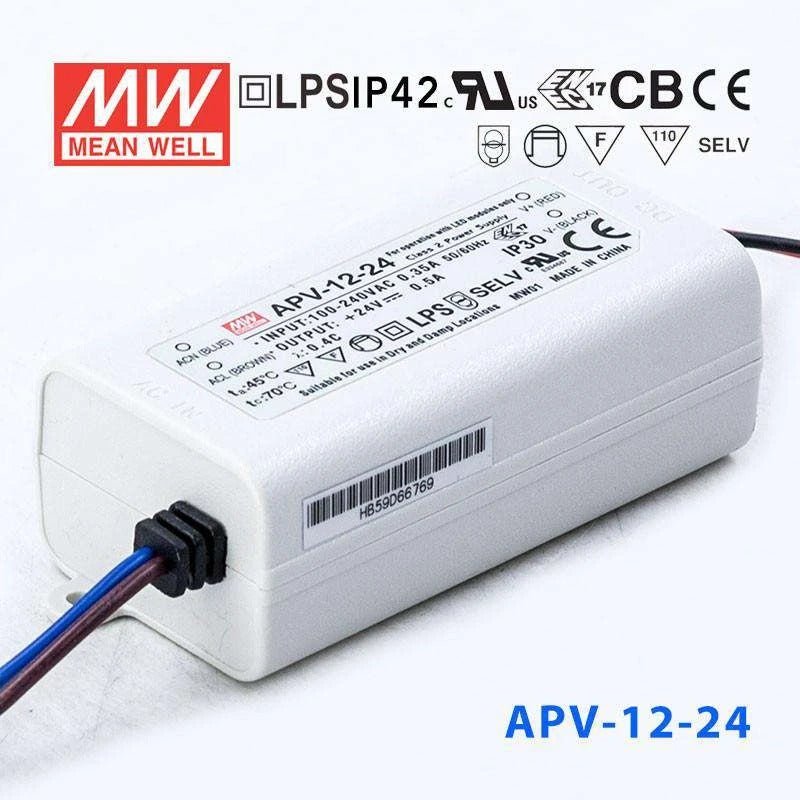

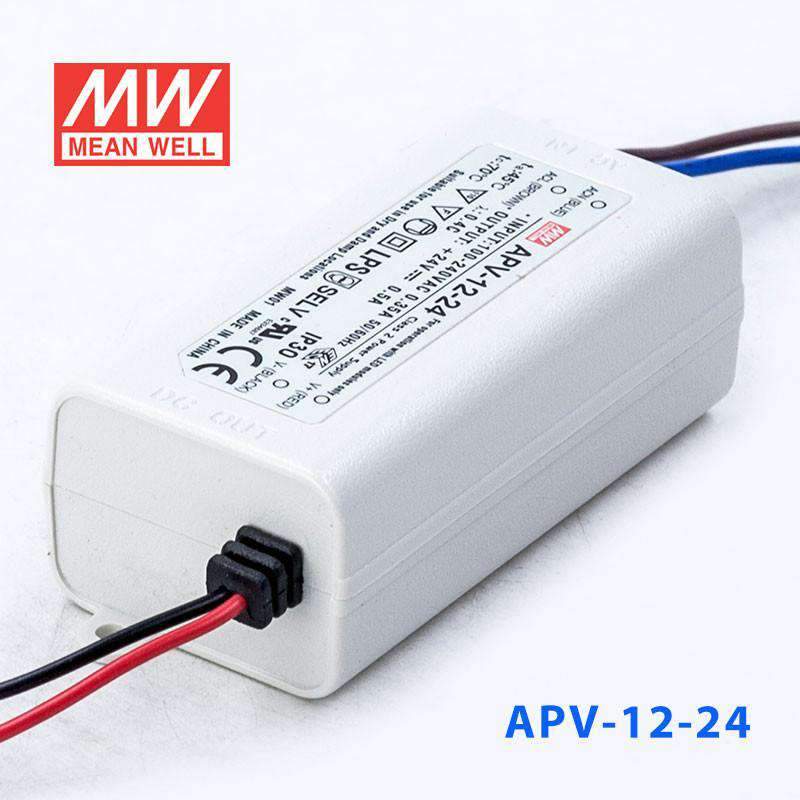

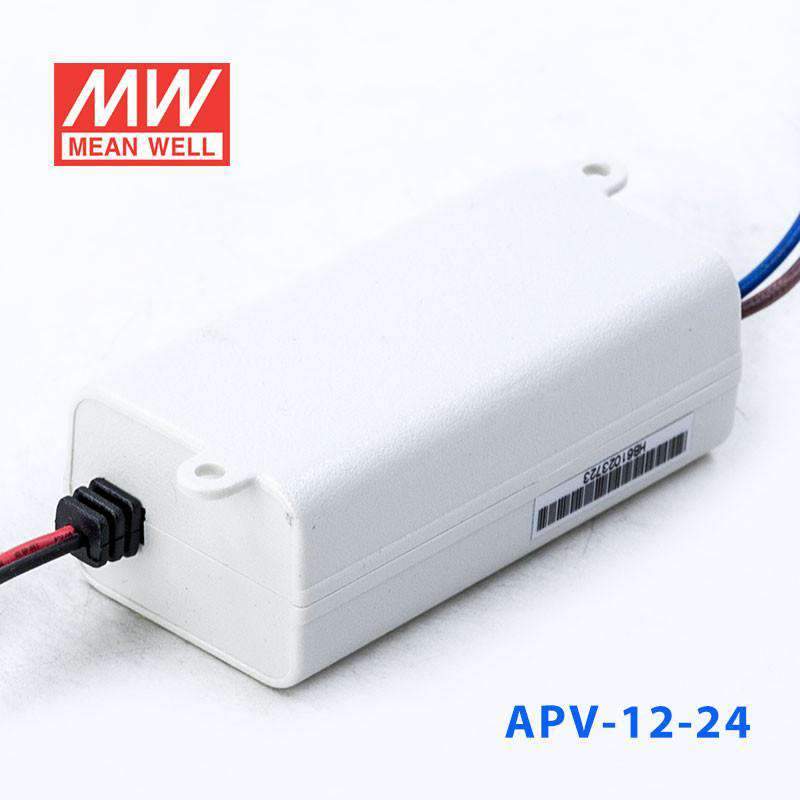

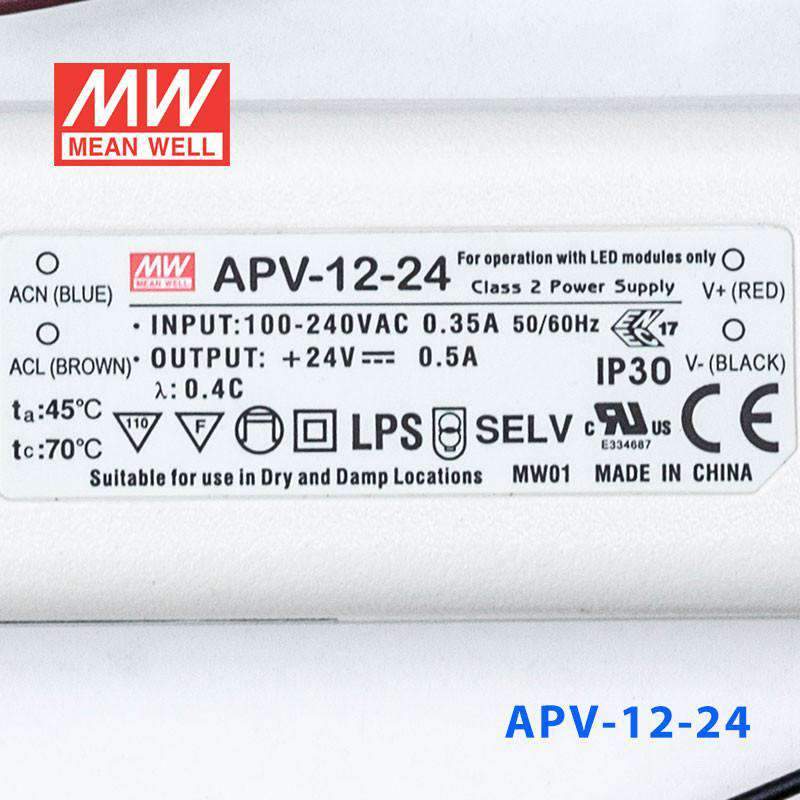

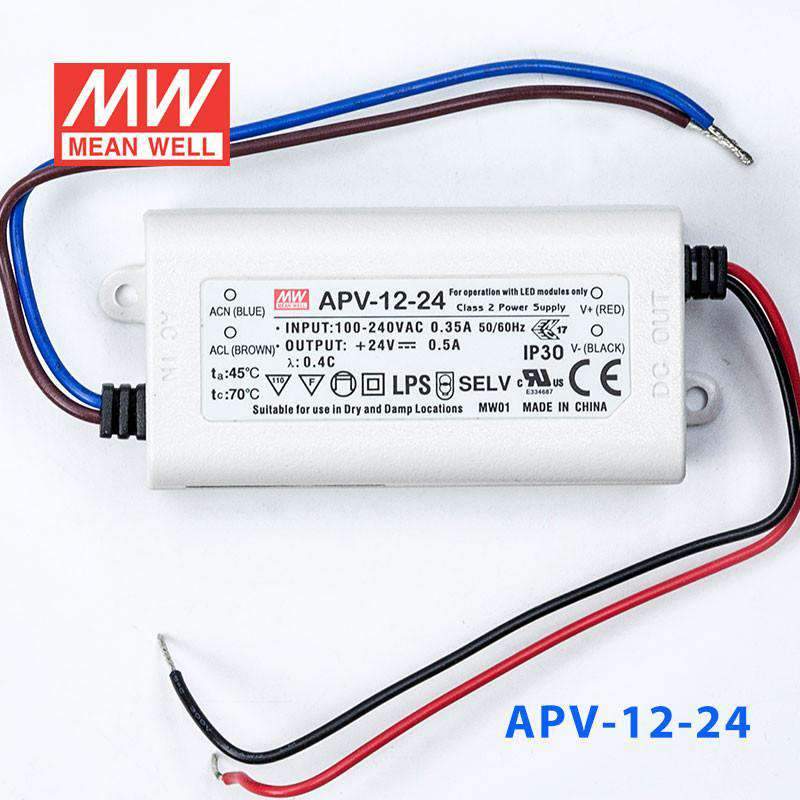

Mean Well APV-12-24 Power Supply 12W 24V
Description
Description
Features
| Universal AC input / Full range |
| Fully isolated plastic case |
| Protections: Short circuit / Overload / Over voltage |
| Constant voltage design (C.V. mode) |
| IP30 design |
| Class 2 power unit / Pass LPS |
| Isolation class II, no F.G. |
| Cooling by free air convection |
| 100% full load burn-in test |
| Low cost, high reliability |
| Suitable for LED lighting and moving sign applications |
| 2 years warranty |
General Specification
| AC input voltage range | 90~264VAC ; 127~370VDC |
| AC inrush current | Cold start, 70A at 230VAC |
| Overload Range | >105% rated output current |
| Protection Type | Hiccup up mode, auto-recovery |
| Over voltage protection | 110%~145% rated output voltage |
| Withstand voltage | I/P-O/P: 3kVAC |
| Working temperature | -30~+70°C (refer to output derating curve) |
| Vibration | 10~500Hz, 2G 10 minutes /1 cycle, period for 60 minutes each along X, Y, Z axes |
| Safety standards | UL8750 approved; Design refer to IEC61347-1, IEC61347-2-13 |
| EMC standards | EN55015, EN61000-3-2 class A, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547 |
| Connection Input | UL rated, 18AWGx2C (15cm) |
| Connection Output | UL rated, 20AWGx2C (15cm) |
| Dimension (LxWxH)(mm) | 77x 40x 29 |
Specifications
Specifications
-
BrandMean Well
-
SeriesAPV Series
-
Power Rating12 Watt
-
Output Voltage24 Volt
-
Rated Current0.5 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty2 Year
-
Length3.03 in
-
Width1.57 in
-
Height1.14 in
-
Weight0.18 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can the APV-12-24 drive a 24V LED strip for retail display or signage?
Yes. The APV-12-24 outputs 24V at up to 0.5A, for a maximum of 12W. It is appropriate for short 24V LED strip runs used in retail display cases, menu board backlighting, or small decorative signage where the total load is 12W or less.
How long a run of 24V LED strip can the APV-12-24 support?
The APV-12-24 delivers 12W at 24V. At a strip consumption of 6 W/m, that equates to approximately 2 m of strip. Divide 12W by your strip's rated power per meter to calculate your specific limit, and check your strip's rated power per meter before sizing.
What are the differences between the APV-12-24 and its 24V siblings in the APV family?
The APV-12-24 provides 12W at 24V and 0.5A in a 77.0 × 40.0 × 29.0 mm housing. The APV-16-24 steps up to 16.08W at 24V and 0.67A in the same-size enclosure, and the APV-25-24 provides 25.2W at 24V and 1.05A in a larger 84.0 × 57.0 × 29.5 mm housing. All accept 90–264VAC input.
Does the APV-12-24 carry UL certification for use in North American projects?
Yes. The APV-12-24 carries CB, CCC, CE, EAC, ENEC, and UL certifications, making it suitable for North American and international LED lighting projects. It accepts 90–264VAC input, covering the full range of mains voltages globally.
