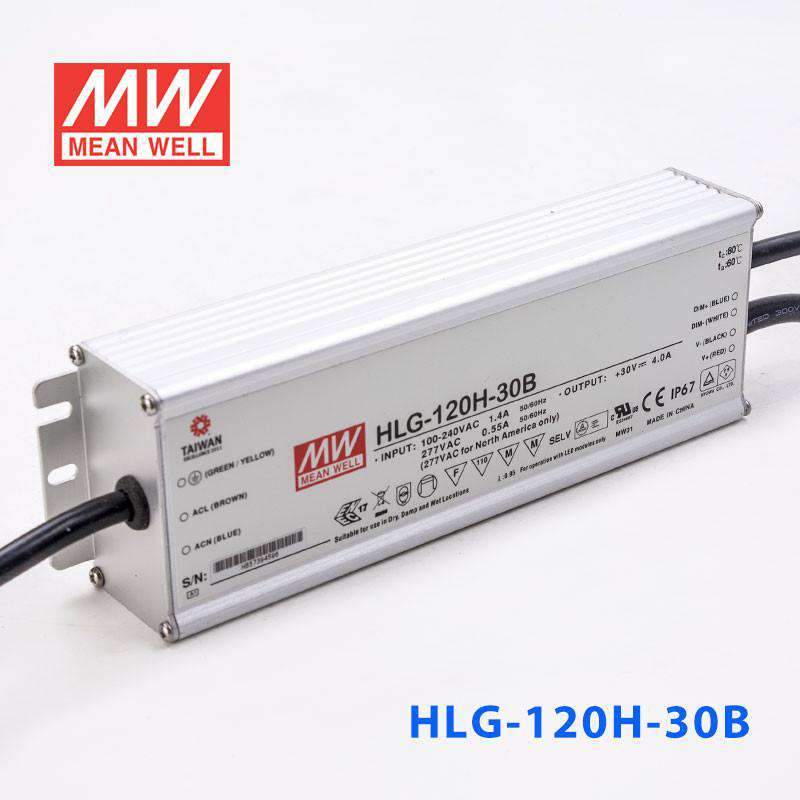

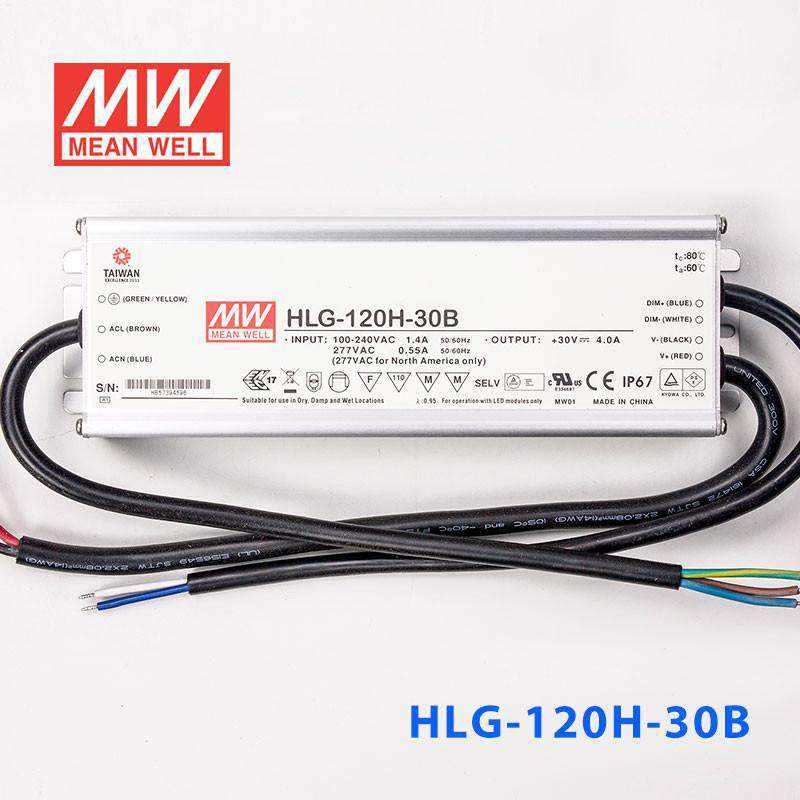

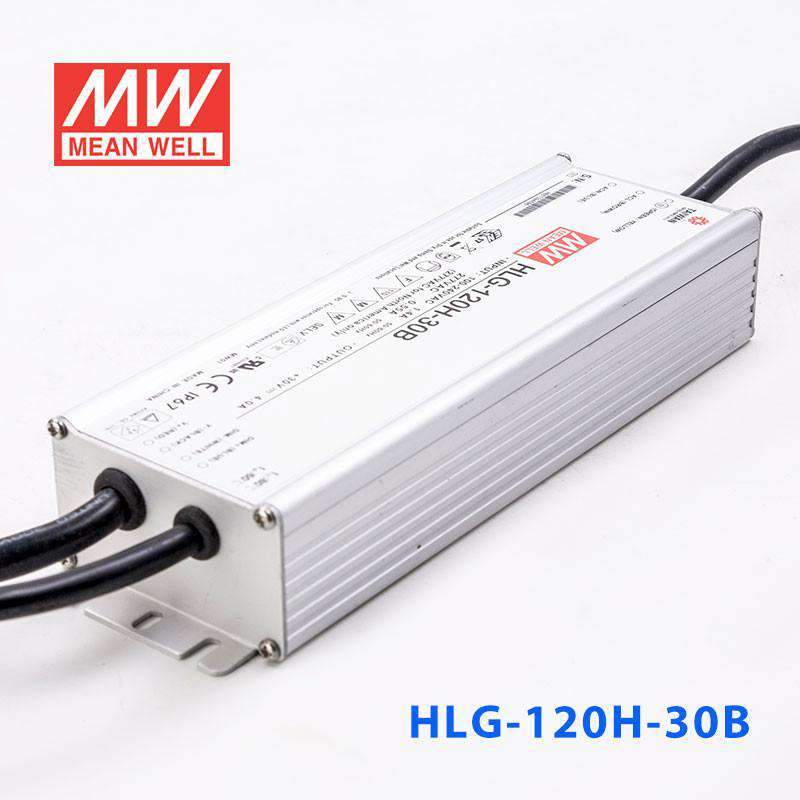

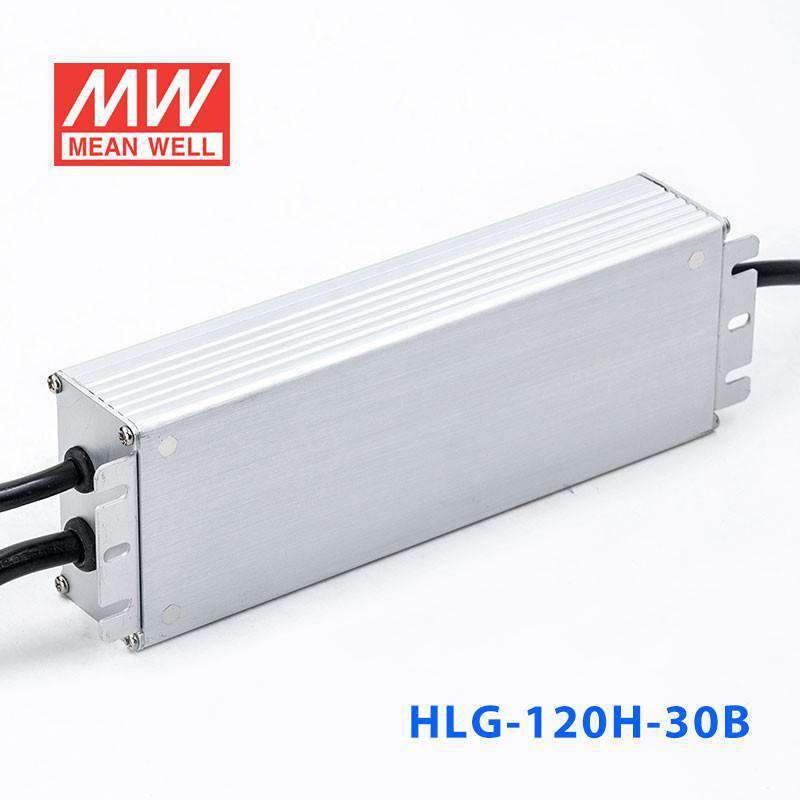

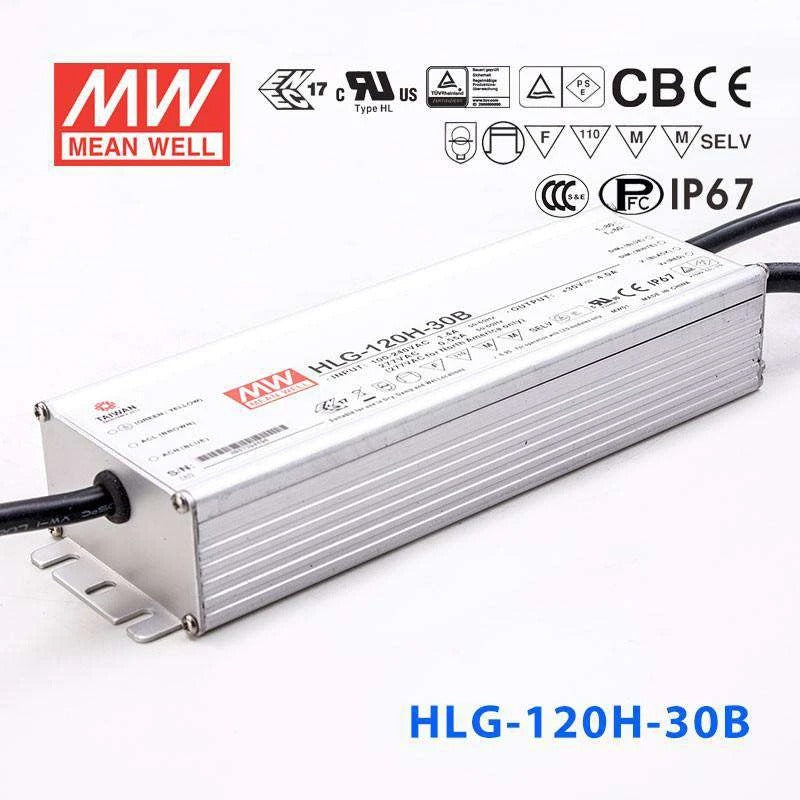

Mean Well HLG-120H-30B Power Supply 120W 30V- Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HLG-120H-30B Power Supply 120W 30V- Dimmable
The HLG-120H is a 120W Mean Well power converter (input range: 90~305VAC, operating temperature: -40~+80℃).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -40~+80℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.8 SAFETY &
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating120 Watt
-
Output Voltage30 Volt
-
Rated Current4 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty7 Year
-
Length8.66 in
-
Width2.68 in
-
Height1.53 in
-
Weight2.47 lb
::specification::
Frequently Asked Questions
Can I use the HLG-120H-30B with a 1-10V dimmer for outdoor 30V LED lighting?
Yes. The HLG-120H-30B accepts 1-10V and PWM dimming signals and carries an IP67 waterproof rating. You can dim outdoor 30V LED fixtures via an external controller while the driver is mounted in a fully exposed location. It delivers up to 120W at 30V.
Is the HLG-120H-30B a good choice for dimmable 30V LED facade or building wash lighting?
Yes. The 120W output at 30V can power a long run of facade wash fixtures or wall grazers. The dimming input enables scheduled brightness profiles or dynamic lighting scenes for architectural effect, and the IP67 rating allows outdoor mounting close to the fixtures.
Can the HLG-120H-30B power dimmable 30V LED fixtures in a car park or outdoor area?
Yes. With 120W at 30V, IP67 waterproof protection, and a -40°C to +80°C operating range, it is built for fully exposed outdoor installations. The dimming input lets you reduce brightness during low-traffic hours for energy savings.
How many meters of 30V LED strip can the HLG-120H-30B handle?
The HLG-120H-30B provides up to 120W at 30V. For a strip rated at 8W/m, you could run up to 15 meters (120W / 8W per meter = 15m). For a strip at 18W/m, the limit is about 6.6 meters. Check your strip's rated power per meter and keep total load at or below 120W.
Can the HLG-120H-30B handle direct rain, freezing temperatures, and summer heat?
Yes. The IP67 waterproof rating protects against temporary submersion up to 1 meter, and the operating temperature range of -40°C to +80°C covers extreme cold and hot climates. It can be mounted fully exposed without an additional enclosure.
