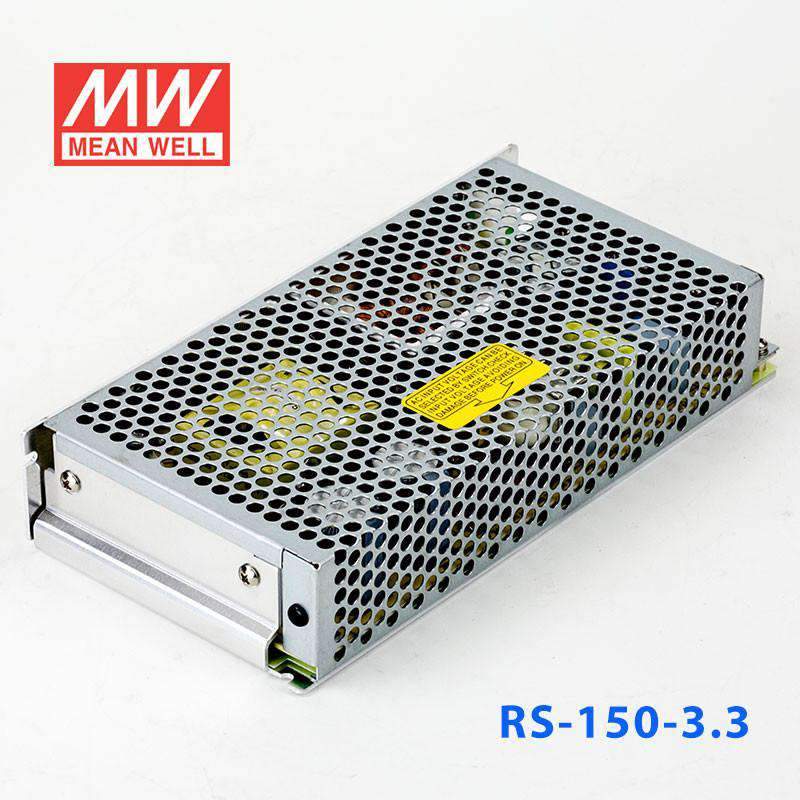

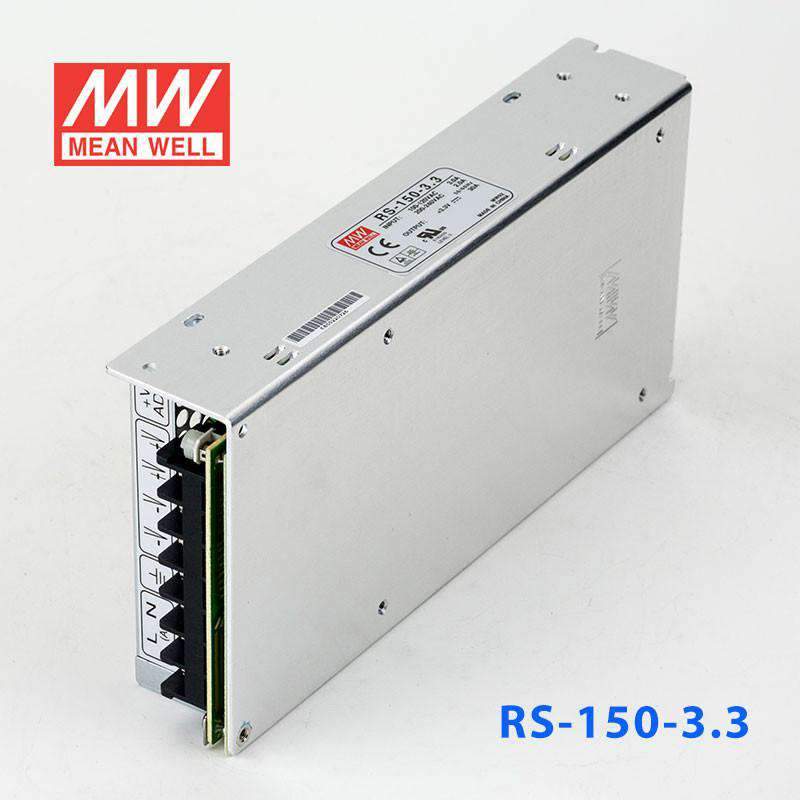

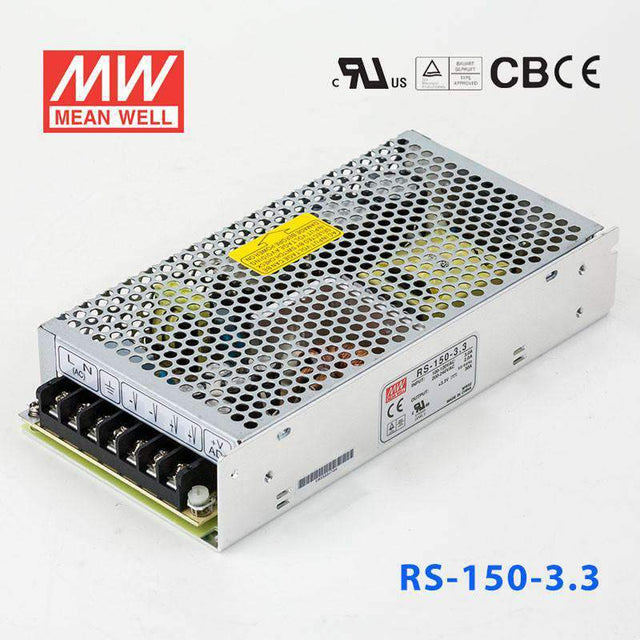

Mean Well RS-150-3.3 Power Supply 150W 3.3V
The RS-150 is a 150W Mean Well DIN rail power converter with a 199mm profile (input range: 88~132VAC).
Key Features
- ✓ 199mm width — DIN rail TS-35 compatible
- ✓ Input voltage range: 88~132VAC
- ✓ Cooling by free air convection — no minimum load required
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: UL62368 TUV EN62368-~ EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesRS Series
-
Power Rating99 Watt
-
Output Voltage3.3 Volt
-
Rated Current30 Ampere
-
Input Voltage88V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~70°C
-
Warranty3 Year
-
Length7.83 in
-
Width3.86 in
-
Height1.5 in
-
Weight1.54 lb
::specification::
Frequently Asked Questions
Can I use the RS-150-3.3 for 3.3V logic and processor rails in industrial electronics?
It is a constant-voltage 3.3V supply rated for up to 30A and 99W. That makes it appropriate for 3.3V industrial electronics loads that need high current at a low voltage.
Is the RS-150-3.3 suitable for powering multiple 3.3V embedded boards from one supply?
Yes, if the combined 3.3V load stays within 30A and 99W. Its constant-voltage output is aimed at systems that require a regulated 3.3V bus.
Can this model power 3.3V communication or control hardware in an automation enclosure?
It can support 3.3V automation hardware that needs a shared low-voltage rail with up to 30A available. The 88-264VAC input also helps when the AC source varies across common mains ranges.
How do I know if the RS-150-3.3 is large enough for my 3.3V load?
Check that your equipment requires constant-voltage 3.3V and that total demand does not exceed 30A or 99W. If your load is above either of those limits, this model is undersized.
Can the RS-150-3.3 be used in hot or cold environments?
The specified operating range is -25°C to +70°C, and the features call out 70°C operation and 5G vibration resistance. No IP rating is provided in the specs, so weather or washdown exposure is not established here.
How does the RS-150-3.3 compare with the other RS-150 versions?
The RS-150 family includes RS-150-12 at 150W, 12V, 12.5A; RS-150-15 at 150W, 15V, 10A; RS-150-24 at 156W, 24V, 6.5A; RS-150-3.3 at 99W, 3.3V, 30A; RS-150-48 at 158.4W, 48V, 3.3A; and RS-150-5 at 130W, 5V, 26A. Compared with the others, the 3.3V version has the lowest voltage and the highest listed current.
