Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

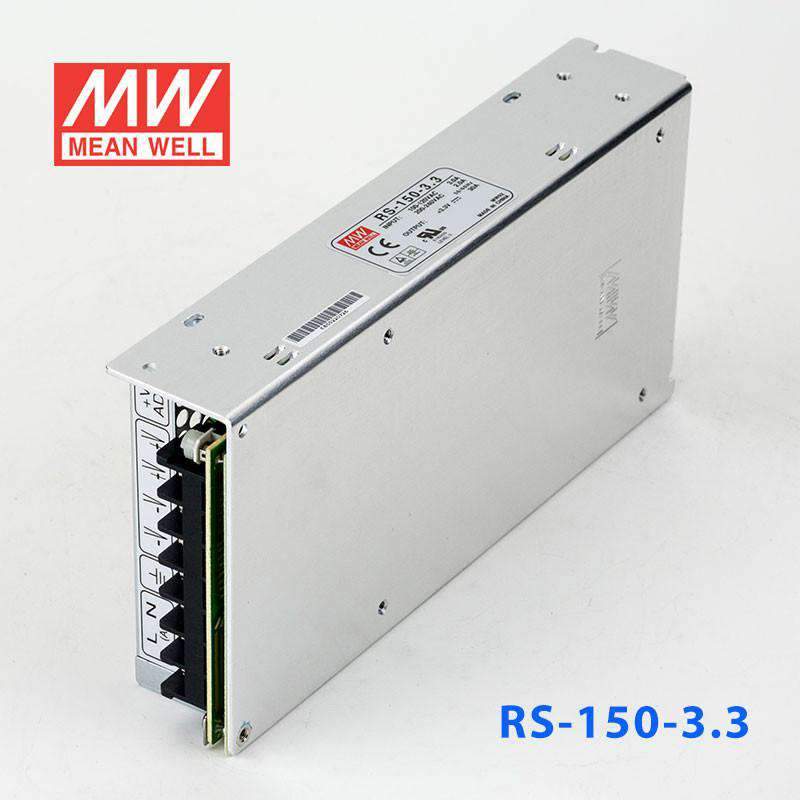

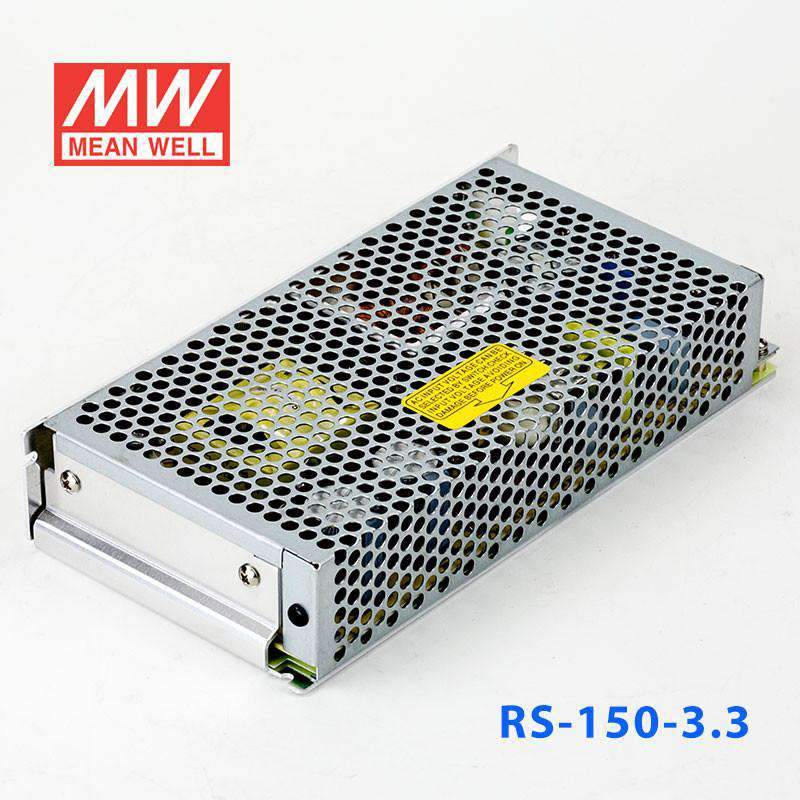

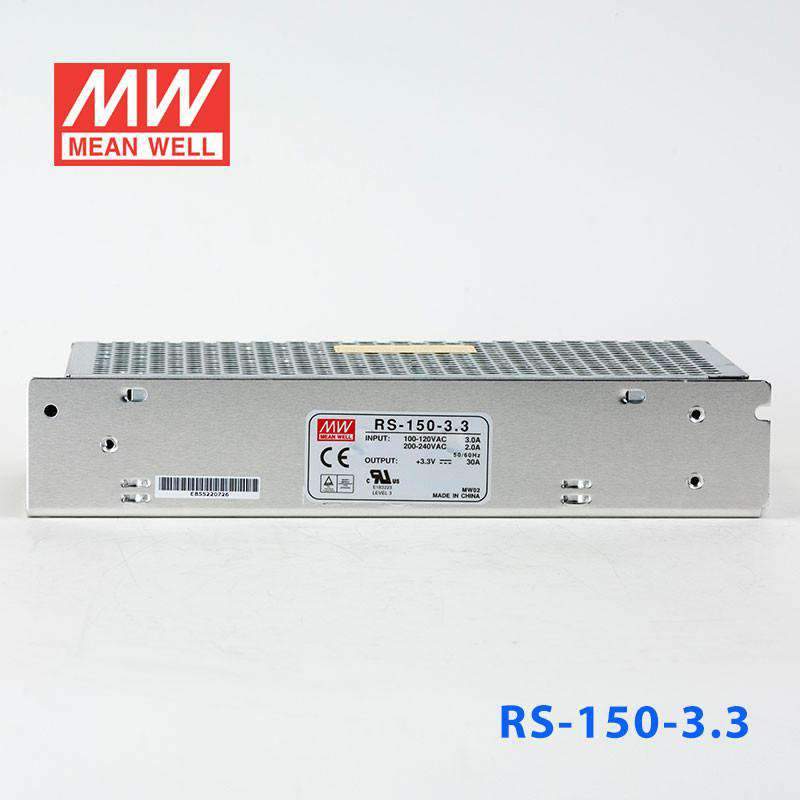

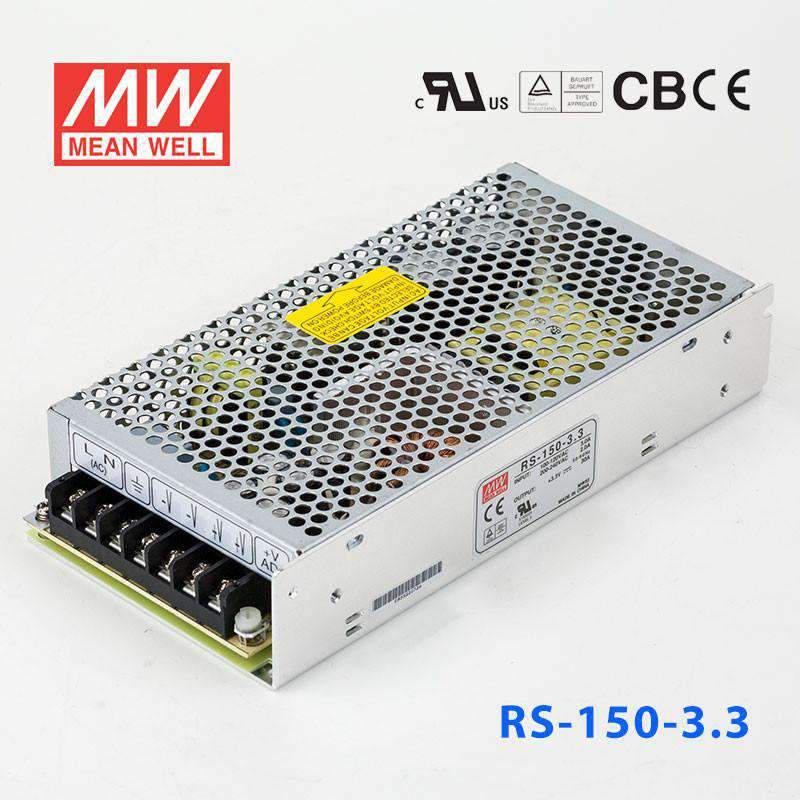

Mean Well RS-150-3.3 Power Supply 150W 3.3V
$32.59 USD
Unit price /
Unavailable
Description
Description
Features
| All using 105°C long life electrolytic capacitors |
| Protections: Short circuit / Overload / Over voltage |
| Meet EMS EN50082-2/EN61000-6-2 |
| Heavy industry level (35~150W) |
| Withstand 300VAC surge input for 5 sec. |
| High operating temperature up to 70°C |
| Withstand 5G vibration test |
| Miniature size, high power density |
| High efficiency, long life and high reliability |
| LED indicator for power on |
| 100% full load burn-in test |
| Suitable for critical applications |
| 3 years warranty |
General Specification
| AC input voltage range | 88~264VAC, 125~373VDC |
| AC inrush current (max.) | 40A at 230VAC |
| DC adjustment range | ±10% by potentiometer for single output; CH1 -5%~+10% by potentiometer for multiple output |
| Overload protection | 110%~150% hiccup mode, auto-recovery |
| Over voltage protection | 115%~135% rated output voltage, hiccup mode, auto-recovery |
| Withstand voltage | I/P - O/P: 3kVAC, I/P - FG: 1.5kVAC, O/P - FG: 0.5kVAC, 1 minute |
| Working temperature | -25~+70°C (refer to the derating curve for different models) |
| Vibration | 10~500Hz, 5G 10min. /1 cycle, period for 60 min. each along X, Y, Z axes |
| Safety standards | UL60950-1, TUV EN60950-1 approved |
| EMC standards | EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 (EN50082-2) (35~150W) |

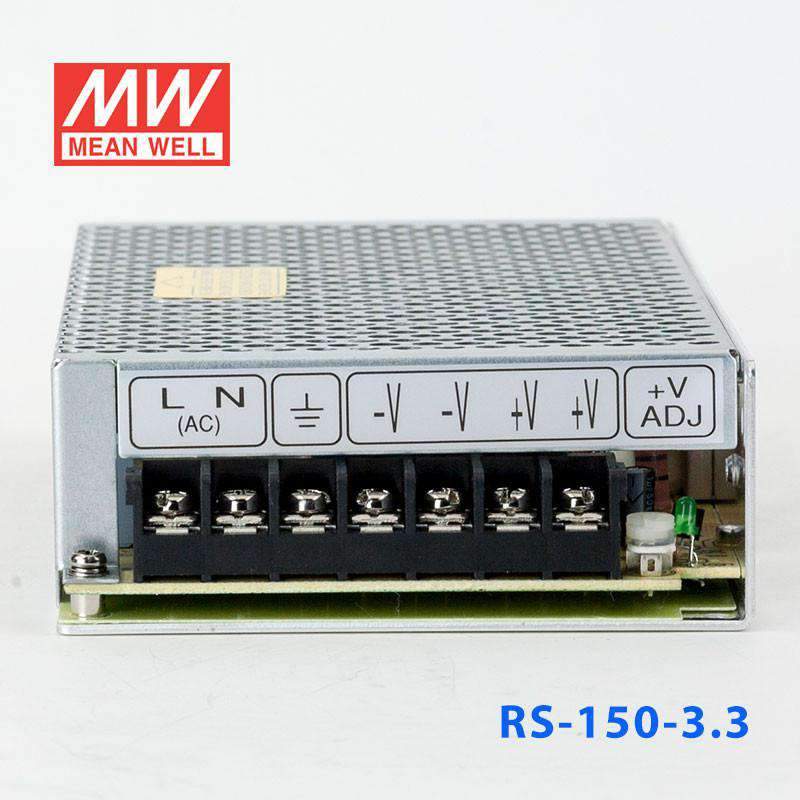

| Connection | Terminal block for input and output |
| Dimension (LxWxH) | 199x 98x 38 |
| Case No. | 902A |
| Packing | 20pcs /15kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesRS Series
-
Power Rating99 Watt
-
Output Voltage3.3 Volt
-
Rated Current30 Ampere
-
Input Voltage88V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~70°C
-
Warranty3 Year
-
Length7.83 in
-
Width3.86 in
-
Height1.5 in
-
Weight1.54 lb
