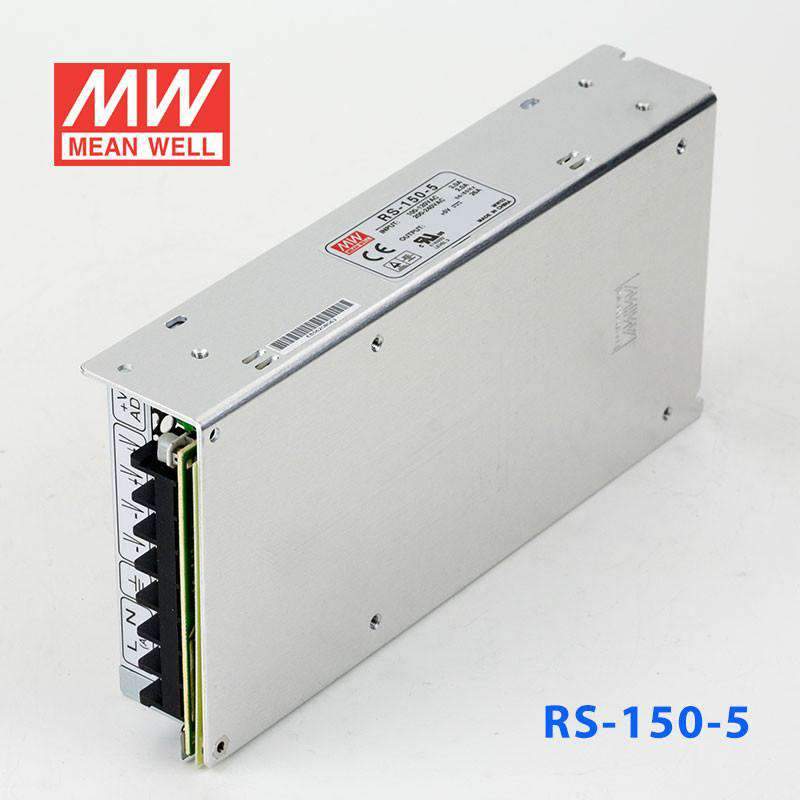

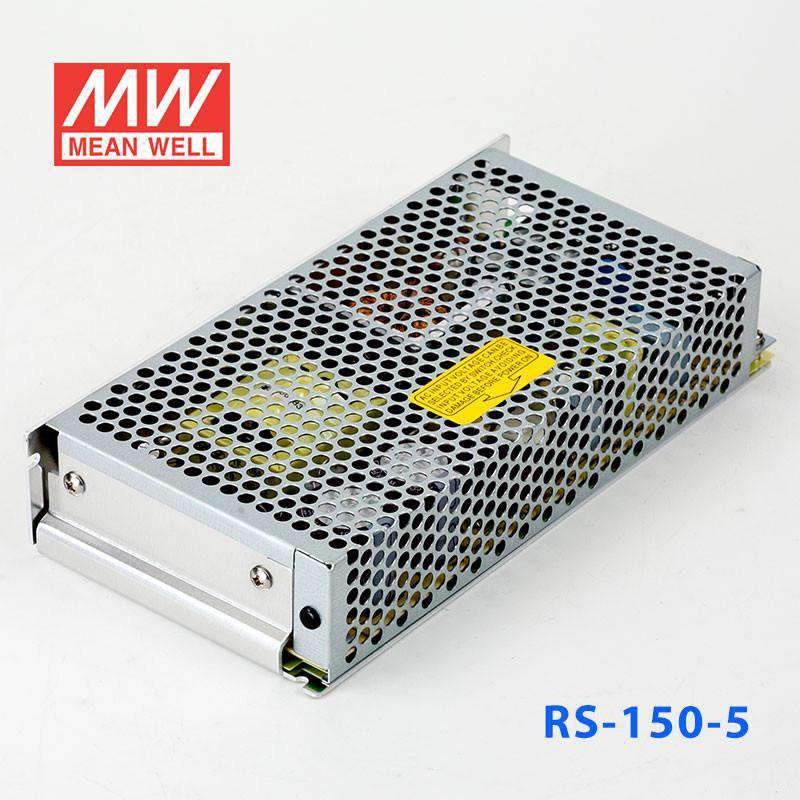

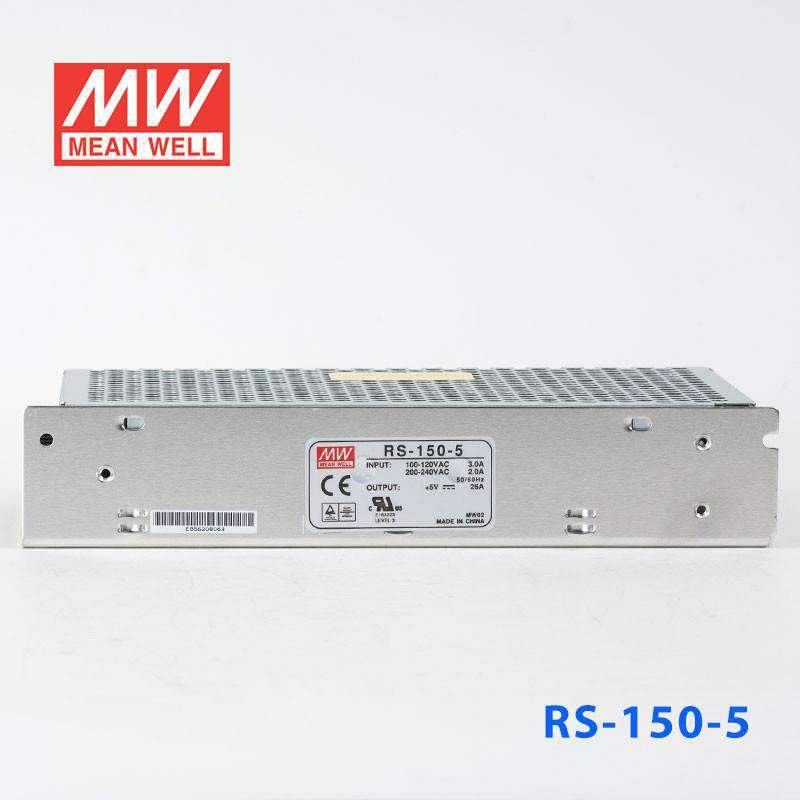

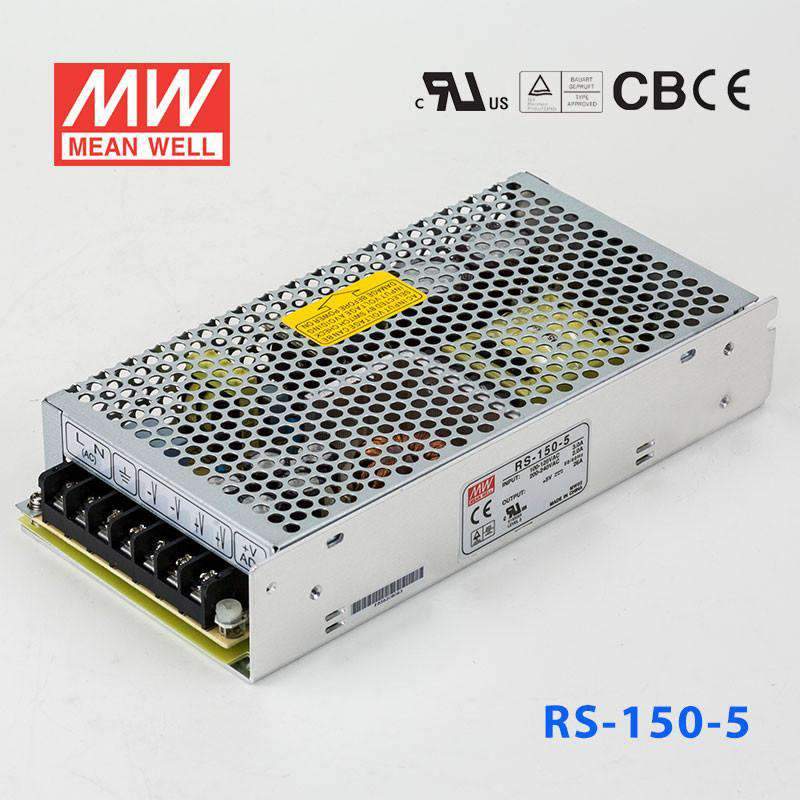

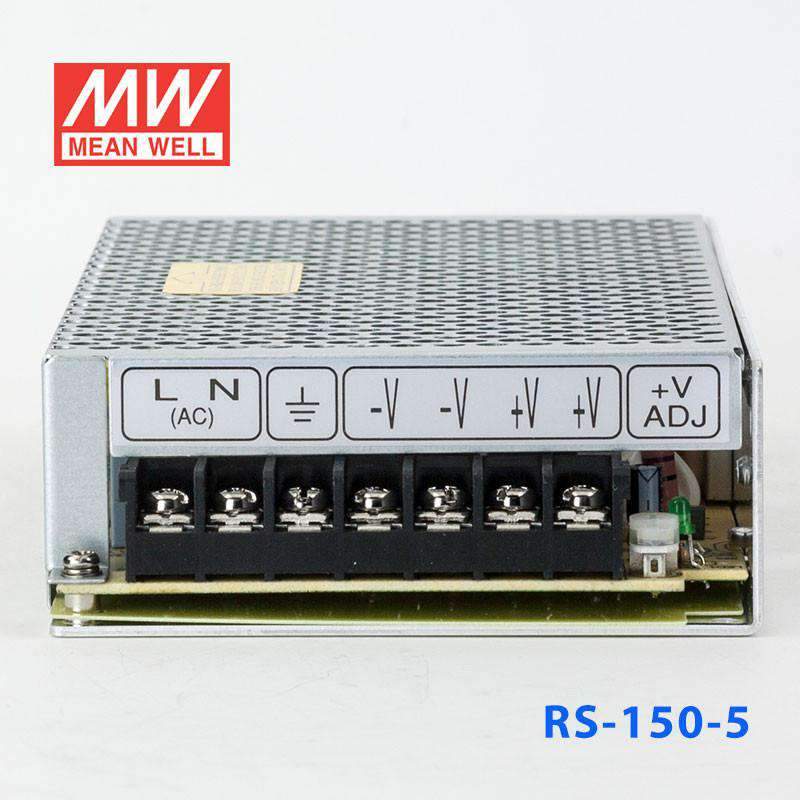

Mean Well RS-150-5 Power Supply 150W 5V
The RS-150 is a 150W Mean Well DIN rail power converter with a 199mm profile (input range: 88~132VAC).
Key Features
- ✓ 199mm width — DIN rail TS-35 compatible
- ✓ Input voltage range: 88~132VAC
- ✓ Cooling by free air convection — no minimum load required
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: UL62368 TUV EN62368-~ EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesRS Series
-
Power Rating130 Watt
-
Output Voltage5 Volt
-
Rated Current26 Ampere
-
Input Voltage88V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~70°C
-
Warranty3 Year
-
Length7.83 in
-
Width3.86 in
-
Height1.5 in
-
Weight1.54 lb
::specification::
Frequently Asked Questions
Can I use the RS-150-5 for 5V industrial electronics with high current draw?
Yes, if the equipment needs a constant 5V supply and the total demand stays within 26A and 130W. That makes it suitable for low-voltage industrial loads that need much higher current than smaller 5V supplies.
Is the RS-150-5 a good fit for powering multiple 5V embedded controllers from one source?
It can support a shared 5V rail for multiple embedded devices as long as the combined load does not exceed 26A or 130W. Its constant-voltage output is intended for equipment designed around a regulated 5V input.
Can this model support 5V automation hardware in a control cabinet?
It is appropriate for 5V automation hardware that requires a constant-voltage bus and stays within 26A. The wide 88-264VAC input also helps when the same design is used across different AC supply ranges.
How do I size the RS-150-5 for a 5V load?
Match it to equipment that requires constant-voltage 5V, then total the current and power demand. This unit is rated for 26A and 130W, so the connected load needs to remain at or below both figures.
Can the RS-150-5 be used where ambient temperatures swing widely?
The operating temperature range is -25°C to +70°C, and the feature list includes 70°C operation with 5G vibration resistance. No IP rating is listed in the provided specs, so indoor versus outdoor exposure is not defined here.
How does the RS-150-5 compare with the other RS-150 models?
The listed RS-150 versions are 12V at 12.5A and 150W, 15V at 10A and 150W, 24V at 6.5A and 156W, 3.3V at 30A and 99W, 48V at 3.3A and 158.4W, and 5V at 26A and 130W. The 5V model is the high-current option between the 3.3V version at 30A and the 12V version at 12.5A.
