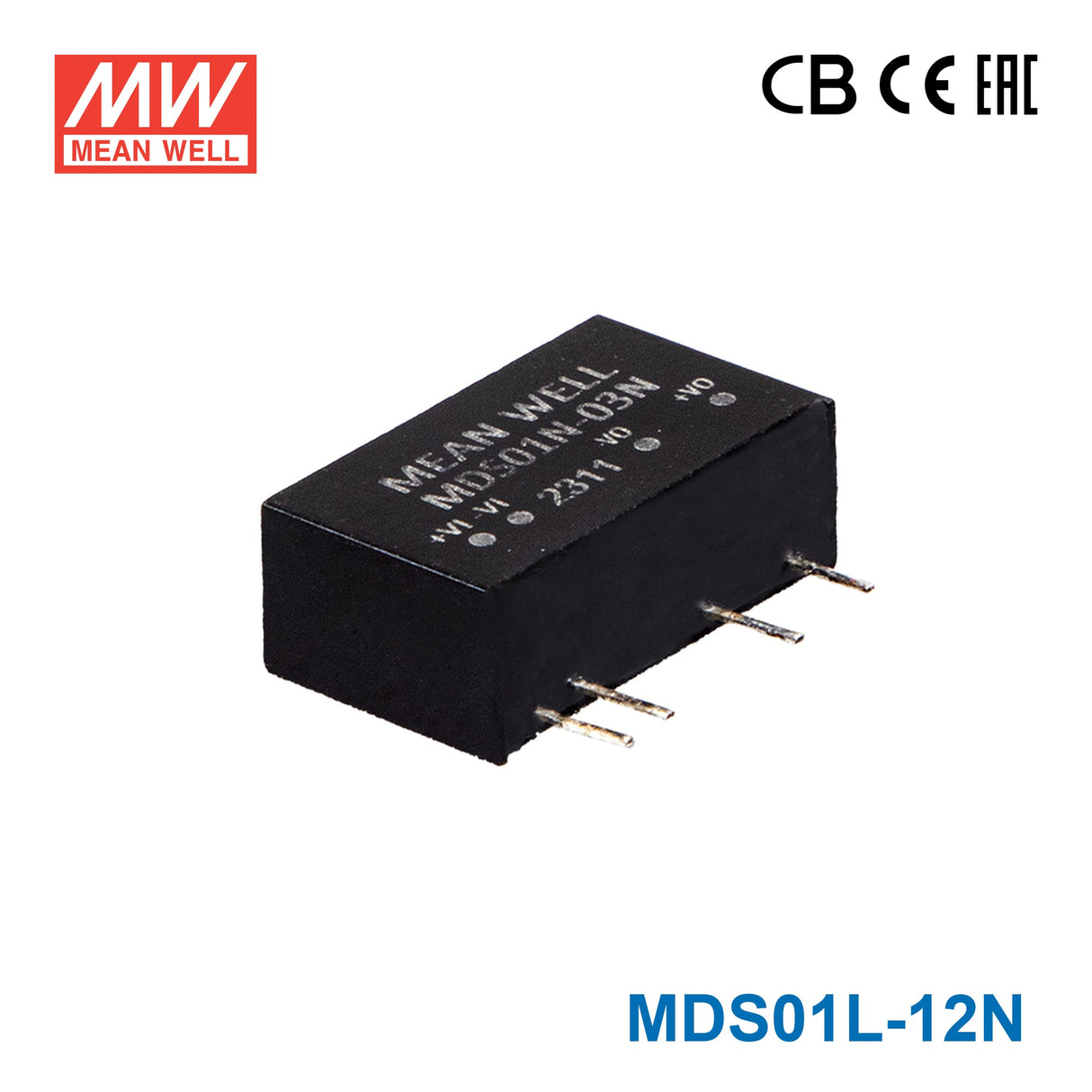

Mean Well MDS01L-12N SIP Package DC-DC Converter- 1W - 12V Out
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well MDS01L-12N SIP Package DC-DC Converter- 1W - 12V Out
Key Features
- ✓SIP7 package with international standard pinout
- ✓Operating temperature range -40 ~ +95°C
- ✓Comply with IEC/UL62368-1 (Expect for 15Vo/±15Vo) and LVD IEC60601-1
- ✓Medical safety approved (1xMOPP/2xMOOP) according to IEC60601-1
- ✓Low patient leakage current <2μA
- ✓Protections: Short circuit (Continuous)
- ✓6KVDC hight I/O isolation (Reinforced insulation)
- ✓Low cost
- ✓3 years warranty
-
BrandMean Well
-
SeriesMDS Series
-
Power Rating1 Watt
-
Output Voltage12 Volt
-
Rated Current0.02 Ampere
-
Input Voltage4.5V~5.5V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~95°C
-
Warranty3 Year
-
Length0.78 in
-
Width0.28 in
-
Height0.45 in
-
Weight0.01 lb
::specification::
Frequently Asked Questions
What is the Mean Well MDS01L-12N designed for?
The Mean Well MDS01L-12N is a 1W SIP-package DC-DC converter for applications that need regulated 12V DC output in a compact module format. It is suited to embedded industrial, medical, and control-system designs where reinforced isolation and small size are important.
What are the key electrical specifications of the MDS01L-12N?
This model provides 12V DC output with a 1W power rating and a rated output current of 26 mA. It belongs to the MDS01L series, which uses a SIP7 package and is built for isolated DC-DC conversion.
Is the MDS01L-12N suitable for medical or safety-sensitive equipment?
Yes, this converter is medical safety approved to IEC60601-1 with 1xMOPP/2xMOOP and is also listed as complying with IEC/UL62368-1, except for 15Vo and ±15Vo variants. It also features low patient leakage current below 2 μA and 6KVDC I/O isolation with reinforced insulation.
How does the MDS01L-12N perform in harsh temperature environments?
The MDS01L-12N is rated for operation from -40°C to +95°C, making it suitable for demanding temperature conditions. That wide range helps support use in industrial and enclosed electronic applications where ambient temperatures can vary significantly.
What protection features does the MDS01L-12N include?
This model includes continuous short-circuit protection for long-term fault conditions. The series also provides overload protection that shuts down the output when rated power reaches 102% or more, then recovers automatically.
Why would a buyer choose the MDS01L-12N over a non-isolated compact converter?
A key differentiator for the MDS01L-12N is its 6KVDC input-to-output isolation with reinforced insulation in a small SIP7 package. For buyers comparing compact power modules, that combination of medical approvals, low leakage current, and standardized package format can make it a stronger fit for higher-safety designs.
