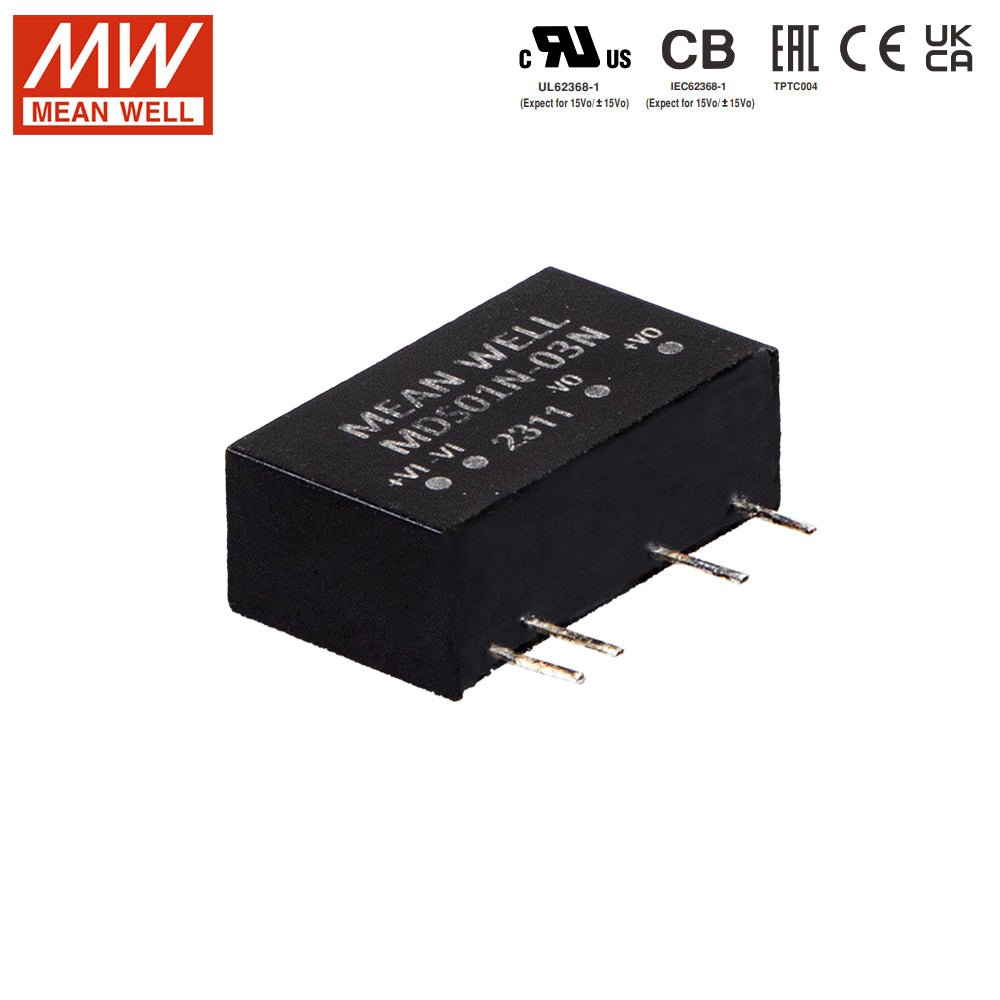

Mean Well MDS01L-05N SIP Package DC-DC Converter- 1W - 5V Out
Notify me when it's back in stock
Your order will be processed within 24 hours

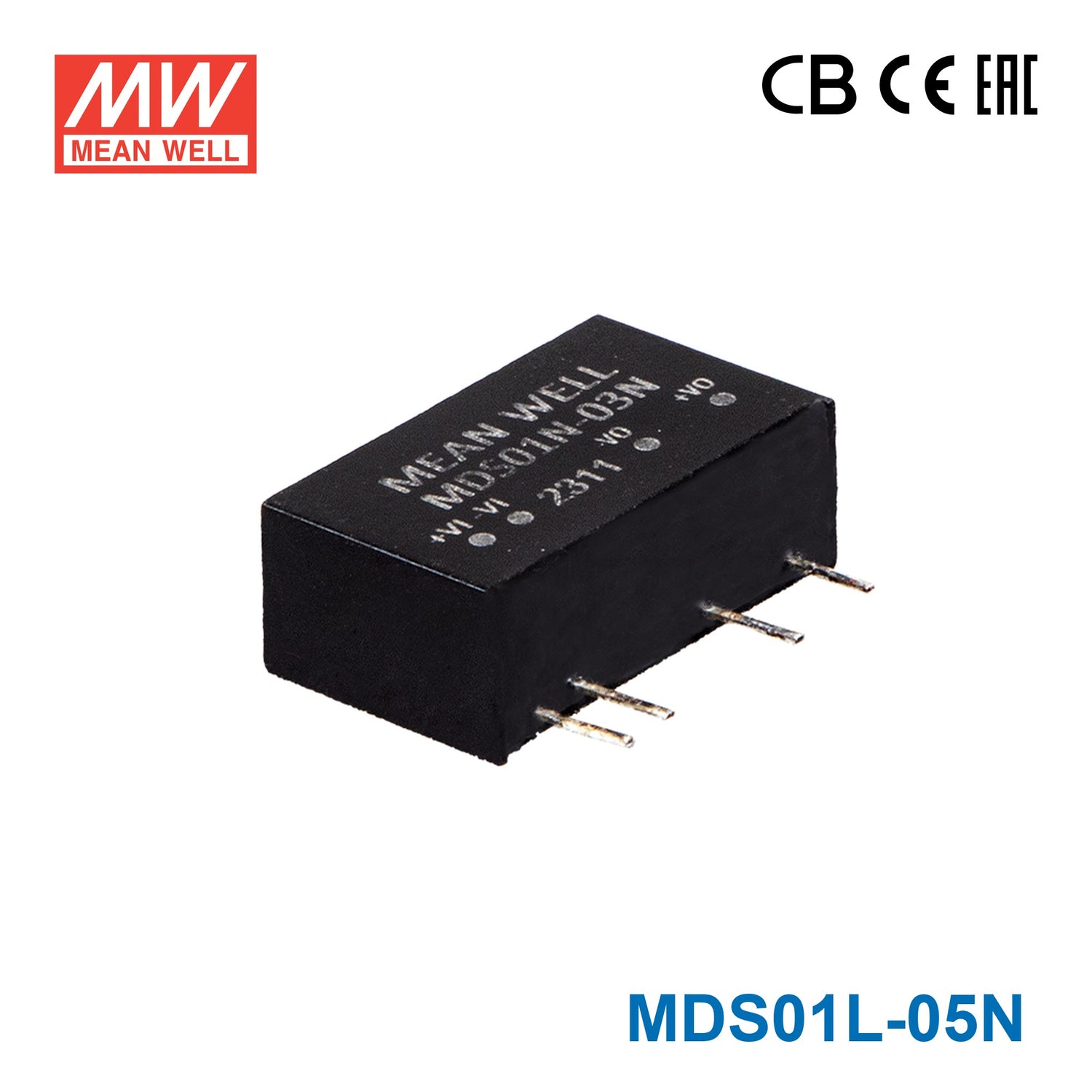

Mean Well MDS01L-05N SIP Package DC-DC Converter- 1W - 5V Out
Description
Description
Features:
- SIP7 package with international standard pinout
- Operating temperature range -40 ~ +95°C
- Comply with IEC/UL62368-1 (Expect for 15Vo/±15Vo) and LVD IEC60601-1
- Medical safety approved (1xMOPP/2xMOOP) according to IEC60601-1
- Low patient leakage current <2μA
- Protections: Short circuit (Continuous)
- 6KVDC hight I/O isolation (Reinforced insulation)
- Low cost
- 3 years warranty
General Specification
Input Voltage (Vdc)
5V (4.5 ~ 5.5V) | 12V (10.8 ~ 13.2V) | 24 (21.6 ~ 26.4V)
Output Voltage (Vdc)
1 Vo: 3.3V / 5V / 12V / 15V
2 Vo: ±5V / ±12V / ±15V
Overload Protection
Shut down the output when rated power≥102%, auto recovers
Operating Temperature
-40 ~ + 95°C
Short Circuit Protection
Continuous protection for a long time
Safety Certificate
CB / UL / EAC / CE / UKCA (62368-1 + 60601-1)
Dimension (LxWxH)
19.7 x 7.1 x 11.5 mm
Specifications
Specifications
-
BrandMean Well
-
SeriesMDS Series
-
Power Rating1 Watt
-
Output Voltage5 Volt
-
Rated Current0.03 Ampere
-
Input Voltage4.5V~5.5V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~95°C
-
Warranty3 Year
-
Length0.78 in
-
Width0.28 in
-
Height0.45 in
-
Weight0.01 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the Mean Well MDS01L-05N used for?
The MDS01L-05N is a 1W SIP-package DC-DC converter designed for low-power DC voltage conversion in compact electronic equipment. It is suited to OEM and industrial applications where a regulated 5V output, reinforced isolation, and a small footprint are important.
What are the key electrical specifications of the MDS01L-05N?
This model provides a 5V DC output with a rated current of 30mA and a 1W power rating. The product family supports multiple input ranges, and this variant is identified as a 5V output model in the MDS01L series.
Does the MDS01L-05N offer high isolation for sensitive equipment?
Yes. The MDS01L series is specified with 6KVDC input-to-output isolation using reinforced insulation, which is a key differentiator for applications that require strong electrical separation. It also features low patient leakage current below 2uA.
Is the MDS01L-05N suitable for medical or regulated applications?
Yes, this series is described as medical safety approved to IEC60601-1 with 1xMOPP and 2xMOOP capability. It also complies with IEC/UL62368-1 for most listed output versions and carries certifications including CB, UL, EAC, CE, and UKCA.
What operating temperature range does the MDS01L-05N support?
The specified operating temperature range is -40°C to +95°C. That makes it appropriate for demanding environments where wide-temperature performance is required in a compact DC-DC module.
What protection features are included in the MDS01L-05N?
The converter includes continuous short-circuit protection for long-duration fault conditions. It also has overload protection that shuts down the output when rated power reaches 102% or more, then automatically recovers.
How compact is the Mean Well MDS01L-05N?
This model has a compact SIP7 package with dimensions of 19.7 x 7.1 x 11.5 mm and a weight of 2.8 g. Its small size helps when board space is limited and a standard SIP footprint is preferred.
