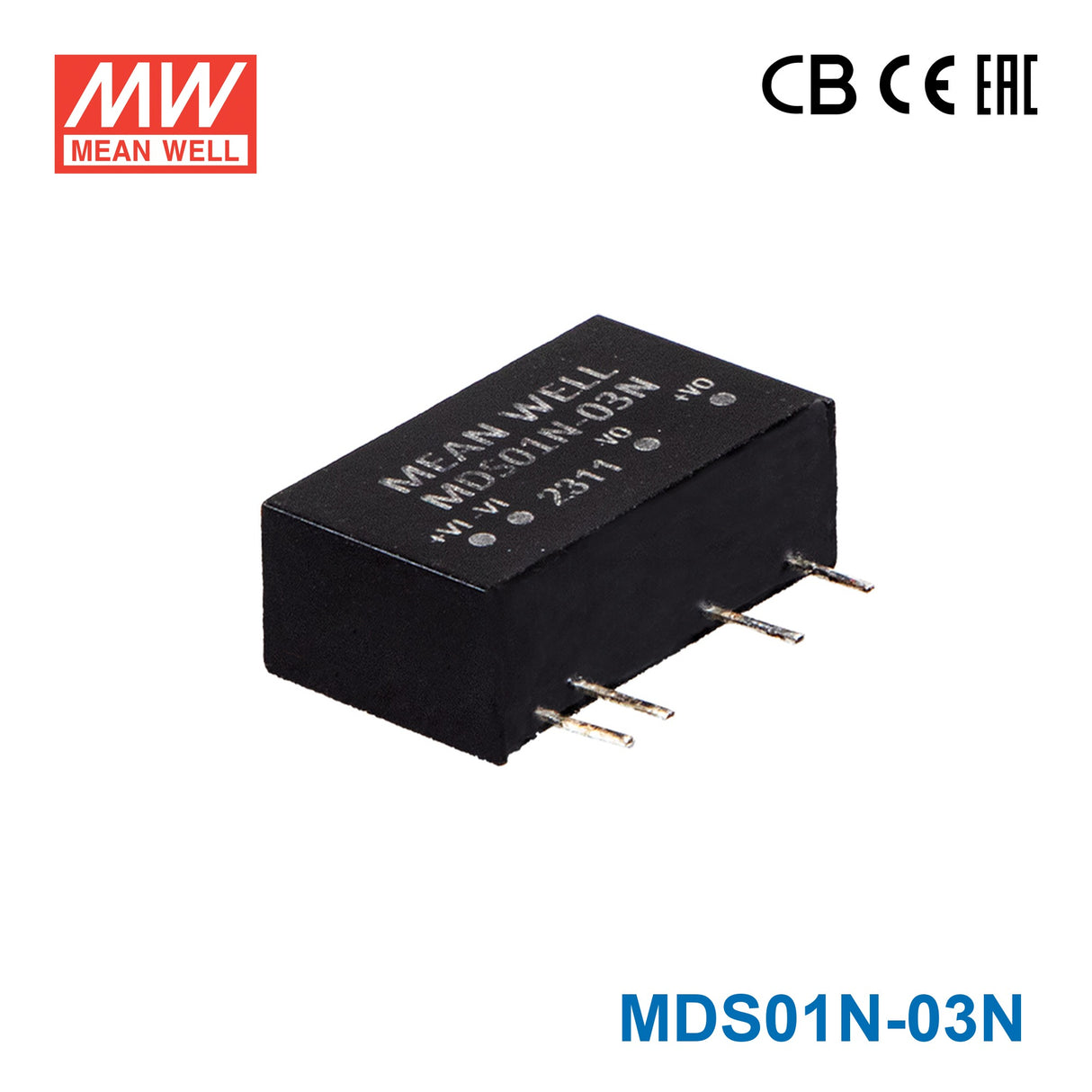

Mean Well MDS01N-03N SIP Package DC-DC Converter- 1W - 3.3V out
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well MDS01N-03N SIP Package DC-DC Converter- 1W - 3.3V out
Key Features
- ✓SIP7 package with international standard pinout
- ✓Operating temperature range -40 ~ +95°C
- ✓Comply with IEC/UL62368-1 (Expect for 15Vo/±15Vo) and LVD IEC60601-1
- ✓Medical safety approved (1xMOPP/2xMOOP) according to IEC60601-1
- ✓Low patient leakage current <2μA
- ✓Protections: Short circuit (Continuous)
- ✓6KVDC hight I/O isolation (Reinforced insulation)
- ✓Low cost
- ✓3 years warranty
-
BrandMean Well
-
SeriesMDS Series
-
Power Rating1 Watt
-
Output Voltage3.3 Volt
-
Rated Current0.00 Ampere
-
Input Voltage21.6V~26.4V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~95°C
-
Warranty3 Year
-
Length0.78 in
-
Width0.28 in
-
Height0.45 in
-
Weight0.01 lb
::specification::
Frequently Asked Questions
What is the Mean Well MDS01N-03N designed for?
The MDS01N-03N is a 1W SIP-package DC-DC converter for applications that need a regulated 3.3V DC output in a very compact form factor. It is suited to space-constrained electronic and industrial designs where reinforced isolation and medical-related safety approvals are important.
What are the key electrical specifications of the MDS01N-03N?
This model is rated for 1W output power and provides a 3.3V DC output. The MDS series supports multiple nominal input ranges by model family, and this series includes protections such as continuous short-circuit protection and overload shutdown with automatic recovery.
Is the MDS01N-03N suitable for medical or safety-critical equipment?
This converter is medical safety approved to IEC60601-1 with 1 x MOPP and 2 x MOOP stated in the product data. It also features 6KVDC input-to-output isolation and low patient leakage current below 2 microamps, which are useful characteristics for medically oriented designs.
What operating temperature range can the MDS01N-03N handle?
The specified operating temperature range is -40°C to +95°C. That makes it suitable for demanding environments where electronics may be exposed to both low and elevated temperatures.
How compact is the Mean Well MDS01N-03N?
The listed dimensions are 19.7 x 7.1 x 11.5 mm, and the product weight is 2.8 g. Its SIP7 package and small footprint make it useful where board space is limited.
What makes the MDS01N-03N different from a general-purpose low-cost DC-DC converter?
This model combines low power conversion with reinforced 6KVDC isolation, medical safety approvals, and low patient leakage current. That makes it a stronger fit for applications needing higher isolation and compliance credentials than a basic non-medical converter.
