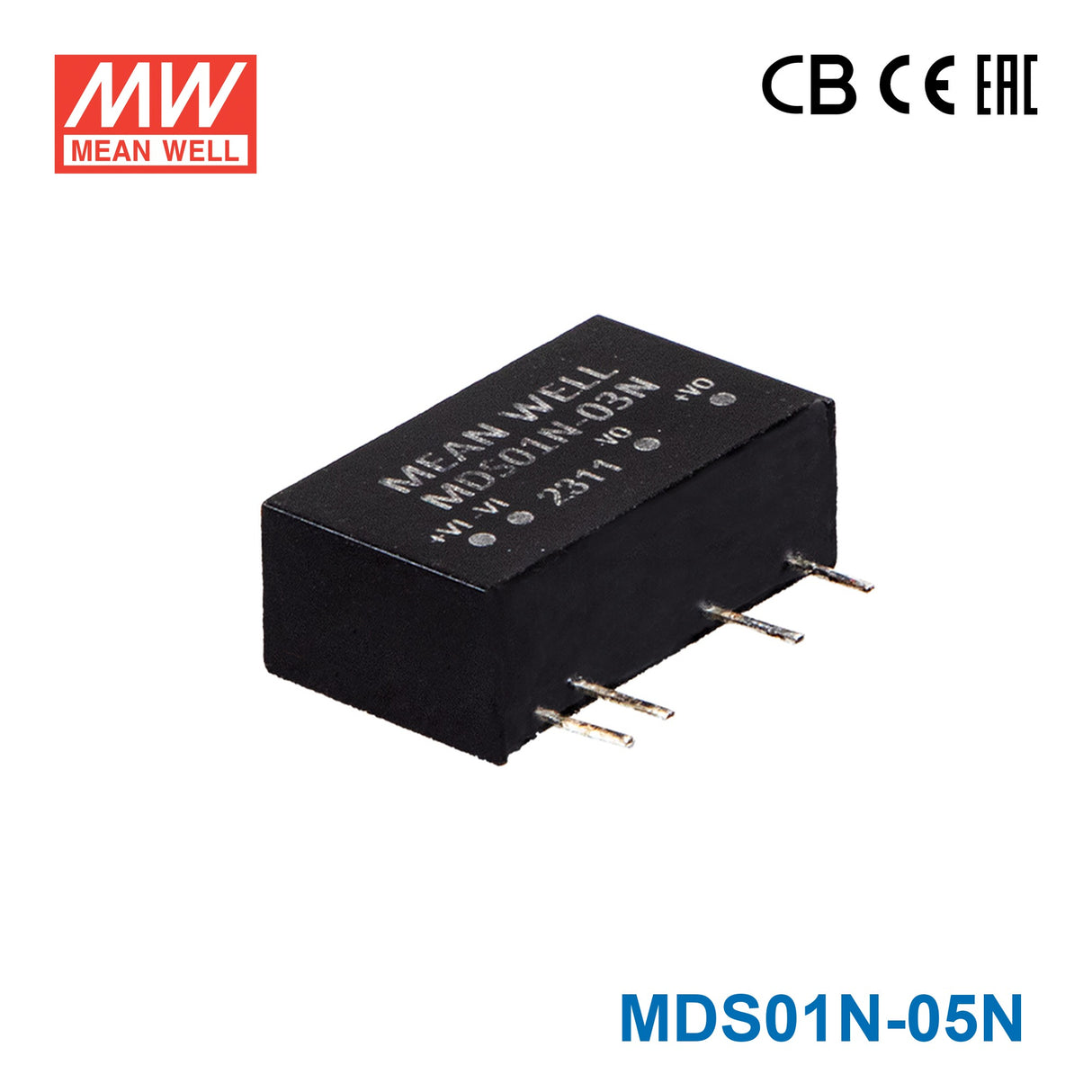

Mean Well MDS01N-05N SIP Package DC-DC Converter- 1W - 5V out
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well MDS01N-05N SIP Package DC-DC Converter- 1W - 5V out
Key Features
- ✓SIP7 package with international standard pinout
- ✓Operating temperature range -40 ~ +95°C
- ✓Comply with IEC/UL62368-1 (Expect for 15Vo/±15Vo) and LVD IEC60601-1
- ✓Medical safety approved (1xMOPP/2xMOOP) according to IEC60601-1
- ✓Low patient leakage current <2μA
- ✓Protections: Short circuit (Continuous)
- ✓6KVDC hight I/O isolation (Reinforced insulation)
- ✓Low cost
- ✓3 years warranty
-
BrandMean Well
-
SeriesMDS Series
-
Power Rating1 Watt
-
Output Voltage5 Volt
-
Rated Current0.00 Ampere
-
Input Voltage21.6V~26.4V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~95°C
-
Warranty3 Year
-
Length0.78 in
-
Width0.28 in
-
Height0.45 in
-
Weight0.01 lb
::specification::
Frequently Asked Questions
What is the Mean Well MDS01N-05N used for?
The MDS01N-05N is a 1W SIP-package DC-DC converter designed for low-power DC voltage conversion in compact electronic equipment. Its reinforced 6KVDC input-to-output isolation and medical safety approvals make it relevant for industrial, instrumentation, and medical-related designs that need isolated DC power.
What output does the MDS01N-05N provide?
This model provides a single 5V DC output and is part of Mean Well's MDS01N series of 1W isolated converters. It is specifically identified as the 5V output version within that family.
Is the MDS01N-05N suitable for medical or safety-sensitive equipment?
Yes. The product description states compliance with IEC/UL 62368-1 and IEC60601-1, and it is described as medically safety approved to 1xMOPP and 2xMOOP. It also features low patient leakage current below 2 microamps, which is relevant for medical-oriented applications.
What environmental conditions can the MDS01N-05N handle?
The MDS01N-05N has an operating temperature range of -40°C to +95°C. That wide range makes it a fit for designs that must remain reliable in both cold and high-temperature operating environments.
How compact is the Mean Well MDS01N-05N?
This converter uses a SIP7 package with a 19.7 x 7.1 x 11.5 mm body size and a weight of 2.8 g. Its small footprint helps when board space is limited and a standard SIP form factor is preferred.
What protection features does the MDS01N-05N include?
The MDS01N-05N includes continuous short-circuit protection and overload protection. The overload behavior is specified as shutting down the output when rated power reaches 102% or more, then recovering automatically.
