Can the NPF-90-12 be installed in an outdoor landscape lighting system without a weatherproof box?

Yes. The NPF-90-12 is rated IP67, providing full dust protection and resistance to temporary water immersion, and it operates from -40°C to +85°C. These ratings make direct outdoor installation appropriate without a separate weatherproof enclosure.

Is the NPF-90-12 a good fit for powering 12V LED arrays in commercial refrigerated display cases?

The NPF-90-12 delivers 90W at 12V with a maximum output current of 7.5A, making it suitable for powering multiple 12V LED strip arrays inside refrigerated commercial displays. Its -40°C minimum operating temperature also covers the cold ambient conditions inside display units.

How does the NPF-90-12 differ from the NPF-60-12 and NPF-120-12?

All three are 12V IP67 drivers differing in power capacity: NPF-60-12 is 60W at 5A, NPF-90-12 is 90W at 7.5A, and NPF-120-12 is 120W at 10A. Additionally, the NPF-90-12 is physically larger at 171.0 × 63.0 × 37.5 mm and 0.77 kg, compared to the 60W model at 150.0 × 53.0 × 35.0 mm and 0.49 kg.

Does the NPF-90-12 require a dimmable version to work with lighting control systems?

The NPF-90-12 is a fixed-output constant-current driver with no built-in dimming. If dimming at 12V and 90W is required, the NPF-90D-12 provides identical electrical specs with built-in 3-in-1 dimming.

What input voltage range does the NPF-90-12 support?

The NPF-90-12 accepts 90–305VAC, covering both North American (120VAC) and European and industrial (230–277VAC) supply voltages without any manual voltage selection.

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

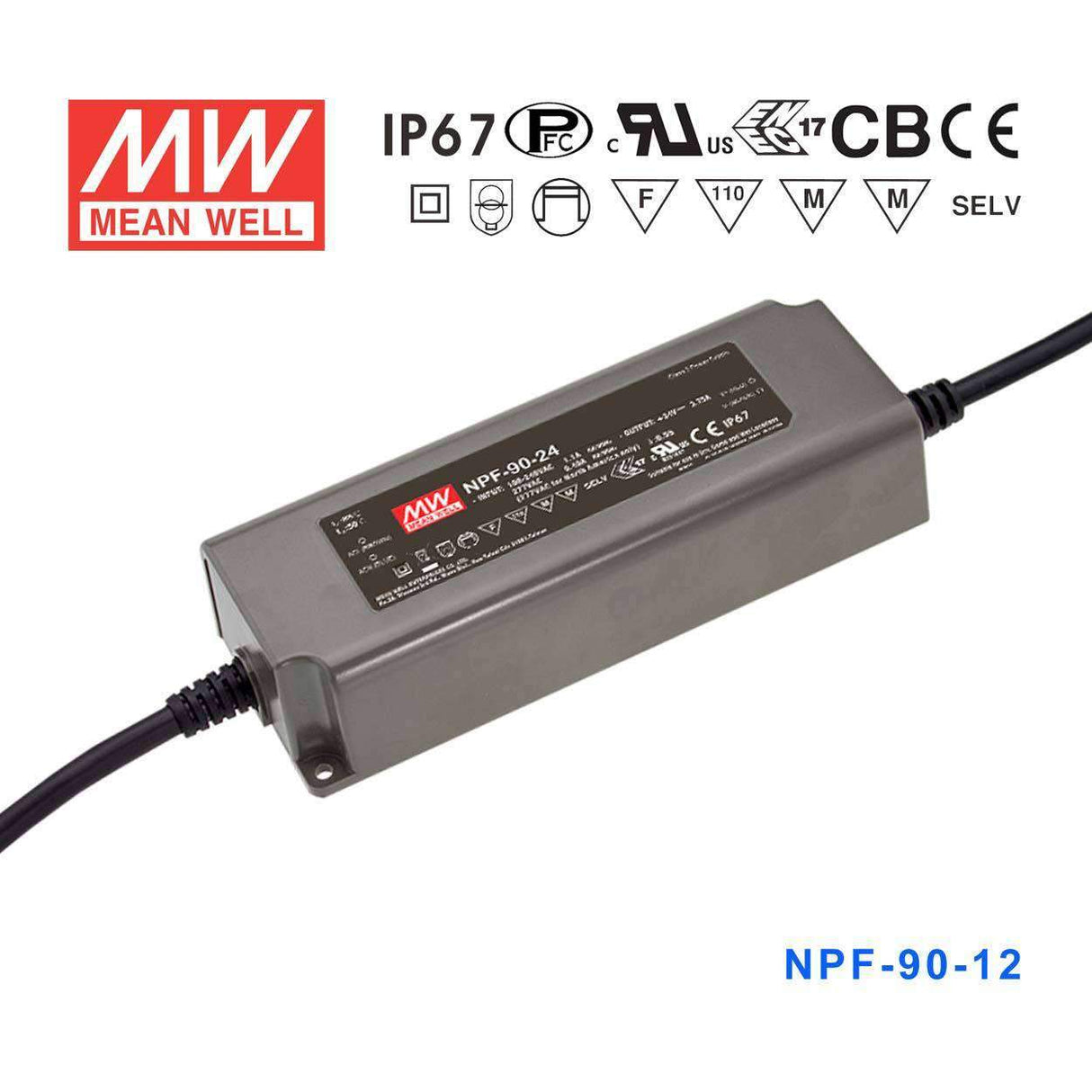

Mean Well NPF-90-12 Power Supply 90W 12V

Name: Mean Well NPF-90-12 Power Supply 90W 12V
Brand: Mean Well
SKU: NPF-90-12
Price: 40.93 USD
Availability: InStock

fully isolated plastic caseIP67Class II design without FG

SKU:

NPF-90-12

$40.93 USD ~~$43.94~~

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

The NPF-90 is a 90W Mean Well power converter (input range: 90~305VAC).

Key Features

✓ Input voltage range: 90~305VAC
✓ 3.75KVAC reinforced I/O isolation
✓ Protections: Short circuit / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: Note.8 SAFETY & EMC
✓ 3 years warranty

Brand

Mean Well
Series

NPF Series
Power Rating

90 Watt
Output Voltage

12 Volt
Rated Current

7.5 Ampere
Input Voltage

90V~305V
No of Output

1
Dimming Control

None
Standards Met

CB,CCC,CE,EAC,ENEC,UL
Operation Mode

Constant Current,Constant Voltage
Operating Temperature

-40°C~85°C
Warranty

5 Year
Length

6.73 in
Width

2.48 in
Height

1.48 in
Weight

1.7 lb

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating	Price
Mean Well NPF-90-24 Power Supply 90W 24V	90W	24V	3.75A	IP67	$43.97	View
Mean Well NPF-90-54 Power Supply 90W 54V	90.18W	54V	1.67A	IP67	$42.63	View
Mean Well NPF-90-48 Power Supply 90W 48V	90.24W	48V	1.88A	IP67	$42.63	View
Mean Well NPF-90-42 Power Supply 90W 42V	90.3W	42V	2.15A	IP67	$42.63	View
Mean Well NPF-90-36 Power Supply 90W 36V	90W	36V	2.5A	IP67	$42.63	View
Mean Well NPF-90-30 Power Supply 90W 30V	90W	30V	3A	IP67	$42.63	View
Mean Well NPF-90-20 Power Supply 90W 20V	90W	20V	4.5A	IP67	$42.63	View
Mean Well NPF-90-15 Power Supply 90W 15V	90W	15V	6A	IP67	$42.63	View
