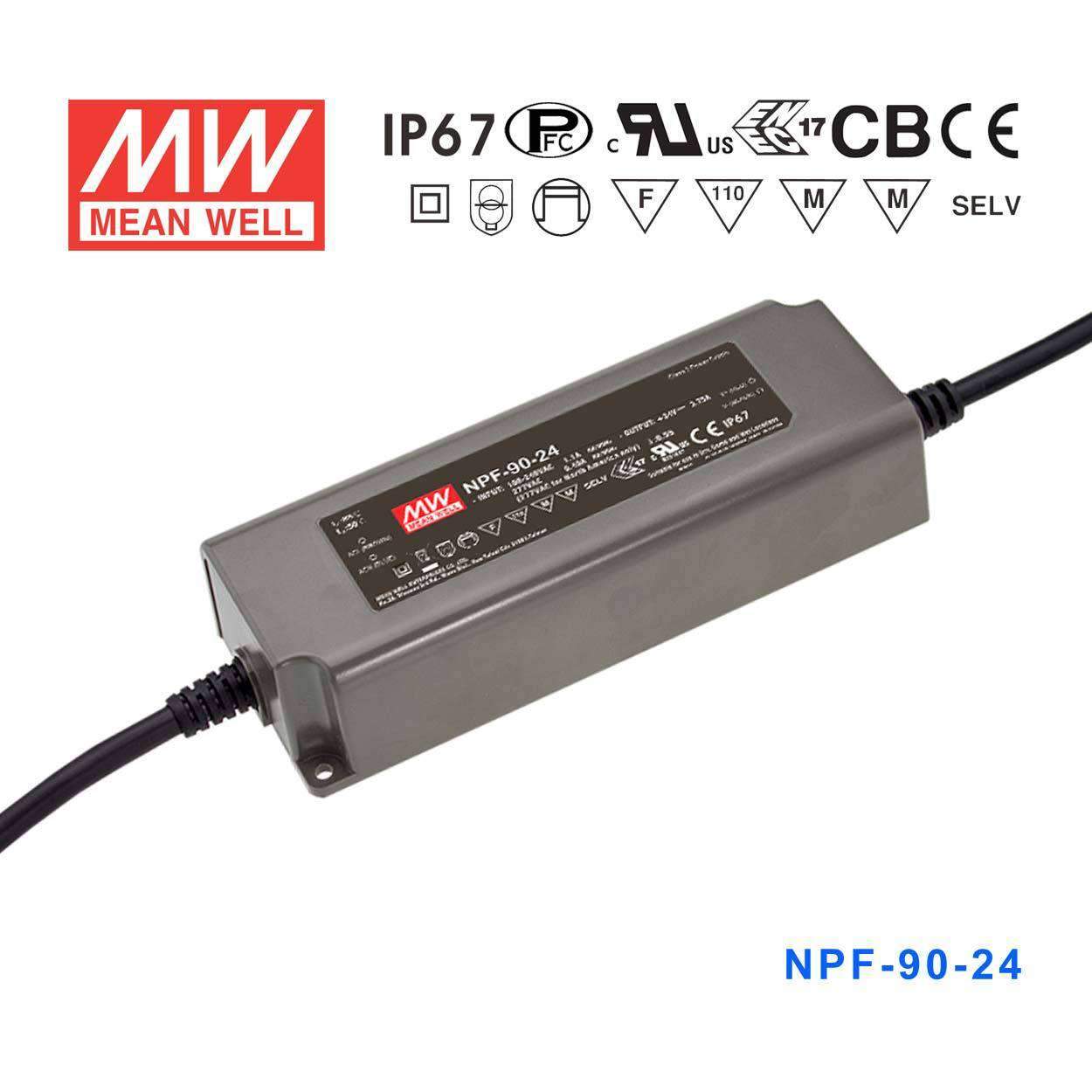

Mean Well NPF-90-24 Power Supply 90W 24V

Name: Mean Well NPF-90-24 Power Supply 90W 24V
Brand: Mean Well
SKU: NPF-90-24
Price: 48.86 USD
Availability: InStock

39 units in stock

$48.86 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

AC input voltage range	90~305VAC; 127~431VDC
AC inrush current (max.)	Cold start, 60A at 230VAC
Over current protection	95%~108% constant current limiting, auto-recovery
Over voltage protection	110%~140% rated output voltage
Over temp. protection	Shut down output voltage, re-power on to recover
Setup, rise, hold up time	500ms, 80ms, 16ms at full load and 230VAC
Withstand voltage	I/P-O/P: 3.75kVAC
Working temperature	-40~+70°C (refer to output dearting curve)
Safety standards	UL8750, ENEC EN61347-1, EN61347-2-13, EN62384 approved [NPF-40(D)/60(D)/120(D)/pending]; Design refer to EN60335-1
EMC standards	EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547, [NPF-40(D)/60(D)/120(D)/pending]
Connection Input	UL rated, SJTW 18AWGx2C (30cm)
Connection Output	NPF-90: SJTW 16AWGx2C (30cm) NPF-90D: SJTW 16AWGx2C (30cm)+ UL2464 18AWGx2C (30cm)
Dimension (LxWxH) (mm)	171x 63x 37.5
