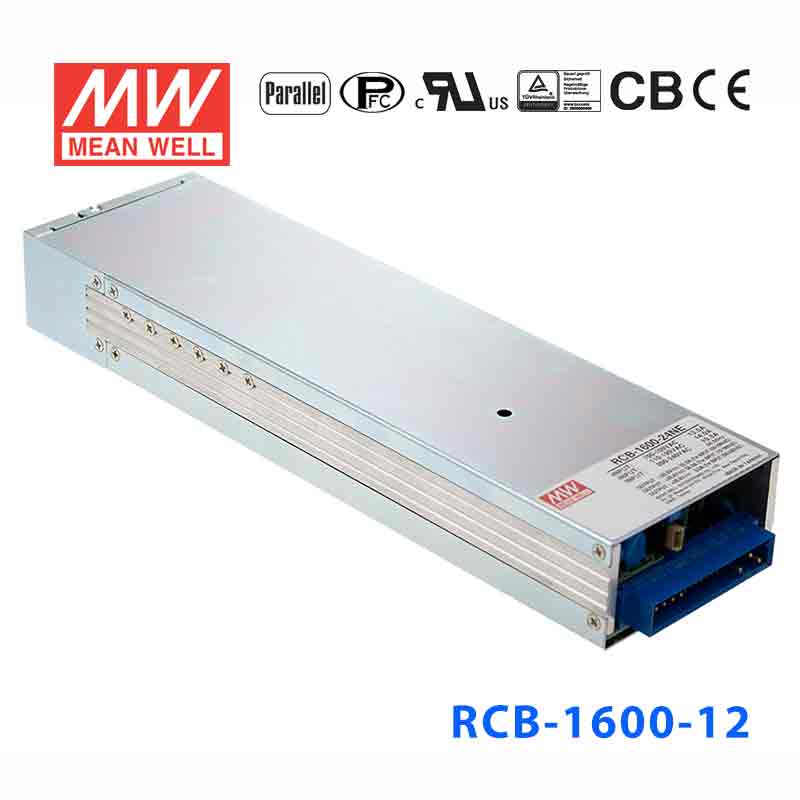

Mean Well RCB-1600-12 battery charger 1600W 14.4V 100A
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RCB-1600-12 battery charger 1600W 14.4V 100A
The RCB-1600 is a 1440W Mean Well battery charger (input: 90~264VAC, operating temperature: -30~+70°C).
Key Features
- ✓ Input voltage: 90~264VAC
- ✓ Output voltage (max): 14.4V
- ✓ Rated output current: 100A
- ✓ Operating temperature: -30~+70°C
- ✓ Safety certifications: CB, CE, EAC, TÜV, UL
- ✓ 5 year warranty
-
BrandMean Well
-
SeriesRCB Series
-
Power Rating1440 Watt
-
Output Voltage14.4 Volt
-
Rated Current100 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty5 Year
-
Length11.81 in
-
Width3.35 in
-
Height1.61 in
-
Weight4.12 lb
::specification::
Frequently Asked Questions
What is the Mean Well RCB-1600-12 designed for?
The RCB-1600-12 is a high-power AC/DC battery charger built for 14.4V battery charging applications. It is intended for industrial and commercial use cases that need up to 100A charging current in a compact 1U low-profile format.
What are the main output specifications of the RCB-1600-12?
This model is rated for 14.4V output and 100A current. The product name identifies it as a 1600W-class charger, while the provided power rating is listed as 1440W.
What battery types is the RCB-1600-12 compatible with?
According to the product description, the RCB-1600-12 can be used with different battery types including lead-acid batteries and lithium-ion batteries. It supports programmable charging behavior, which helps adapt the charger to different battery requirements.
How flexible is the charging control on the RCB-1600-12?
The RCB-1600-12 is described as an intelligent charger with embedded programmable charging curves. Users can adjust charging voltage and current through the built-in potentiometer, output programmable functions, PMBus, or CANBus.
Is the RCB-1600-12 suitable for demanding temperature conditions?
This charger has a specified operating temperature range of -30°C to 70°C. The product description also notes a temperature compensation function, making it better suited for demanding industrial environments than basic fixed-output chargers.
What are the physical and lifecycle considerations for this model?
The RCB-1600-12 uses a 1U low-profile design with a height of 41mm, which is useful where space efficiency matters. Its listed weight is 1.87 kg, and it carries a 5-year warranty.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other RCB-1600 Models
2 other models| Model | Power | Battery Type | Battery Voltage | Charging Current | Price | |
|---|---|---|---|---|---|---|
| Mean Well RCB-1600-48 battery charger 1600W 57.6V 27.5A | 1584 Watt | Lead Acid Battery | 48V | — | $451.54 | View |
| Mean Well RCB-1600-24 battery charger 1600W 28.8V 55A | 1584 Watt | Lead Acid Battery | 24V | — | $451.54 | View |
