Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

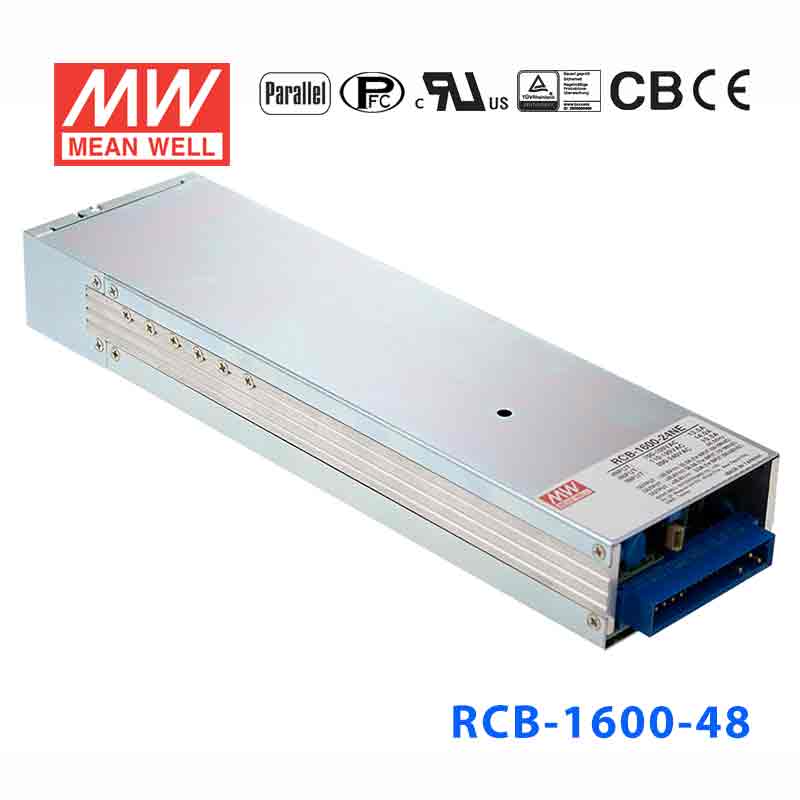

Mean Well RCB-1600-48 battery charger 1600W 57.6V 27.5A

charger for lead-acid and Li-ion batteries, output voltage and current programmable, support hot swap

SKU:

RCB-1600-48

$451.54 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

RCB-1600 series is a single output 1600W AC/DC charger with 1U low profile (41mm). It is an intelligent charger with embedded charging curves which are programmable. Users are also able to adjust the charging voltage and current via the built-in potentiometer, output programmable functions, PMBus, or CANBus to charge different types of batteries, such as lead-acid batteries and li-ion batteries. Various protection mechanisms as well as the temperature compensation function are provided to assure the normal and safe operations. The rack-mountable attribute allows RCB-1600 to perfectly suit the charging, backup or constant current source applications exploiting the rack architecture or central management.

Features

Charger for lead-acid batteries (Gel
flooded and AGM) and Li-ion batteries (lithium iron and lithium manganese)
Built-in default 3 stage charging curves and programmable curve • Built-in I2C interface
PMBus protocol (Optional CANBus protocol)
Output voltage and current programmable
Universal AC input / Full range (Withstand 300VAC surge input for 5 seconds)
Built-in active PFC function
Forced air cooling by built-in DC fan
Built-in OR-ing FET
support hot swap (hot plug)
Active current sharing up to 8000W for one 19" rack shelf
Protections: Battery under voltage / Battery no connection / Short circuit / Over voltage / Over temperature
Optional conformal coating
5 years warranty

Applications

Large scale DC UPS or emergency backup system
Marine battery charger module
Electric scooter or vehicle charger station
Wastewater treatment system
Electrolysis system

Specifications

Brand

Mean Well
Series

RCB Series
Power Rating

1584 Watt
Output Voltage

57.6 Volt
Rated Current

27.5 Ampere
Input Voltage

90V~264V
No of Output

1
Standards Met

CB,CE,EAC,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-30°C~70°C
Warranty

5 Year
Length

11.81 in
Width

3.35 in
Height

1.61 in
Weight

4.12 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What applications is the Mean Well RCB-1600-48 best suited for?

The RCB-1600-48 is a high-power 1600W-class battery charger designed for industrial and commercial battery charging applications that need a 57.6V charging output. Its 27.5A rated current and 1U low-profile format make it a practical fit for equipment racks, cabinets, and other space-conscious power systems. It is better suited to professional battery-charging environments than light-duty consumer charging tasks.

What battery types can the RCB-1600-48 charge?

This model is intended for charging different battery types including lead-acid batteries and lithium-ion batteries. The product description also states that it has embedded programmable charging curves, which helps adapt the charger to the battery chemistry being used. That makes it more flexible than a fixed-profile charger.

What are the main electrical ratings of the RCB-1600-48?

The Mean Well RCB-1600-48 has a 1584W power rating with a 57.6V output and 27.5A rated current. Those ratings place it in the high-power charger category for larger battery systems. The model name also reflects its 1600W-class design and 48V battery-charging focus.

How flexible is the charging control on this battery charger?

The RCB-1600-48 is described as an intelligent charger with programmable embedded charging curves. Users can adjust charging voltage and current through the built-in potentiometer, output programmable functions, PMBus, or CANBus. This gives buyers more control than a charger limited to one fixed charging profile.

Can the RCB-1600-48 be used in demanding temperature conditions?

Yes. This model is rated for operation from -30°C to 70°C, which supports use in both cold and hot industrial environments. The product description also notes a temperature compensation function, which is relevant for battery-charging performance across changing conditions.

Is the RCB-1600-48 suitable for rack or low-clearance installations?

This charger uses a 1U low-profile design with a 41 mm height, so it is well suited to applications where vertical space is limited. That form factor is useful in rack-style systems and compact equipment enclosures. It also weighs 1.87 kg, which is relatively manageable for a charger in this power class.

What kind of durability and long-term support does this charger offer?

The RCB-1600-48 includes various protection mechanisms according to the product description, which is important for industrial charging reliability. It also carries a 5-year warranty, giving buyers a stronger support window than short-warranty power products. For B2B buyers, that warranty period is a meaningful part of lifecycle planning.

Model	Power	Battery Type	Battery Voltage	Charging Current	Price
Mean Well RCB-1600-24 battery charger 1600W 28.8V 55A	1584 Watt	Lead Acid Battery	24V	—	$451.54	View
Mean Well RCB-1600-12 battery charger 1600W 14.4V 100A	1440 Watt	Lead Acid Battery	12V	—	$451.54	View
