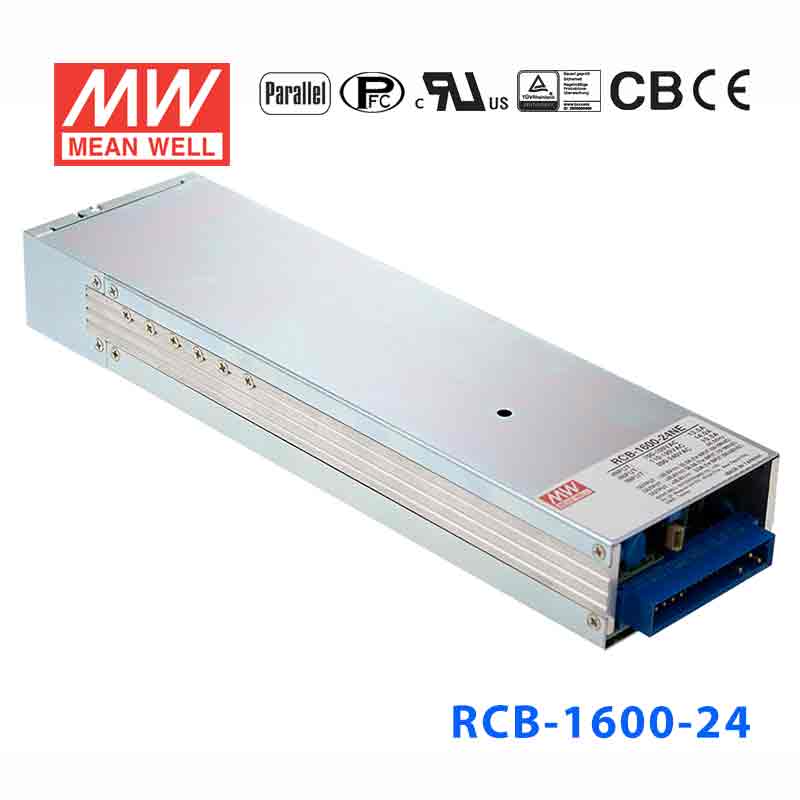

Mean Well RCB-1600-24 battery charger 1600W 28.8V 55A

charger for lead-acid and Li-ion batteries, output voltage and current programmable, support hot swap

SKU:

RCB-1600-24

$451.54 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

RCB-1600 series is a single output 1600W AC/DC charger with 1U low profile (41mm). It is an intelligent charger with embedded charging curves which are programmable. Users are also able to adjust the charging voltage and current via the built-in potentiometer, output programmable functions, PMBus, or CANBus to charge different types of batteries, such as lead-acid batteries and li-ion batteries. Various protection mechanisms as well as the temperature compensation function are provided to assure the normal and safe operations. The rack-mountable attribute allows RCB-1600 to perfectly suit the charging, backup or constant current source applications exploiting the rack architecture or central management.

Features

Charger for lead-acid batteries (Gel
flooded and AGM) and Li-ion batteries (lithium iron and lithium manganese)
Built-in default 3 stage charging curves and programmable curve • Built-in I2C interface
PMBus protocol (Optional CANBus protocol)
Output voltage and current programmable
Universal AC input / Full range (Withstand 300VAC surge input for 5 seconds)
Built-in active PFC function
Forced air cooling by built-in DC fan
Built-in OR-ing FET
support hot swap (hot plug)
Active current sharing up to 8000W for one 19" rack shelf
Protections: Battery under voltage / Battery no connection / Short circuit / Over voltage / Over temperature
Optional conformal coating
5 years warranty

Applications

Large scale DC UPS or emergency backup system
Marine battery charger module
Electric scooter or vehicle charger station
Wastewater treatment system
Electrolysis system

Specifications

Brand

Mean Well
Series

RCB Series
Power Rating

1584 Watt
Output Voltage

28.8 Volt
Rated Current

55 Ampere
Input Voltage

90V~264V
No of Output

1
Standards Met

CB,CE,EAC,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-30°C~70°C
Warranty

5 Year
Length

11.81 in
Width

3.35 in
Height

1.61 in
Weight

4.12 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What are the main output specifications of the Mean Well RCB-1600-24?

The RCB-1600-24 is a 1600W-class battery charger rated at 28.8V output and 55A current. Based on the provided specifications, its power rating is 1584W. This makes it a high-power model for applications that need substantial charging capacity from a single-output AC/DC charger.

What types of batteries can the RCB-1600-24 charge?

This model is designed for charging different battery types, including lead-acid and lithium-ion batteries. The product description states that it uses embedded programmable charging curves and also allows charging voltage and current adjustment. That flexibility makes it better suited to battery-based industrial and OEM applications than a fixed-charge-profile unit.

What makes the RCB-1600-24 an intelligent battery charger?

The RCB-1600-24 includes embedded programmable charging curves rather than using only a fixed charging profile. It also supports adjustment through built-in potentiometers and programmable functions, with PMBus and CANBus mentioned in the product description. For buyers comparing industrial chargers, that gives this model more control options than a basic power supply or non-programmable charger.

Is the RCB-1600-24 suitable for compact or space-constrained systems?

Yes. The product description identifies the RCB-1600 series as a 1U low-profile charger with a height of 41mm. That low-profile format can be useful where high charging power is needed in equipment bays or other space-limited industrial enclosures.

What operating temperature range does the Mean Well RCB-1600-24 support?

The specified operating temperature range is -30°C to 70°C. That wide range helps this model fit demanding industrial environments where ambient temperatures may vary significantly. Buyers should still confirm that the rest of their system is rated for the same conditions.

Does the RCB-1600-24 include protection and battery-related control features?

Yes. The description states that the charger includes various protection mechanisms as well as a temperature compensation function. Those features are relevant for battery charging applications where control and protection behavior matter as much as raw output power.

What warranty is provided for the RCB-1600-24?

The listed warranty period for this model is 5 years. For B2B buyers, that is a useful indicator of long-term product support expectations. It can also help when comparing this charger against shorter-warranty alternatives in industrial power projects.
