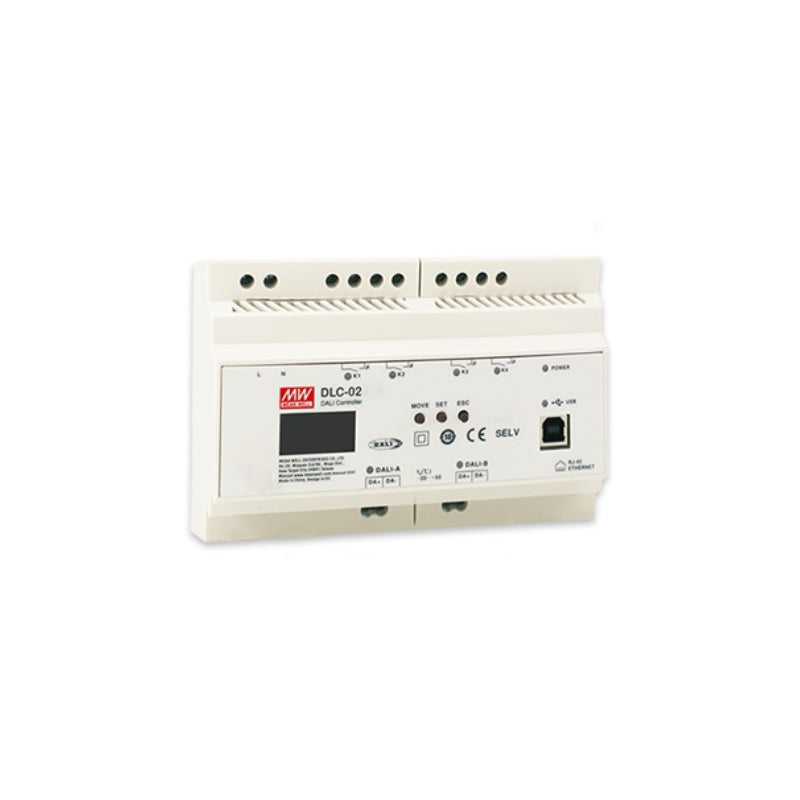

Mean Well DLC-02 DALI Digital Lighting Controller
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well DLC-02 DALI Digital Lighting Controller
The DLC is a Mean Well. power converter. and an input range of 100~305VAC.
Key Features
- ✓ Input voltage range: 100~305VAC
- ✓ Wide operating temperature: -25~+45℃
- ✓ Protections: Short circuit
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesDLC Series
-
Power Rating7.68 Watt
-
Rated Current0.48 Ampere
-
Input Voltage110V~230V
-
No of Output2
-
Dimming ControlDALI
-
Standards MetCE,EAC,KNX,SELV
-
Operating Temperature-25°C~40°C
-
Warranty5 Year
-
Length5.67 in
-
Width3.54 in
-
Height2.3 in
-
Weight0.95 lb
::specification::
Frequently Asked Questions
What is the Mean Well DLC-02 designed to do?
The Mean Well DLC-02 is a DALI-2 multi-master digital lighting controller for managing larger lighting control systems. It supports scene control, group settings, timer events, and sequence scheduling for commercial or other professional lighting applications.
How many DALI devices can the DLC-02 manage?
This model has 2 independent DALI bus channels with a built-in DALI power supply rated up to 250 mA per bus. It supports up to 2 x 64 DALI control gears and up to 2 x 12 input devices.
Does the DLC-02 support DALI-2 and DT8 color control?
Yes. The DLC-02 supports DALI-2 devices with Part 207, 209, 301, 302, 303, and 304, and it also supports DT8 color control. Supported DT8 modes include tunable white, RGBW, and XY-coordinate control.
What control and scheduling features are available on the DLC-02?
The controller supports up to 16 scenes and group settings per channel, along with effect settings using timer events and input devices. It can store up to 255 timer events and supports 8 scheduled sequences with up to 16 steps per sequence.
Is the DLC-02 suitable for environments with wider temperature demands?
The published working temperature range is -25°C to +70°C, which supports use in a broad range of indoor or protected application environments. The product data also lists an ambient maximum of 40°C, so buyers should confirm their project conditions against the full product documentation.
What local control and interface features does the DLC-02 include?
The DLC-02 includes an OLED display, LED indicators, and onboard buttons for local operation. It is also designed for configuration through DLC-02 software and includes built-in Modbus TCP/IP protocol support for system-level integration.
What are the physical size and warranty for the Mean Well DLC-02?
The listed dimensions are 144 x 90 x 58.3 mm, and the unit weight is 0.43 kg. Mean Well specifies a 5-year warranty for this model.
