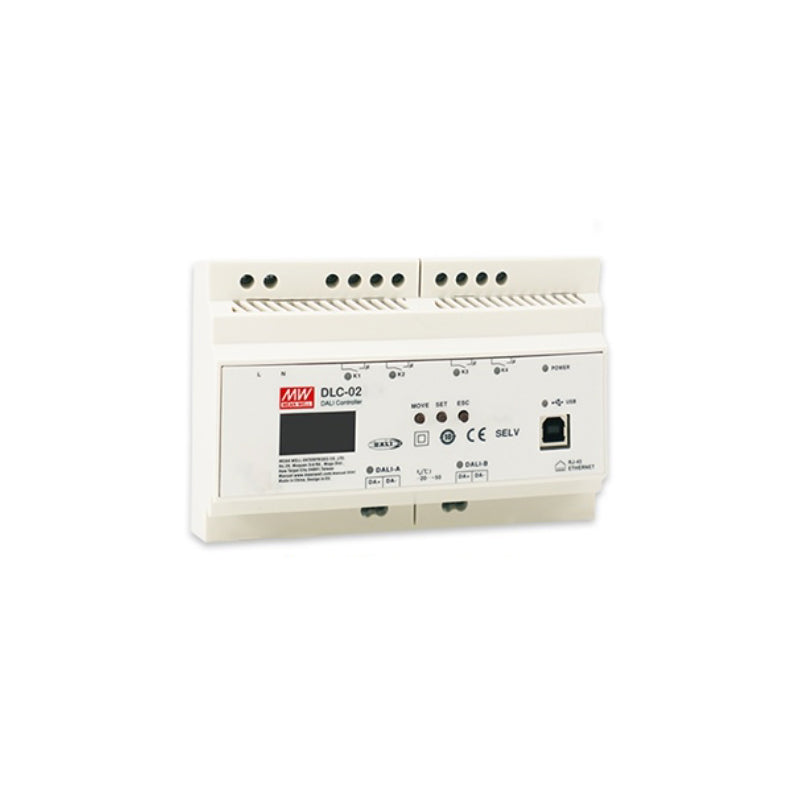

Mean Well DLC-02 DALI Digital Lighting Controller
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well DLC-02 DALI Digital Lighting Controller
Overview
DLC-02 is the model of this series: rated power 7.68W.
DLC-02 is a multi-master controller to obtain the regulation of the DALI-2 system from DALI input devices and control gears to make a DALI lighting system. Devices in the DALI bus can be scan, configure and setting through the DLC-02 software. DLC-02 supports up to 128 DALI particpants via two independent DALI Bus. The DALI Bus power supply comes directly within DLC-02, so no additional DALI power supply is required.This device comes in 4 built-in relays, providing switching possibilities for home applications and non-dimmable lighting.In addition,DLC-02 is also integrated with several features. The Effect function allows users to customize a series of events and function of input devices. Thanks to an embedded battery, time is memorized even AC is lost. The clock of DLC-02 can be synchronize in real-time; therefore, the regular events and actions can be scheduled by the Timer function accordingly. In addition, the built-in Modbus TCP/IP protocol is very flexible to adapt with other manufacturers' control software.
Features
- DALI-2 multi-master controller
- 2 independent DALI Bus channels with built in DALI power supply (up to 250mA per bus)
- Connect up to 2×64 DALI control gears and 2×12 input devices
- Max 16 scenes and groups setting per channel
- OLED display, LED indicators and buttons for local operation
- Built in with 250V/5A(×4) relay

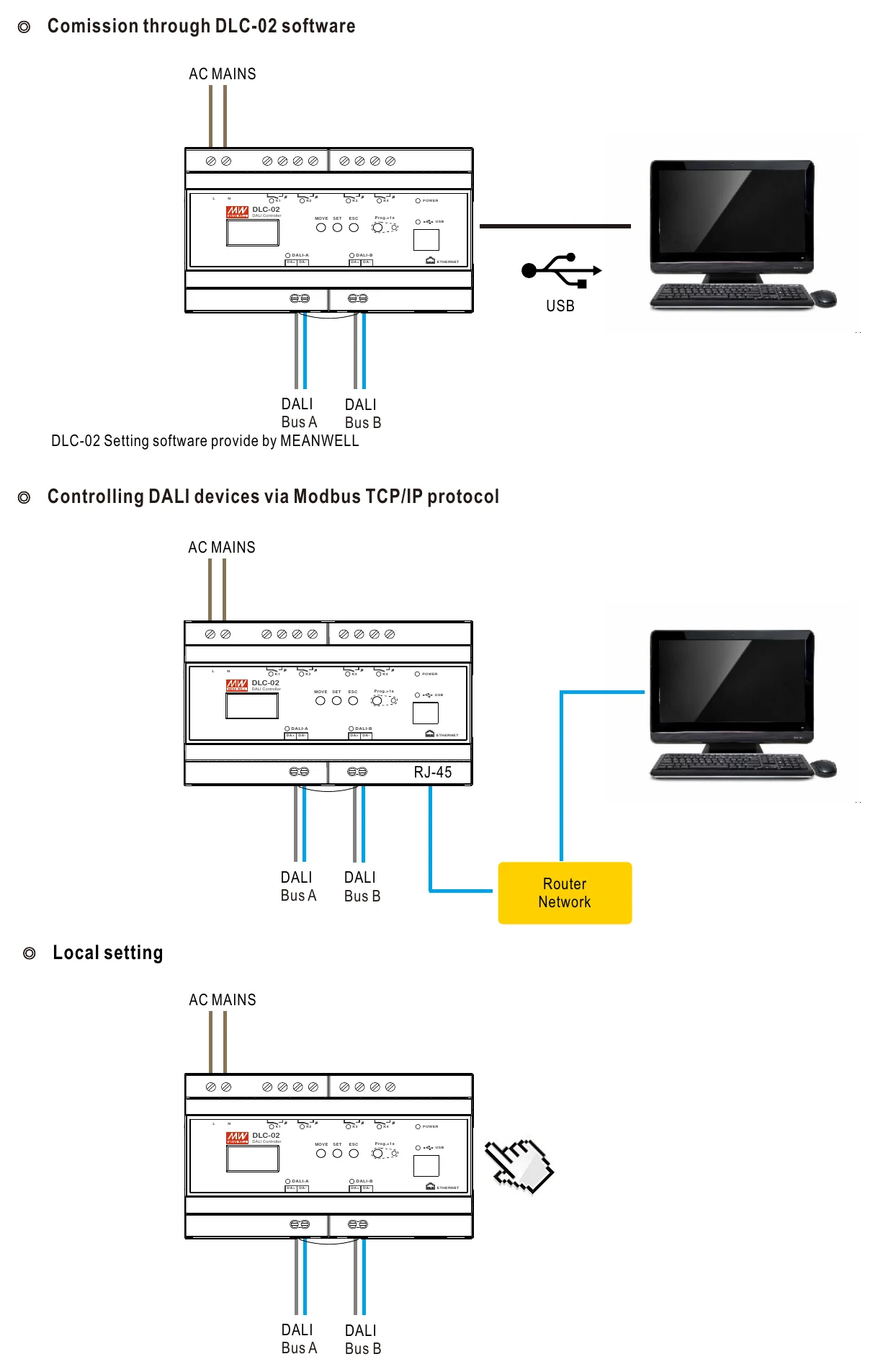

- Easy installation and configuration via DLC-02 software
- Effect setting with timer events and input devices

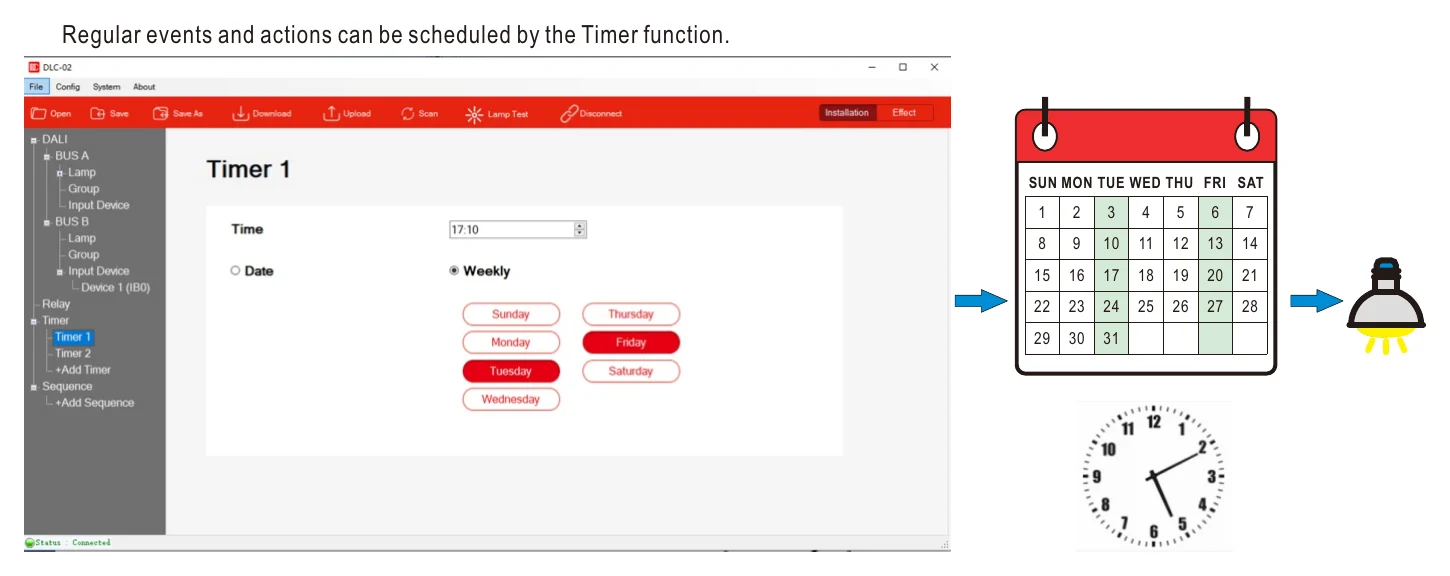

- Up to 255 timer events

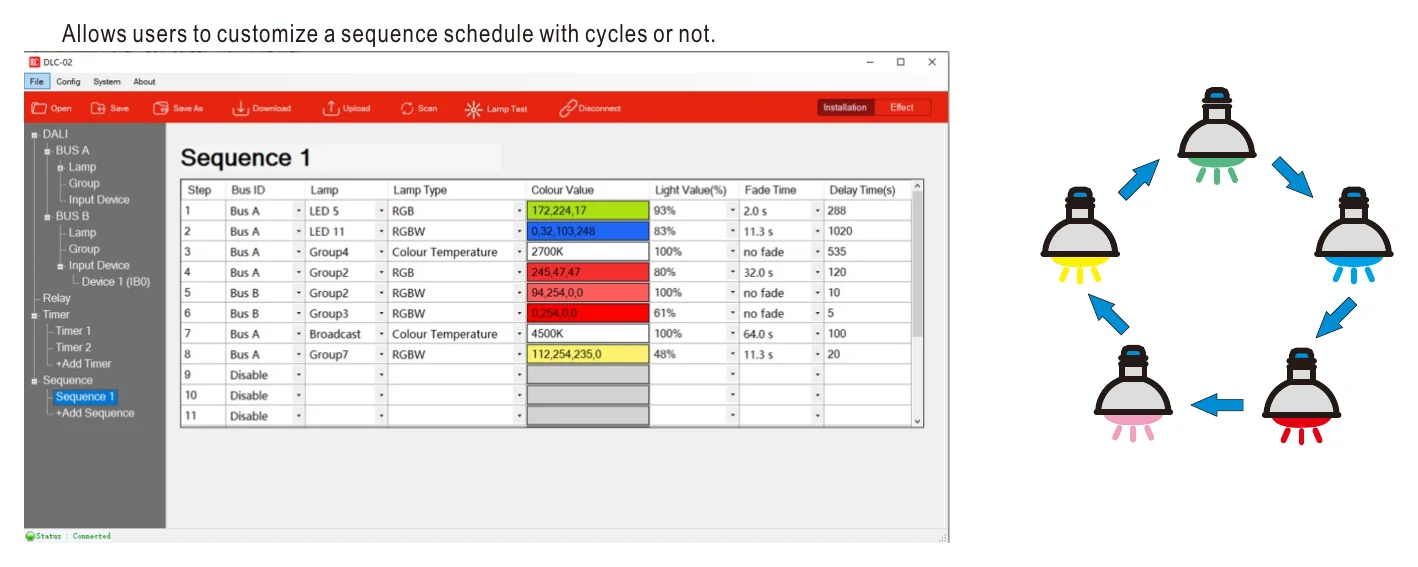

- Support 8 sequences schedule up to 16 steps per sequence

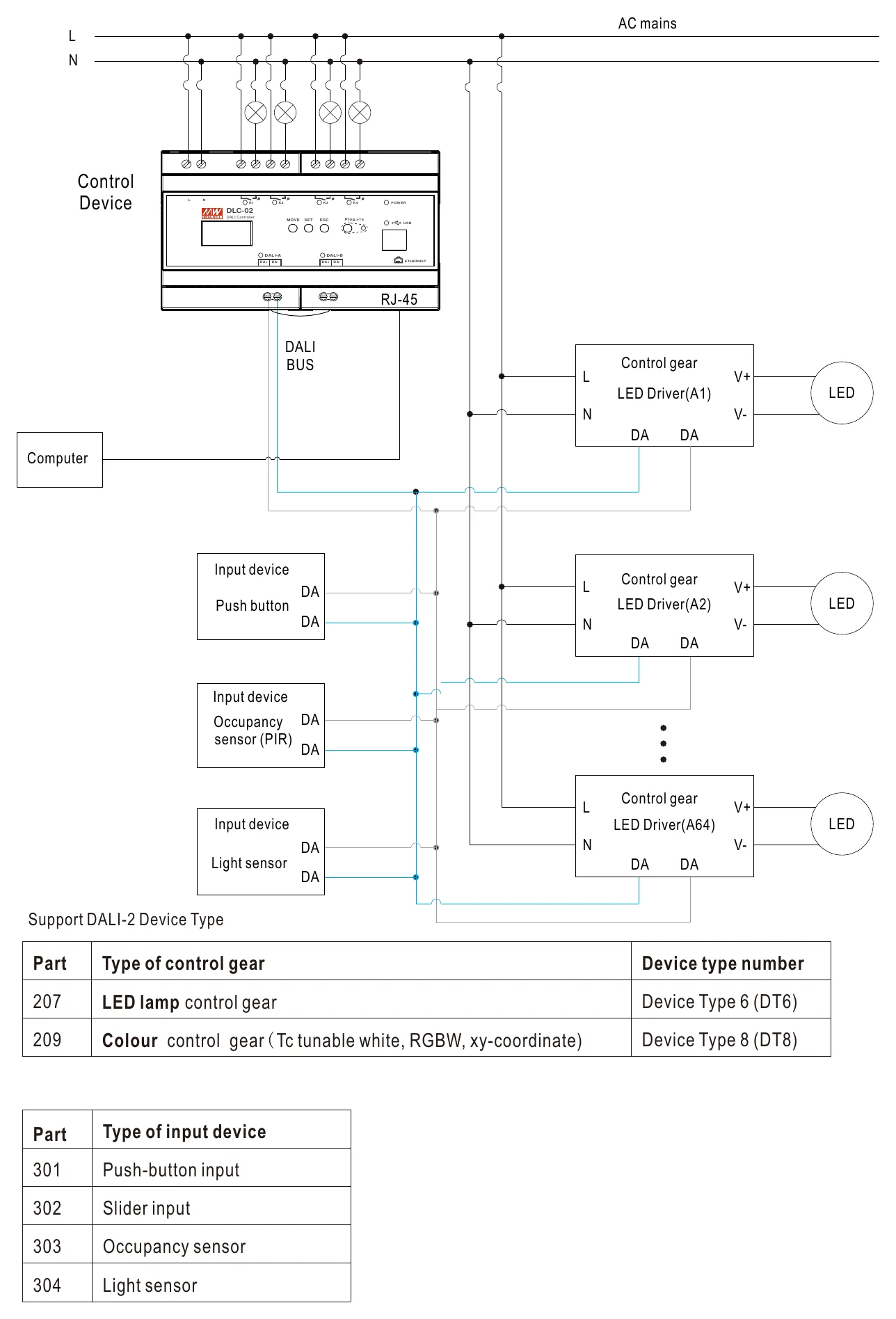

- Support DALI-2 devices with Part 207/209/301/302/303/304
- Support DT8 color control(Tunable white,RGBW,xy-coordinate)
- Built in with Modbus TCP/IP protocol
- 5 years warranty
Specifications
OUTPUT
- BUS VOLTAGE
- Built-in DALI bus power supply; Voltage range : 2x16V
- GUARANTEED SUPPLY CURRENT
- 2x240mA
- MAXIMUM SUPPLY CURRENT
- 2x250mA
- RATED POWER
- 7.68W
- SETUP,RISE TIME
- 250ms,50ms/115VAC,230VAC
INPUT
- VOLTAGE RANGE
- 100~305VAC, 140~430VDC,(class Ⅱ)
- FREQUENCY RANGE
- 47~63Hz
- AC CURRENT(Typ.)
- 0.5A/115VAC 0.25A/230VAC
- INRUSH CURRENT(Typ.)
- COLD START 45A/230VAC
PROTECTION
- SHORT CIRCUIT
- Short circuit delay 0.7S shutdown,Restart period 5S, Retry time 0.7S
FUNCTION
- USB INTERFACE
- 1 USB slave connector , type-B
- DISPLAY
- OLED display for easy operation
- INDICATOR
- 2*LED indicators for BUS voltage; 4*LED indicators for relay ;1*LED indicators for power on.
- GENERIC SETTING
- Three buttons( MOVE, SET,ESC) on the front panel to set and view settings
- Ethernet
- Control via Modbus TCP/IP protocol (RJ-45)
- Relay
- 10A/125VAC ,5A/250VAC
ENVIRONMENT
- WORKING TEMP.
- -25 ~ +45℃
- WORKING HUMIDITY
- 5 ~ 93% RH non-condensing; comply with climatic EN50090-2-2
- STORAGE TEMP., HUMIDITY
- -25 ~ +70℃, 10 ~ 95% RH non-condensing
- VIBRATION
- 5 ~ 150Hz, 2G 12min./1cycle, each along X, Y, Z axes according to EN50090-2-2
SAFETY & EMC
- SAFETY STANDARDS
- Compliance to BS EN/EN61347-1, BS EN/EN61347-2-11
- DALI STANDARDS
- Compliance to BS EN/EN62368-101,BS EN/EN62386-103
- EMC EMISSION
- Compliance to BS EN/EN55015,Harmonic current class A
- EMC IMMUNITY
- Compliance to BS EN/EN61547
OTHERS
- MTBF
- 618.9K hrs min. Telcordia SR-332 (Bellcore) ; 190.1K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 144*90*58.3mm (L*W*H)
- PACKING
- 0.43Kg; 30pcs/13.9Kg/ 1.30CUFT
- DIN RAIL MOUNTING
- 35 mm rail ;8 units wide
- ENCLOSURE MATERIAL
- ABS-V0
Test conditions and notes4
- 1. All parameters NOT specially mentioned are measured at 230VAC input and 25℃ of ambient temperature.
- 2. Maximum allowable DALI driver is 64 control gears per channel.
- 3. The maximum allowable input device depends on the connected DALI drivers and the current requirement of input device. For example , if 64 control gears is connected, the maximum driver current available in the DALI bus is 250mA-(2mA×64)=122mA. If the specific power consumption of an input device is 10mA then the maximum of input device should be 12 pcs.
- 4. The devices may be operated only up to 2000m(6500ft).

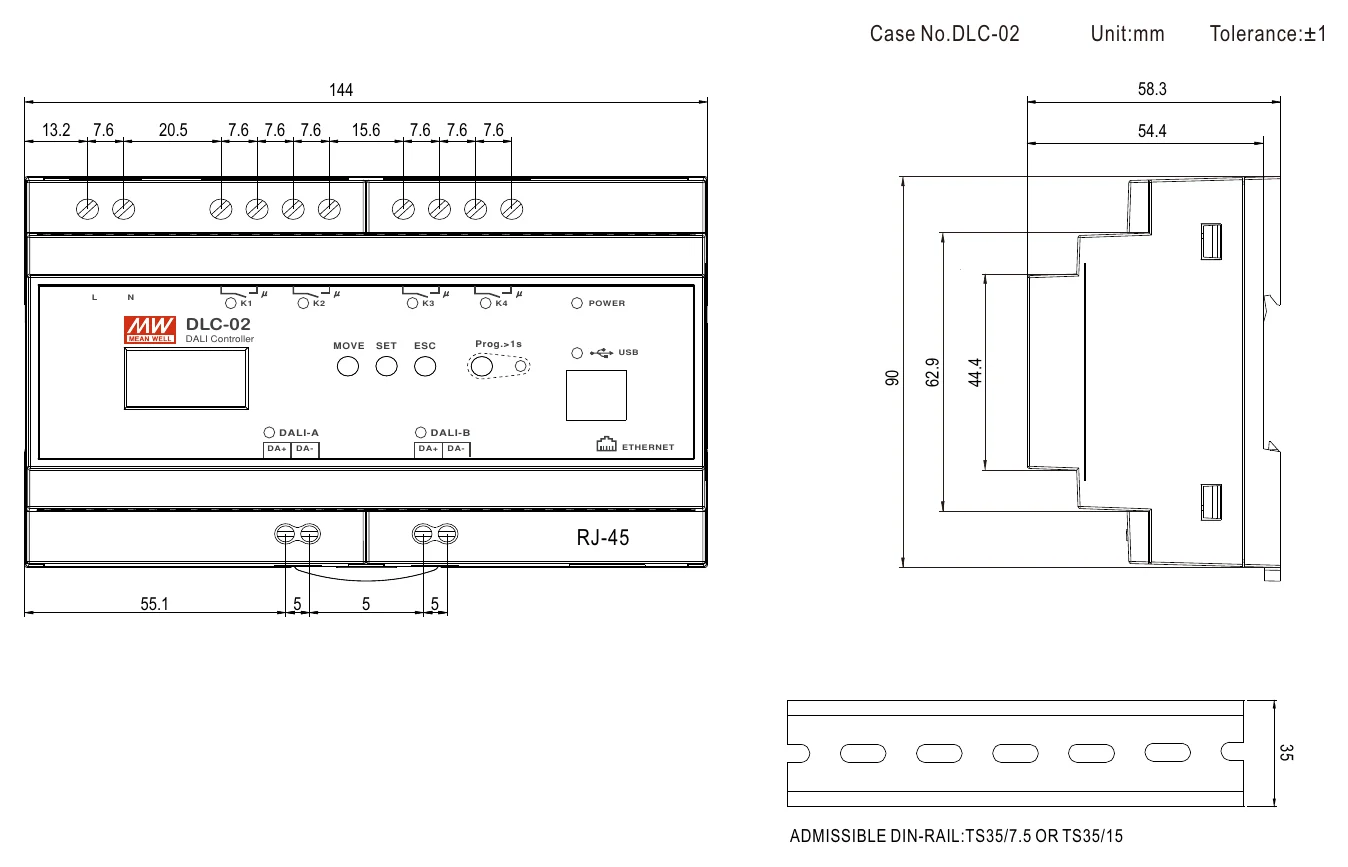

Technical drawings

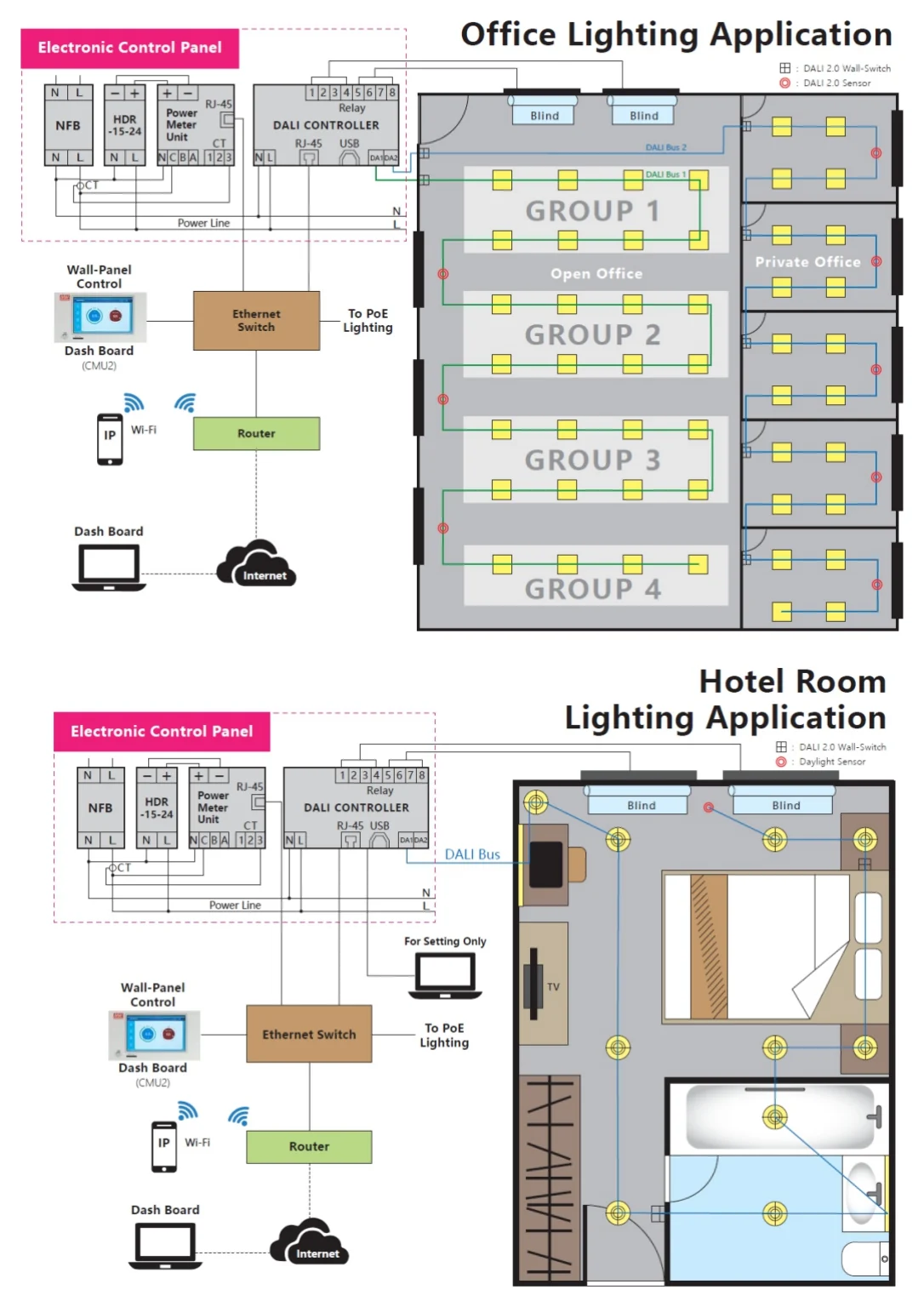

Typical applications
- Office lighting
- Smart home lighting
- Luxury villas lighting
- LED indoor lighting
- Human centric lighting control
- RGBW lighting control
- Building automation system
Downloads
Datasheet1
FAQ
What is the Mean Well DLC-02 designed to do?
The Mean Well DLC-02 is a DALI digital lighting controller for DALI-2 devices, built for managing larger lighting control systems. It provides effect, timer and sequence scheduling functions for commercial or other professional lighting applications.
How many DALI devices can the DLC-02 manage?
This model has 2 DALI bus channels with a built-in DALI power supply rated up to 250 mA per bus. It supports up to 64 control gears per channel; the number of input devices depends on the remaining bus current, e.g. with 64 gears 122 mA is left, enough for 12 input devices of 10 mA each.
Does the DLC-02 support DALI-2 and DT8 color control?
Yes. The DLC-02 supports DALI-2 devices with Part 207, 209, 301, 302, 303, and 304, and it also supports DT8 color control. Supported DT8 modes include tunable white, RGBW, and XY-coordinate control.
What control and scheduling features are available on the DLC-02?
The controller offers an Effect function to customize a series of events and the function of input devices, a Timer function to schedule regular events and actions, and a Sequence function to set up sequence schedules with or without cycles.
Is the DLC-02 suitable for environments with wider temperature demands?
The published working temperature range is -25°C to +45°C at 5 to 93% RH non-condensing; -25°C to +70°C applies to storage only. The datasheet includes a derating curve against ambient temperature, so buyers should confirm their project conditions against the full product documentation.
What local control and interface features does the DLC-02 include?
The DLC-02 includes an OLED display, LED indicators, and onboard buttons for local operation. It is also designed for configuration through DLC-02 software and includes built-in Modbus TCP/IP protocol support for system-level integration.
What are the physical size and weight of the Mean Well DLC-02?
The listed dimensions are 144 x 90 x 58.3 mm, and the unit weight is 0.43 kg. It mounts on a 35 mm DIN rail and occupies 8 units of width.
