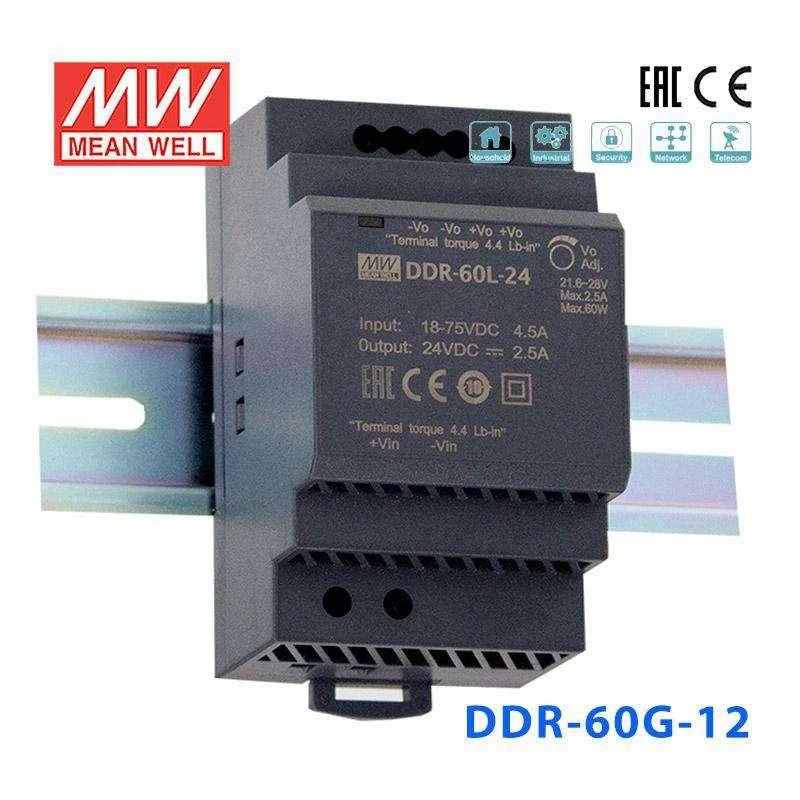

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well DDR-60G-12 DC-DC Converter - 60W - 9~36V in 12V out

Name: Mean Well DDR-60G-12 DC-DC Converter - 60W - 9~36V in 12V out
Brand: Mean Well
SKU: DDR-60G-12
Price: 35.0 USD
Availability: InStock

2:1 or 4:1 wide input rangefanless design4KVdc I/O isolationultra slim dimensions

SKU:

DDR-60G-12

$35.00 USD ~~$36.97~~

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

The DDR-60G is a 60W DIN Rail type DC-DC converter with a 52.5mm (3SU) profile, built for demanding industrial power distribution applications. A 4:1 wide input voltage range of 9~36Vdc suits a wide range of DC supply sources, while reinforced 4KVdc I/O isolation ensures clean output. With free air convection cooling, no minimum load requirement, and a broad -40~+85°C operating range, it delivers reliable performance in harsh environments.

Key Features

✓ Compact 52.5mm (3SU) width — DIN rail TS-35/7.5 or 15 compatible
✓ 4:1 wide input voltage range: 9~36Vdc
✓ DC output voltage adjustable ±10%
✓ 4KVdc reinforced I/O isolation
✓ Cooling by free air convection — no minimum load required
✓ Wide operating temperature: -40°C ~ +85°C
✓ Protections: Short circuit / Overload / Over voltage / Reverse polarity / Under voltage lockout
✓ Safety approvals: UL 62368-1, IEC 62368-1, AS/NZS 62368.1, EAC TP TC 004
✓ 3 years warranty

Brand

Mean Well
Series

DDR Series
Power Rating

60 Watt
Output Voltage

12 Volt
Rated Current

5 Ampere
Input Voltage

9V~36V
No of Output

1
Dimming Control

None
Standards Met

CE,EAC,EMC,UL
Operation Mode

Constant Voltage
Operating Temperature

-40°C~85°C
Warranty

2 Year
Length

3.54 in
Width

2.15 in
Height

2.07 in
Weight

0.48 lb

Frequently Asked Questions

Can I use the DDR-60G-12 to power 12V sensors and relays from a 24V DC control system?

Yes. The DDR-60G-12 accepts 9-36V DC input, which covers standard 24V DC control buses. It outputs 12V at up to 5A (60W), making it a compact solution for powering 12V sensors, relays, indicator lights, and other field devices in a DIN rail panel.

Is the DDR-60G-12 suitable for converting a 12V or 24V vehicle battery to a regulated 12V rail?

The DDR-60G-12 accepts 9-36V DC, covering both 12V and 24V vehicle battery systems including engine cranking dips and charging peaks. It provides a clean, regulated 12V output at up to 5A for onboard electronics, GPS units, or communication devices that need stable voltage.

Can I use the DDR-60G-12 in a small embedded system running off a 24V solar panel charge controller?

Yes. With a 9-36V input range and 60W output at 12V/5A, the DDR-60G-12 is well sized for embedded computing boards, routers, and data loggers that run on 12V. Its compact dimensions of 90 x 54.5 x 52.5 mm and DIN rail mounting make it easy to integrate into small enclosures.

Will the DDR-60G-12 work in an outdoor traffic control cabinet exposed to temperature extremes?

The DDR-60G-12 is rated from -40 to +85 degrees Celsius, which covers the temperature range of most outdoor traffic and utility cabinets. It holds UL and CE certifications. Since it lacks an IP rating, it must be mounted inside a weatherproof enclosure to stay protected from rain and dust.

How does the DDR-60G-12 differ from the DDR-60L-12?

Both deliver 60W at 12V/5A output with the same fanless DIN rail design. The difference is the input voltage range: the DDR-60G-12 accepts 9-36V DC (suited for 12V and 24V bus systems), while the DDR-60L-12 accepts 18-75V DC (suited for 24V and 48V bus systems). Choose based on your source voltage.
