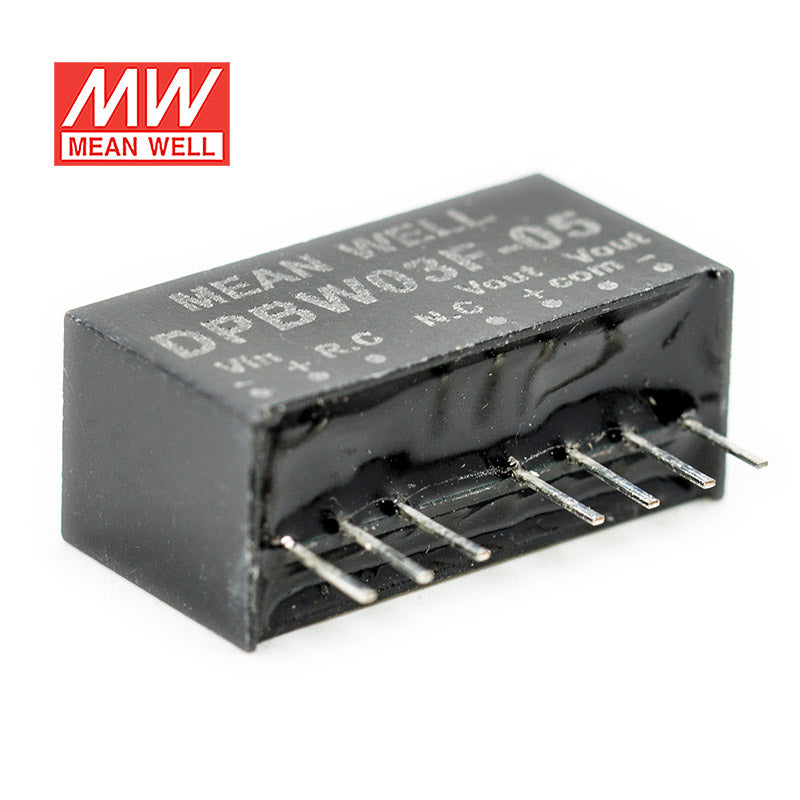

Mean Well DPBW03F-05 DC-DC Converter - 3W - 9~36V in ±5V out
The DPBW03F is a 3W Mean Well power converter (input range: 9~36Vdc).
Key Features
- ✓ Input voltage range: 9~36Vdc
- ✓ 1.5KVDC reinforced I/O isolation
- ✓ Protections: Short circuit / Overload / Under voltage
- ✓ Safety approvals: EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesDPBW Series
-
Power Rating3 Watt
-
Output Voltage5 Volt
-
Rated Current0.3 Ampere
-
Input Voltage9V~36V
-
No of Output2
-
Dimming ControlNone
-
Standards MetCE
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length0.86 in
-
Width0.44 in
-
Height0.36 in
-
Weight0.01 lb
::specification::
Frequently Asked Questions
Can I use the DPBW03F-05 for a 24V industrial controller that needs a 5V logic rail?
This model is designed for constant-voltage 5V output with 3W power and a 9-36VAC input range. That makes it suitable where the source falls within 9-36VAC and the control or logic load stays within the 3W output rating.
Is the DPBW03F-05 suitable for embedded electronics inside compact automation equipment?
Its 21.8 × 11.1 × 9.2 mm size and 0.0048 kg weight make it a compact option for tightly packed embedded or control assemblies. The output is constant 5V at 3W, so it fits small low-power electronics that require a regulated 5V rail.
Can this converter be used in low-power IT or communications subassemblies that run from variable control voltages?
It can be considered for low-power electronics when the available input stays within 9-36VAC and the load needs constant 5V output. The 3W rating is the key sizing limit for small IT, communications, or monitoring subcircuits.
How does the DPBW03F-05 compare with the other DPBW03F models?
In the DPBW03F 3W series, the listed models are DPBW03F-05 with 5V output and 300A output current, DPBW03F-12 with 12V output and 125A output current, and DPBW03F-15 with 15V output and 100A output current. All are constant-voltage units with 9-36VAC input, 21.8 × 11.1 × 9.2 mm dimensions, 0.0048 kg weight, -40°C to +85°C operating temperature, CE certification, and a 3-year warranty.
Is the DPBW03F-05 appropriate for outdoor or harsh-environment use?
The listed operating temperature range is -40°C to +85°C, which supports wide temperature conditions. However, the supplied specs do not list any IP rating, so the provided data does not confirm suitability for exposed outdoor, wet, or washdown environments.
