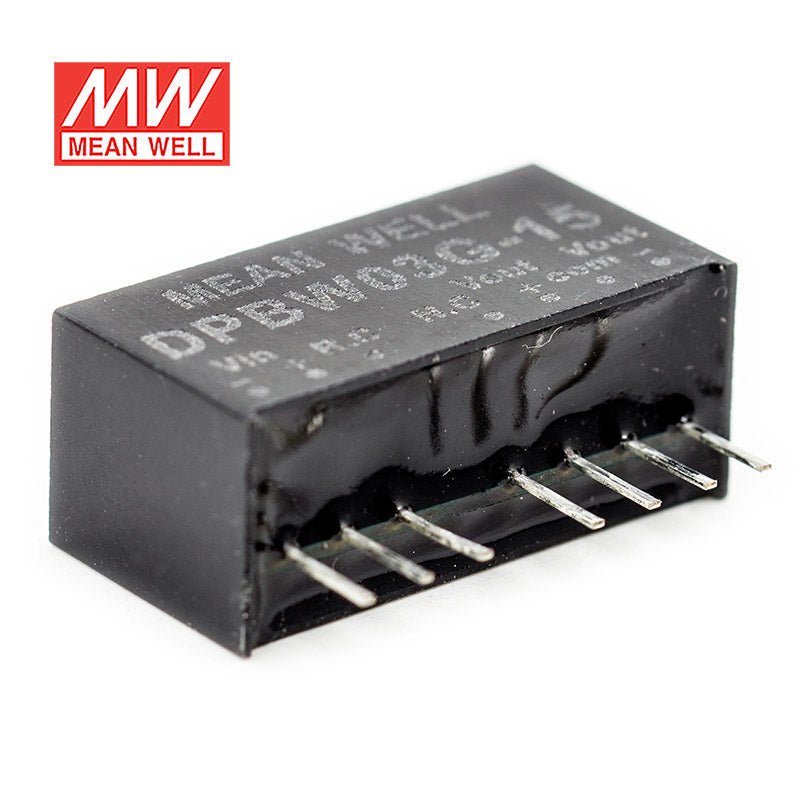

Mean Well DPBW03G-15 DC-DC Converter - 3W - 18~75V in ±15V out
Remote ON/OFF control
3 years warranty
Key Features
- ✓✓SIP8 package with industry-standard pinout
- ✓✓Wide operating temperature range -40~+85°C
- ✓✓High efficiency up to 85%
- ✓✓4:1 wide input range
- ✓✓No minimum load required
- ✓✓Comply to BS EN/EN55032 radiated Class B without additional components
- ✓✓Protection: Short circuit(continuous)/Overload/Input under voltage
- ✓✓1.5KVDC I/O isolation
- ✓✓Remote ON/OFF control
- ✓✓9V model available(optional)
- ✓✓3 years warranty
-
BrandMean Well
-
SeriesDPBW Series
-
Power Rating3 Watt
-
Output Voltage15 Volt
-
Rated Current0.1 Ampere
-
Input Voltage18V~75V
-
No of Output2
-
Dimming ControlNone
-
Standards MetCE
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length0.86 in
-
Width0.44 in
-
Height0.36 in
-
Weight0.01 lb
::specification::
Frequently Asked Questions
Can I use the DPBW03G-15 in industrial control equipment that needs a low-power 15V rail?
Yes, it fits low-power industrial control and signal-conditioning circuits that need a constant-voltage 15V output. This model is rated at 3W and accepts an 18-75VAC input range, so it is better suited to small control sections than higher-load 15V devices.
Is the DPBW03G-15 suitable for embedded analog or instrumentation circuits?
It can be a fit for embedded analog and instrumentation sections that need a compact 15V constant-voltage supply. The 3W rating and 21.8 x 11.1 x 9.2 mm size make it more appropriate for space-constrained low-power designs than for larger 15V loads.
Can this converter be used in automation panels with wide input variation?
It is intended for applications that need operation across an 18-75VAC input range with a constant 15V output. That makes it relevant for compact automation electronics where the control circuit is low power and the 3W limit is acceptable.
How does the DPBW03G-15 compare with the other DPBW03G models?
Within the DPBW03G series, all listed models are rated at 3W. The DPBW03G-05 provides 5V and 300A, the DPBW03G-12 provides 12V and 125A, and the DPBW03G-15 provides 15V and 100A.
Is the DPBW03G-15 suitable for outdoor or harsh-temperature environments?
The operating temperature range is -40°C to +85°C, so it is specified for wide-temperature operation. No IP rating is listed in the provided specs, so outdoor or washdown suitability is not established from this data alone.
