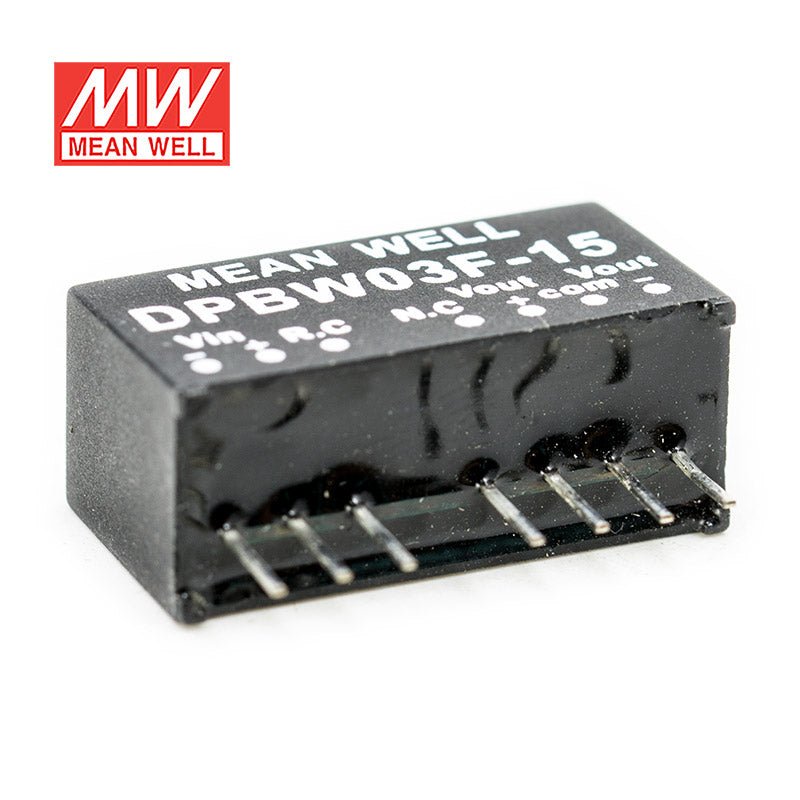

Mean Well DPBW03F-15 DC-DC Converter - 3W - 9~36V in ±15V out
Remote ON/OFF control
3 years warranty
Key Features
- ✓✓SIP8 package with industry-standard pinout
- ✓✓Wide operating temperature range -40~+85°C
- ✓✓High efficiency up to 85%
- ✓✓4:1 wide input range
- ✓✓No minimum load required
- ✓✓Comply to BS EN/EN55032 radiated Class B without additional components
- ✓✓Protection: Short circuit(continuous)/Overload/Input under voltage
- ✓✓1.5KVDC I/O isolation
- ✓✓Remote ON/OFF control
- ✓✓9V model available(optional)
- ✓✓3 years warranty
-
BrandMean Well
-
SeriesDPBW Series
-
Power Rating3 Watt
-
Output Voltage15 Volt
-
Rated Current0.1 Ampere
-
Input Voltage9V~36V
-
No of Output2
-
Dimming ControlNone
-
Standards MetCE
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length0.86 in
-
Width0.44 in
-
Height0.36 in
-
Weight0.01 lb
::specification::
Frequently Asked Questions
Can I use the DPBW03F-15 to provide 15V for analog or signal-conditioning circuits in automation equipment?
This version is a constant-voltage 15V converter rated at 3W with 9-36VAC input. It fits low-power analog, signal-conditioning, or interface circuits when the input source is within 9-36VAC and the load remains within 3W.
Is the DPBW03F-15 a good fit for compact industrial electronics where board space is limited?
Its body is only 21.8 × 11.1 × 9.2 mm and the listed weight is 0.0048 kg, so it works well where compact packaging matters. Electrically, it is intended for constant 15V output at 3W rather than higher-power subsystem loads.
Can this converter be used in embedded test, measurement, or control modules that need 15V?
It can be used in small embedded modules that need a regulated 15V rail and have an available source within 9-36VAC. The 3W rating makes it suitable for low-power control and measurement electronics, not larger 15V devices.
How does the DPBW03F-15 compare to the 5V and 12V DPBW03F models?
All three DPBW03F models share 3W power, 9-36VAC input, constant-voltage operation, 21.8 × 11.1 × 9.2 mm dimensions, 0.0048 kg weight, -40°C to +85°C operation, CE certification, and a 3-year warranty. The listed outputs are 5V at 300A for DPBW03F-05, 12V at 125A for DPBW03F-12, and 15V at 100A for DPBW03F-15.
Is the DPBW03F-15 rated for outdoor control boxes or exposed industrial locations?
The product is specified for operation from -40°C to +85°C, which covers a broad temperature range. The provided specs do not list an IP rating, so they do not confirm suitability for exposed outdoor conditions or direct moisture exposure.
