Can I use the GST280A15-C6P for a 15V industrial device or subsystem?

Yes, if the device requires constant 15V DC and stays within the supply's 255W capacity. This model provides up to 17A at 15V for higher-power industrial or embedded loads.

Is the GST280A15-C6P suitable for 15V automation or instrumentation equipment?

It is suitable for 15V automation, measurement, or control equipment that needs a fixed-voltage output. The output limit is 17A, so the total connected load must remain within 255W.

Can this model power a 15V test fixture or production station?

Yes, for fixtures or stations designed around constant 15V DC operation. Its 255W rating makes it appropriate where a smaller 15V adapter would not provide enough current capacity.

Is GST280A15-C6P a match for a 15V embedded or industrial electronics assembly?

It can be a good match for 15V electronics assemblies that require steady DC power rather than constant current. The supply delivers up to 17A, with a universal 85-264VAC input range on the AC side.

Can the GST280A15-C6P be used where ambient temperatures vary a lot?

The specified operating range is -30°C to +70°C, which supports operation across a wide temperature span. Since no IP rating is provided, the product data does not establish outdoor or sealed-enclosure performance.

1 5

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

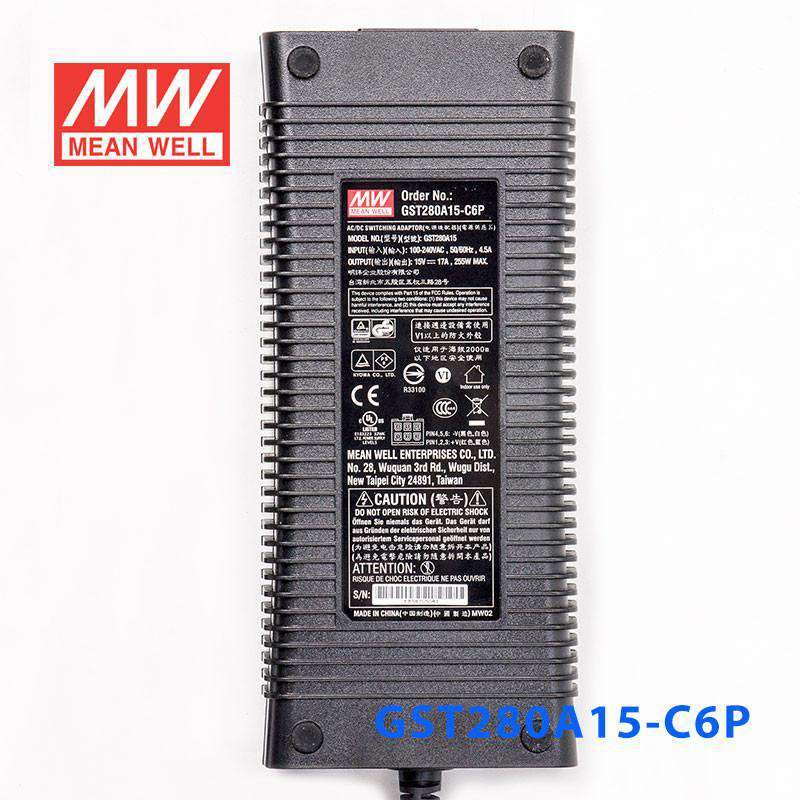

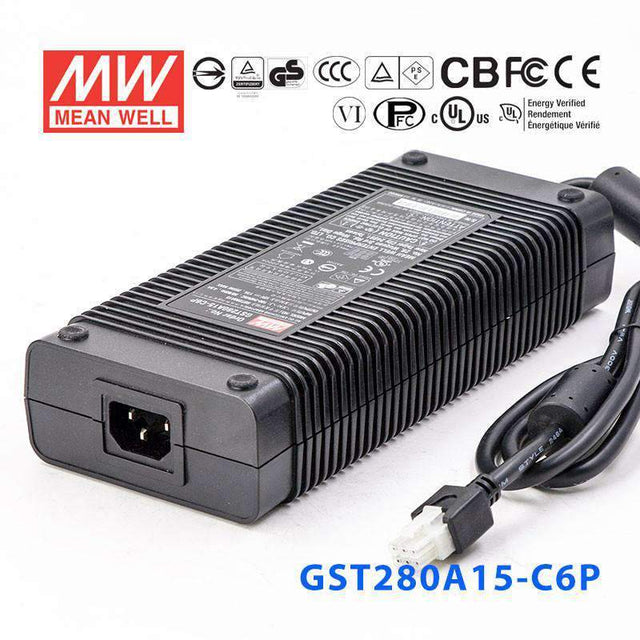

Mean Well GST280A15-C6PPower Supply 255W 15V

Name: Mean Well GST280A15-C6PPower Supply 255W 15V
Brand: Mean Well
SKU: GST280A15-C6P
Price: 79.05 USD
Availability: InStock

SKU:

GST280A15-C6P

$79.05 USD ~~$97.69~~

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

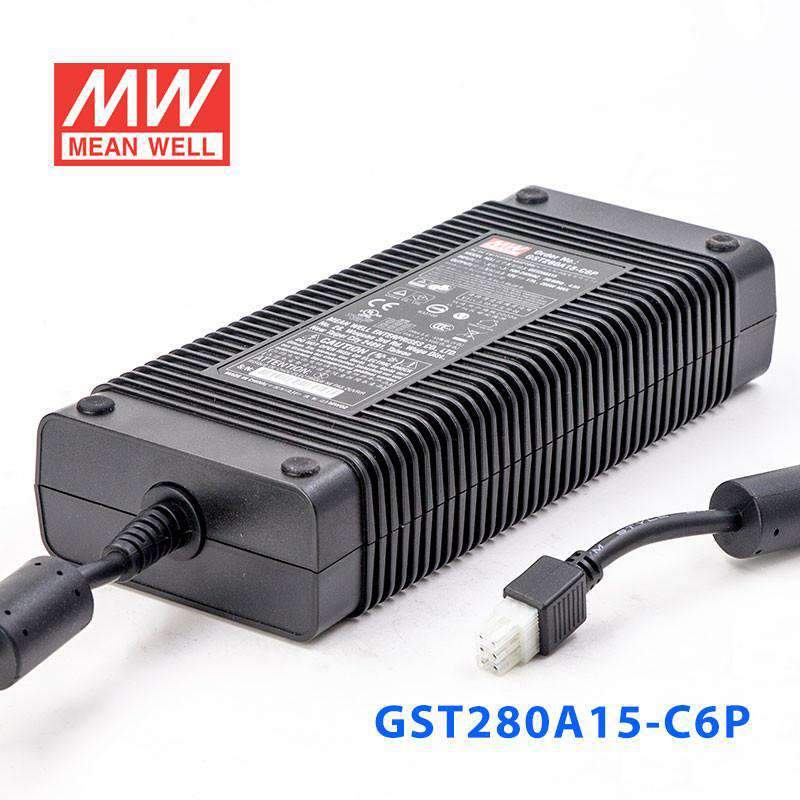

C6P: MOLEX 6 pin connector

Key Features

✓Universal AC input / Full range
✓No load power consumption < 0.5W
✓Energy Efficiency Level VI
✓Meet EISA 2007 (Energy Independence and Security Act)
✓NRCan compliant
✓MEPS compliant

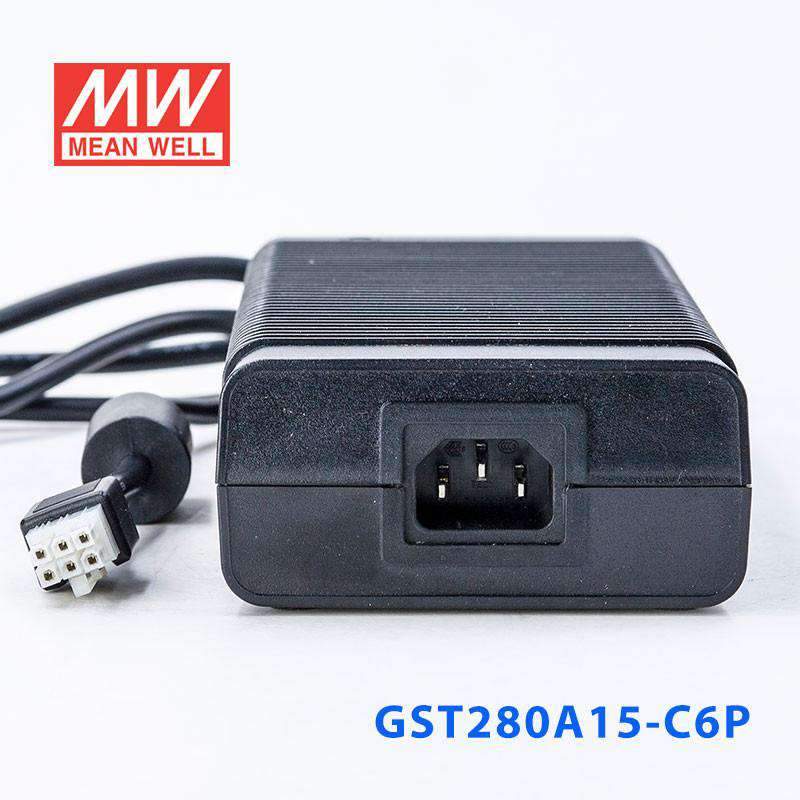

✓3 pole AC inlet IEC320-C14
✓Class I power (with earth pin) only
✓Protections: Short circuit /Overload / Over voltage/Over temperature
✓Fully enclosed plastic case

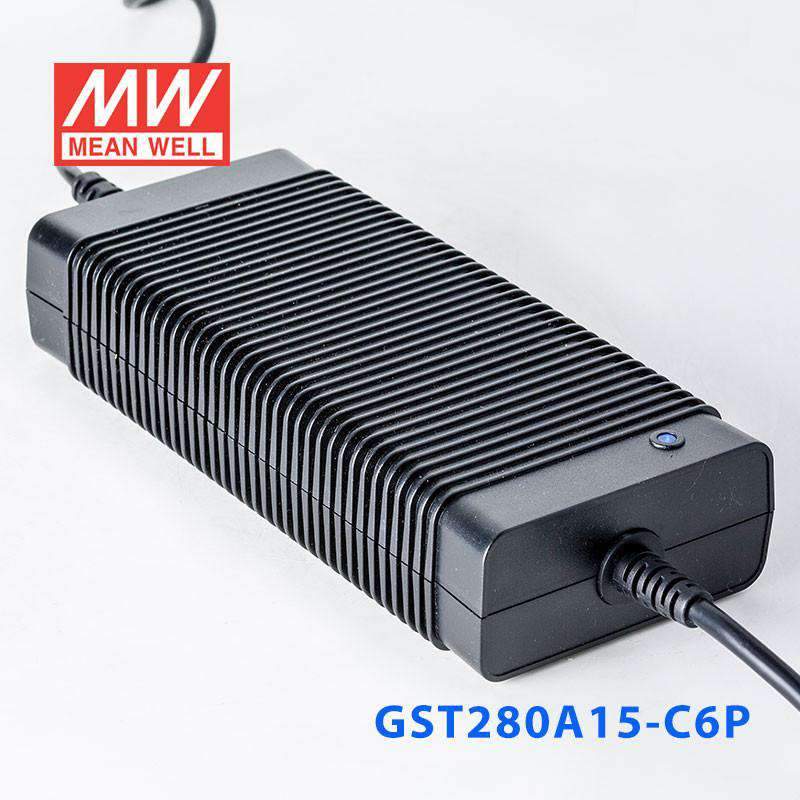

✓LED indicator for power on
✓Built-in active PFC function
✓Fanless design
✓3 years warranty

Brand

Mean Well
Series

GST Series
Power Rating

255 Watt
Output Voltage

15 Volt
Rated Current

17 Ampere
Input Voltage

85V~264V
No of Output

1
Dimming Control

None
Standards Met

BSI,CB,CCC,CE,EAC,FCC,KC,RCM,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-30°C~70°C
Warranty

3 Year
Length

8.66 in
Width

3.74 in
Height

1.81 in
Weight

2.76 lb

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating	Price
Mean Well GST280A48-C6P Power Supply 280W 48V	280.32W	48V	5.84A	Indoor	$97.69	View
Mean Well GST280A24-C6P Power Supply 280W 24V	280.08W	24V	11.67A	Indoor	$96.78	View
Mean Well GST280A12-C6P Power Supply 252W 12V	252W	12V	21A	Indoor	$97.69	View
