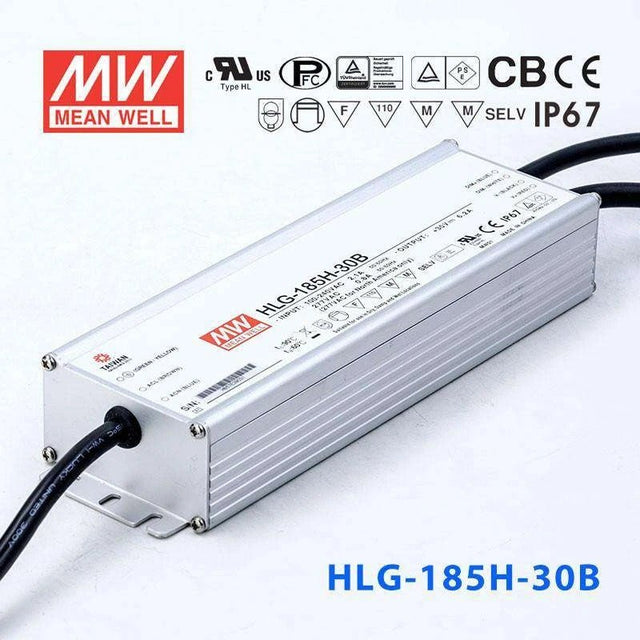

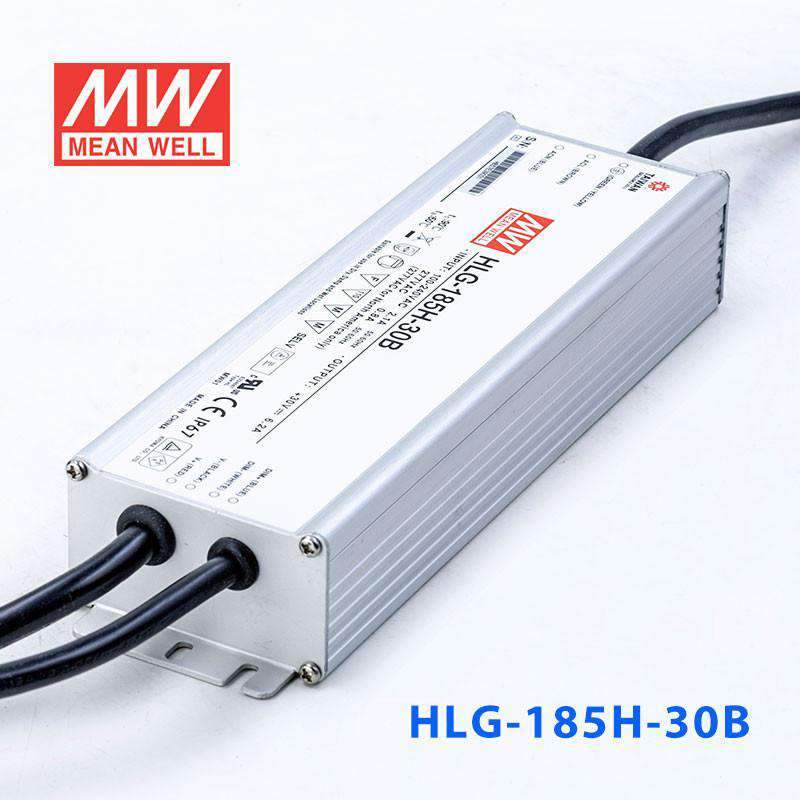

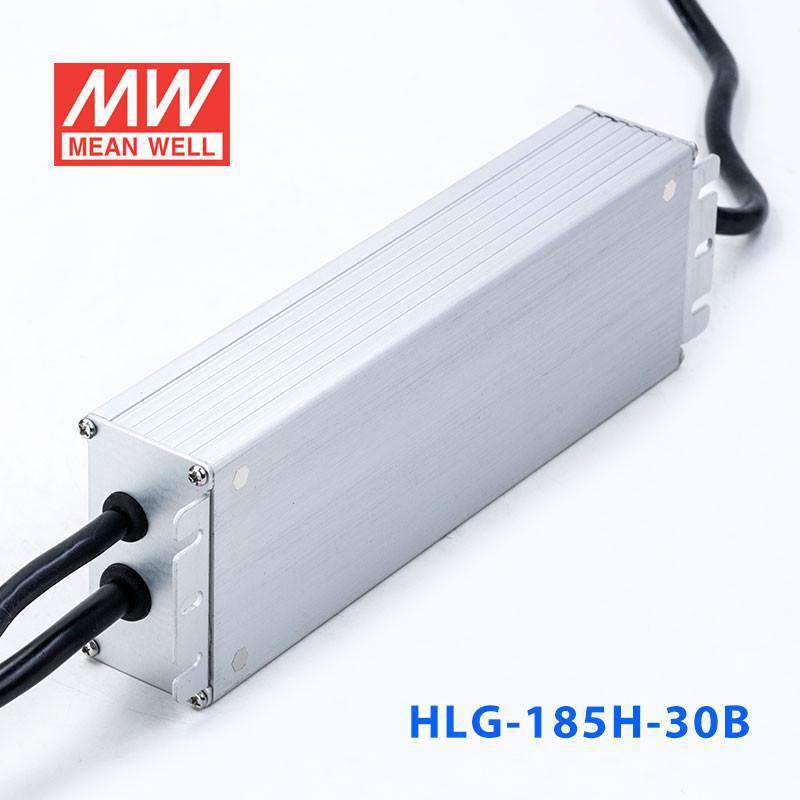

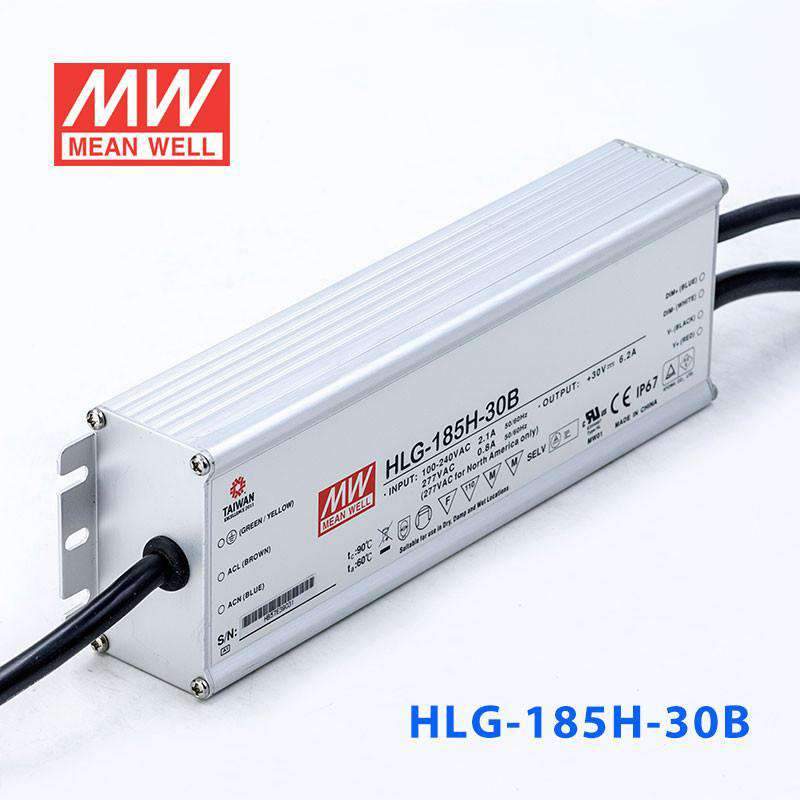

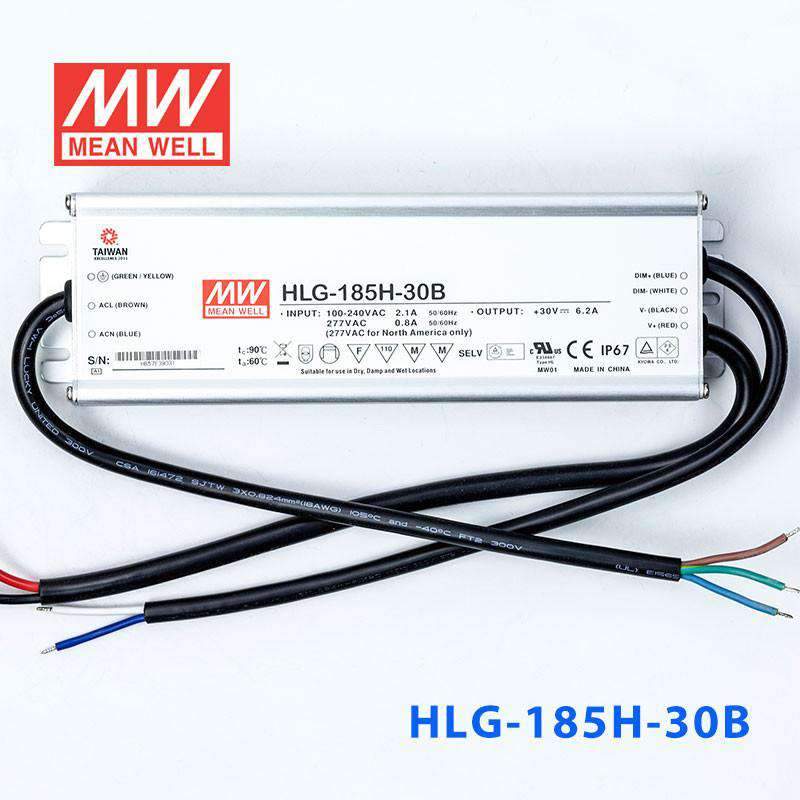

Mean Well HLG-185H-30B Power Supply 185W 30V- Dimmable
The HLG-185H is a 185W Mean Well power converter (input range: 90~305VAC, operating temperature: -40~+90℃).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -40~+90℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: EN/AS/NZS
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating185 Watt
-
Output Voltage30 Volt
-
Rated Current6.2 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty7 Year
-
Length8.98 in
-
Width2.68 in
-
Height1.53 in
-
Weight2.54 lb
::specification::
Frequently Asked Questions
Can I use the HLG-185H-30B for dimmable 30V outdoor LED lighting in rain-exposed locations?
Yes. The HLG-185H-30B has an IP67 waterproof rating with 185W at 30V output and a 1-10V/PWM dimming input. It can be installed in fully exposed outdoor locations including direct rain and temporary submersion, while still allowing brightness control via an external dimming signal.
Is the HLG-185H-30B suitable for dimmable 30V LED flood lighting on building exteriors?
Yes. At 185W and 30V with dimming capability, it can power exterior flood lights, wall washers, or up-lights where brightness needs to change for different scenes or times of day. The IP67 rating and -40°C to +90°C operating range ensure reliable operation in all outdoor conditions year-round.
Can the HLG-185H-30B drive dimmable 30V LED fixtures for outdoor commercial displays?
Yes. The 185W at 30V provides ample power for 30V LED display fixtures, and the dimming input allows brightness adjustment via 1-10V or PWM signal from a display controller or timer. The IP67 waterproof rating and aluminium casing protect the driver in exposed outdoor display installations.
How many meters of 30V LED strip can the HLG-185H-30B support?
Divide 185W by your strip's wattage per meter. For example, a 30V strip rated at 14W/m allows about 13.2 meters (185W / 14W per meter ≈ 13.2m). Always check your specific strip's rated power per meter and keep total load at or below 185W for reliable operation.
Can the HLG-185H-30B handle installation in a marine or waterfront environment?
Yes. The IP67 waterproof rating and sealed aluminium casing protect against saltwater spray, humidity, and dust common in marine and waterfront locations. The -40°C to +90°C operating range handles coastal temperature swings. Mounting hardware and cable connections should also be marine-grade to match the driver's protection level.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other HLG-185H Models
1 other model| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well HLG-185H-24A Power Supply 185W 24V - Adjustable | 185W | 24V | 7.8A | IP65 | $58.71 | View |
